Automatic Transmission Shift Lock Control Component Views

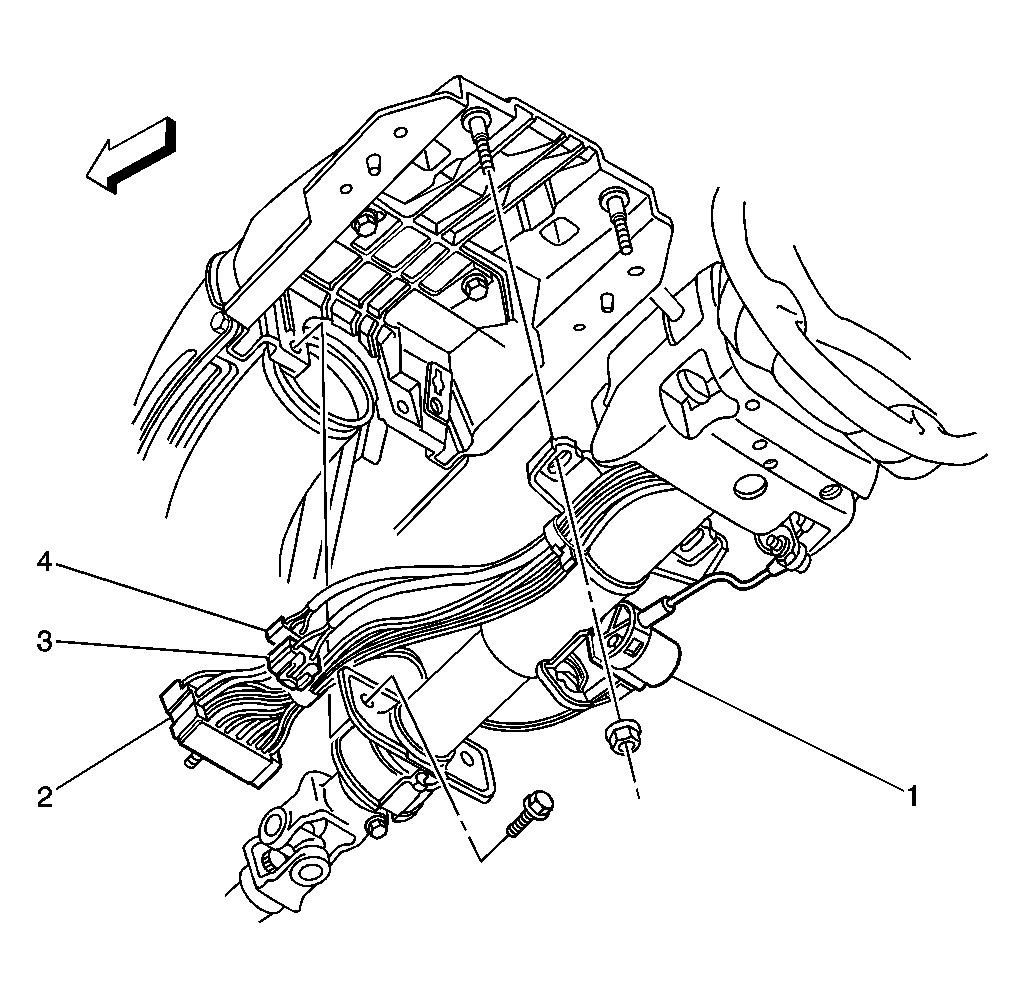

Fig 1: Steering Column Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lock Control Solenoid (Century)
2	C201
3	C205 (UK3)
4	C207

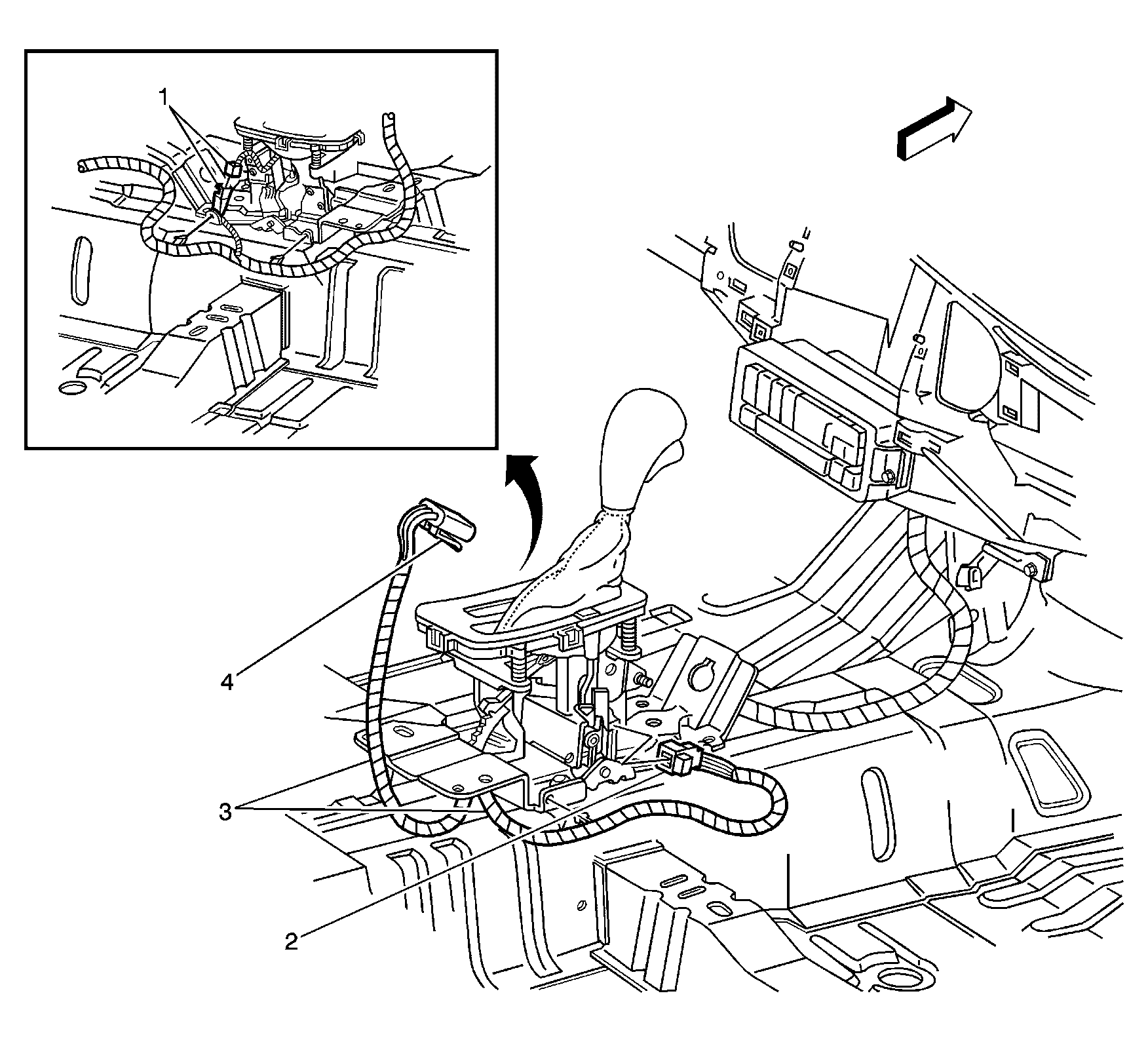

Fig 2: Center of Floor Console (Regal) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Switch
2	A/T Shift Lock Control Switch Connector
3	I/P Wiring Harness
4	C240

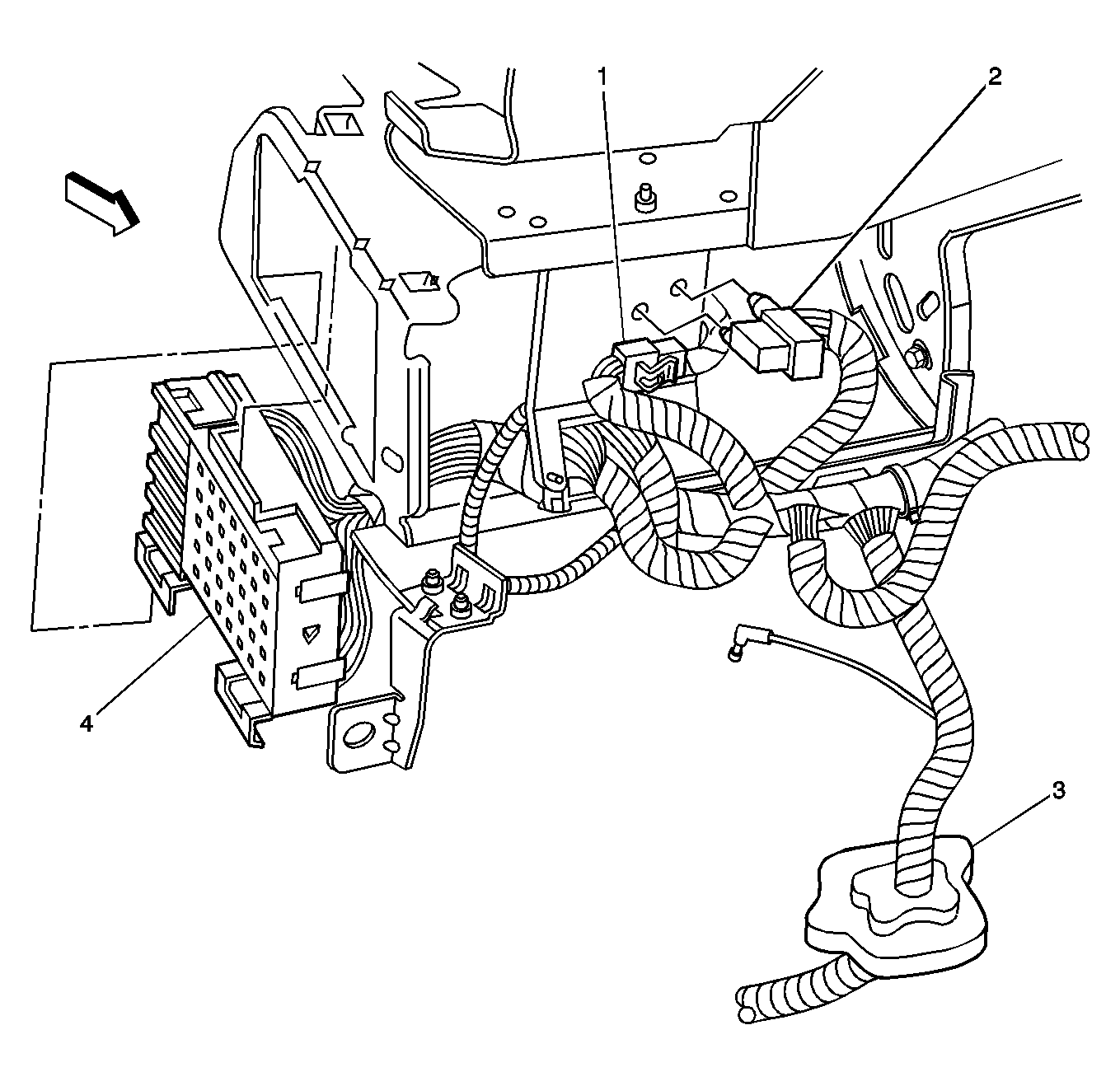

Fig 3: Right Side of Instrument Panel - Rear Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Lamp Relay
2	Brake to Shift Relay
3	P100
4	Fuse Block-I/P
