Installation Procedure

  1. Install the remote control door lock receiver (1). Make sure the retainers are fully seated.

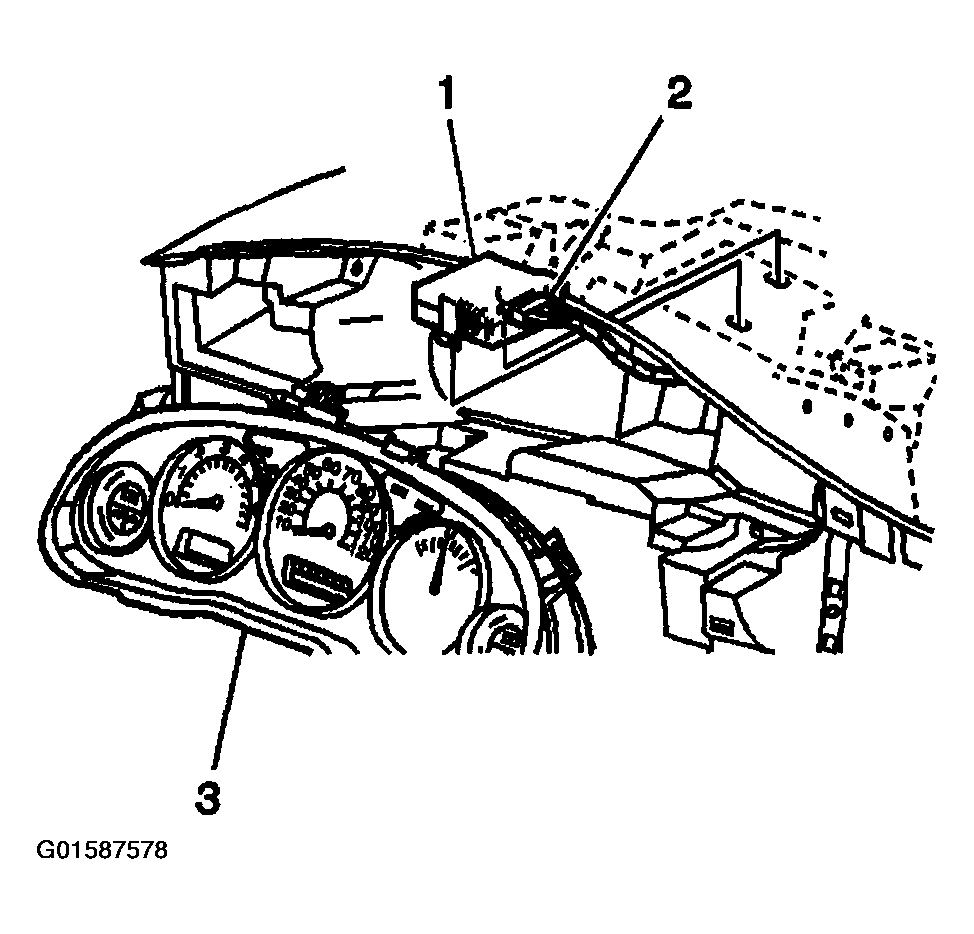

    2. Fig 1: Installing Remote Control Door Lock Receiver
    G01587578Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector (2).
  3. Install the IP cluster (3). Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in Instrument Panel, Gages, and Console.
  4. Program the transmitter to the new receiver. Refer to TRANSMITTER PROGRAMMING  .
