Schematic and Routing Diagrams

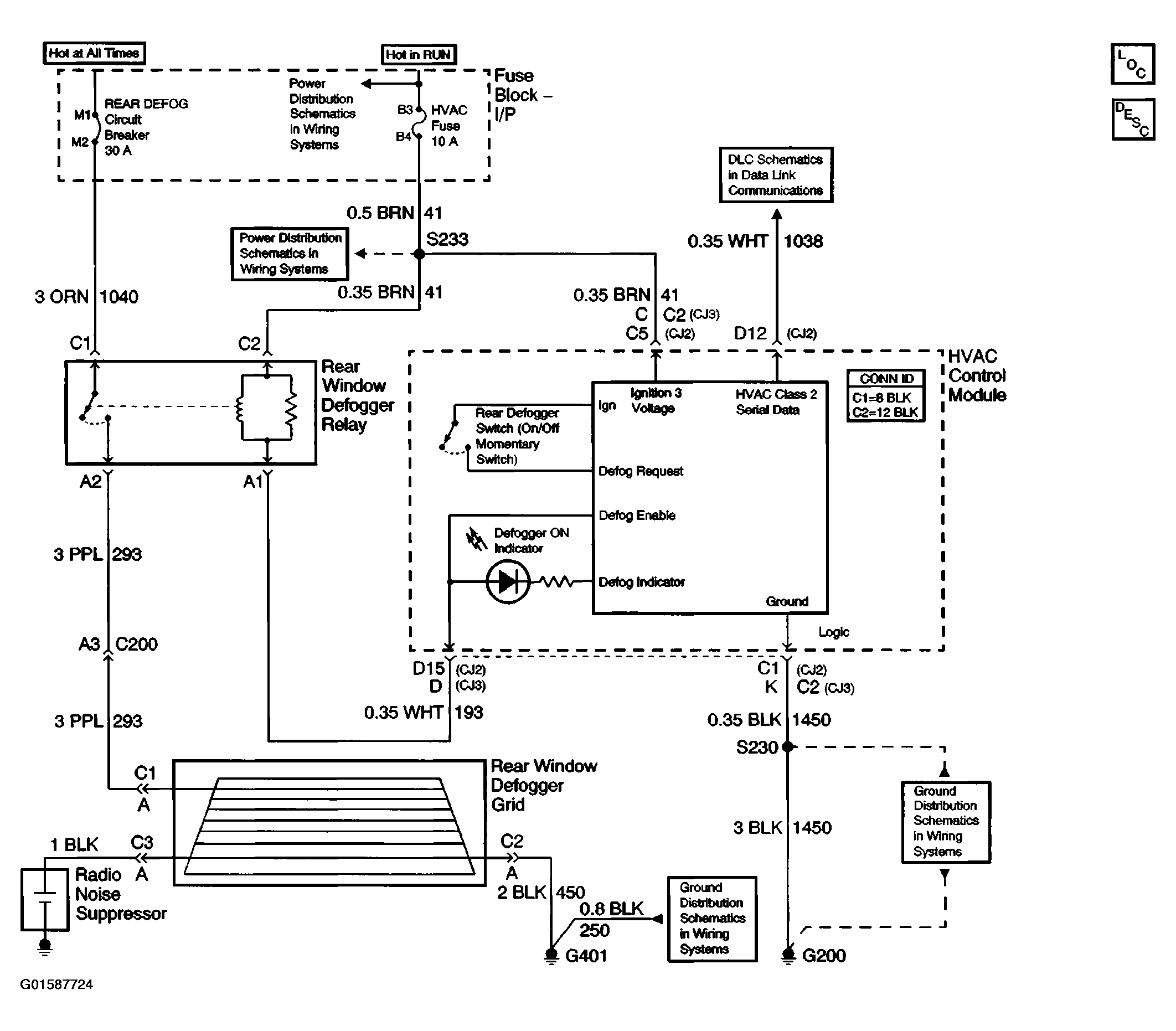

Fig 1: Defogger Schematics
G01587724Courtesy of GENERAL MOTORS CORP.

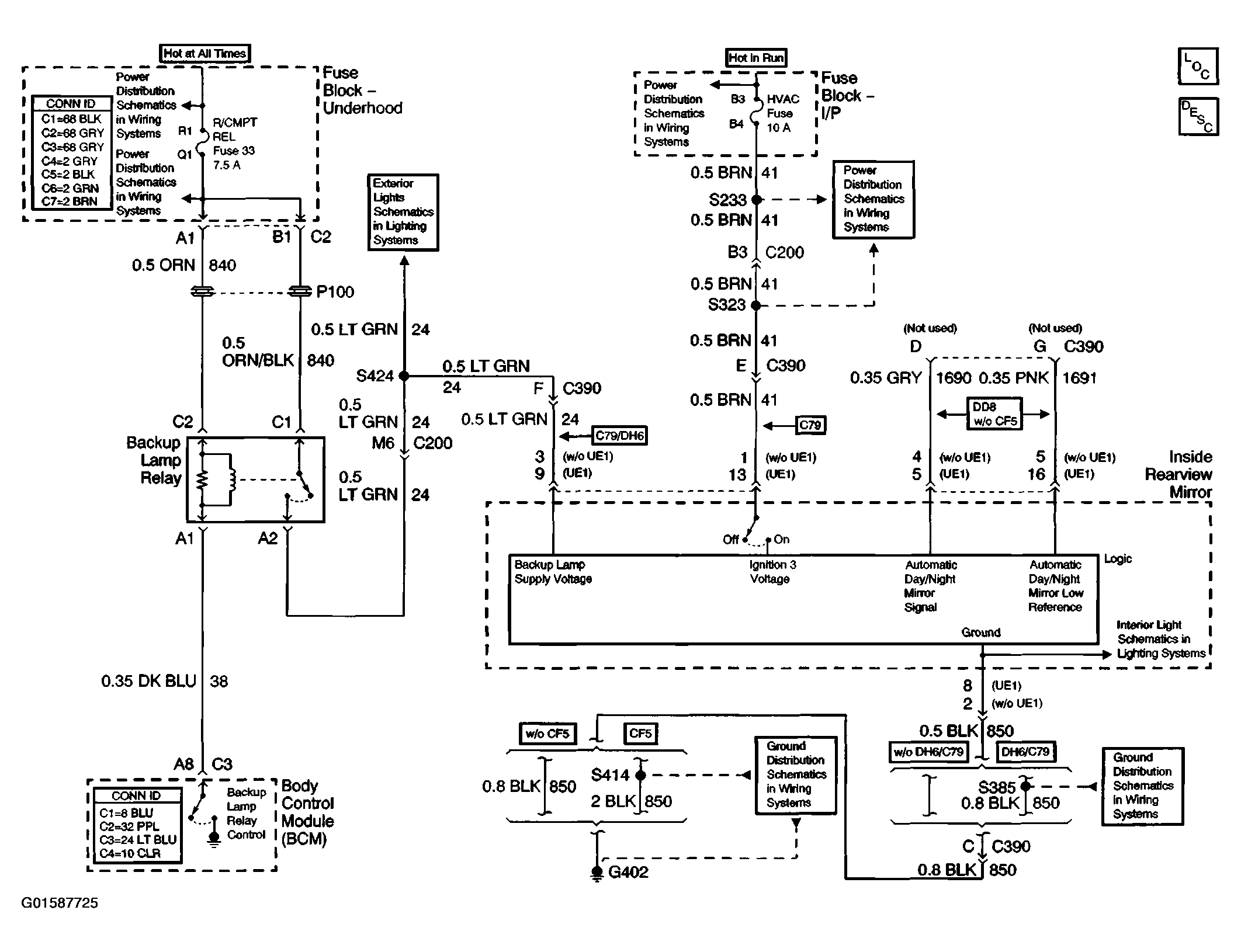

Fig 2: Inside Rearview Mirror Schematics
G01587725Courtesy of GENERAL MOTORS CORP.
