Installation Procedure

  1. Position the horn assembly to the frame rail extension. Insert the horn anti-rotation tab into the slot on the frame rail.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the horn bracket bolt.

    Tighten

    Tighten the bolt to 15 N.m (11 lb ft).

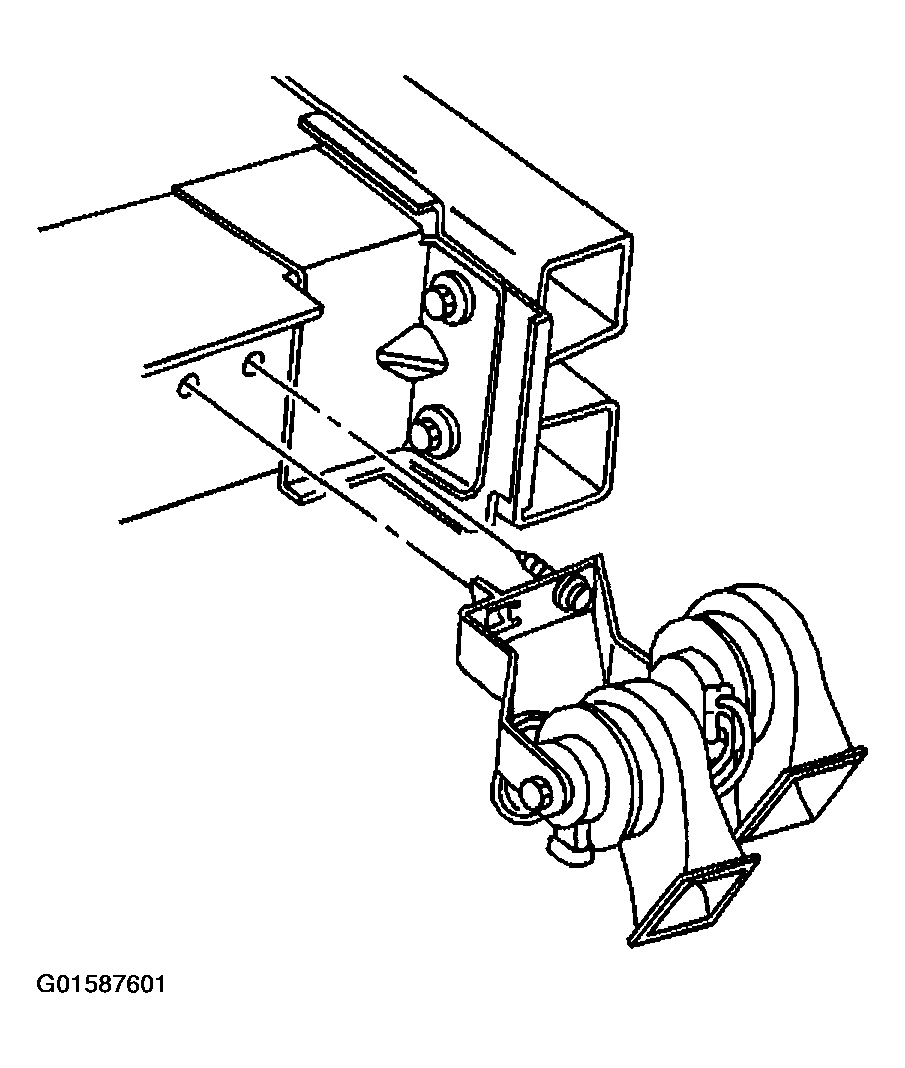

    3. Fig 1: Installing Horn To Frame Rail Extension
    G01587601Courtesy of GENERAL MOTORS CORP.
  3. Connect the horn electrical connector.

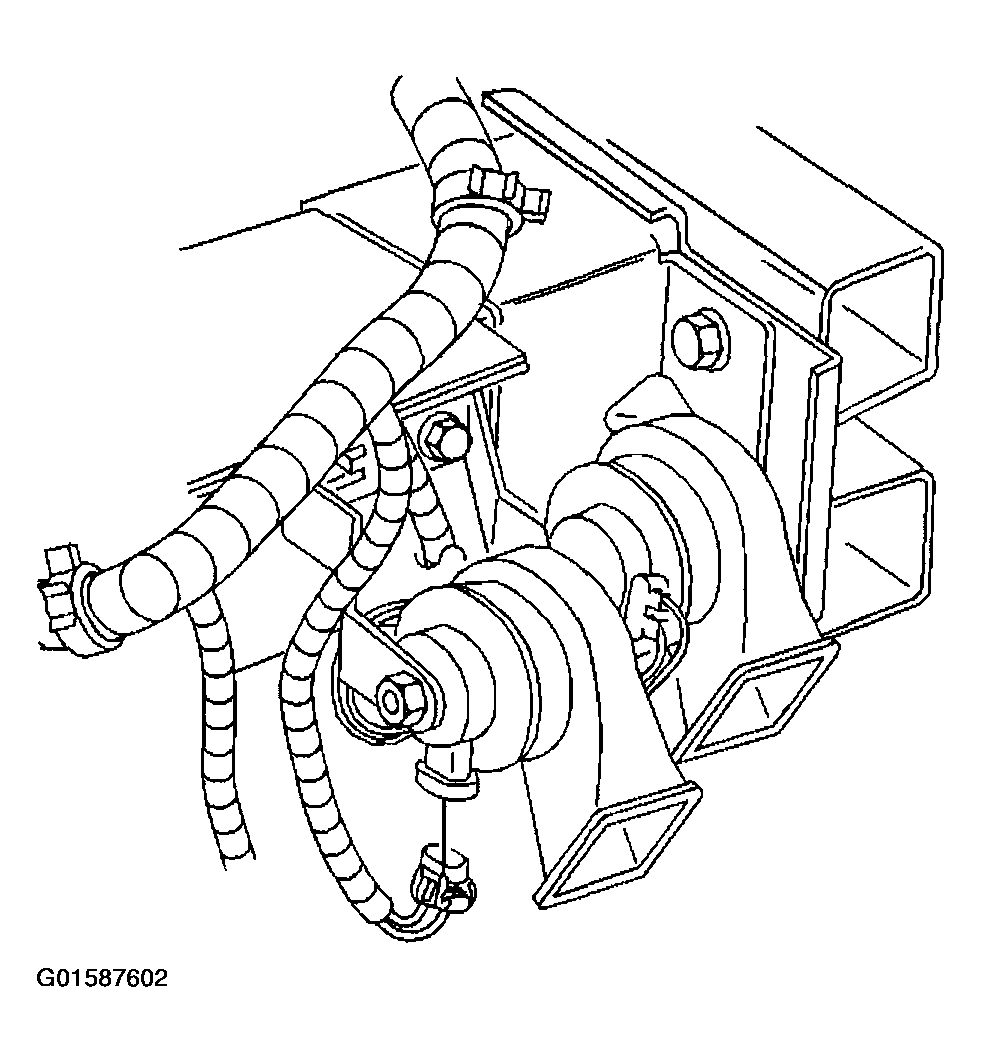

    4. Fig 2: Connecting Horn Electrical Connector
    G01587602Courtesy of GENERAL MOTORS CORP.
  4. Install the RH headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT in Lighting Systems.
  5. Close the hood.
