Removal Procedure

  1. Open the seat belt guide loop cover.
  2. Remove the guide loop nut.
  3. Remove the guide loop from the guide adjuster bracket.
  4. Remove the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR  in Interior Trim.
  5. Remove the shoulder belt guide adjuster bracket bolts.
  6. Remove the shoulder belt guide adjuster bracket from the center pillar.

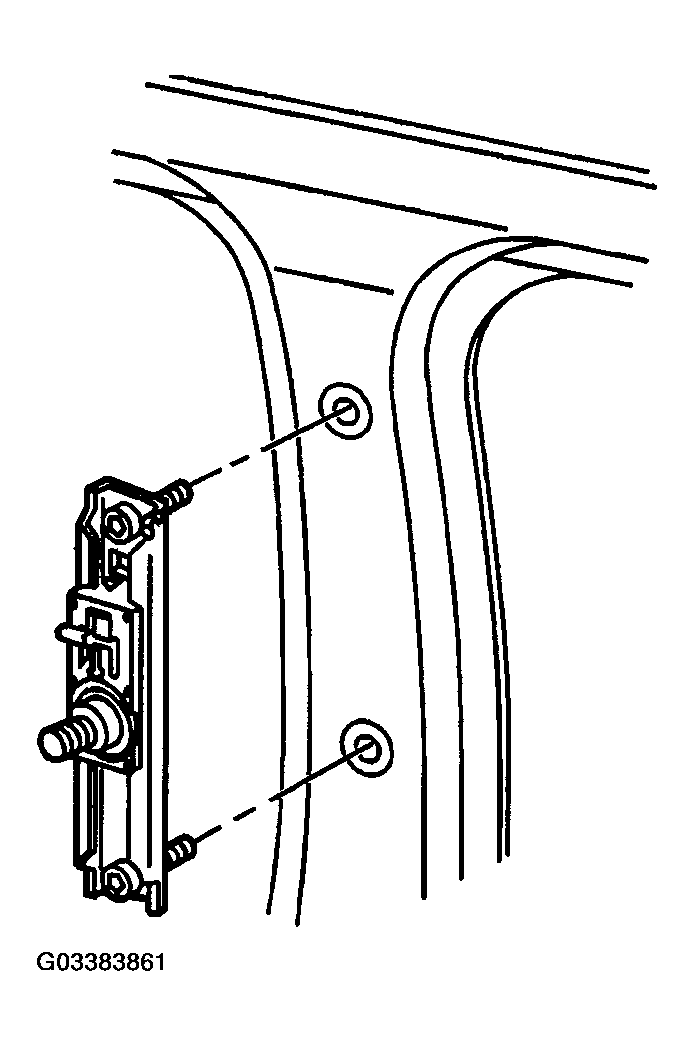

    Fig 1: Removing Shoulder Belt Guide Adjuster Bracket Bolts
    G03383861Courtesy of GENERAL MOTORS CORP.
