Keyless Entry Component Views

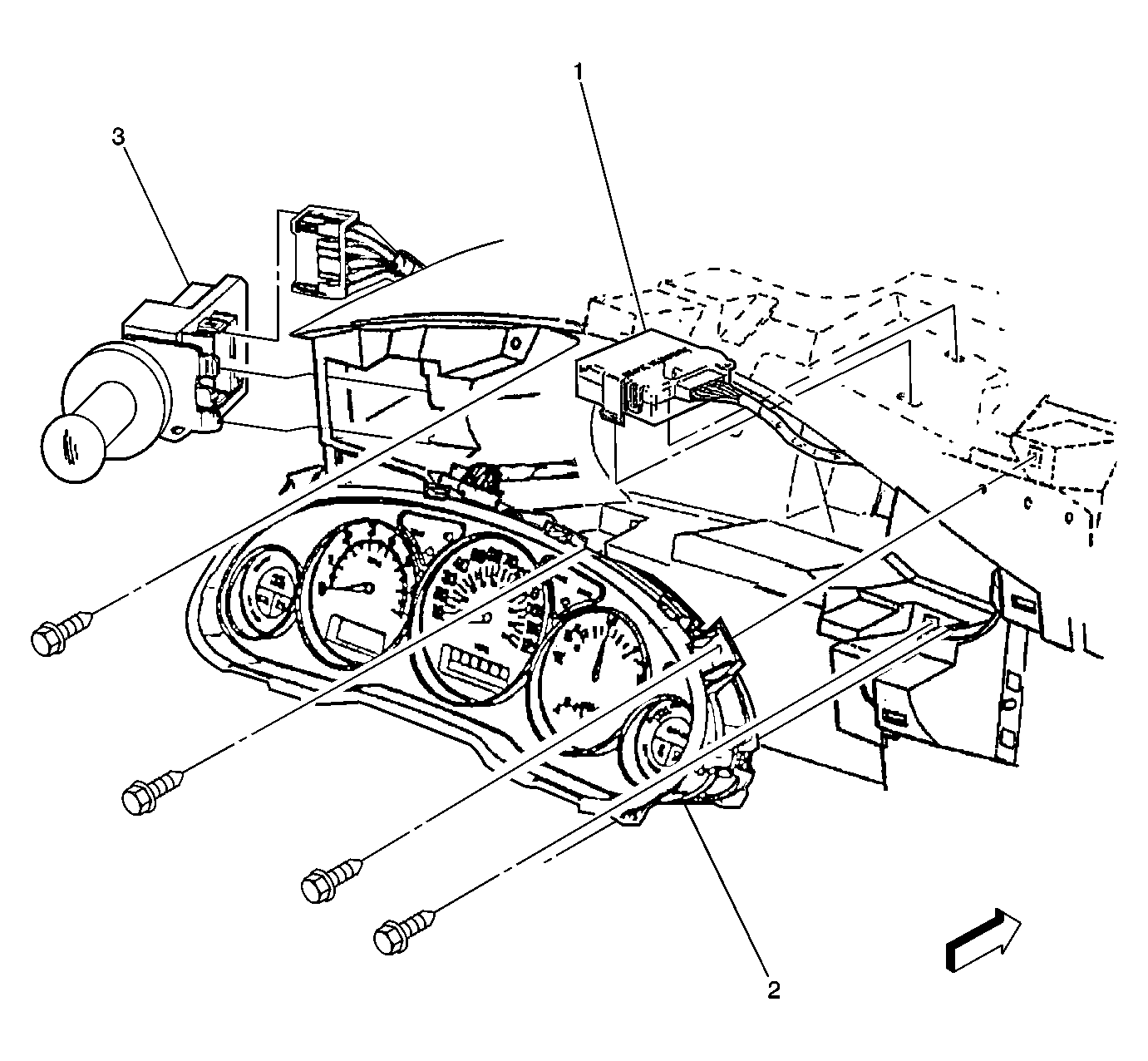

Fig 1: Left Side of Instrument Panel Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Remote Control Door Lock Receiver (RCDLR)
2
Instrument Panel Cluster (IPC)
3
Headlamp Switch
