Stationary Windows Component Views

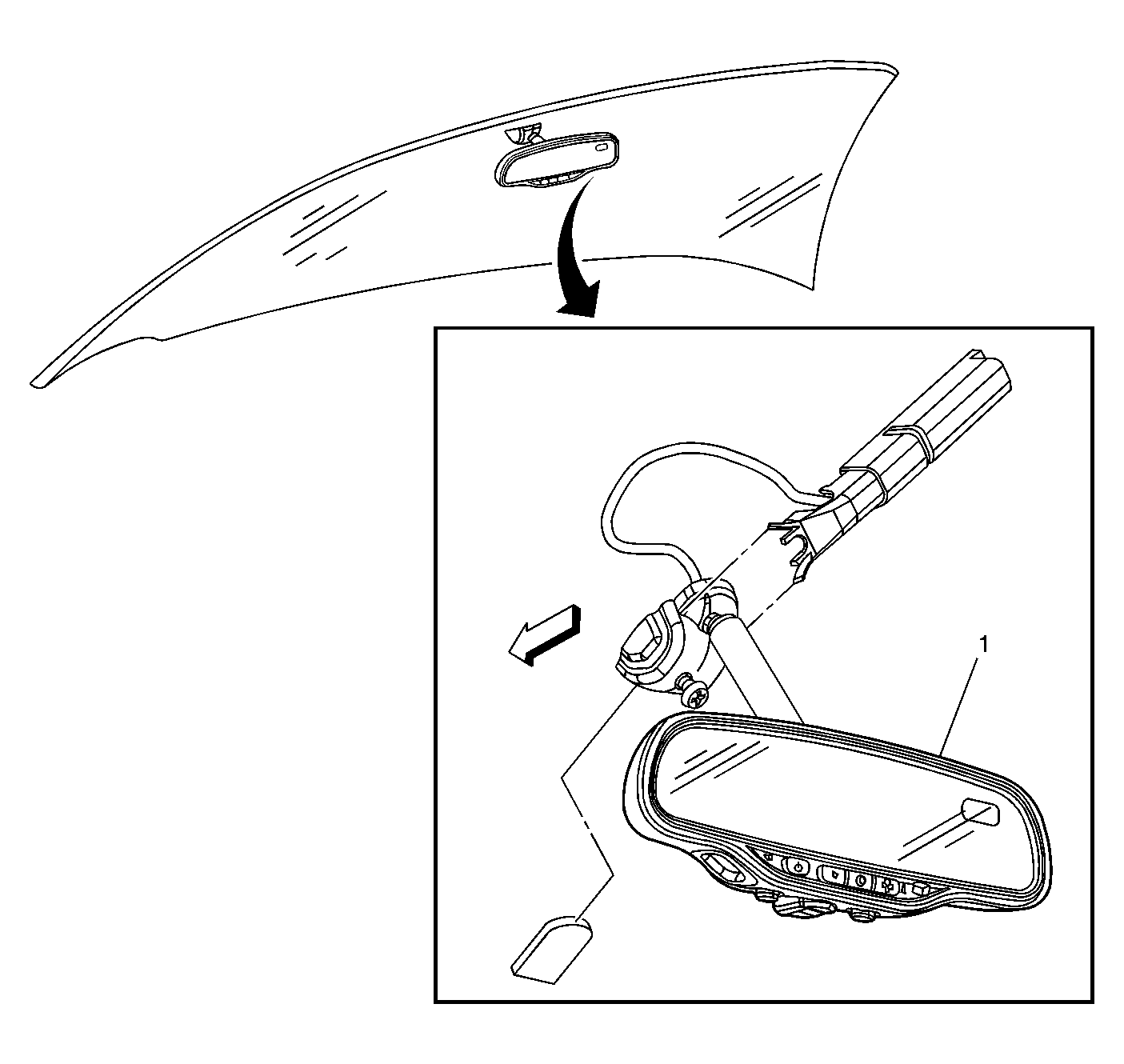

Fig 1: View Of Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (UE1 Shown, DC4 Similar)

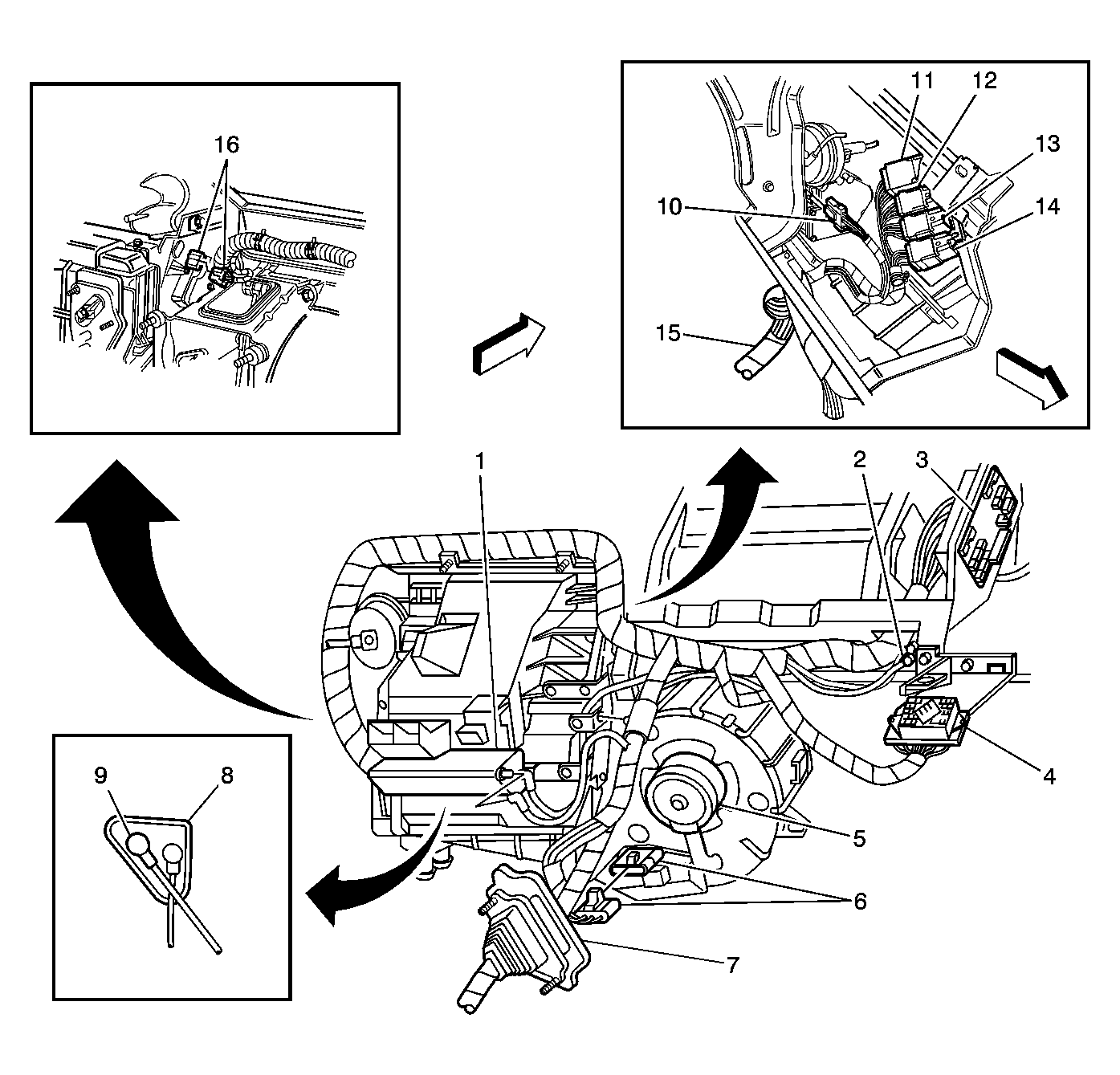

Fig 2: Behind The Right Side Of The I/P Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vacuum Reservoir
2	G200
3	Fuse Block - I/P
4	C200
5	Blower Motor
6	Blower Motor Resistor Assembly (CJ3)/Blower Motor Control Processor (CJ2)
7	P100
8	Vacuum Reservoir
9	Black Vacuum Hose
10	Air Temperature Actuator - Right
11	Automatic Headlamp Relay
12	Rear Compartment Lid Release Relay
13	Rear Window Defogger Relay
14	Retained Accessory Power (RAP) Relay
15	I/P Wiring Harness
16	Air Temperature Actuator - Left

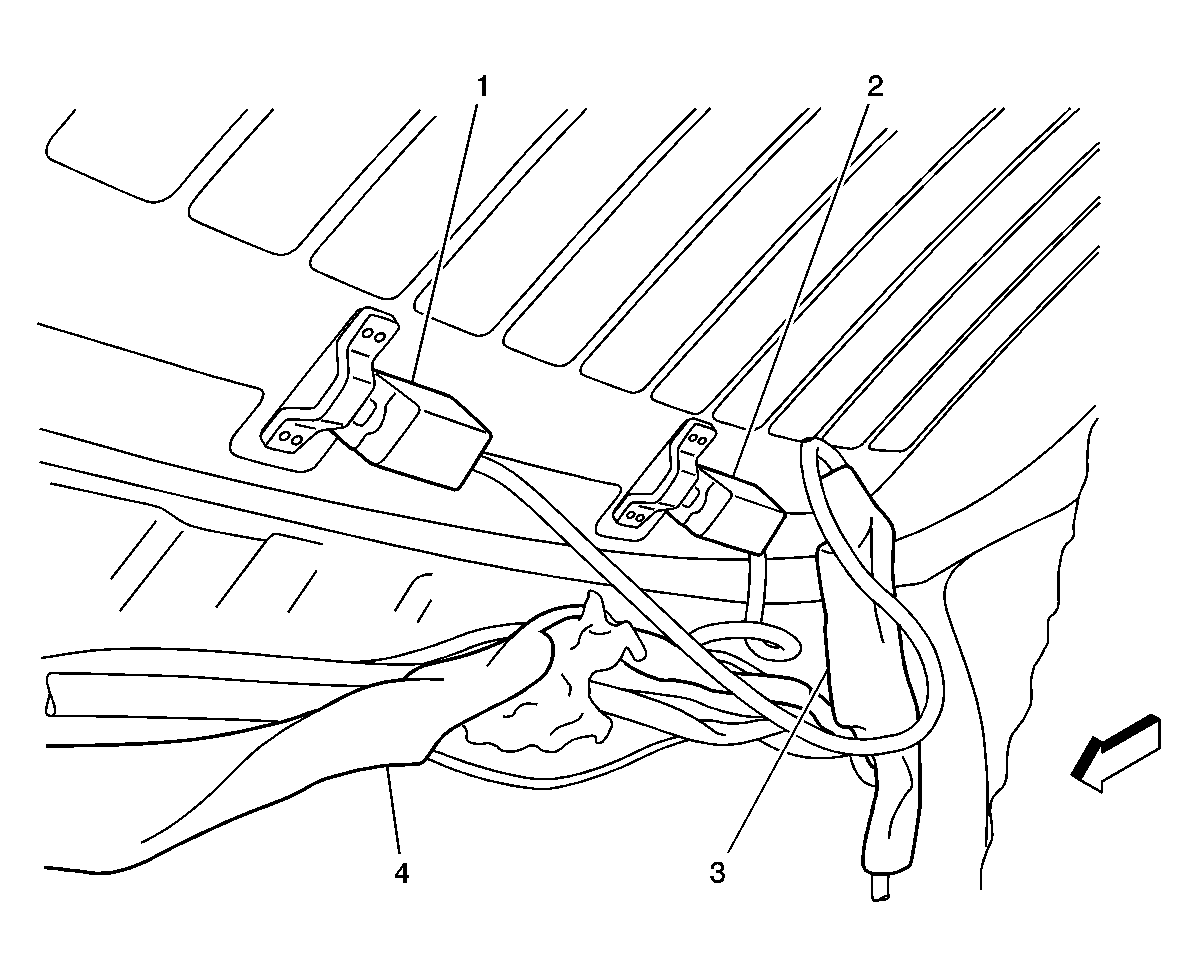

Fig 3: RR Of The Passenger Compartment Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector, C3 (U77)
2	Rear Window Defogger Grid Connector, C1
3	Radio Noise Suppressor
4	Body Wiring Harness

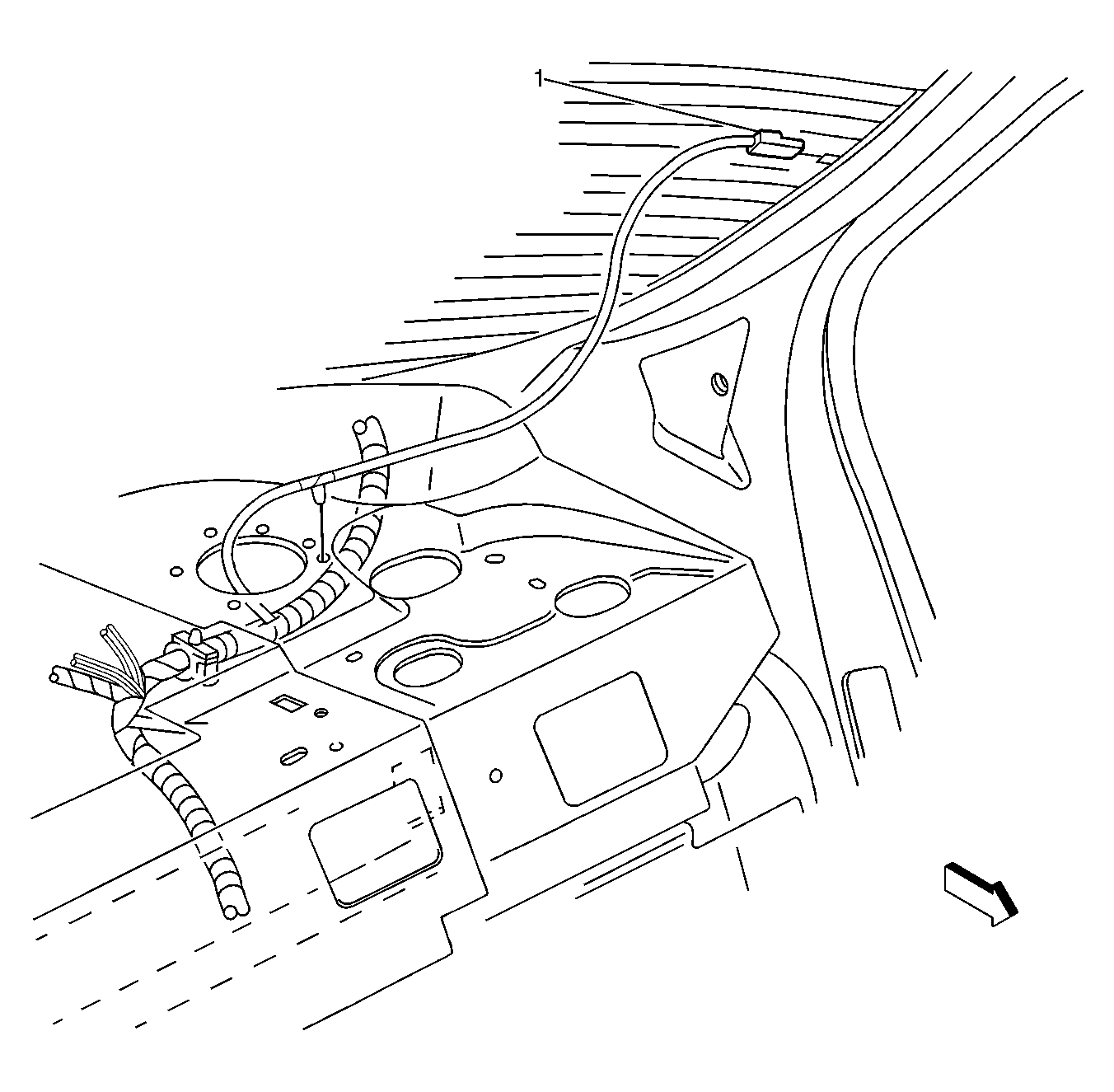

Fig 4: Left Side Of Rear Window Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector, C2
