Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

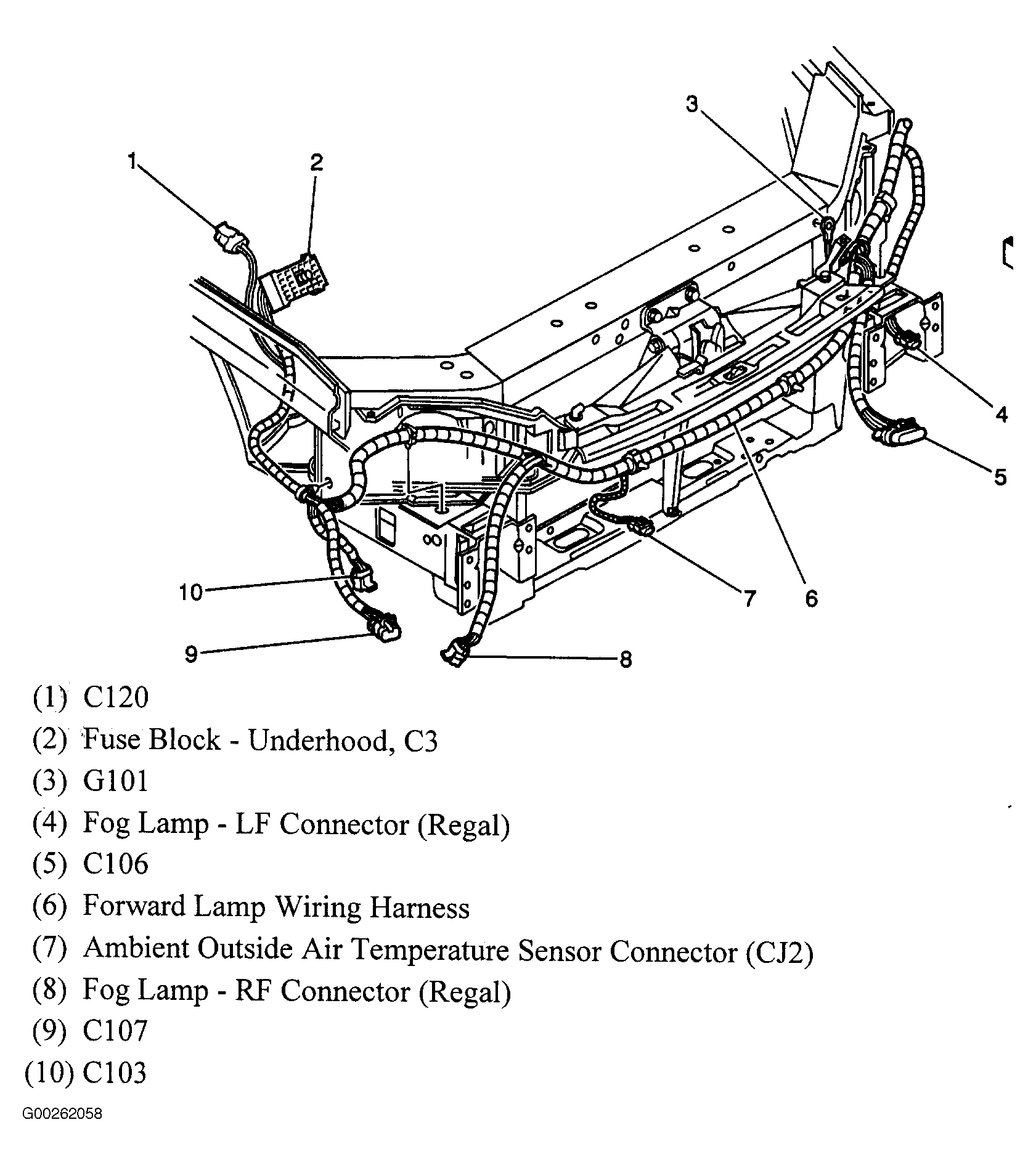

Fig 1: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

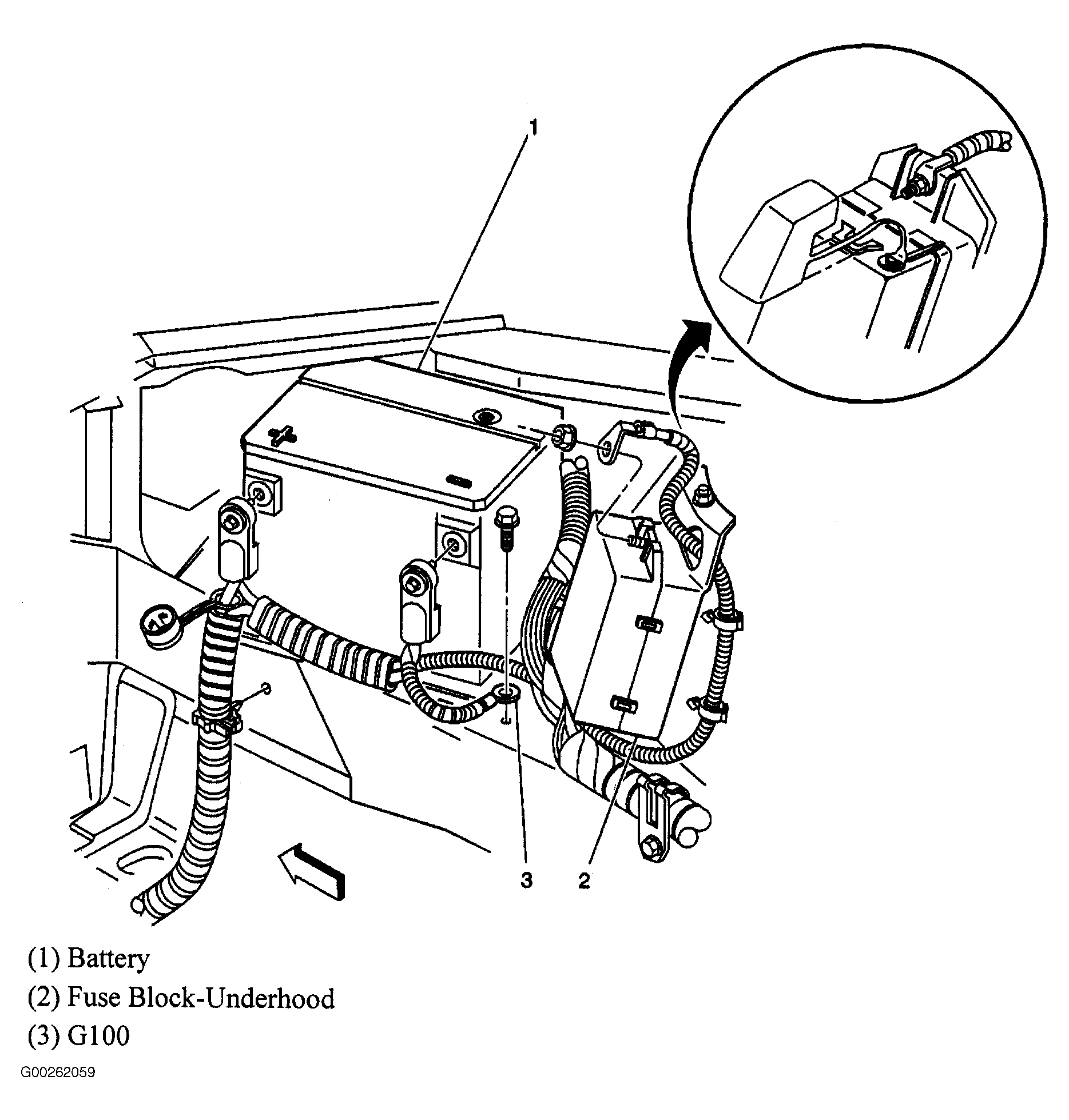

Fig 2: Battery Cable & Grounding Points
Courtesy of GENERAL MOTORS CORP.

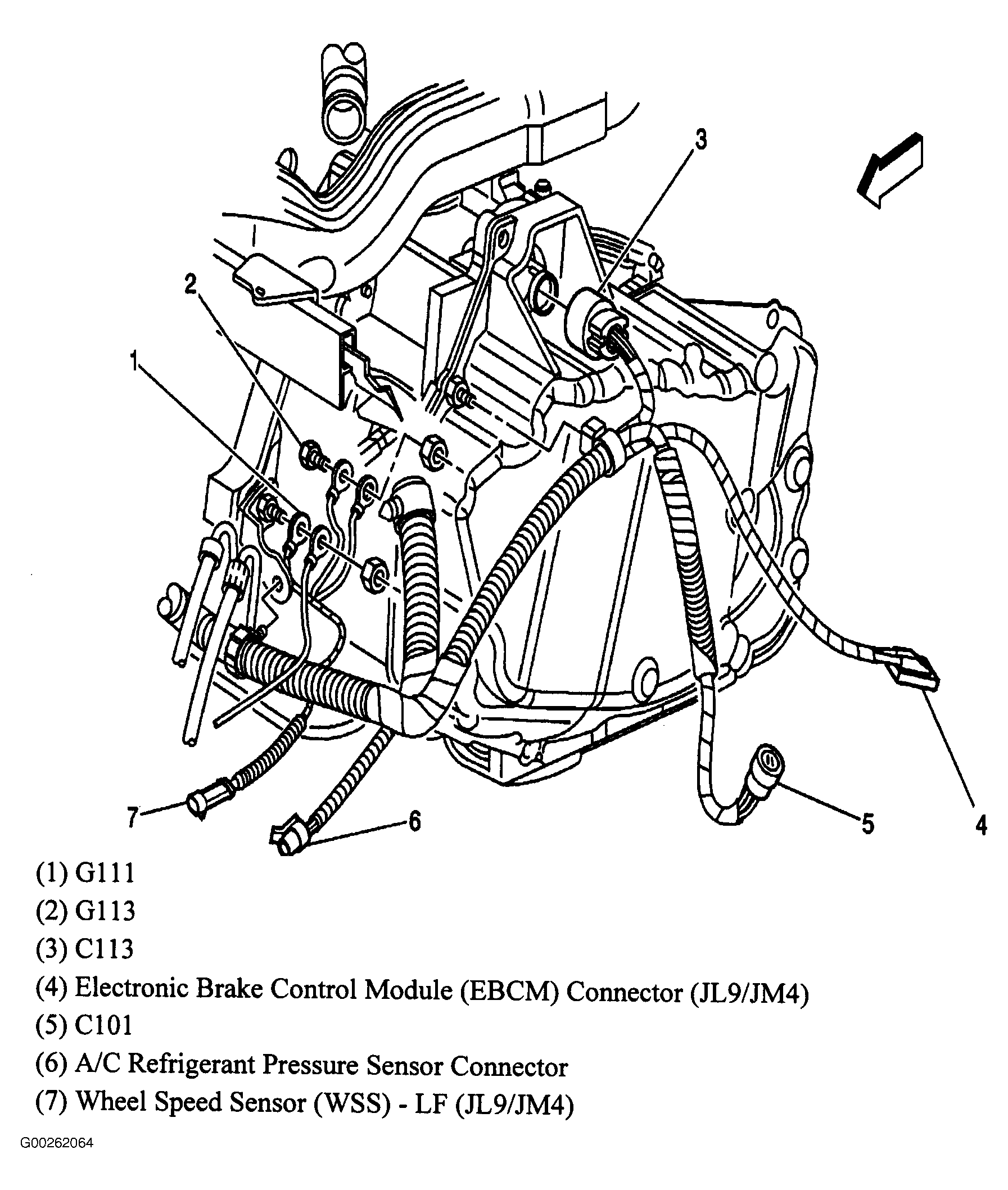

Fig 3: Lower Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

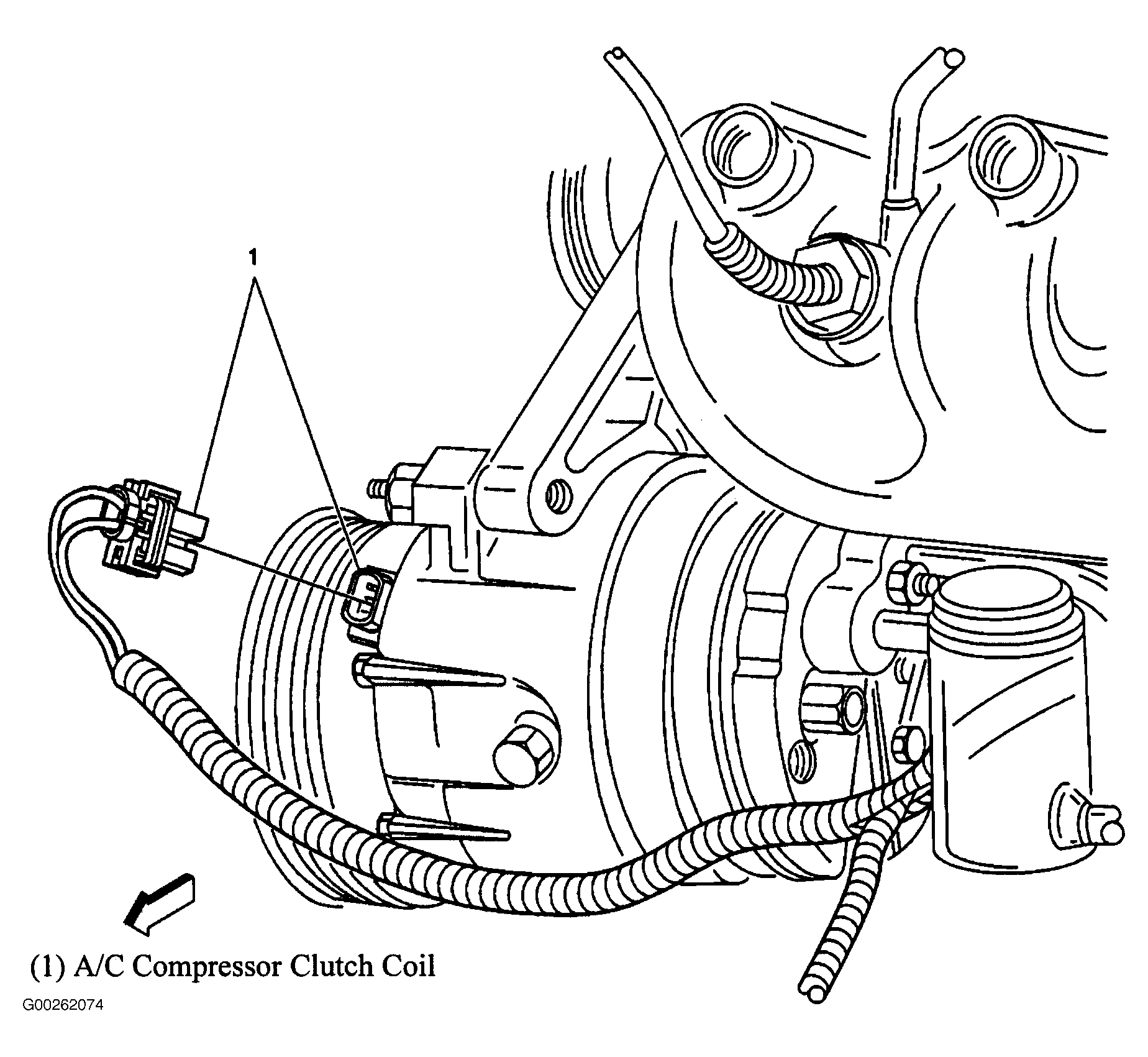

Fig 4: Lower Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

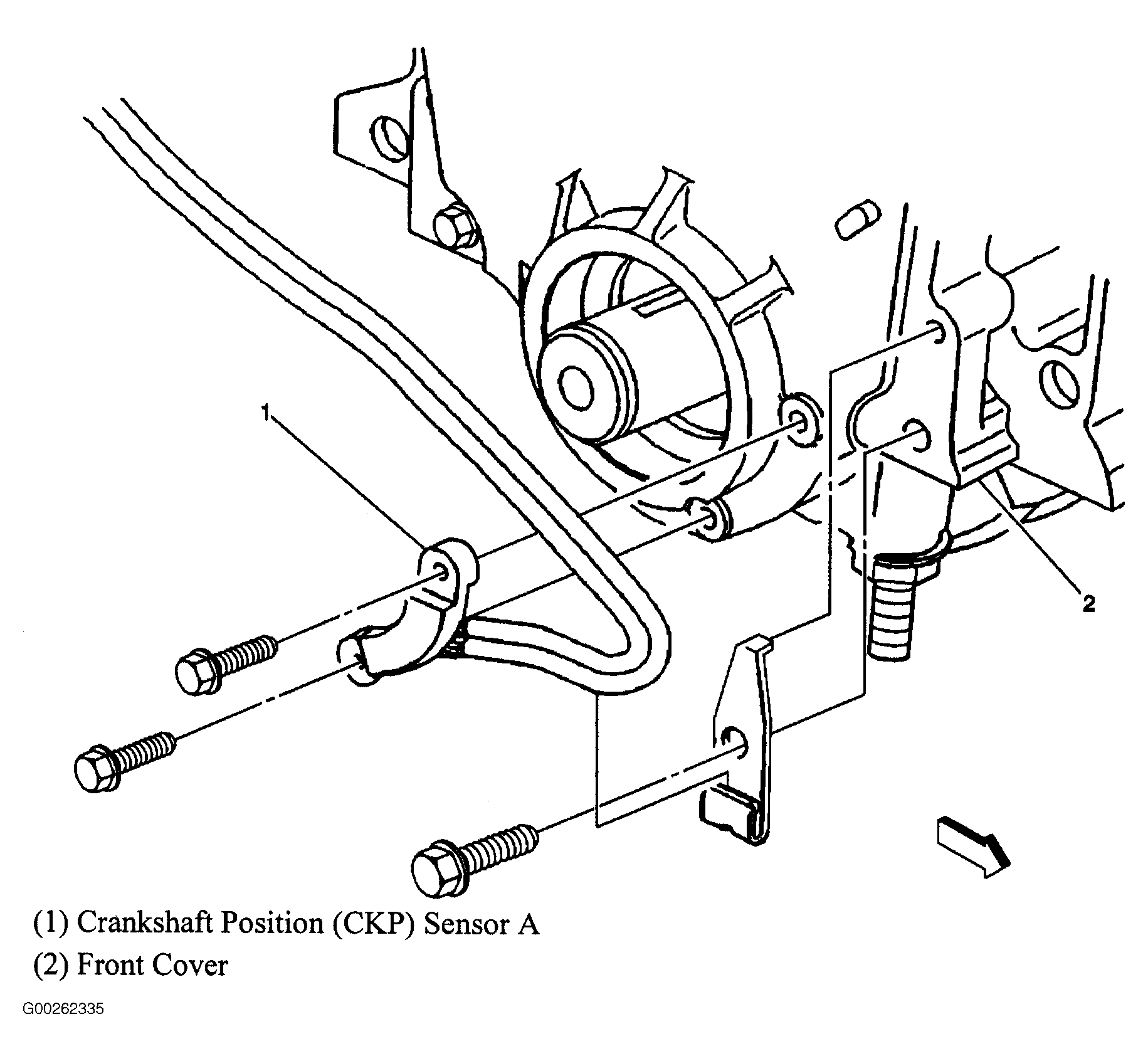

Fig 5: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

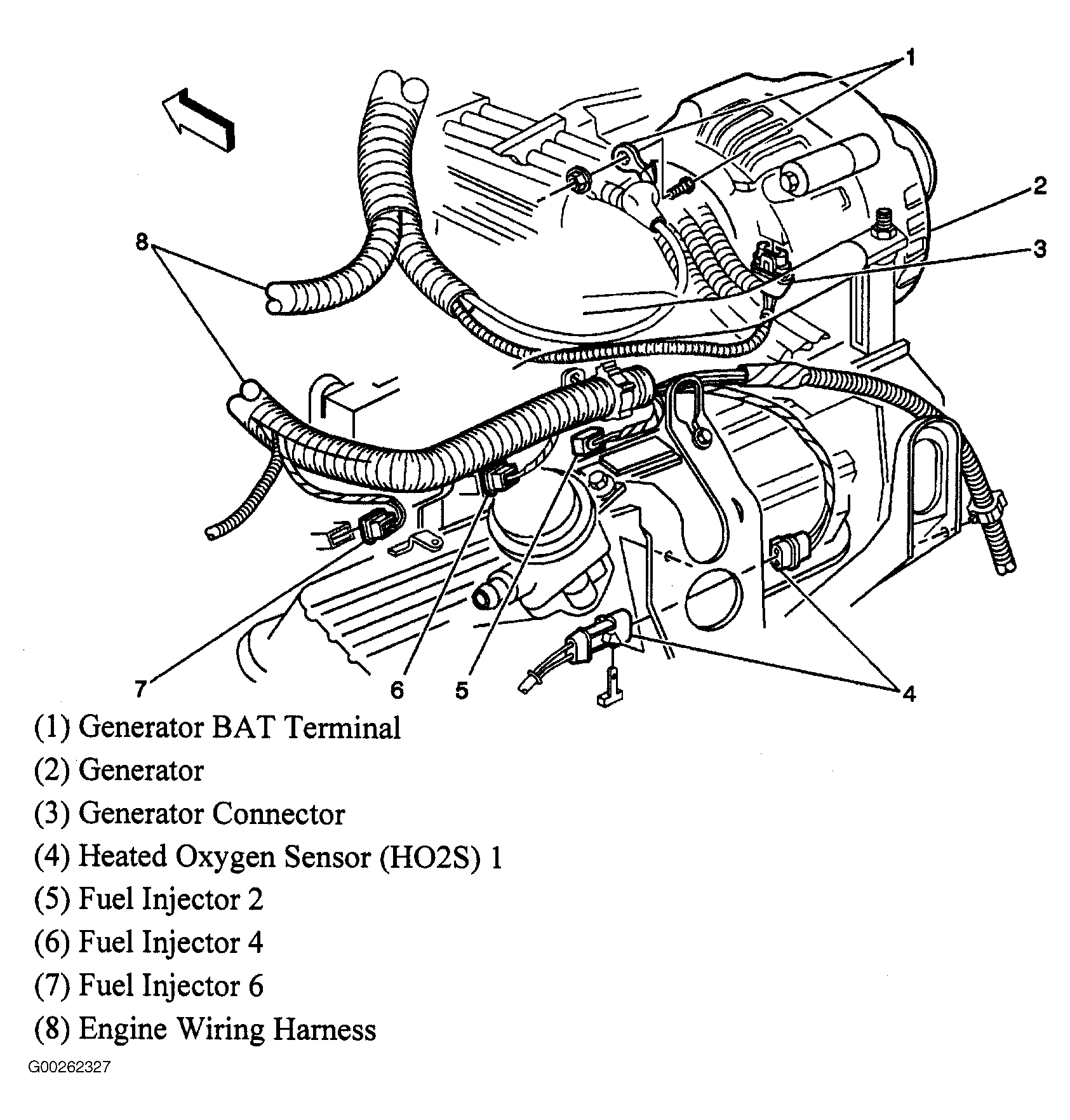

Fig 6: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

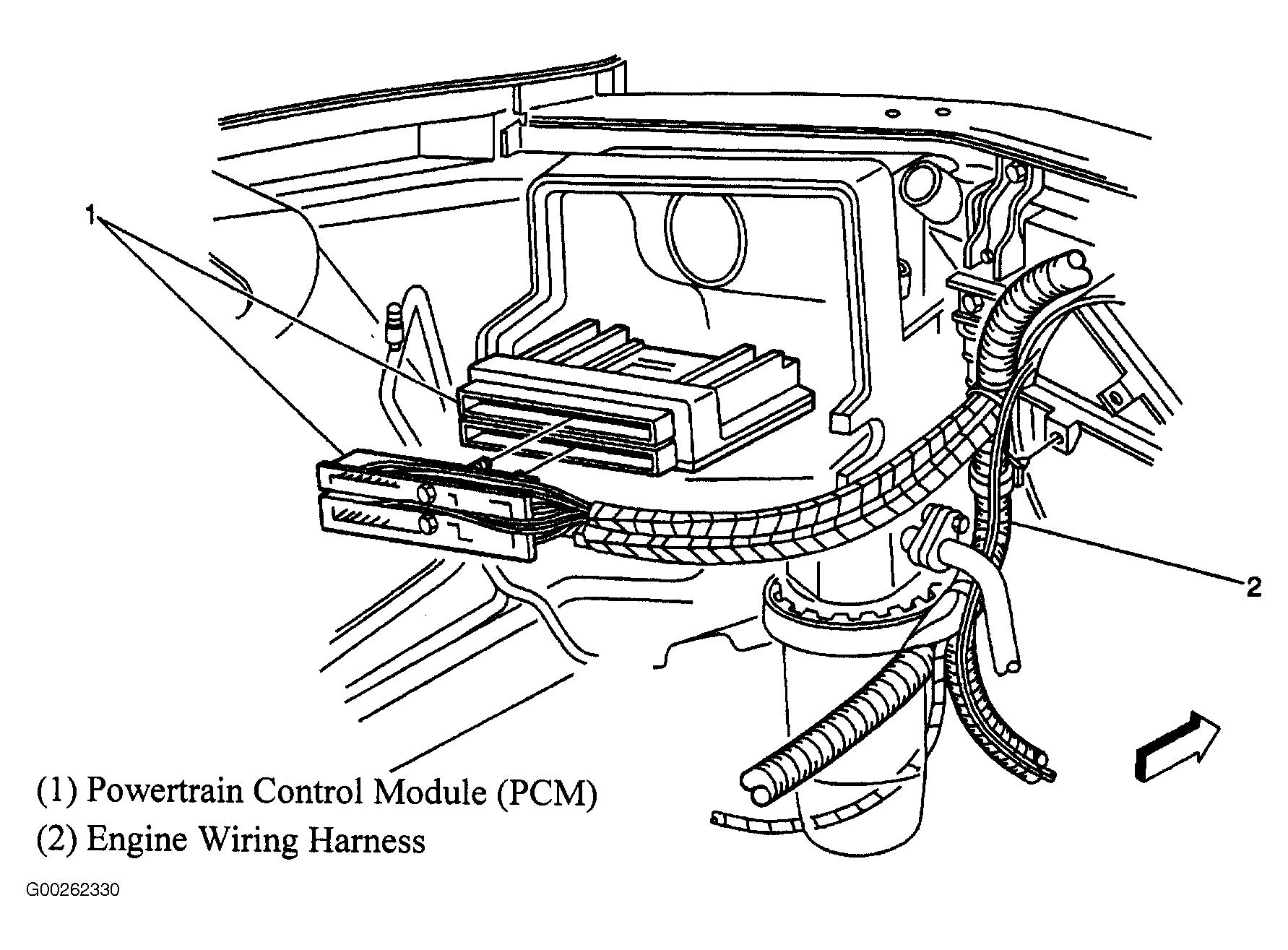

Fig 7: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

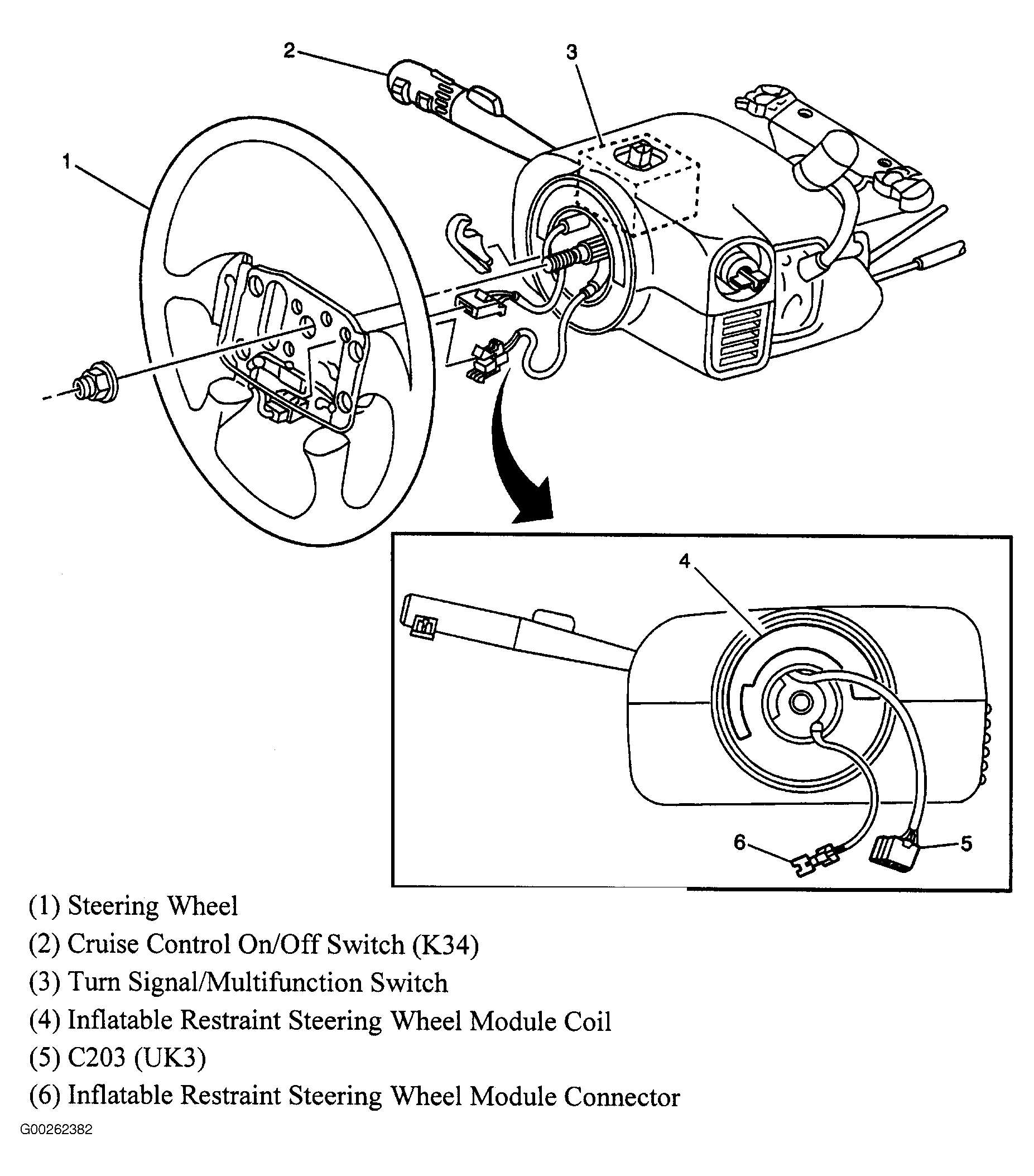

Fig 8: Steering Column
Courtesy of GENERAL MOTORS CORP.

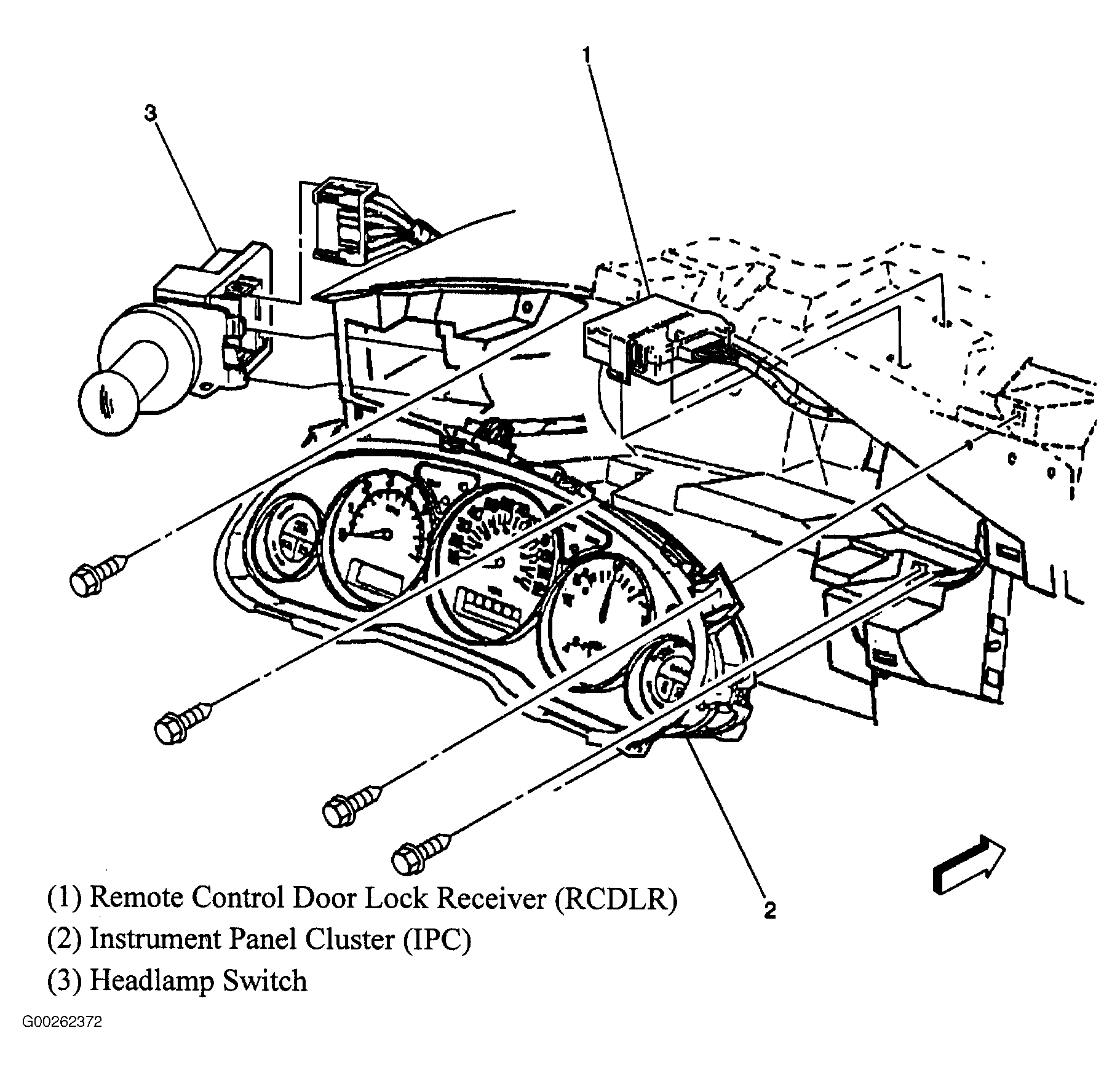

Fig 9: Upper Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

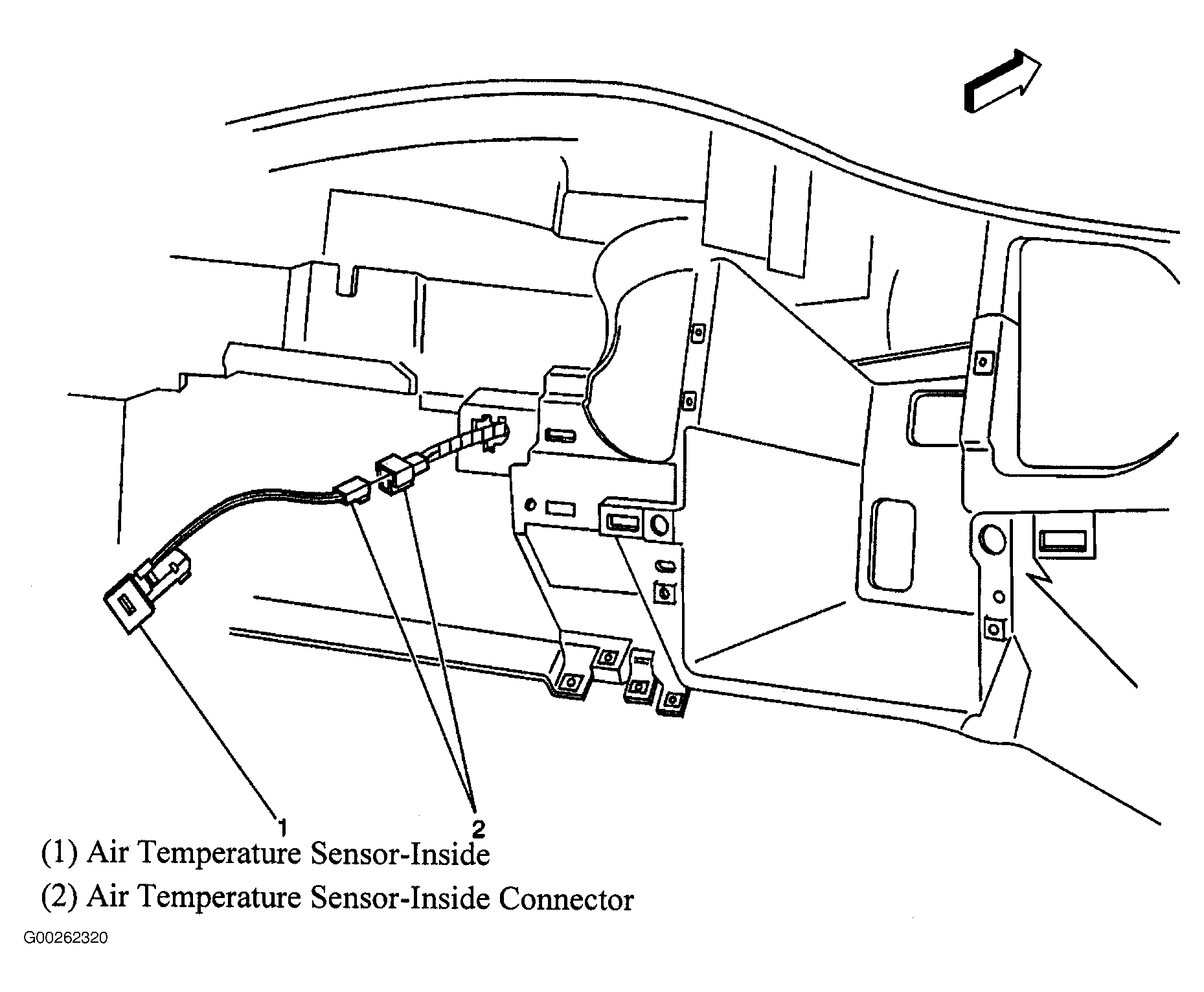

Fig 10: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

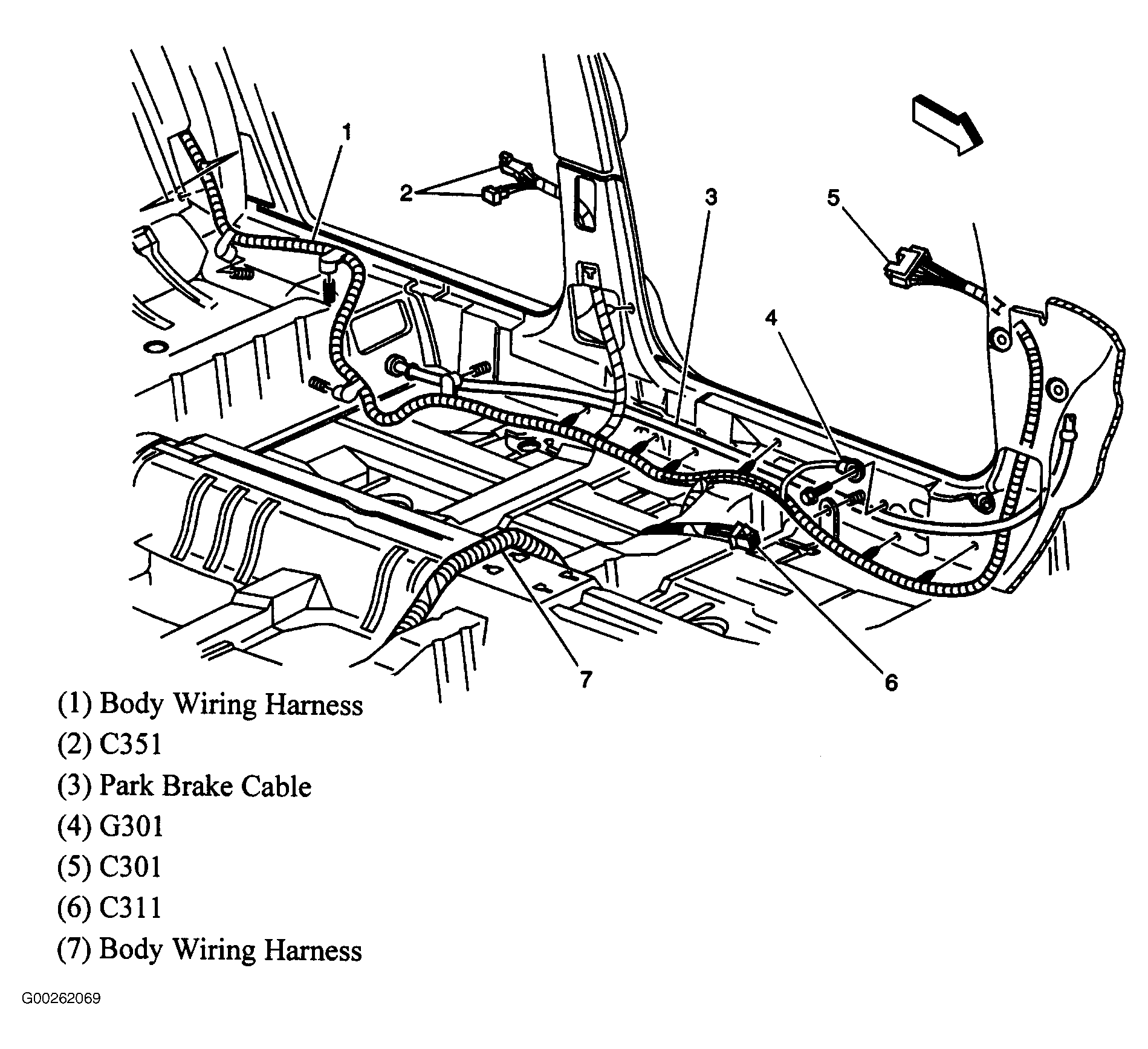

Fig 11: Left Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

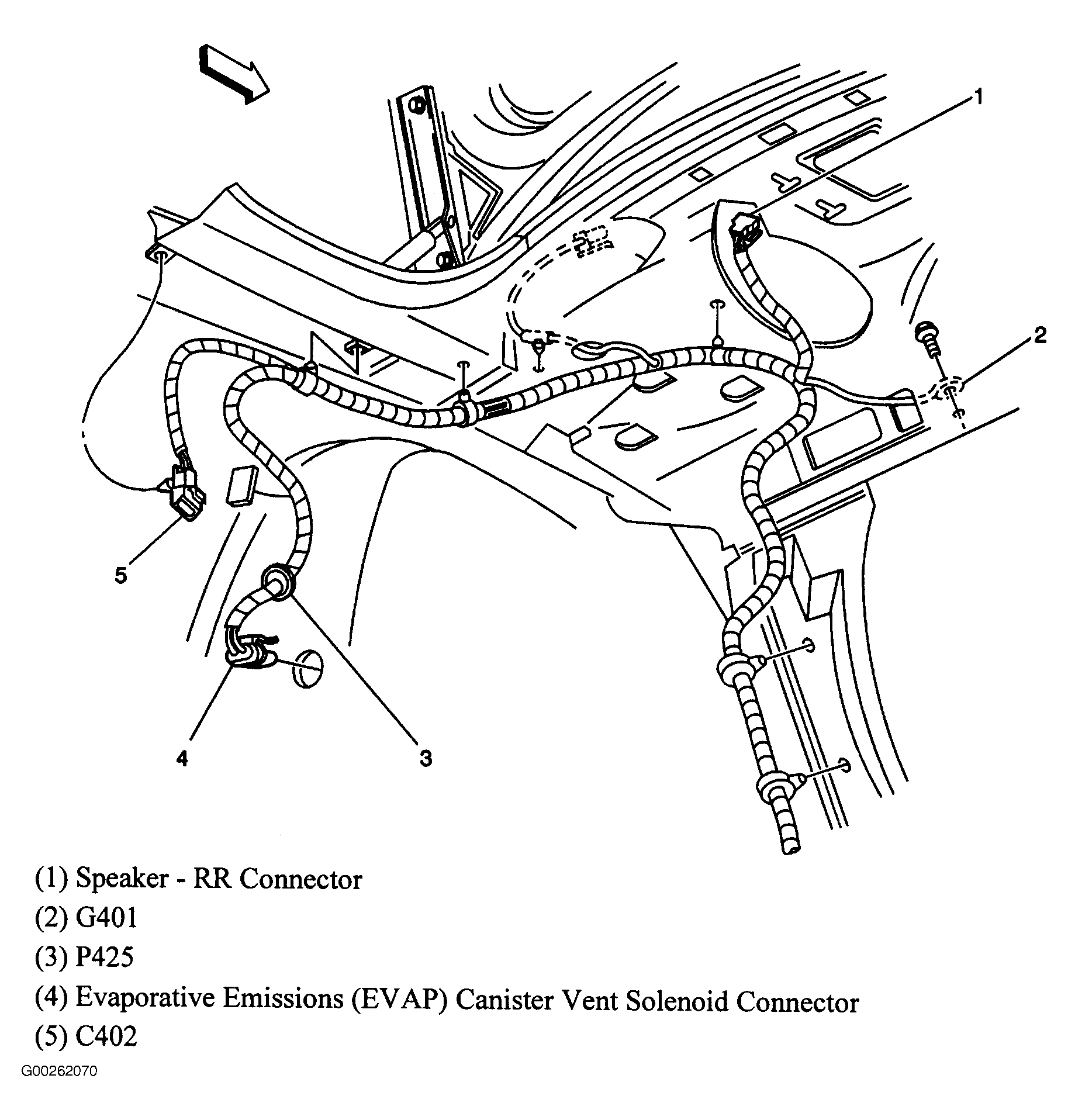

Fig 12: Left Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

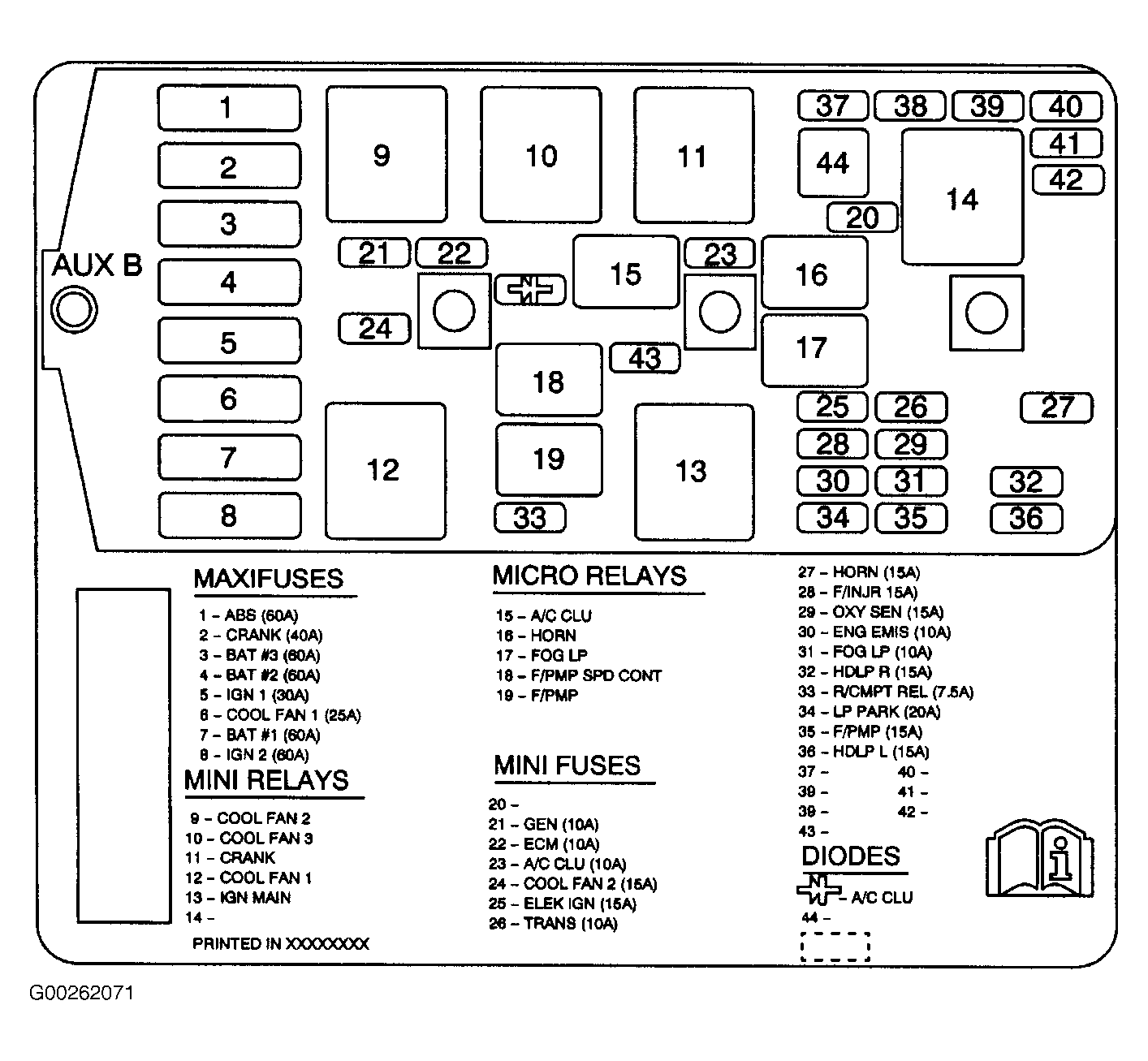

Fig 13: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 14: Left Side Of Engine (3.1L VIN J)
Courtesy of GENERAL MOTORS CORP.

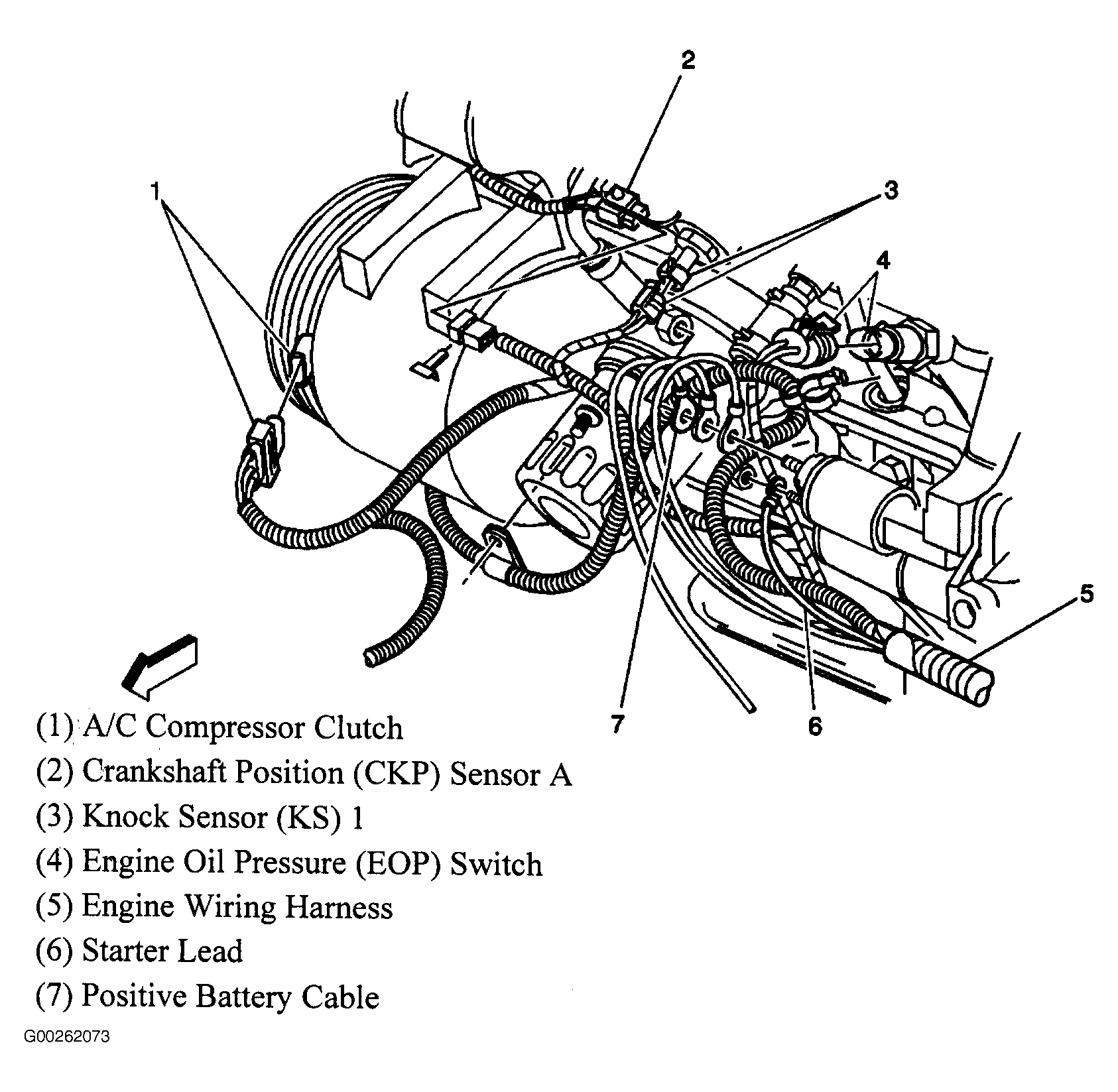

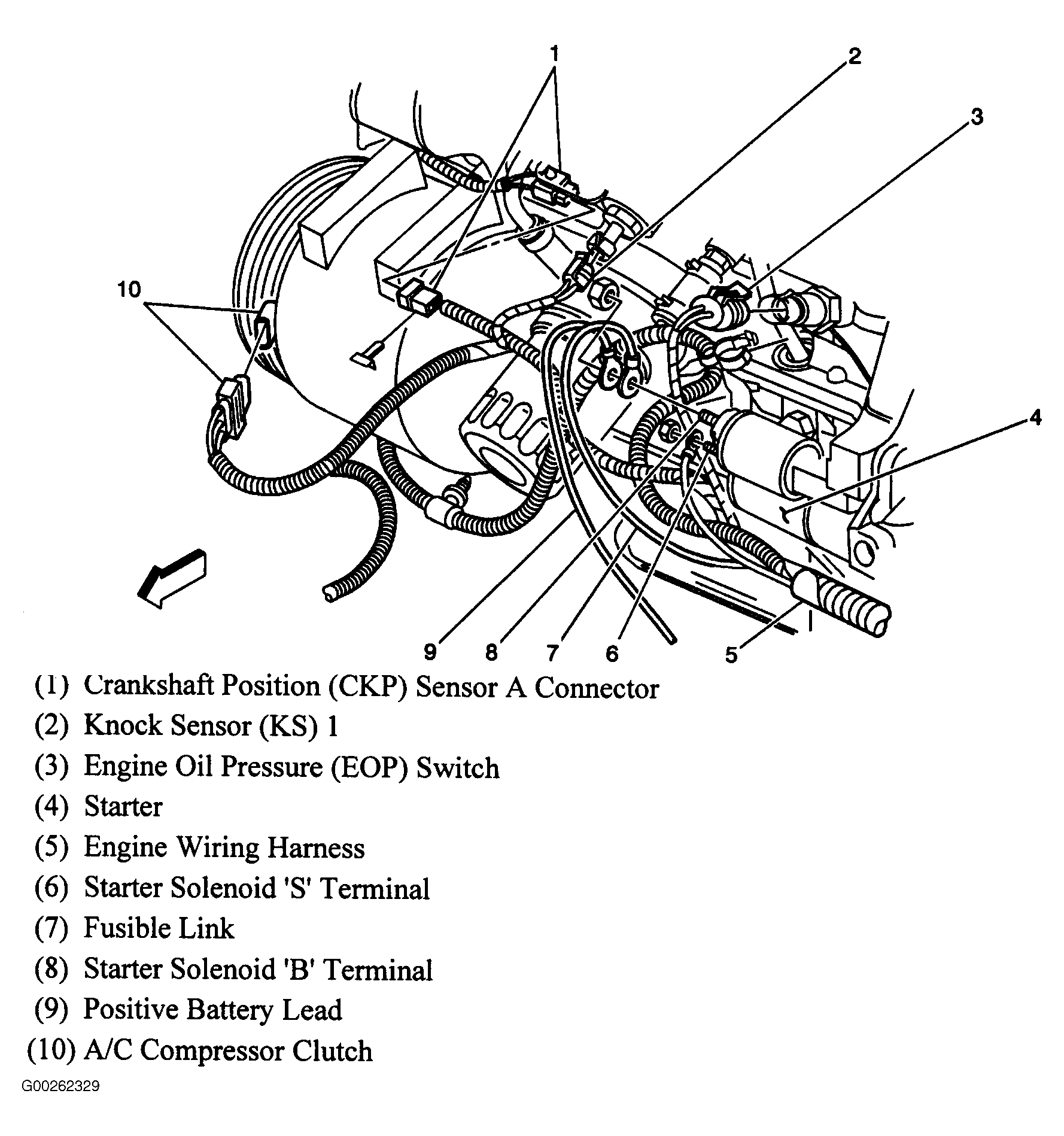

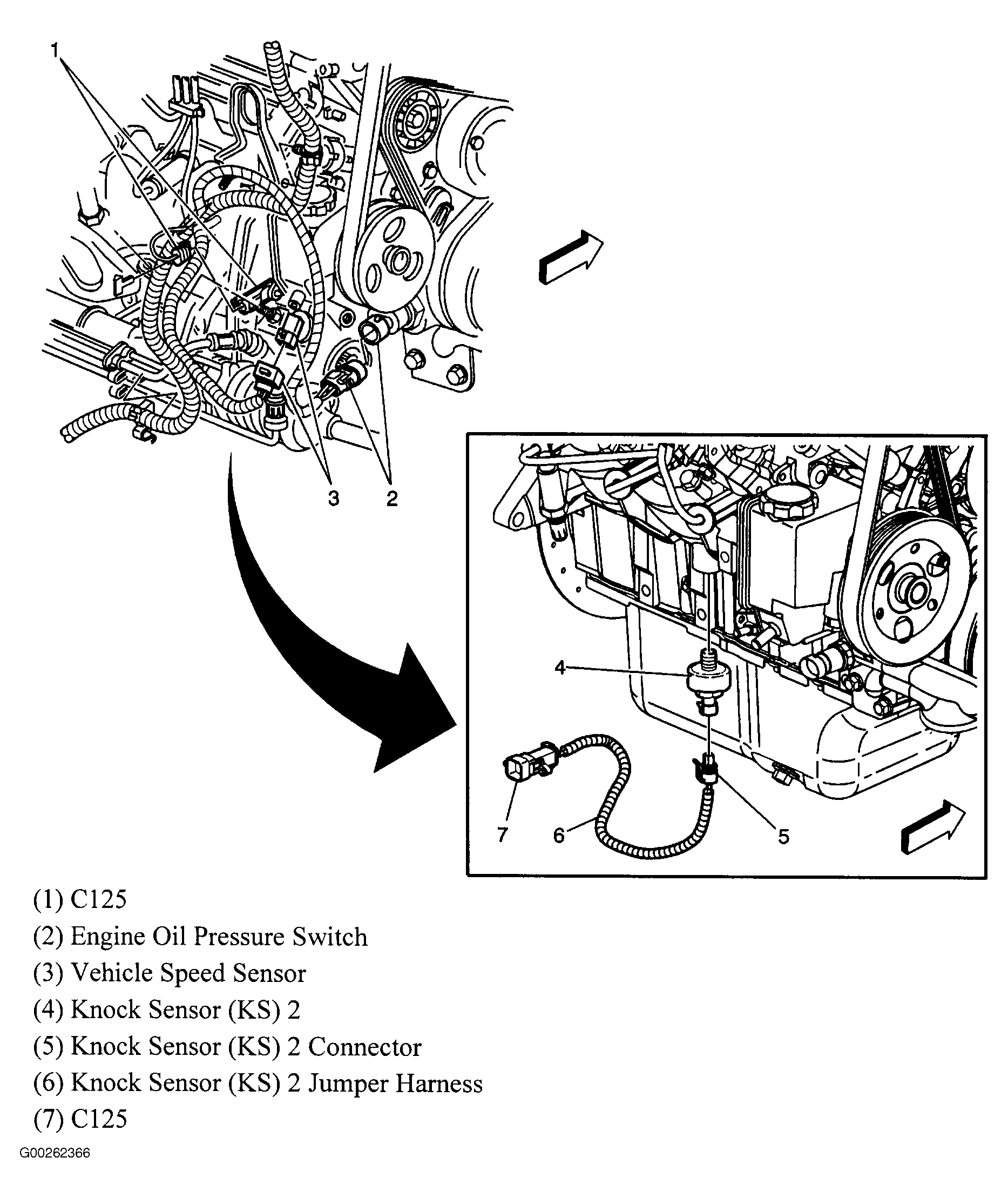

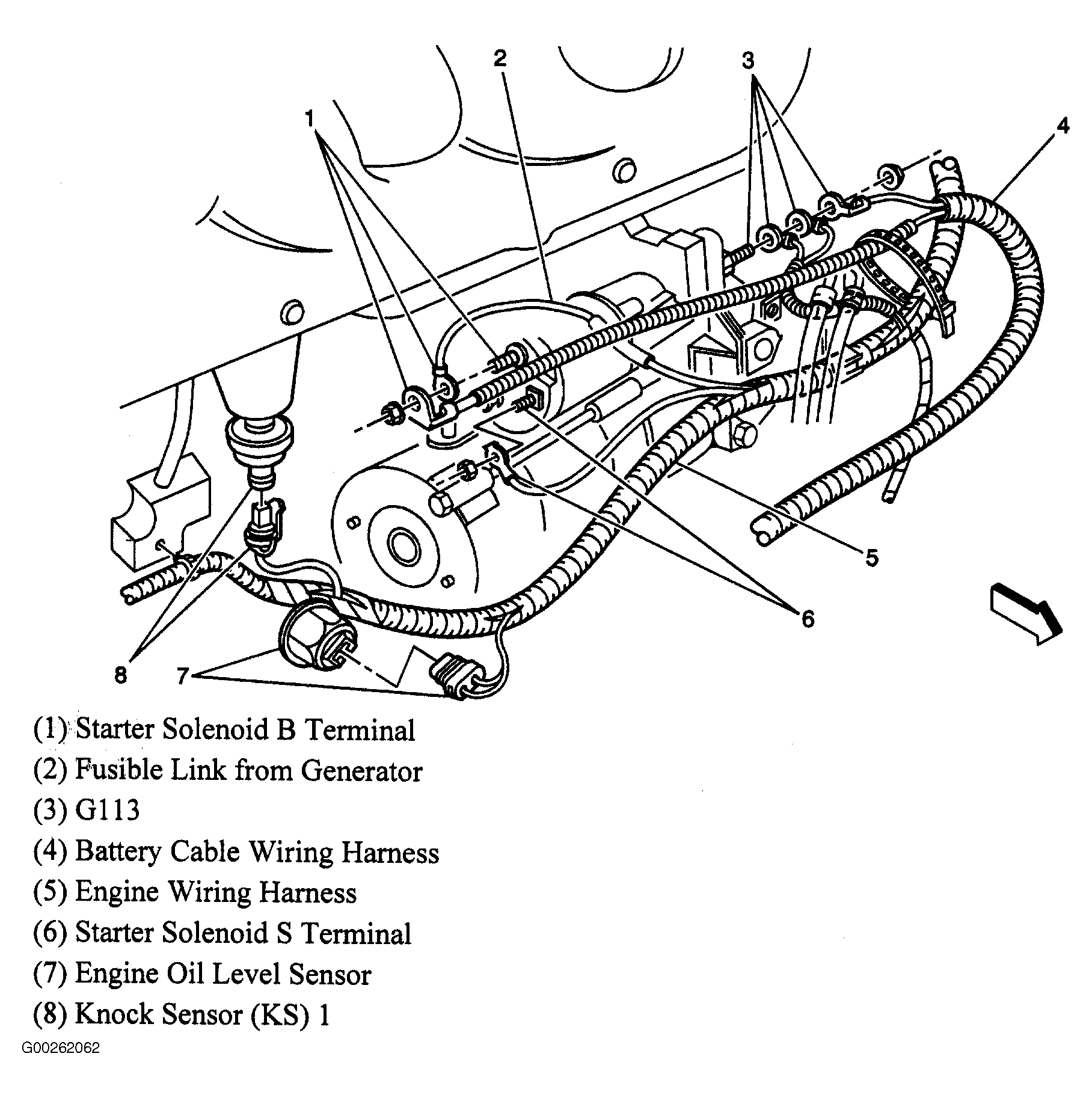

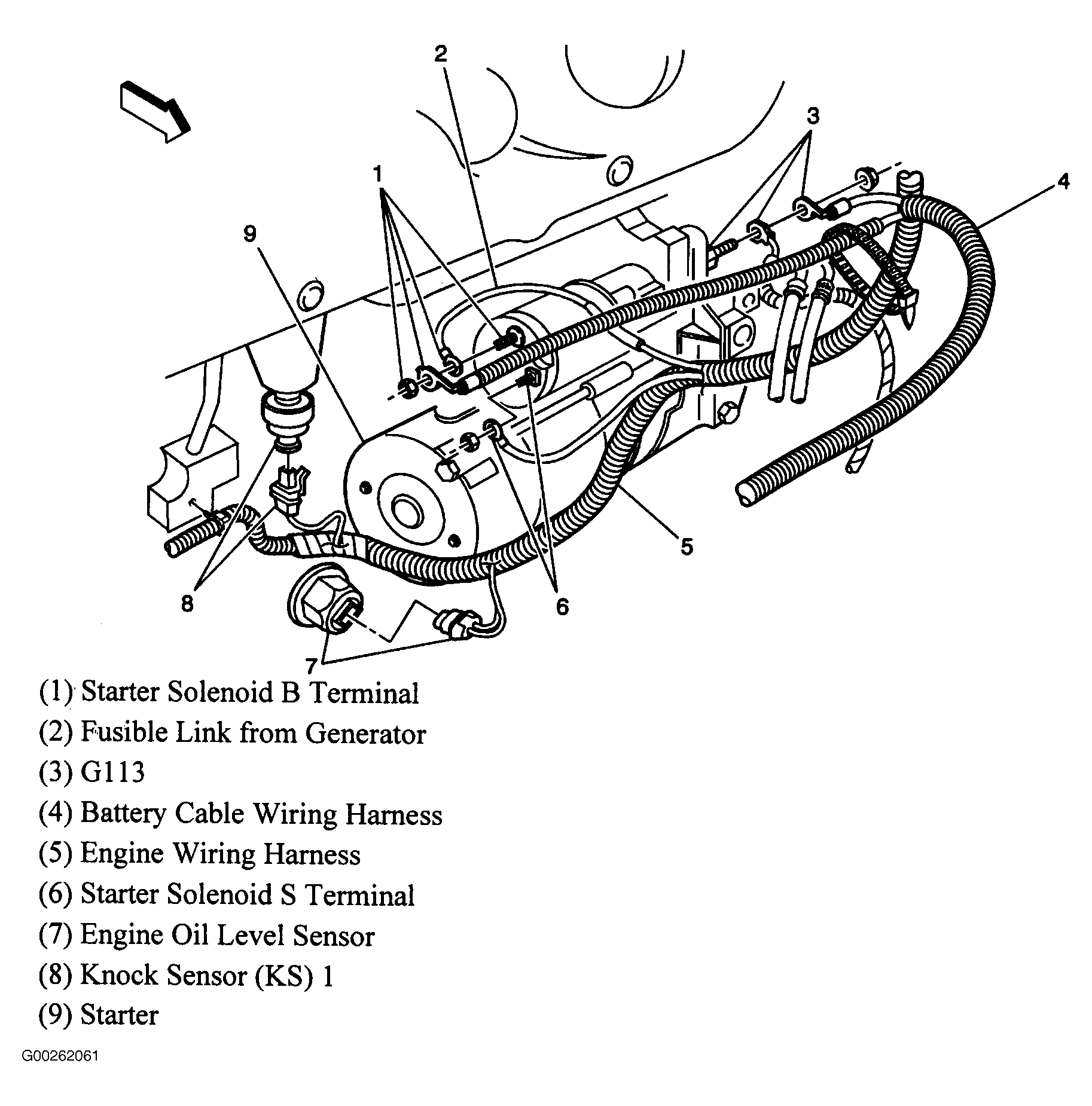

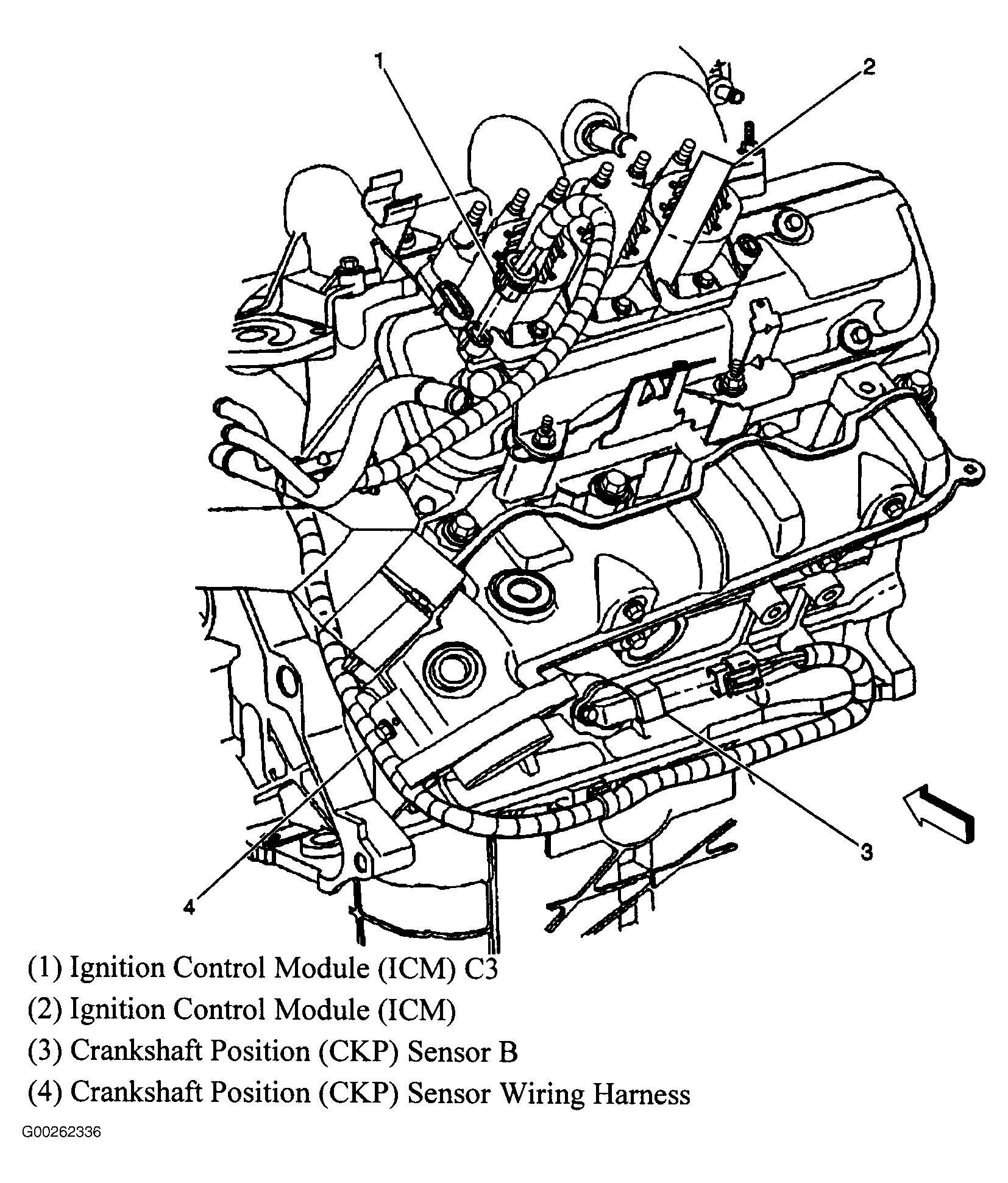

Fig 15: Lower Left Side Of Engine (3.8L VIN K & 3.8L VIN 1)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

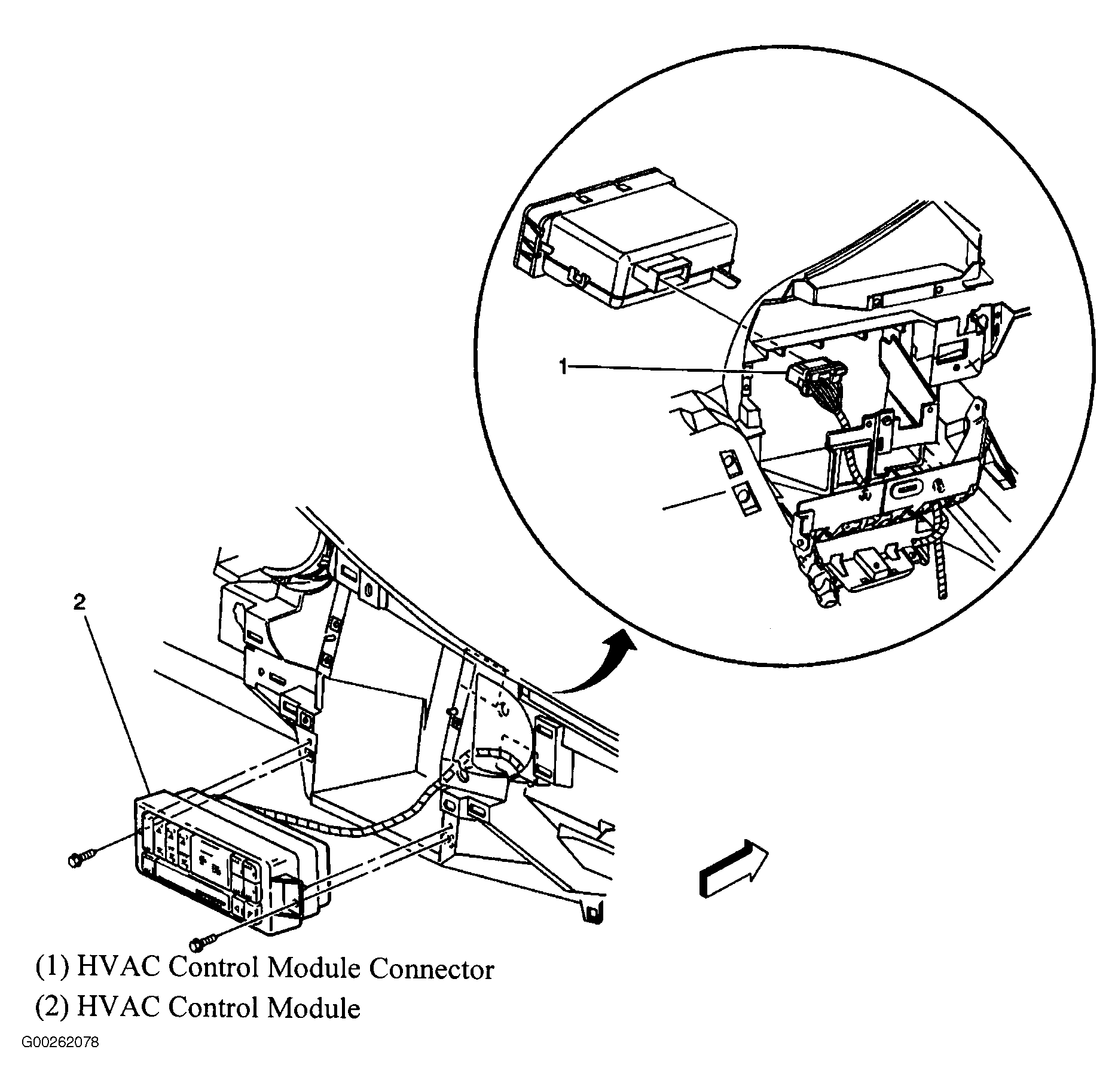

Fig 17: Lower Center Of Dash
Courtesy of GENERAL MOTORS CORP.

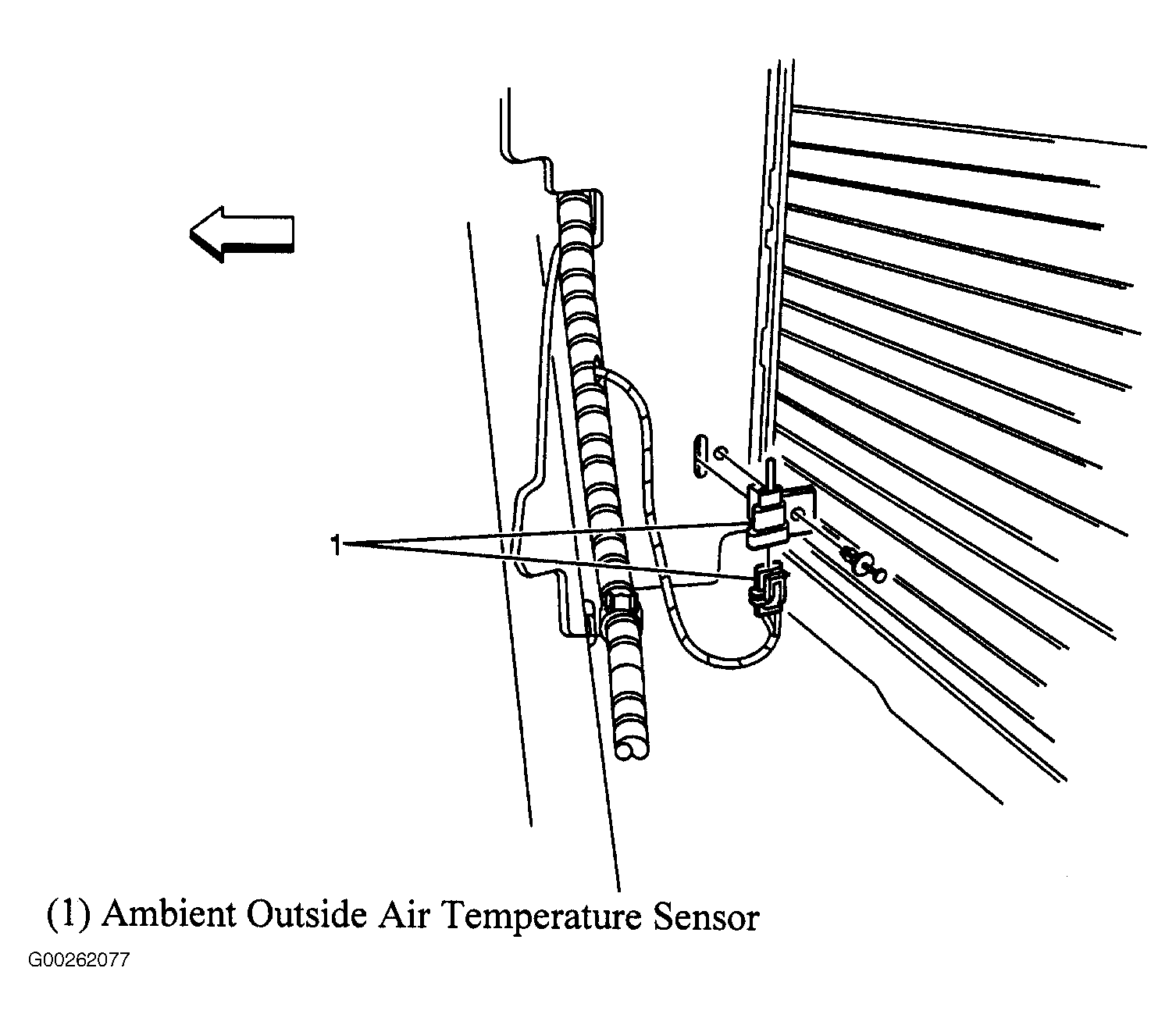

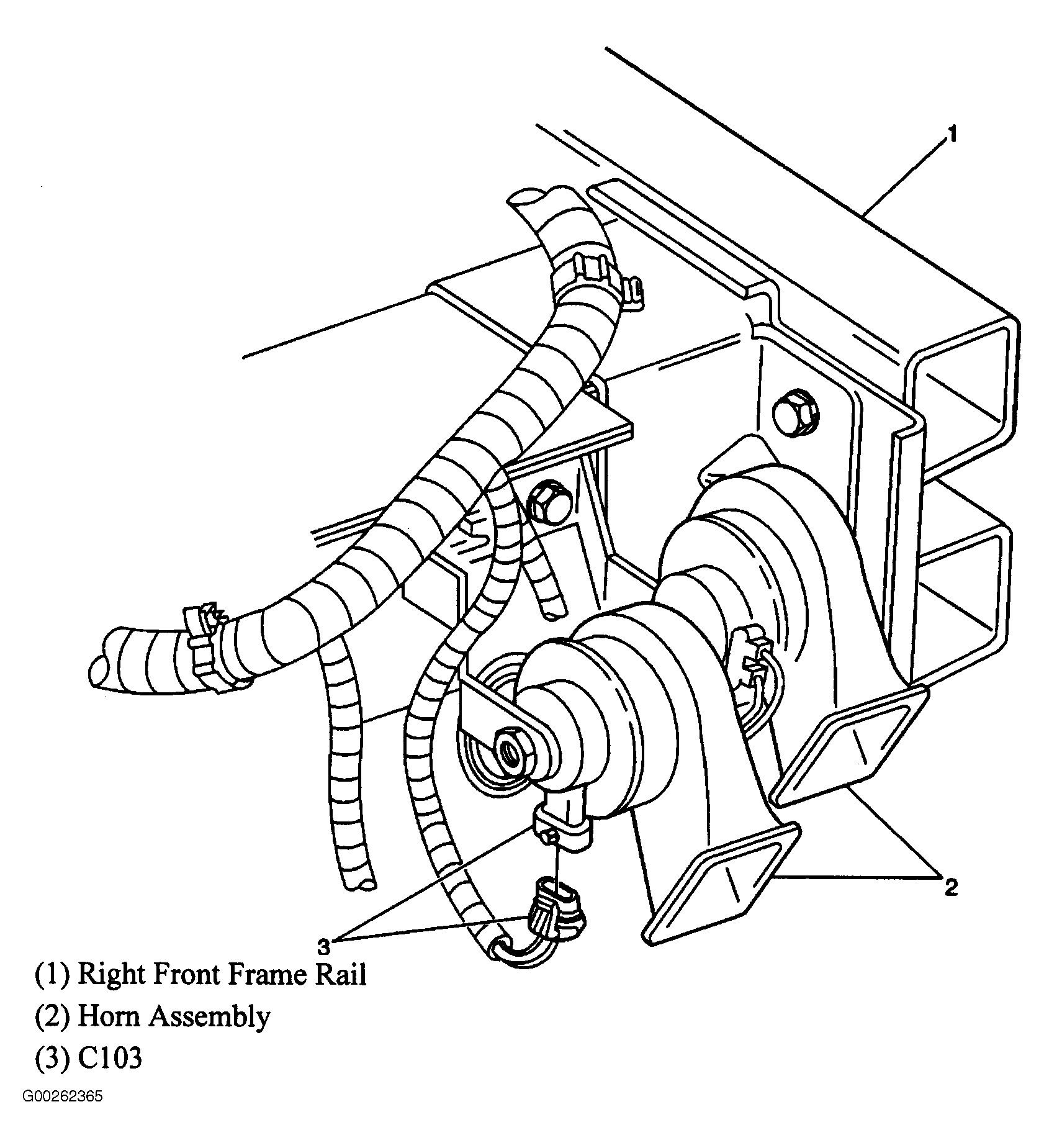

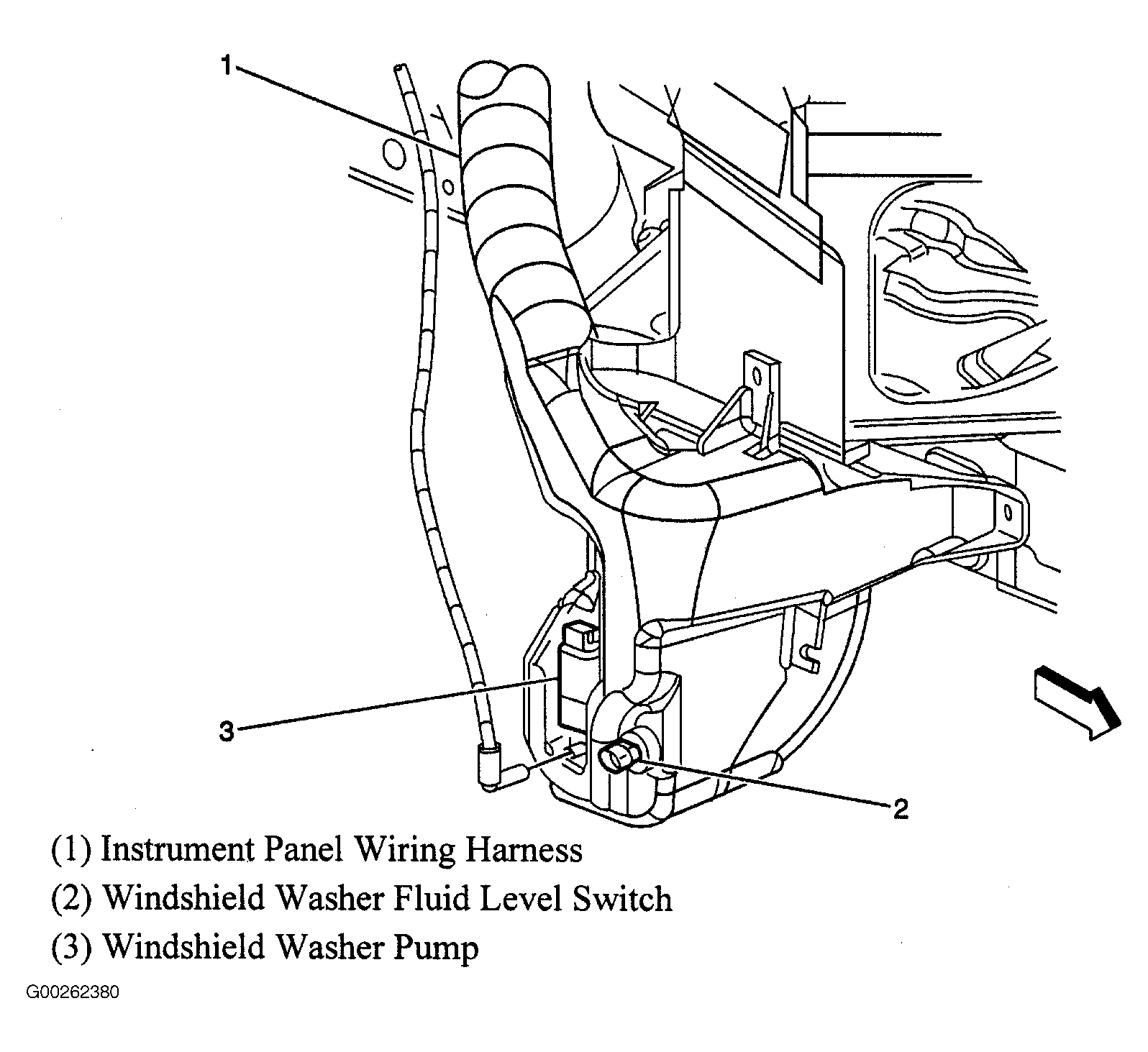

Fig 18: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 19: Lower Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 20: Behind Center Of Dash
Courtesy of GENERAL MOTORS CORP.

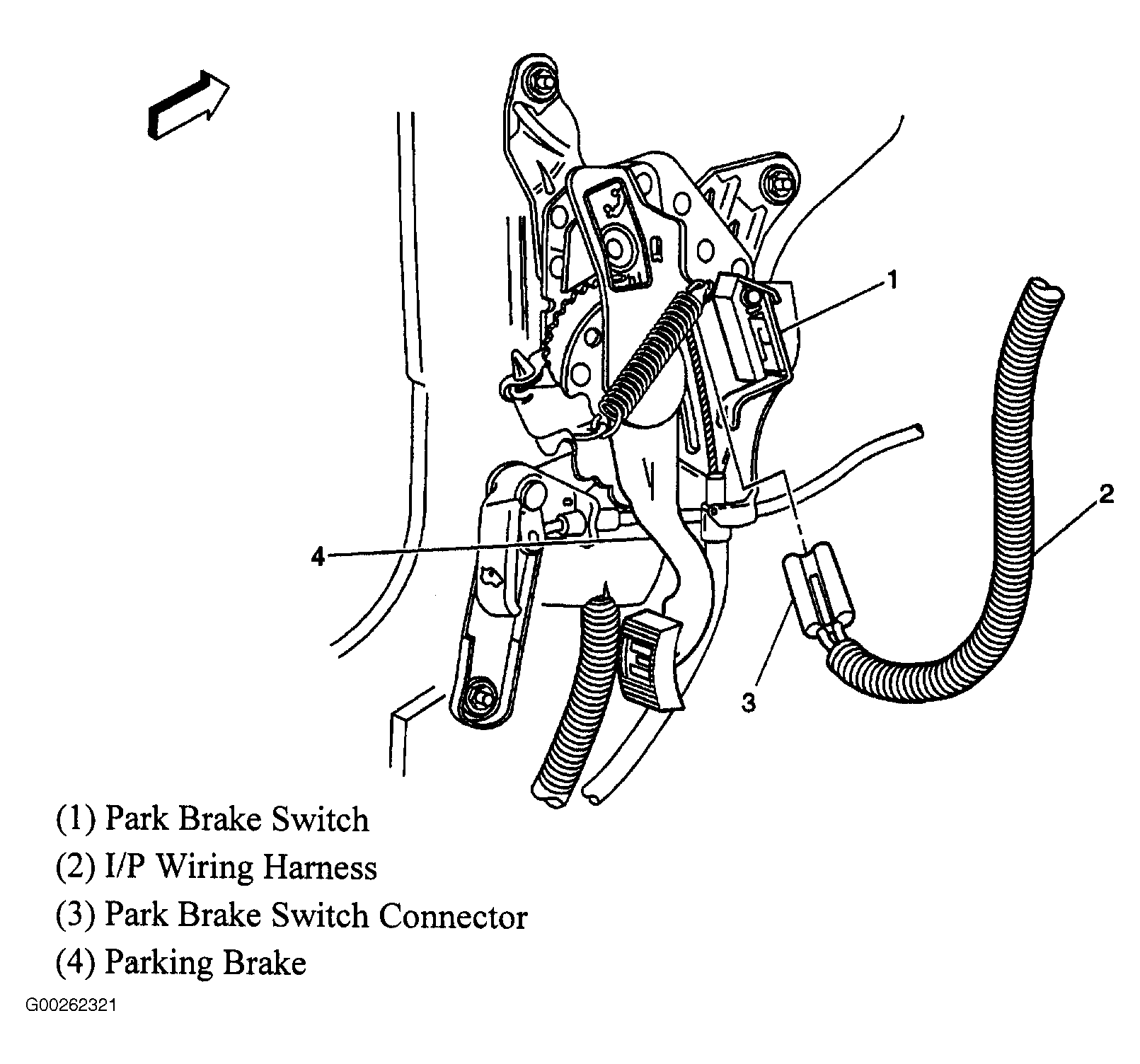

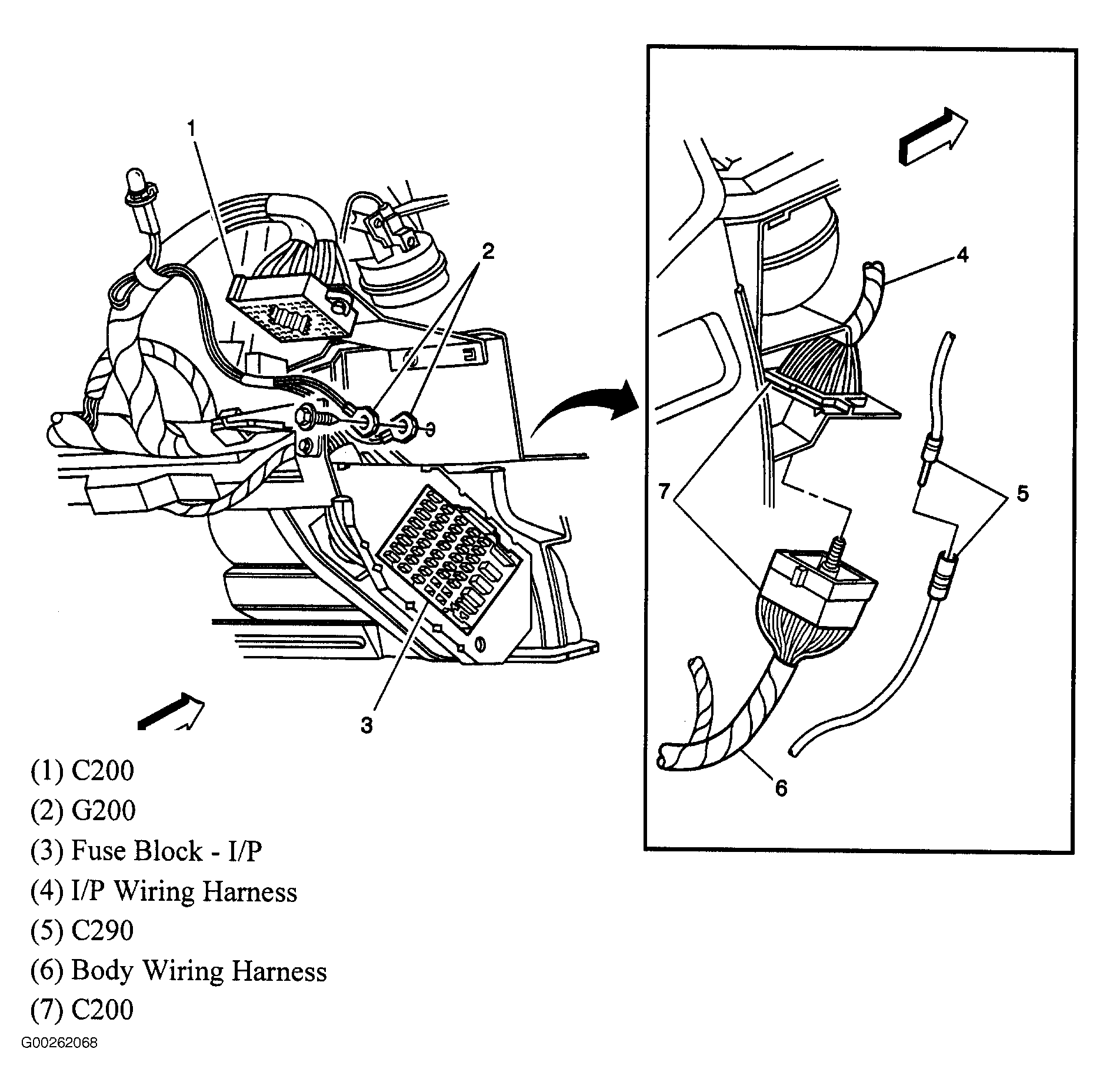

Fig 21: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

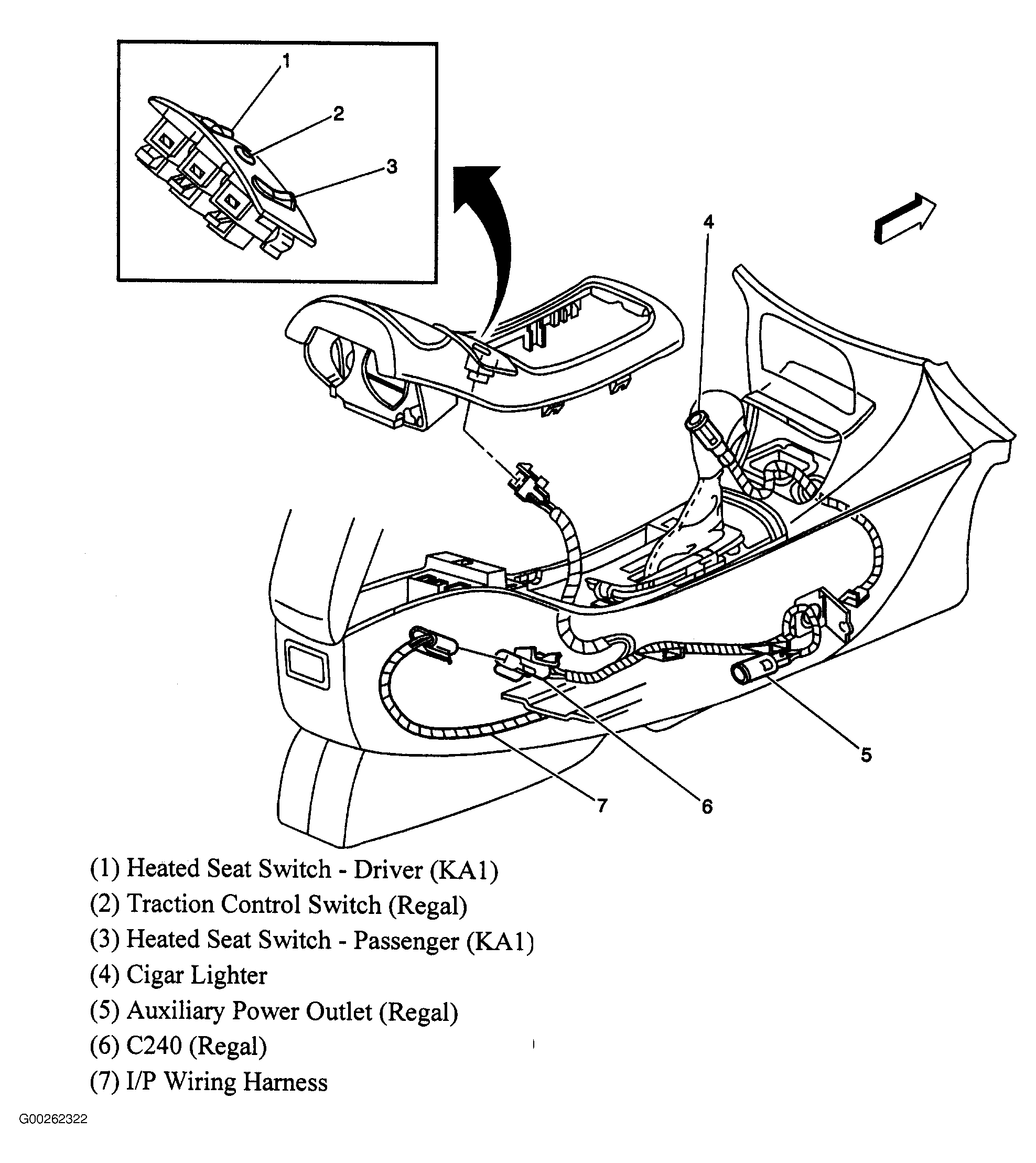

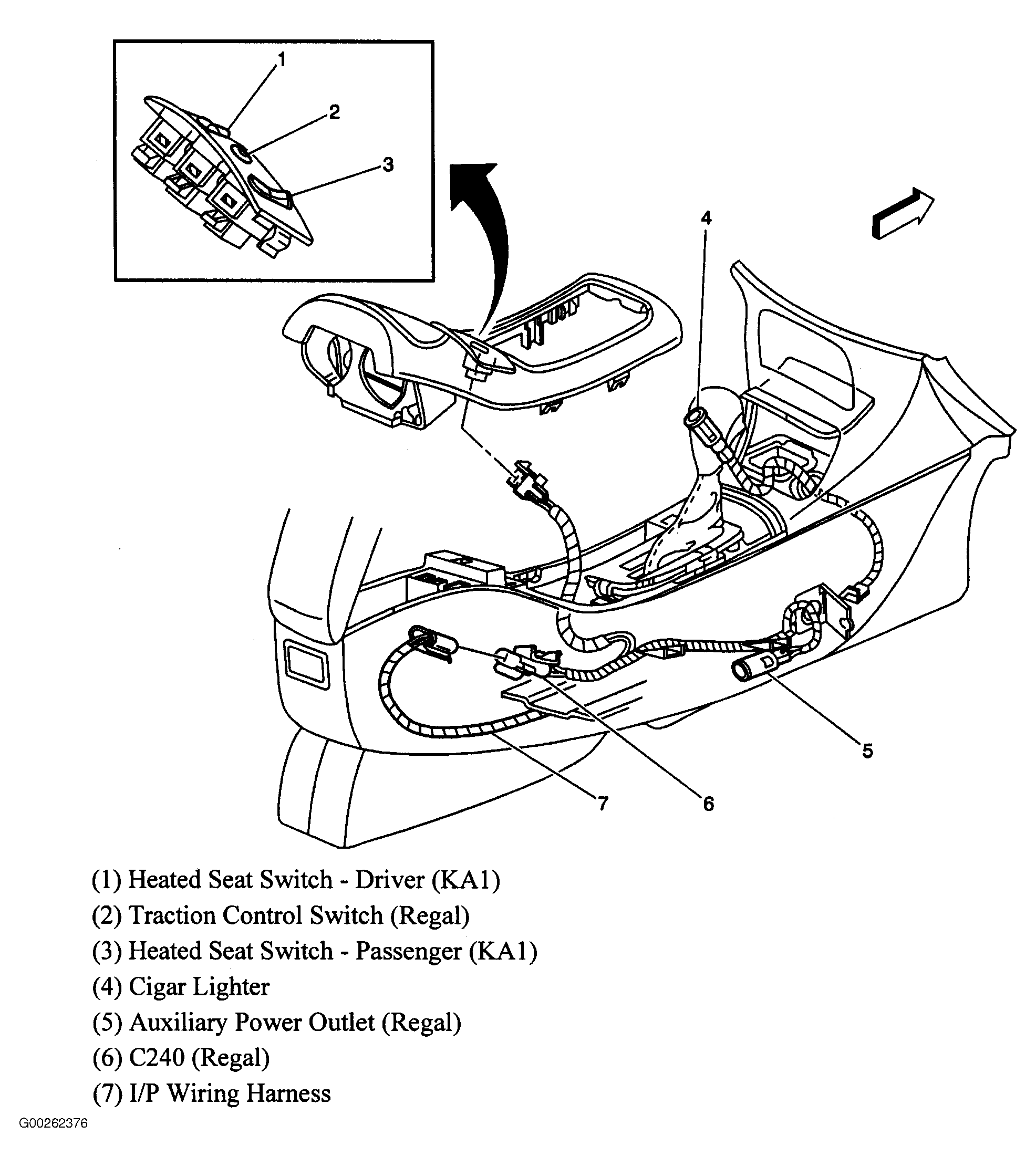

Fig 22: Center Console
Courtesy of GENERAL MOTORS CORP.

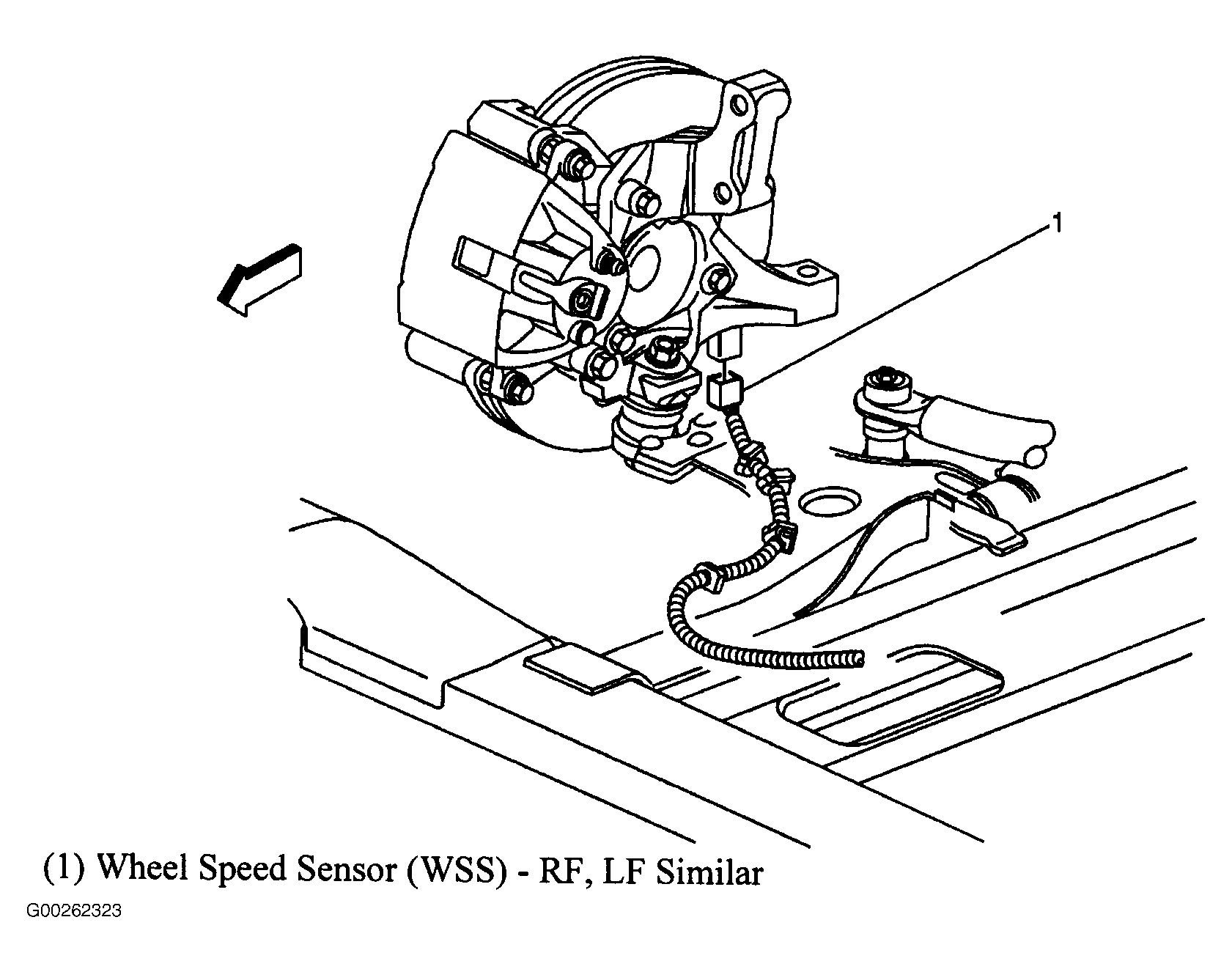

Fig 23: Right Front Knuckle/Spindle
Courtesy of GENERAL MOTORS CORP.

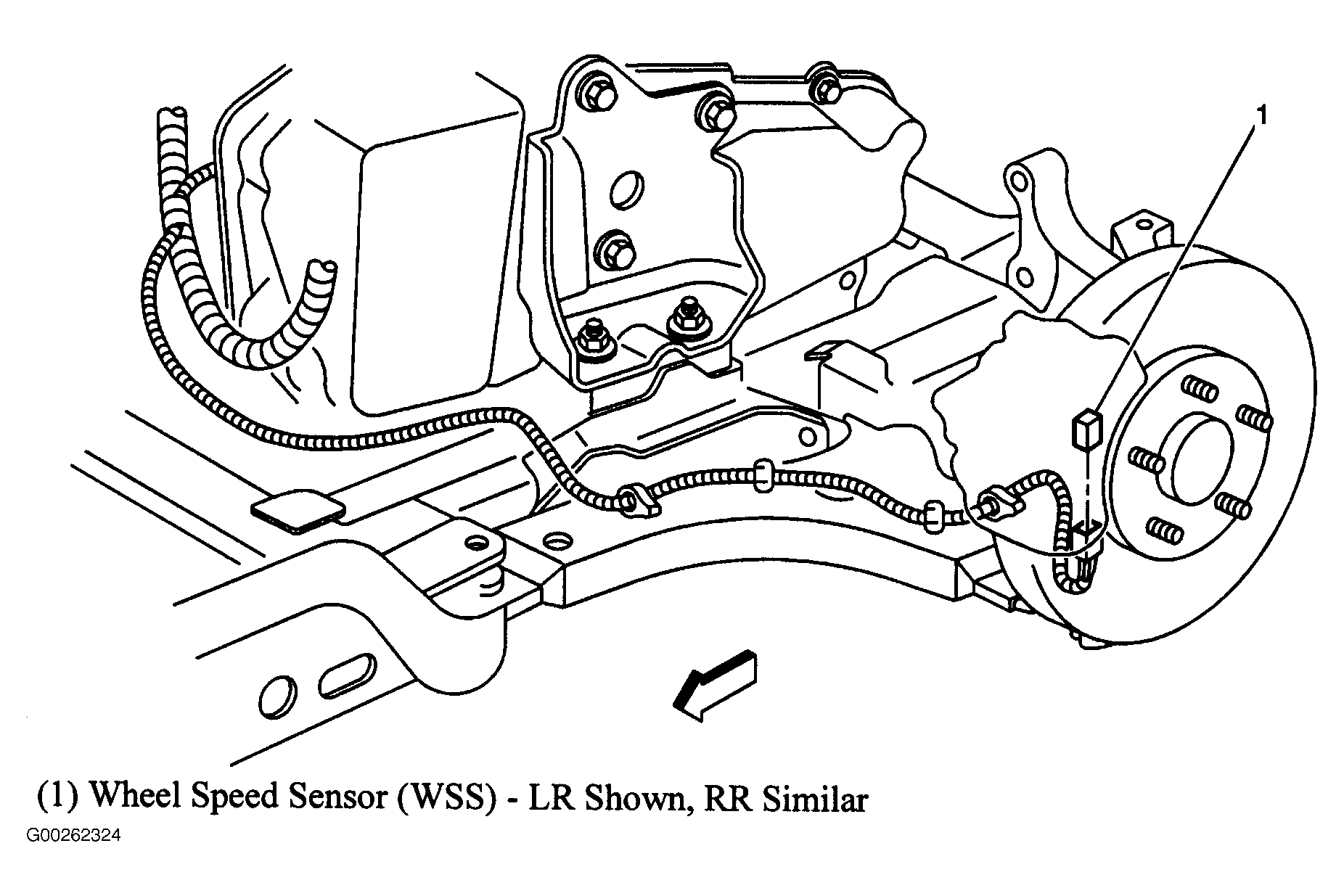

Fig 24: Left Rear Suspension
Courtesy of GENERAL MOTORS CORP.

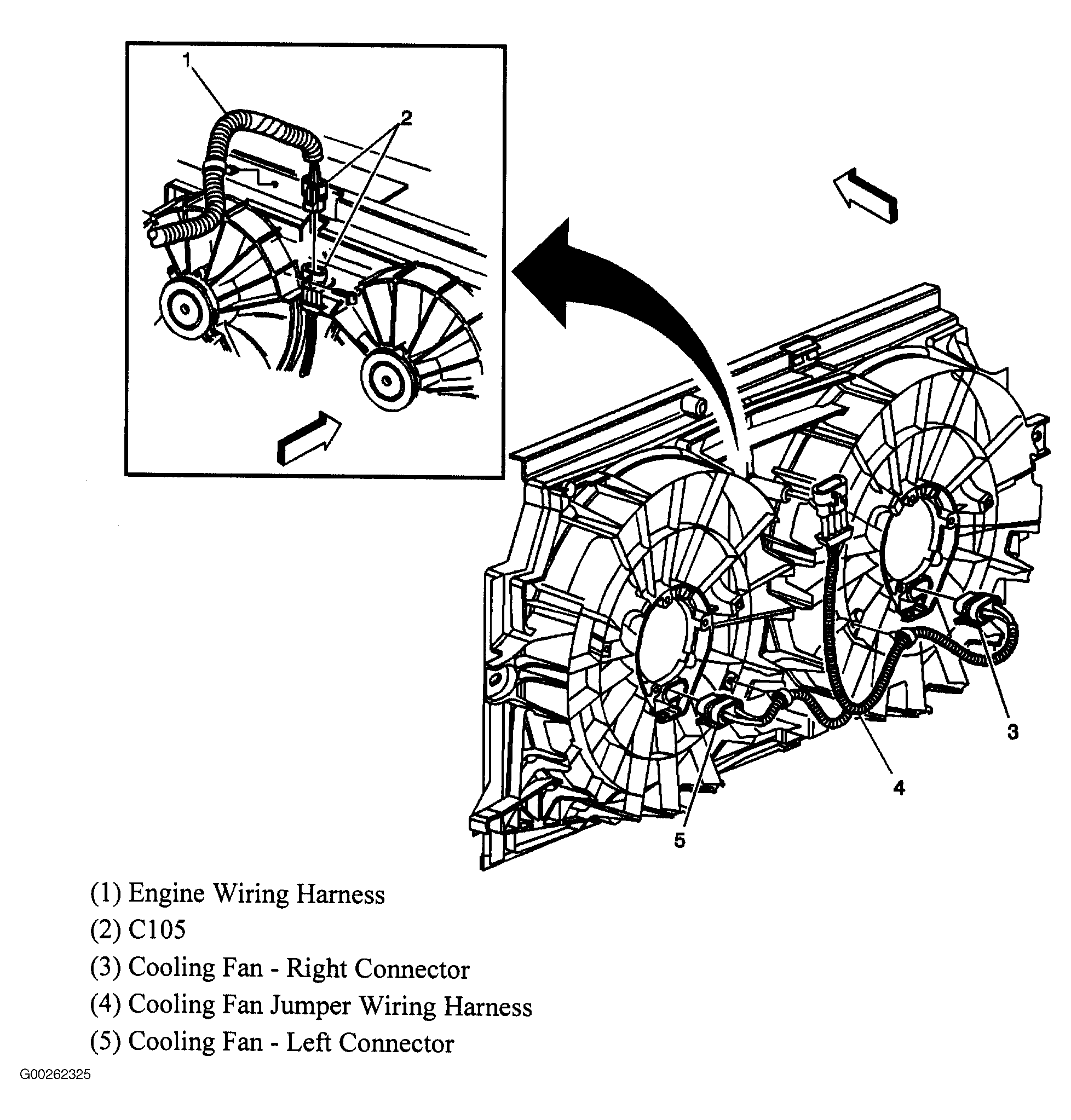

Fig 25: Cooling System Components
Courtesy of GENERAL MOTORS CORP.

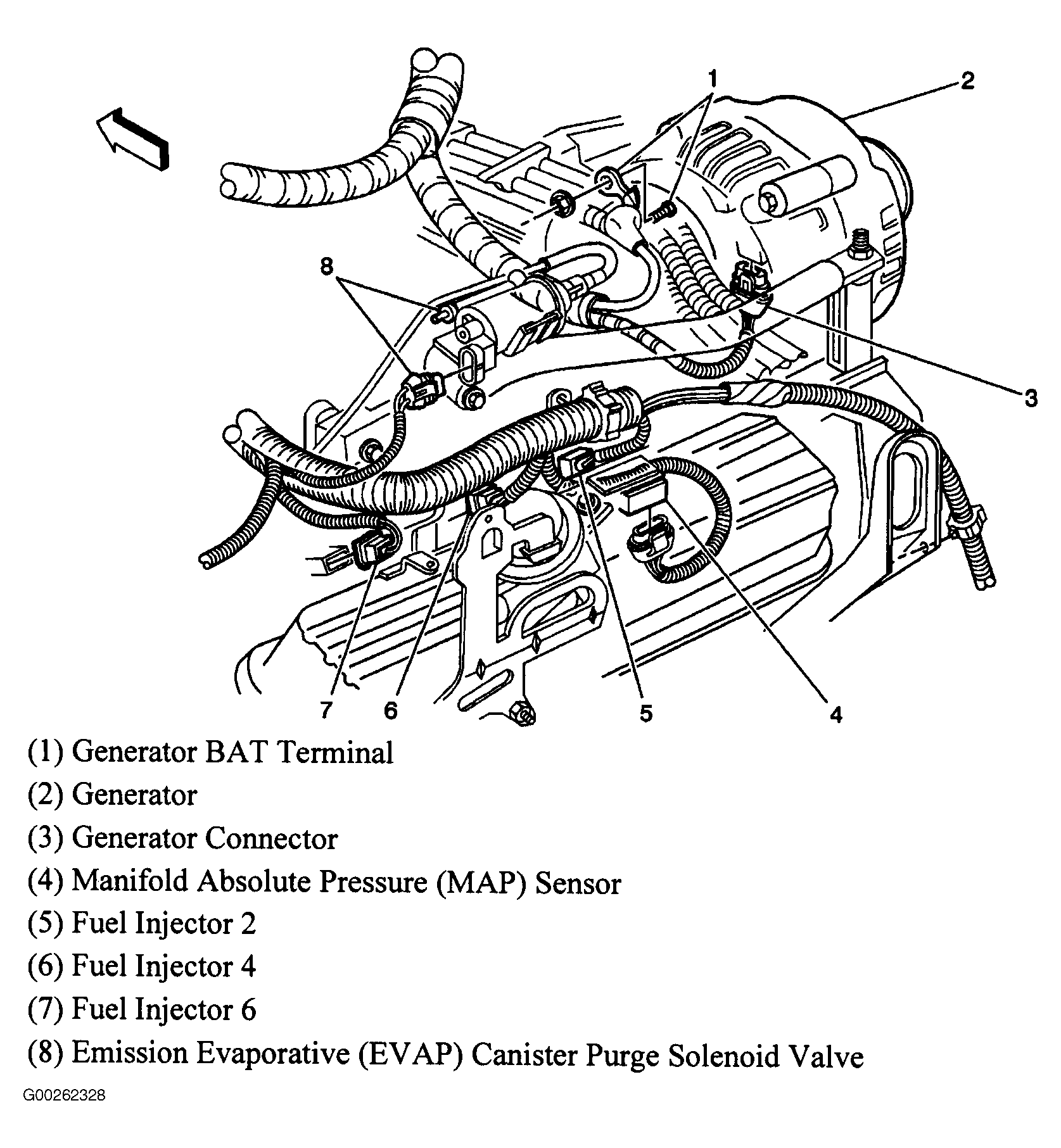

Fig 26: Right Front Of Engine (3.1L VIN J)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Right Front Of Engine (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Right Side Of Engine (3.8L VIN 1)
Courtesy of GENERAL MOTORS CORP.

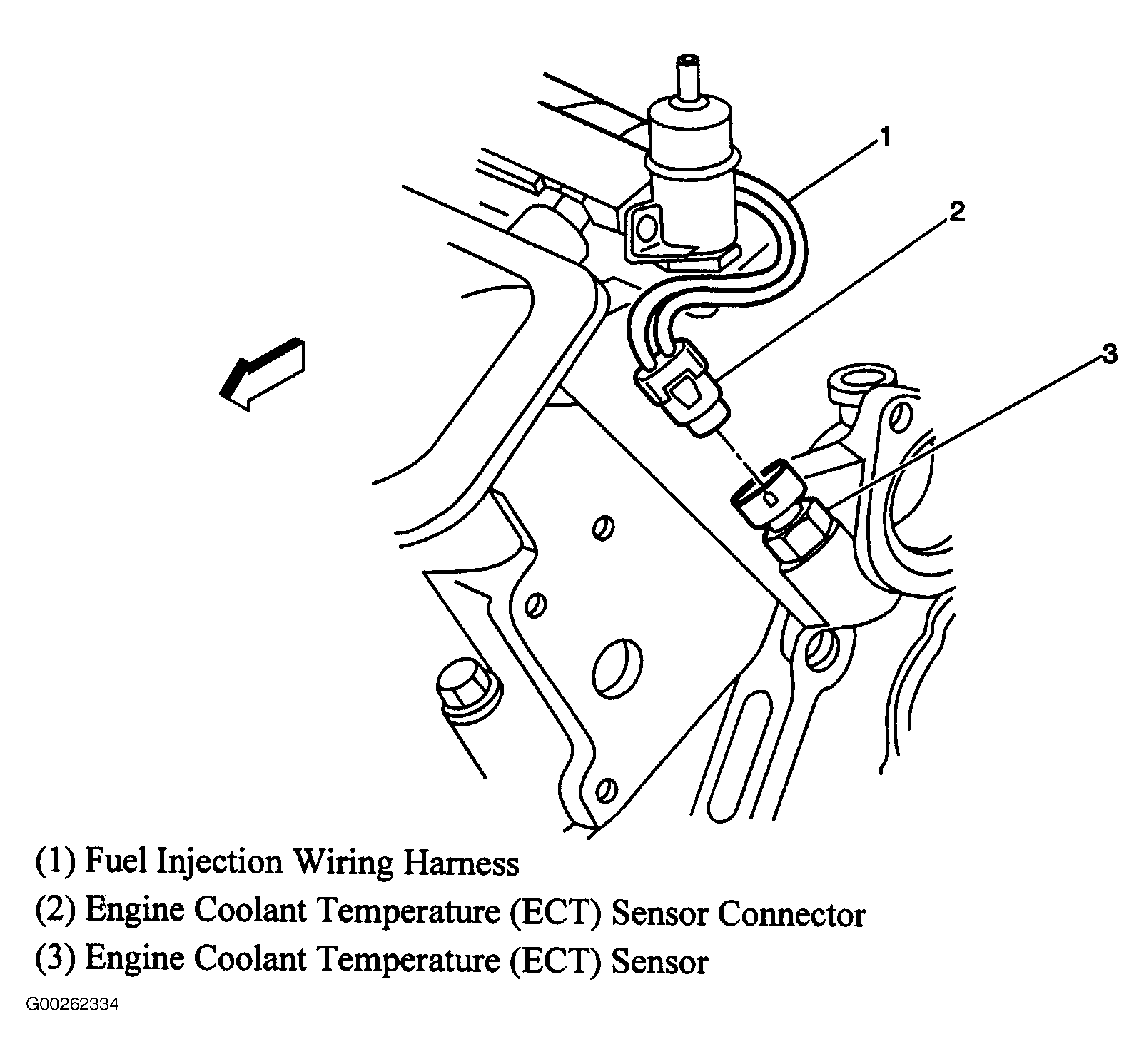

Fig 29: Left Front Of Engine (3.1L VIN J)
Courtesy of GENERAL MOTORS CORP.

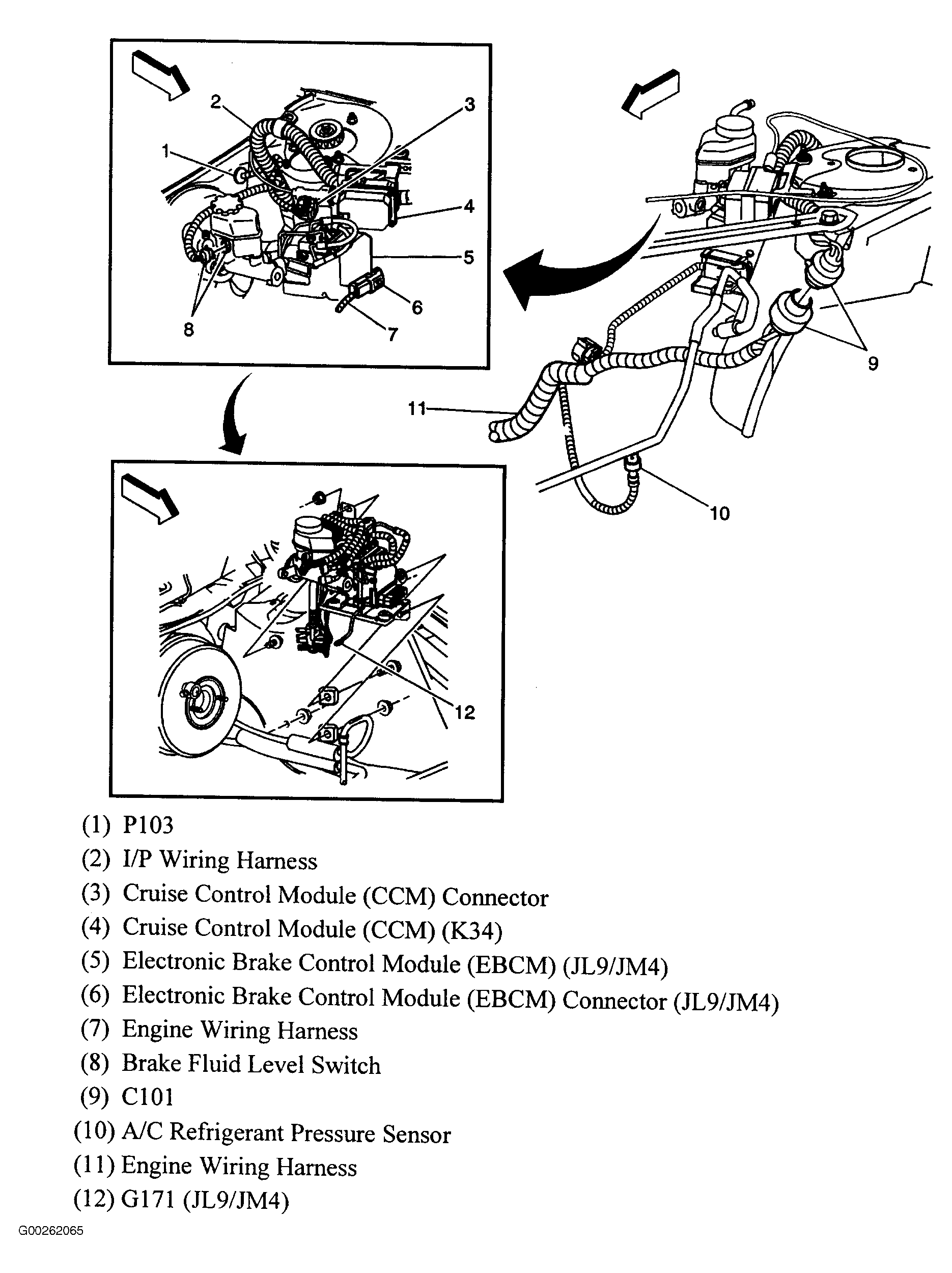

Fig 30: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 31: Rear Of Engine (3.1L VIN J)
Courtesy of GENERAL MOTORS CORP.

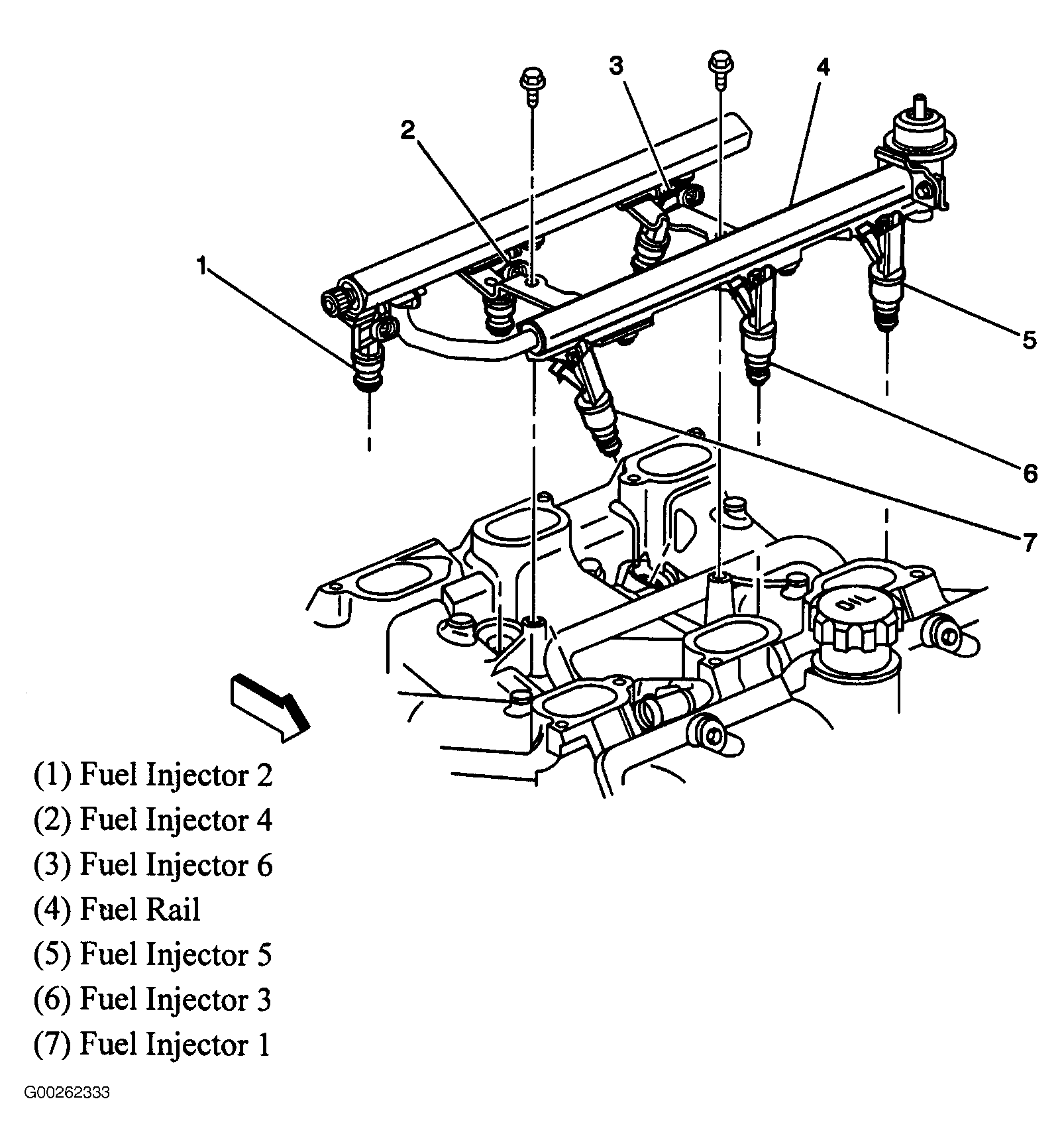

Fig 32: Top Of Engine (3.1L VIN J)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Top Of Engine (3.1L VIN J)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Left Rear Of Engine (3.1L VIN J)
Courtesy of GENERAL MOTORS CORP.

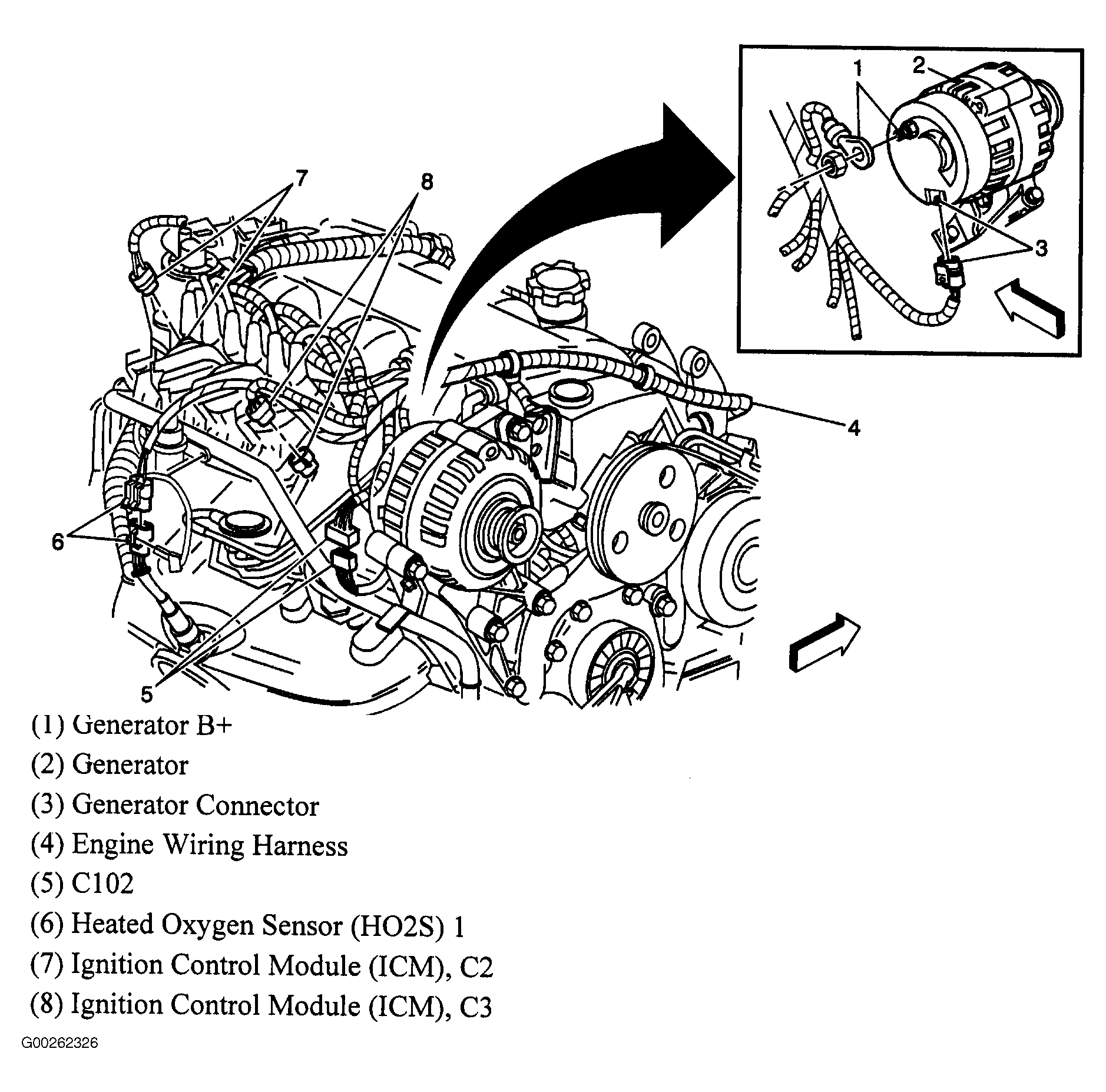

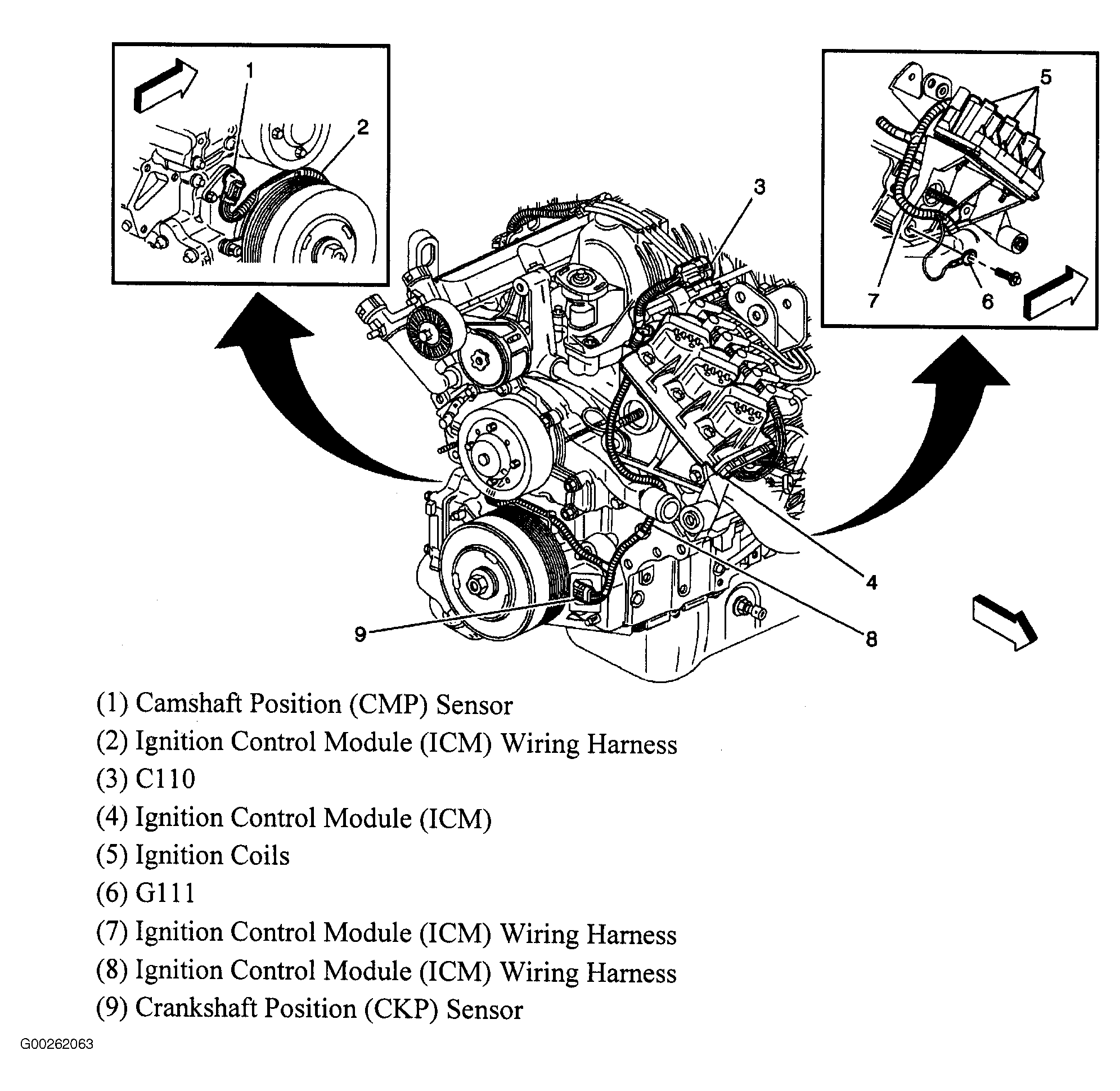

Fig 35: Front Of Engine (3.1L VIN J)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Right Side Of Engine (3.1L VIN J)
Courtesy of GENERAL MOTORS CORP.

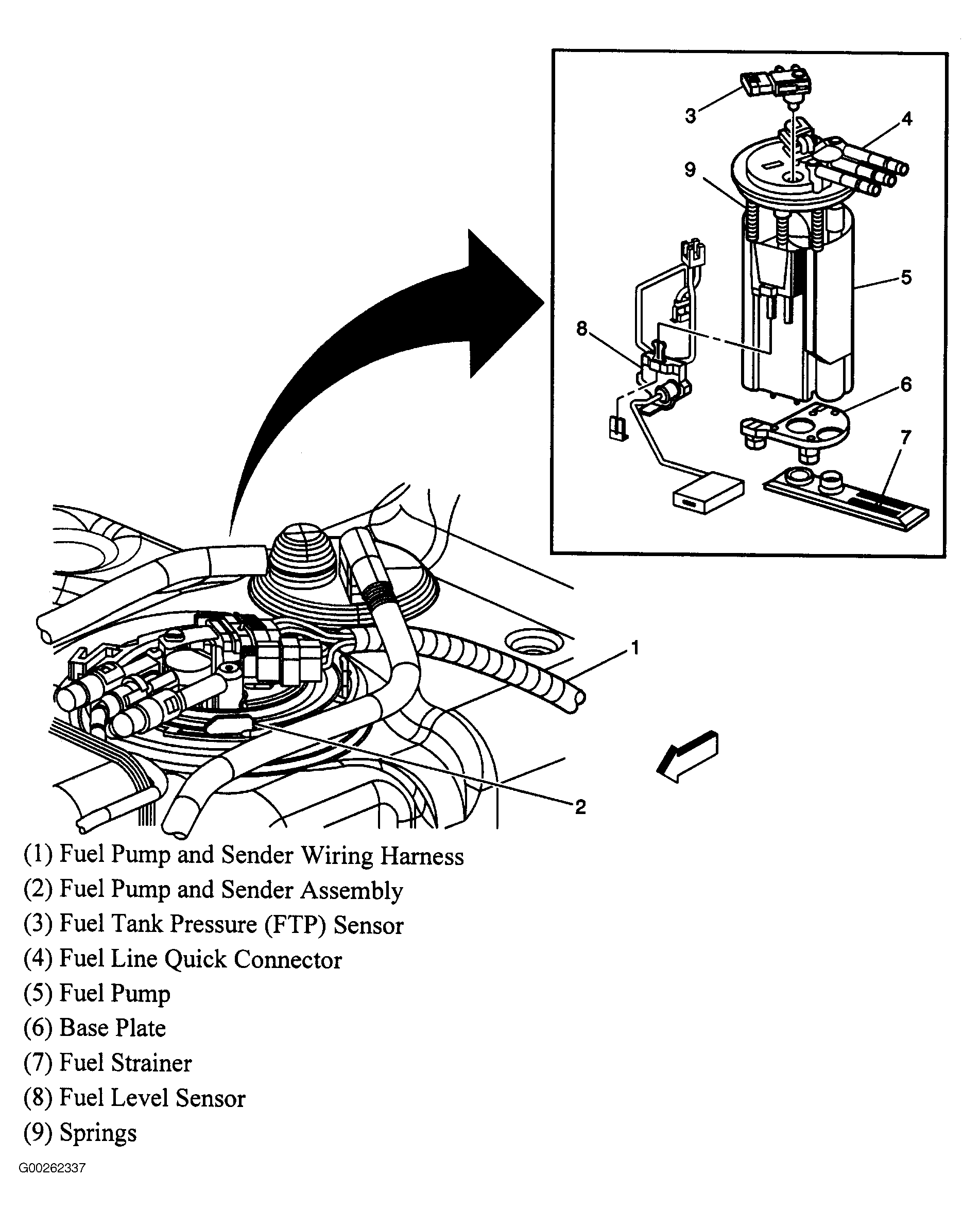

Fig 37: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

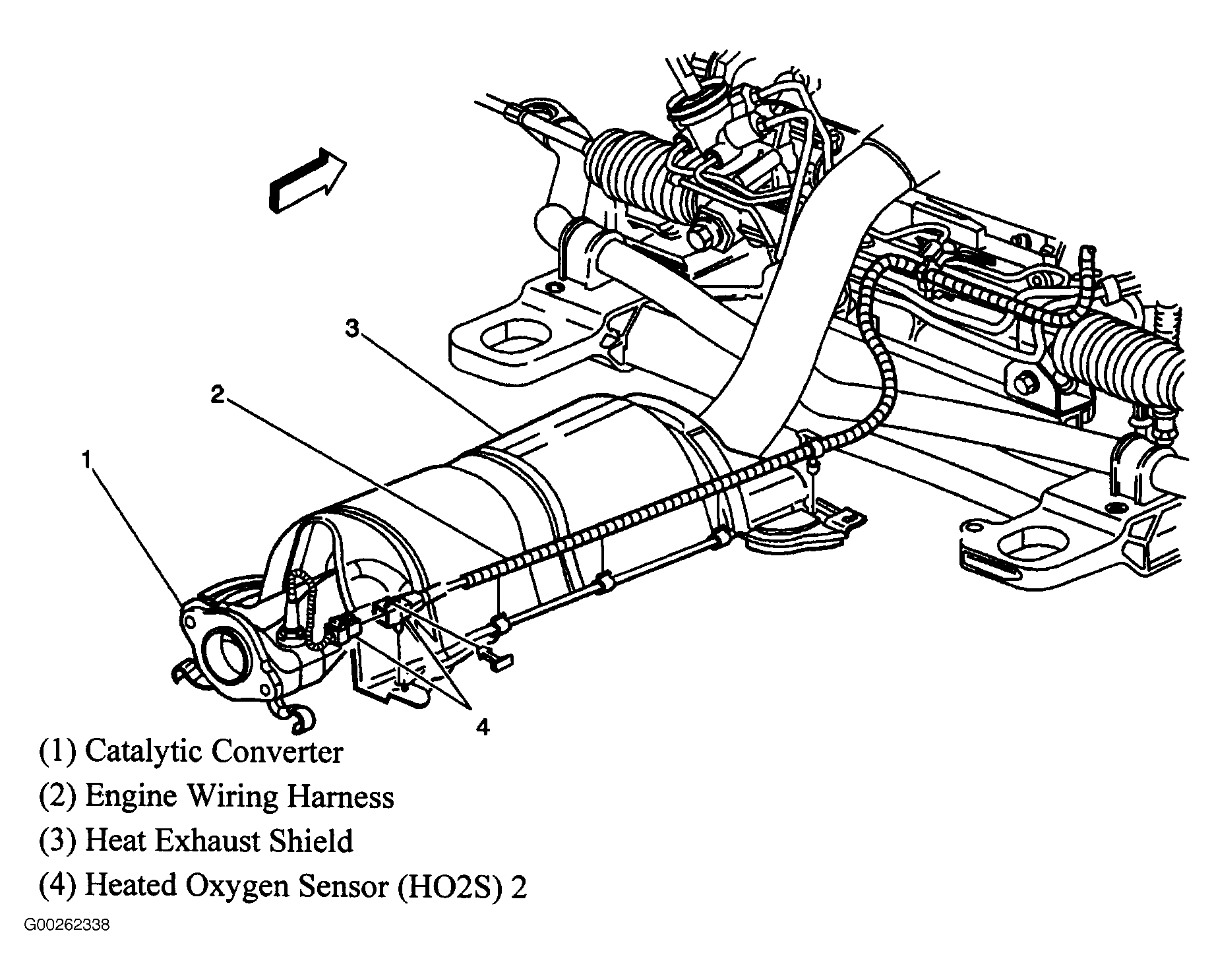

Fig 38: Exhaust
Courtesy of GENERAL MOTORS CORP.

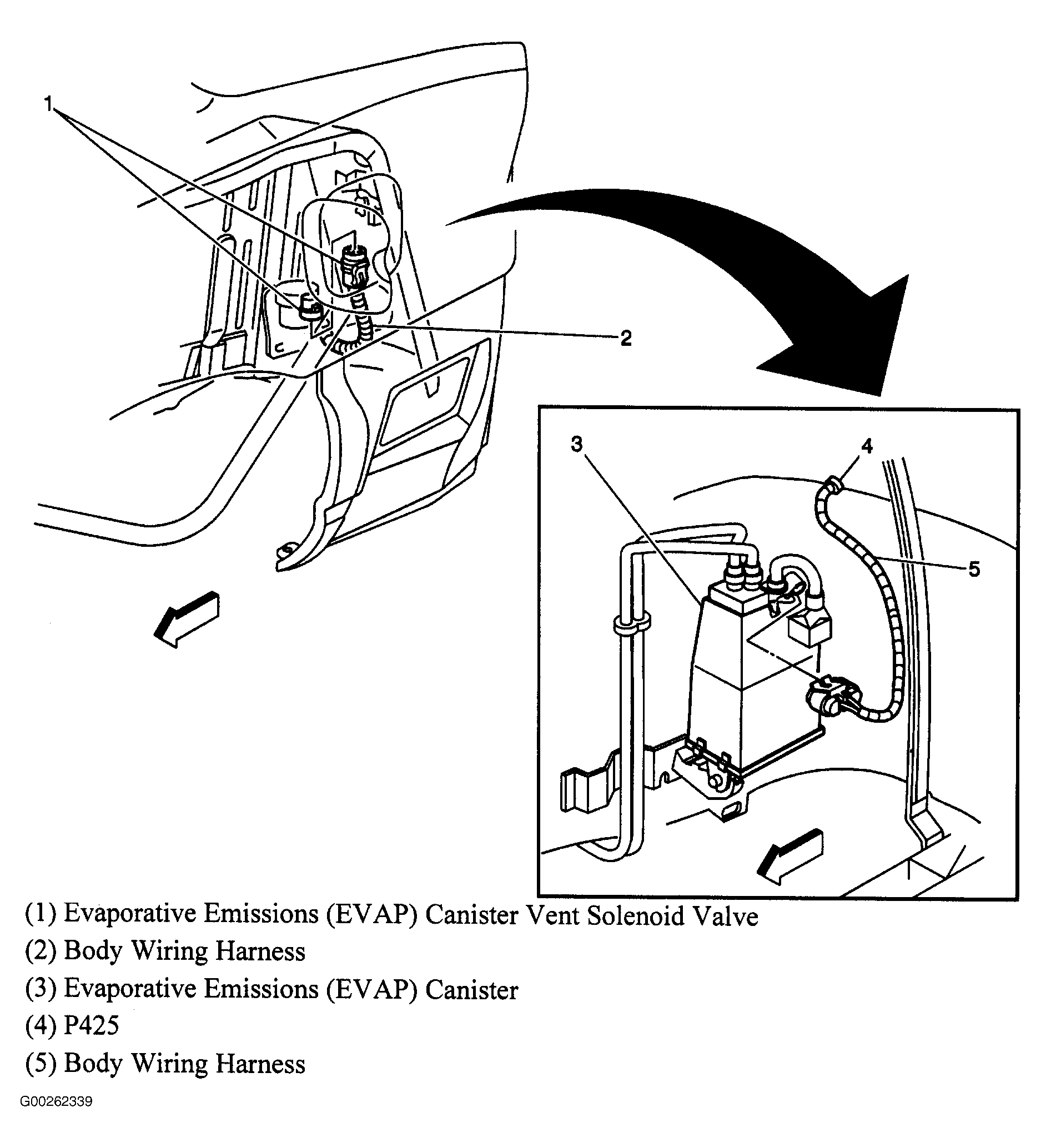

Fig 39: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 40: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 41: Center Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 42: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

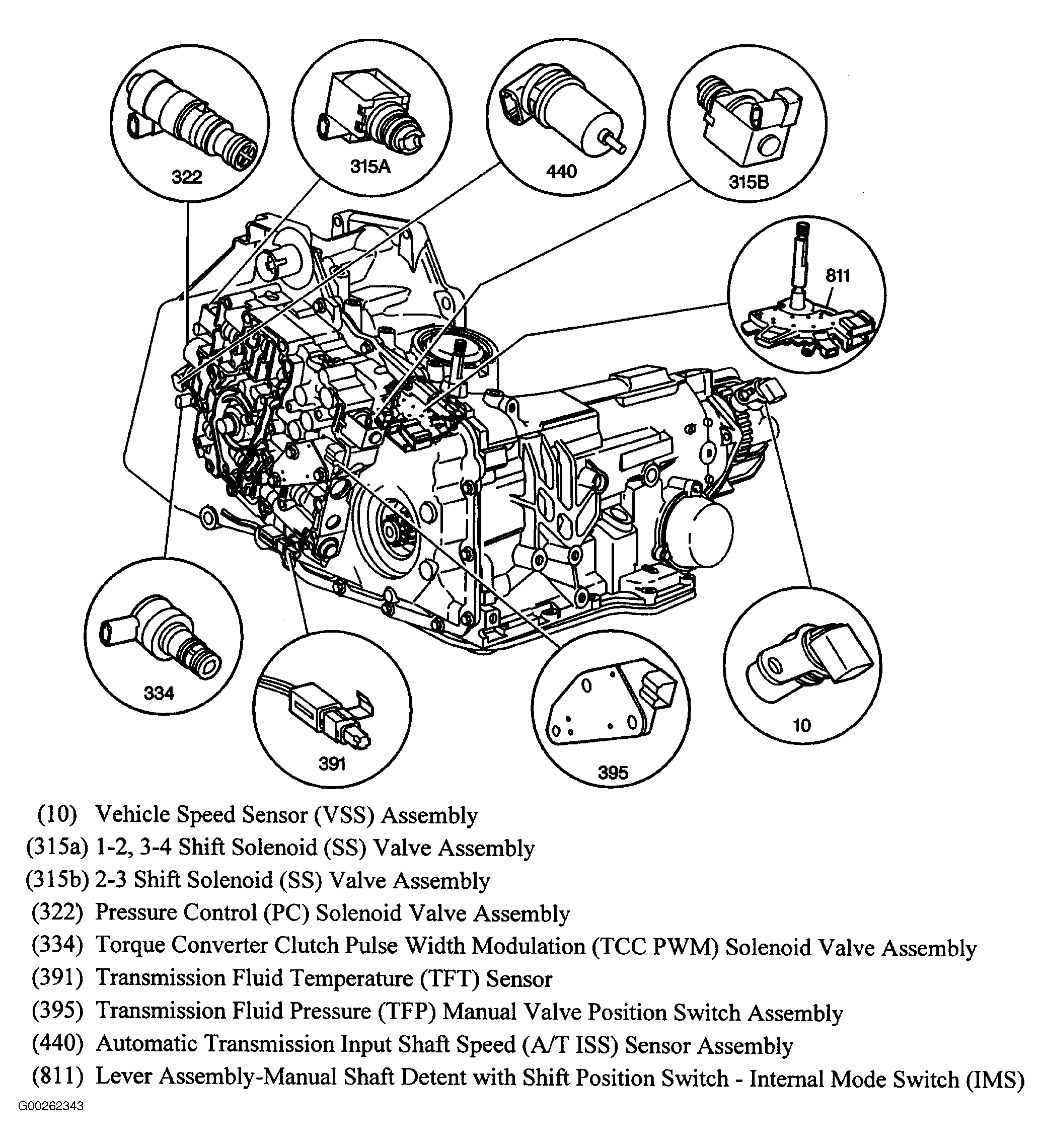

Fig 43: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.

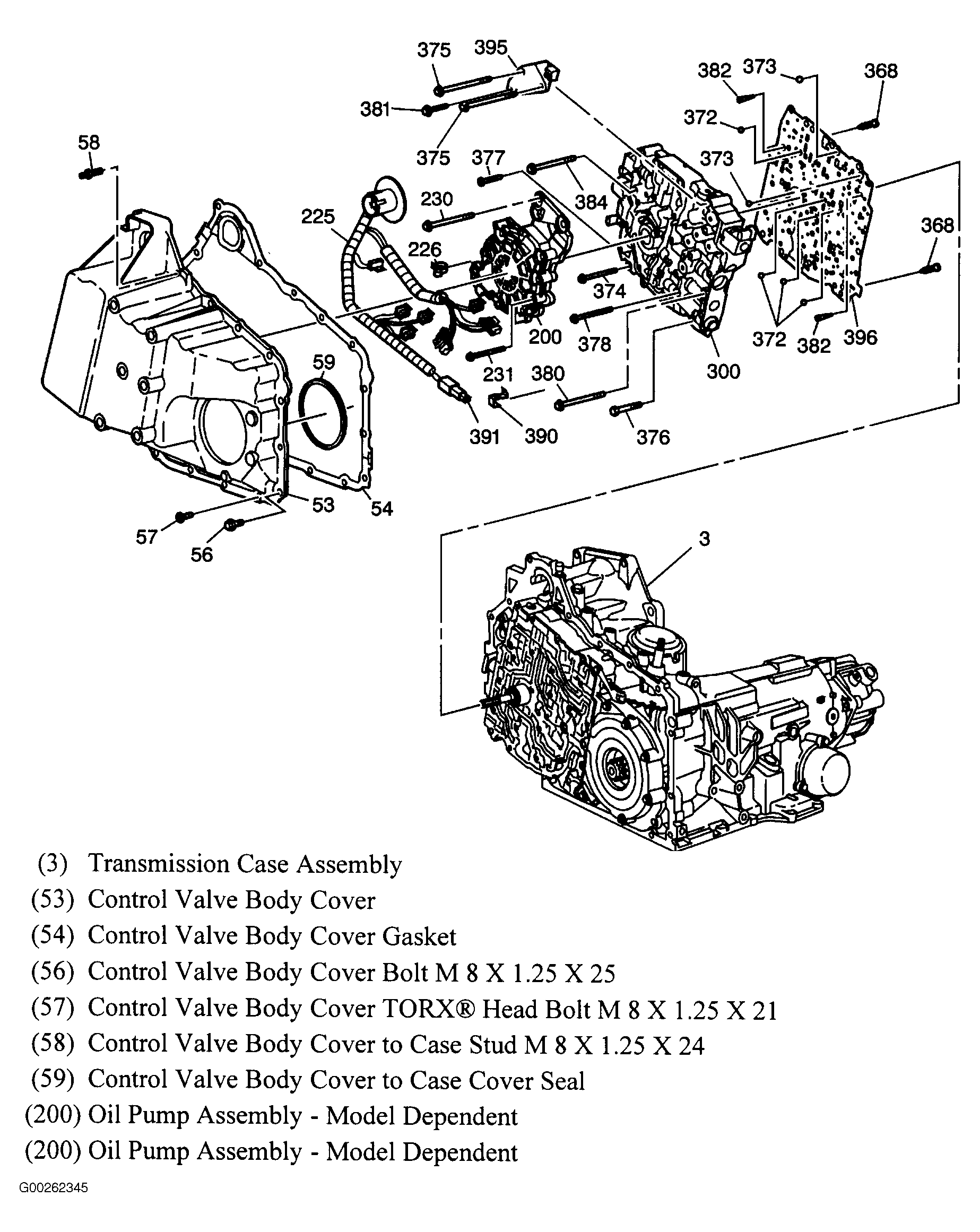

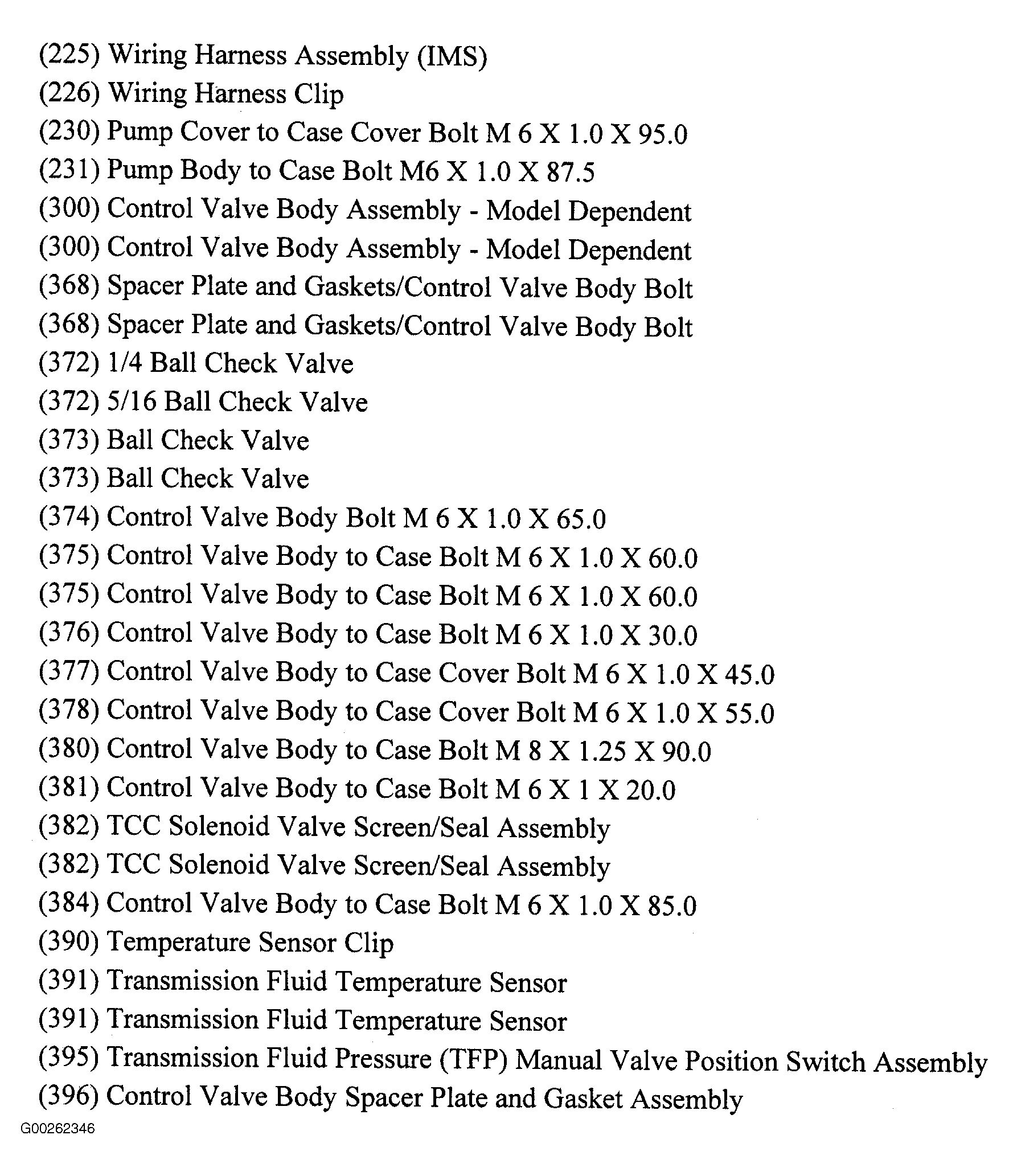

Fig 44: Transmission Case (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Transmission Case (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

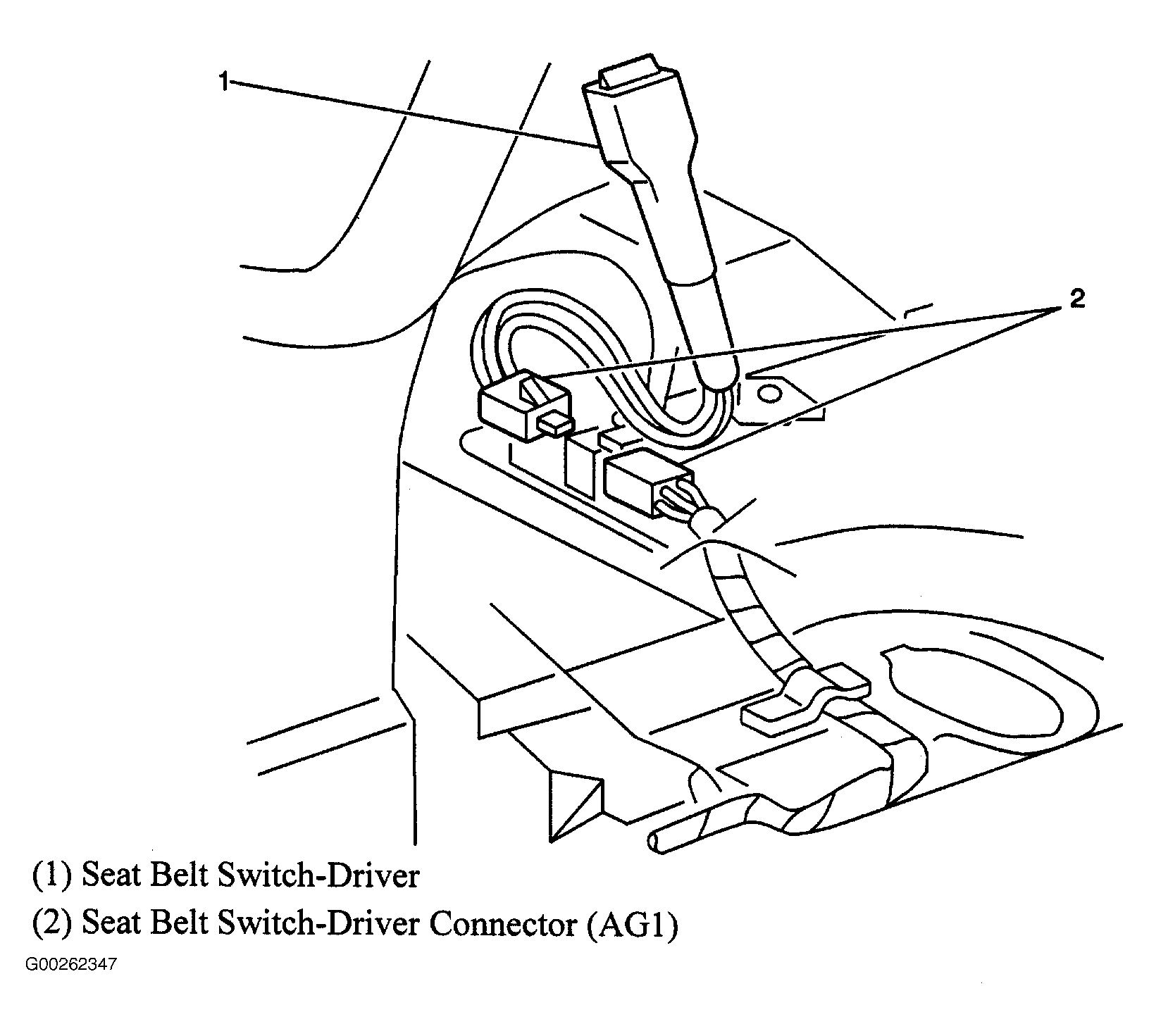

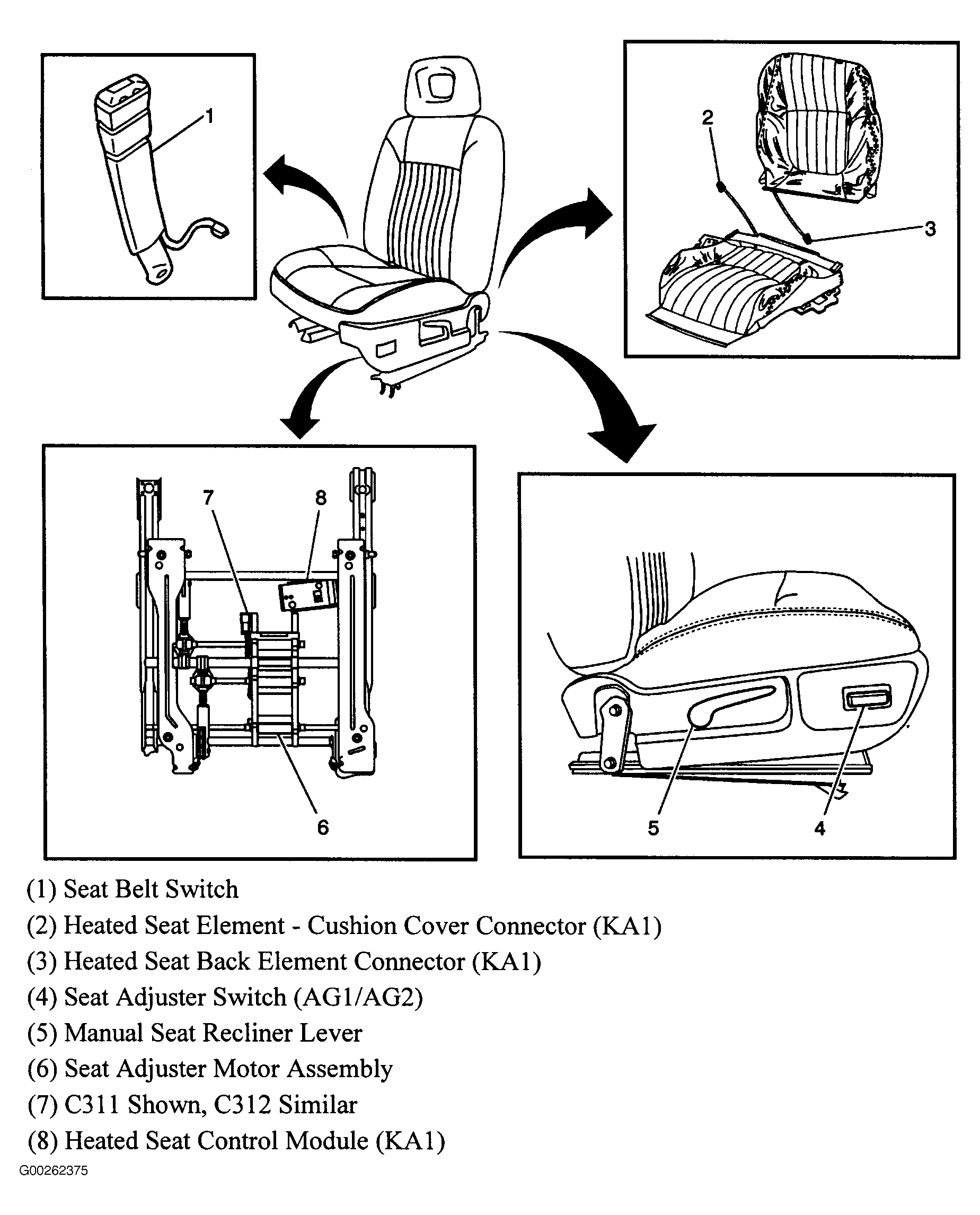

Fig 46: Driver's Seat
Courtesy of GENERAL MOTORS CORP.

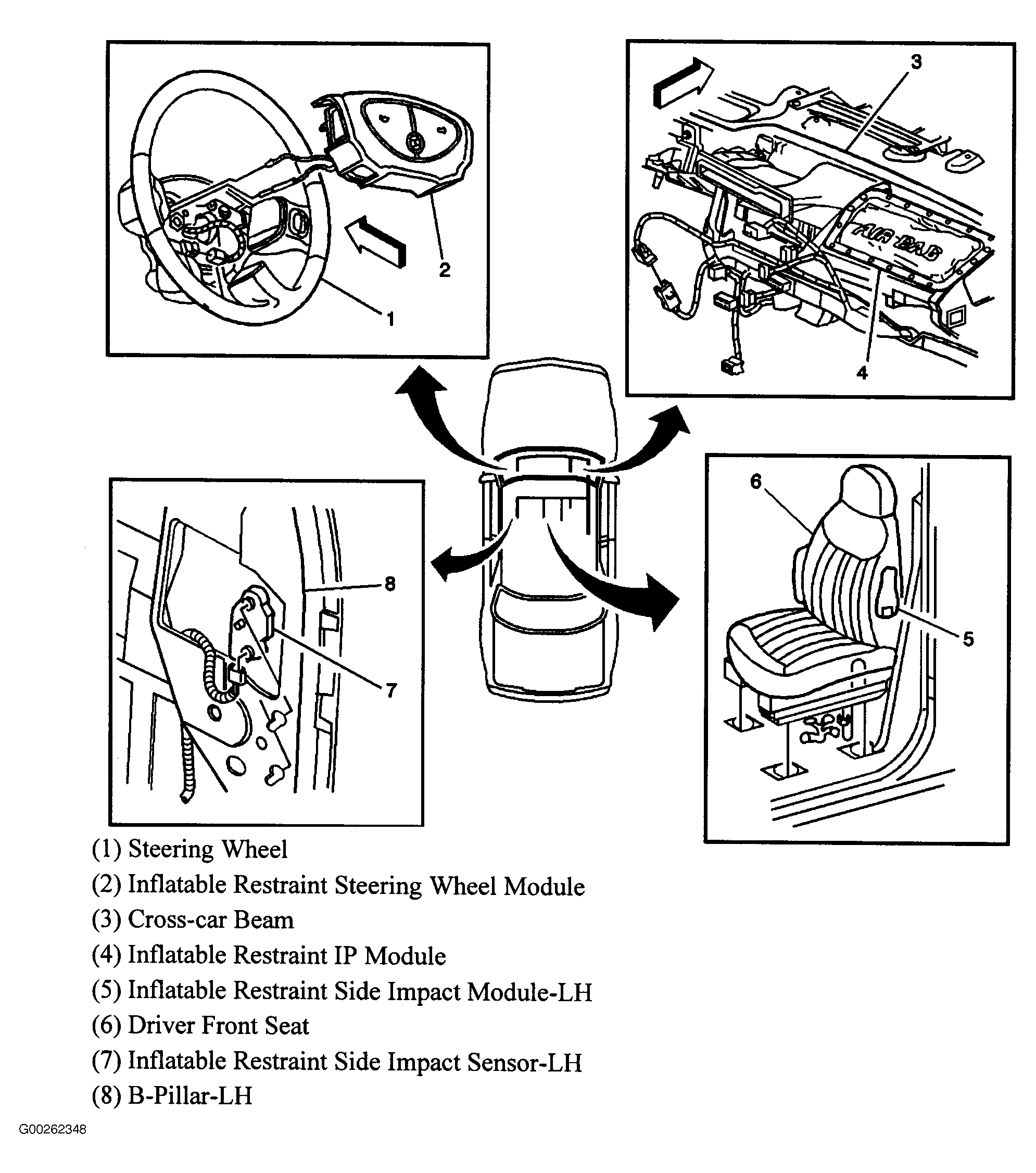

Fig 47: Air Bag Modules & Side Impact Sensor
Courtesy of GENERAL MOTORS CORP.

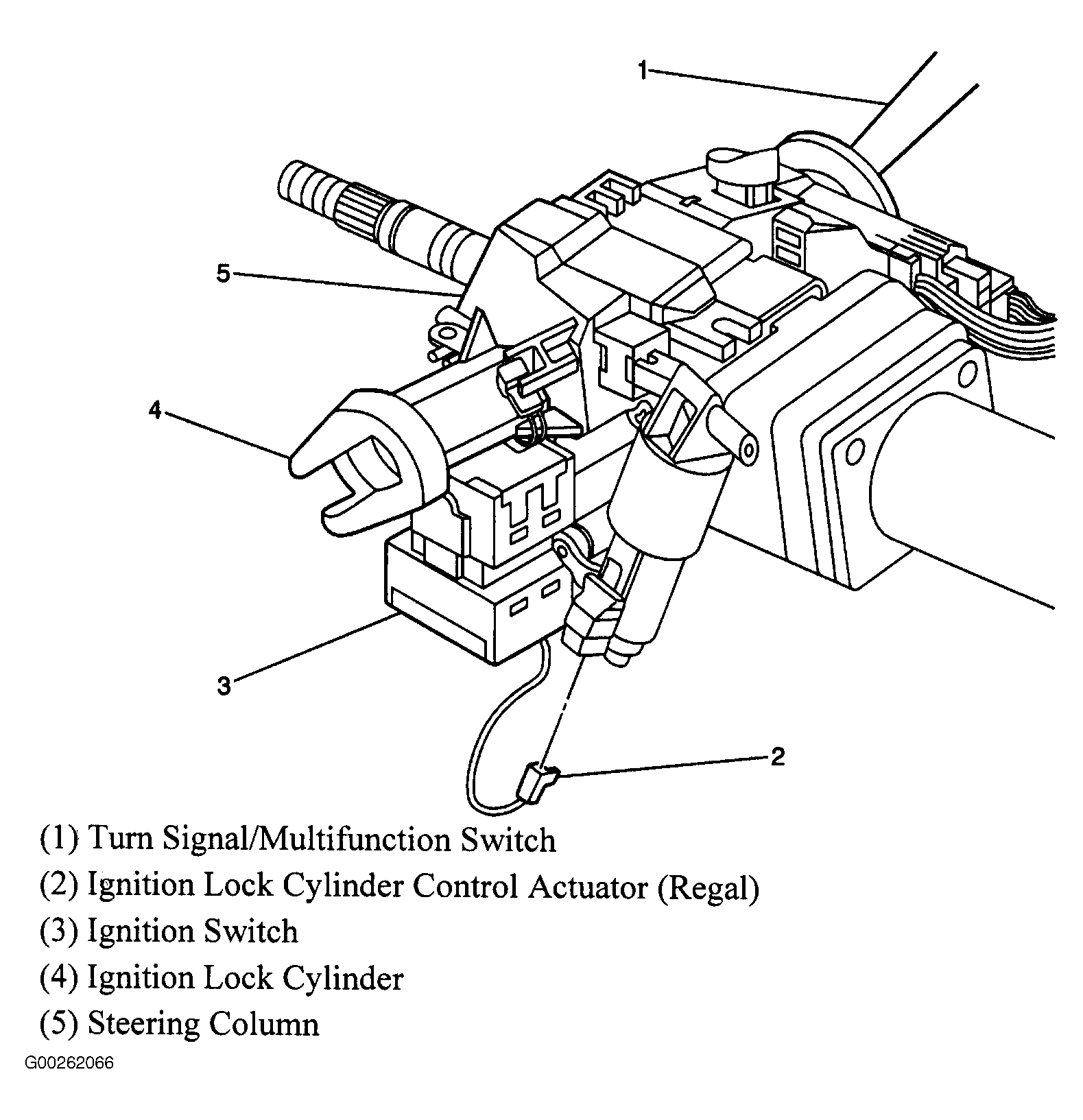

Fig 48: Steering Column
Courtesy of GENERAL MOTORS CORP.

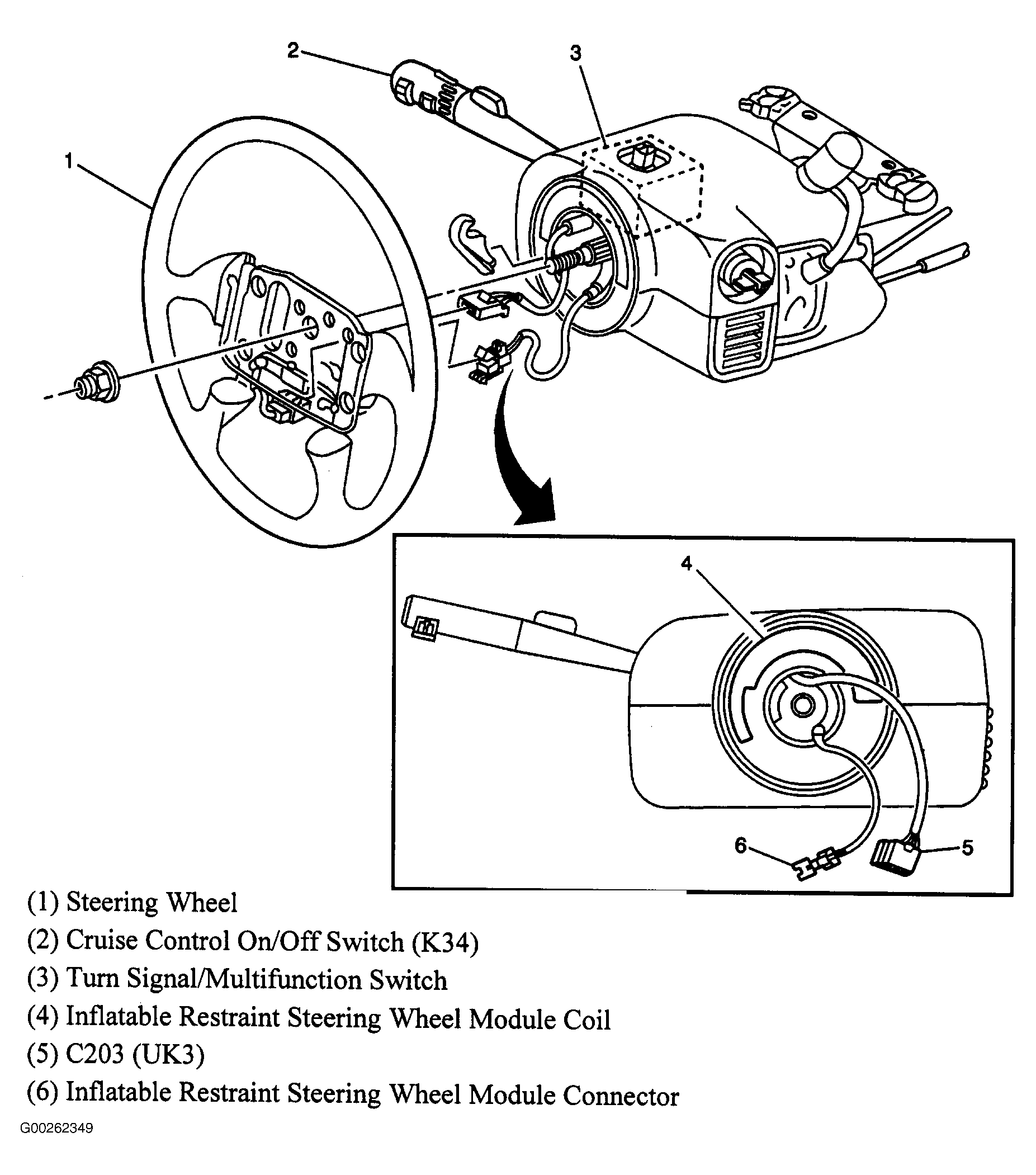

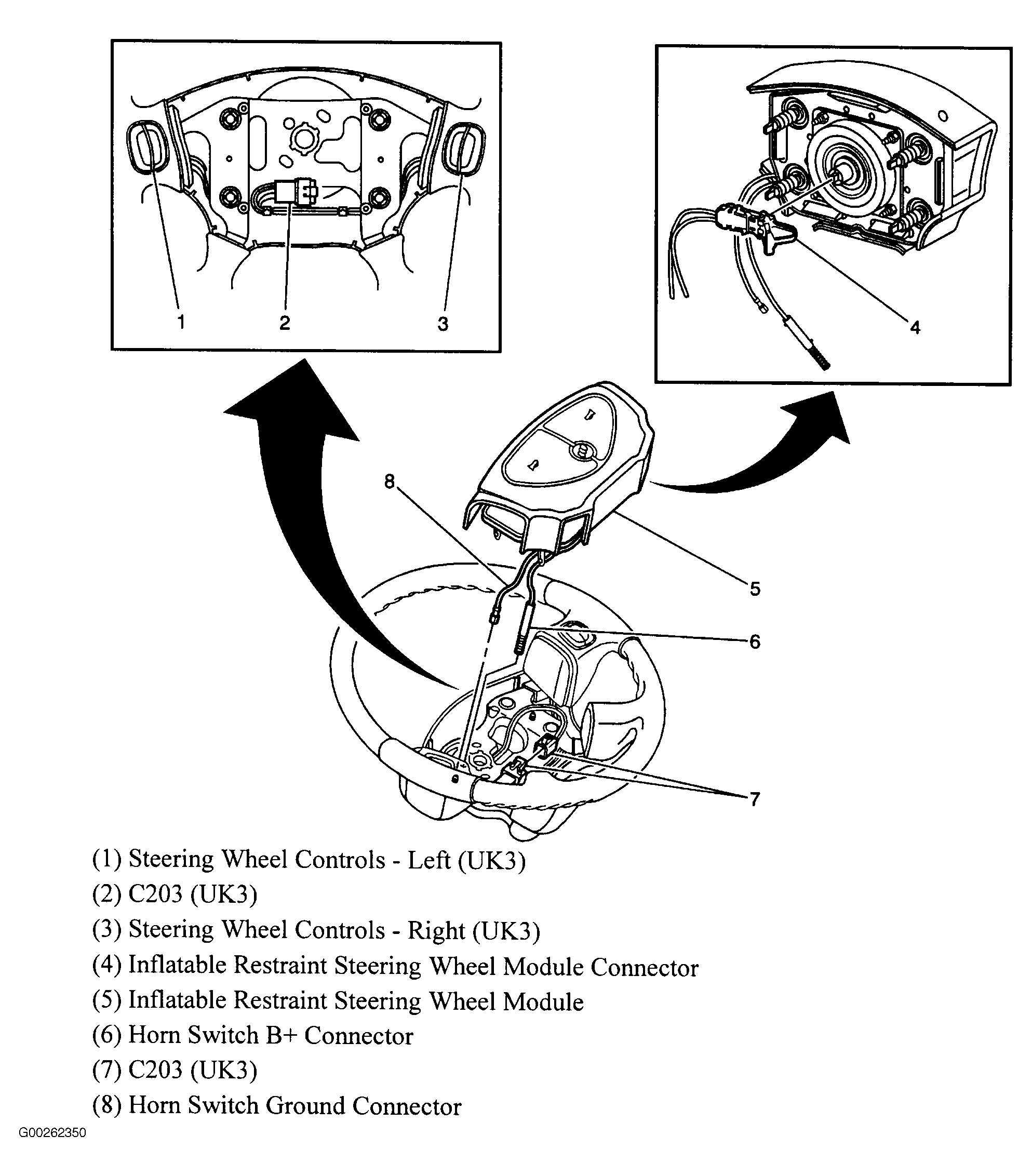

Fig 49: Steering Wheel
Courtesy of GENERAL MOTORS CORP.

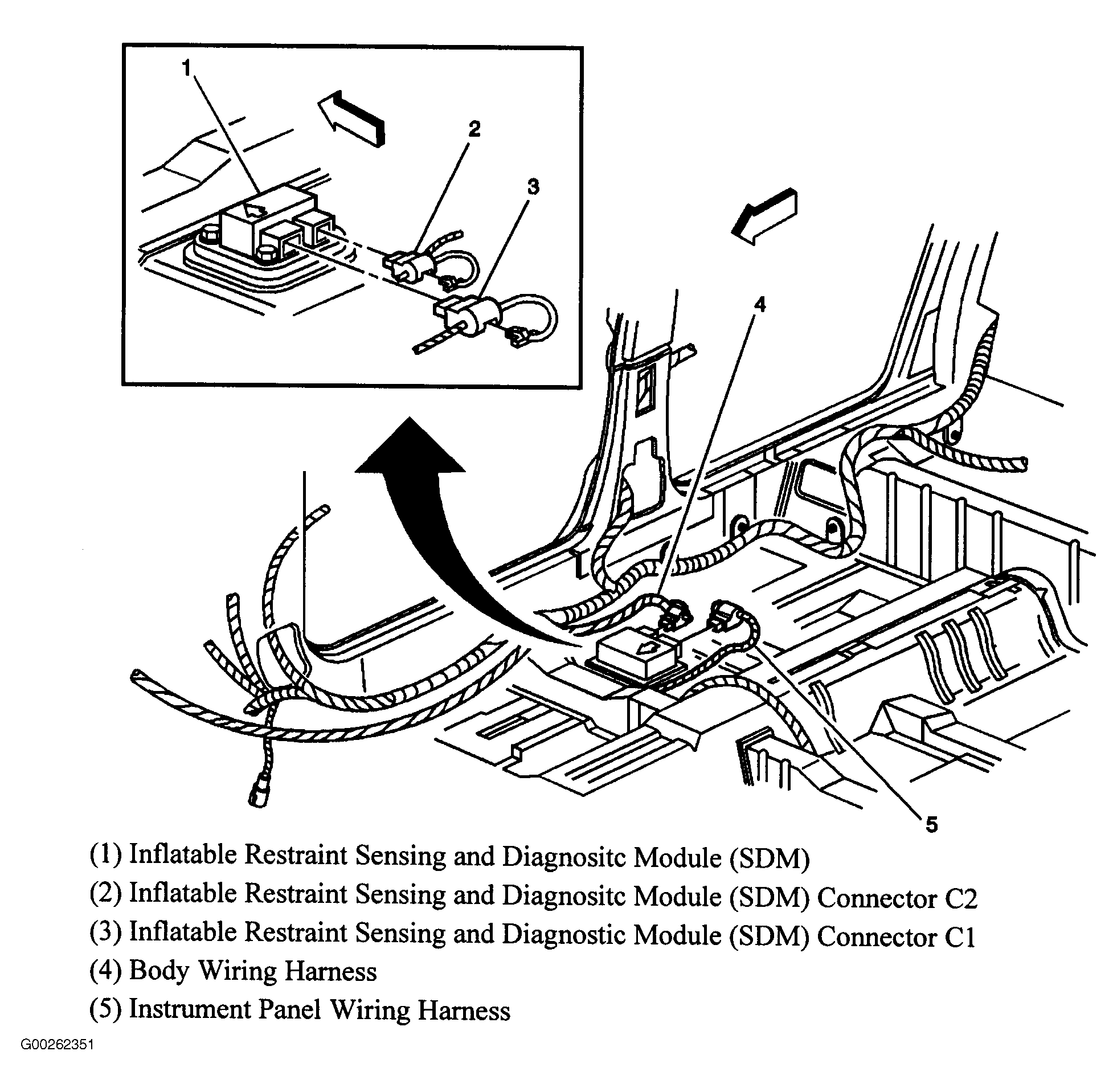

Fig 50: Right Side Passenger Compartment Floor Pan
Courtesy of GENERAL MOTORS CORP.

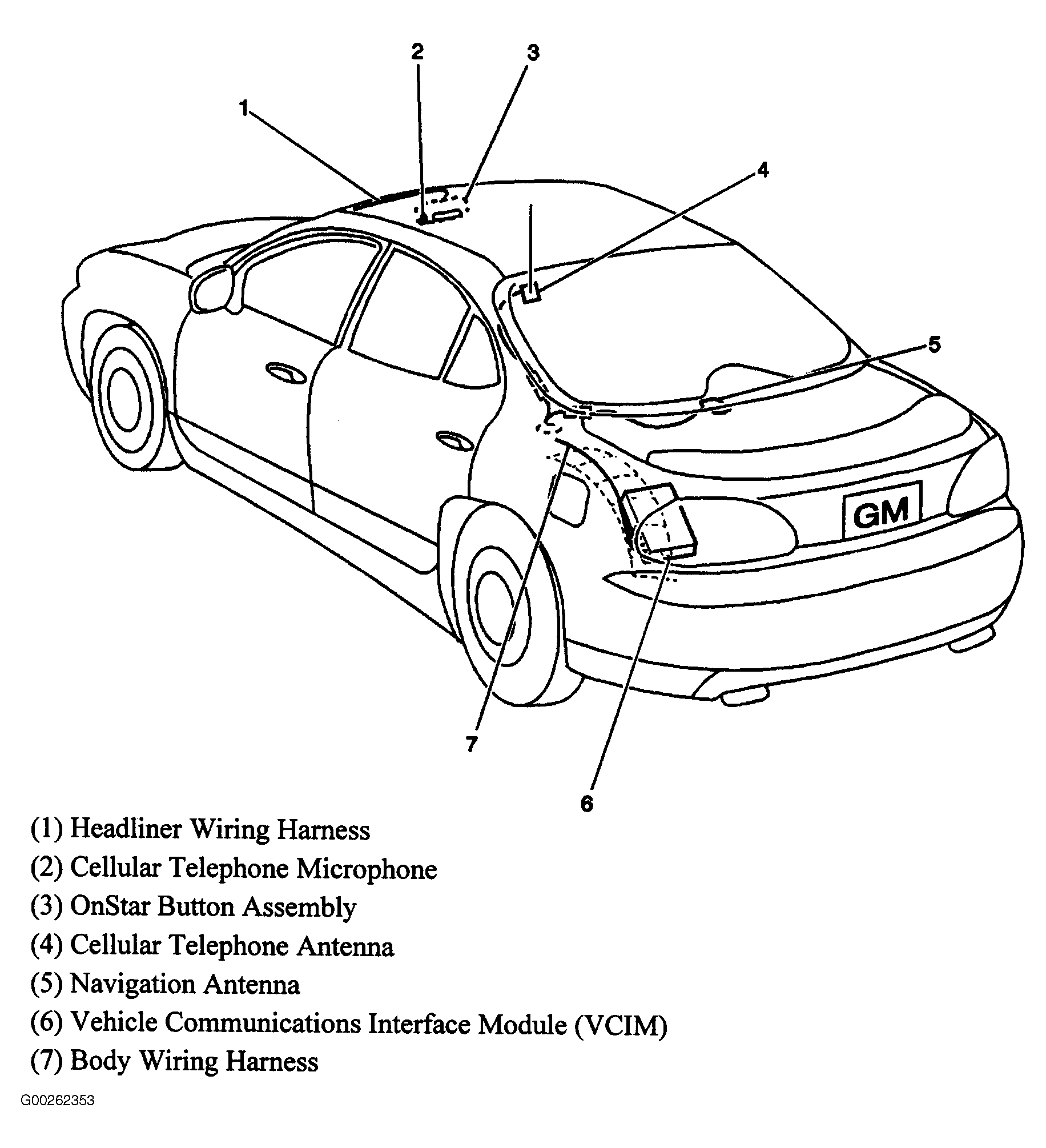

Fig 51: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

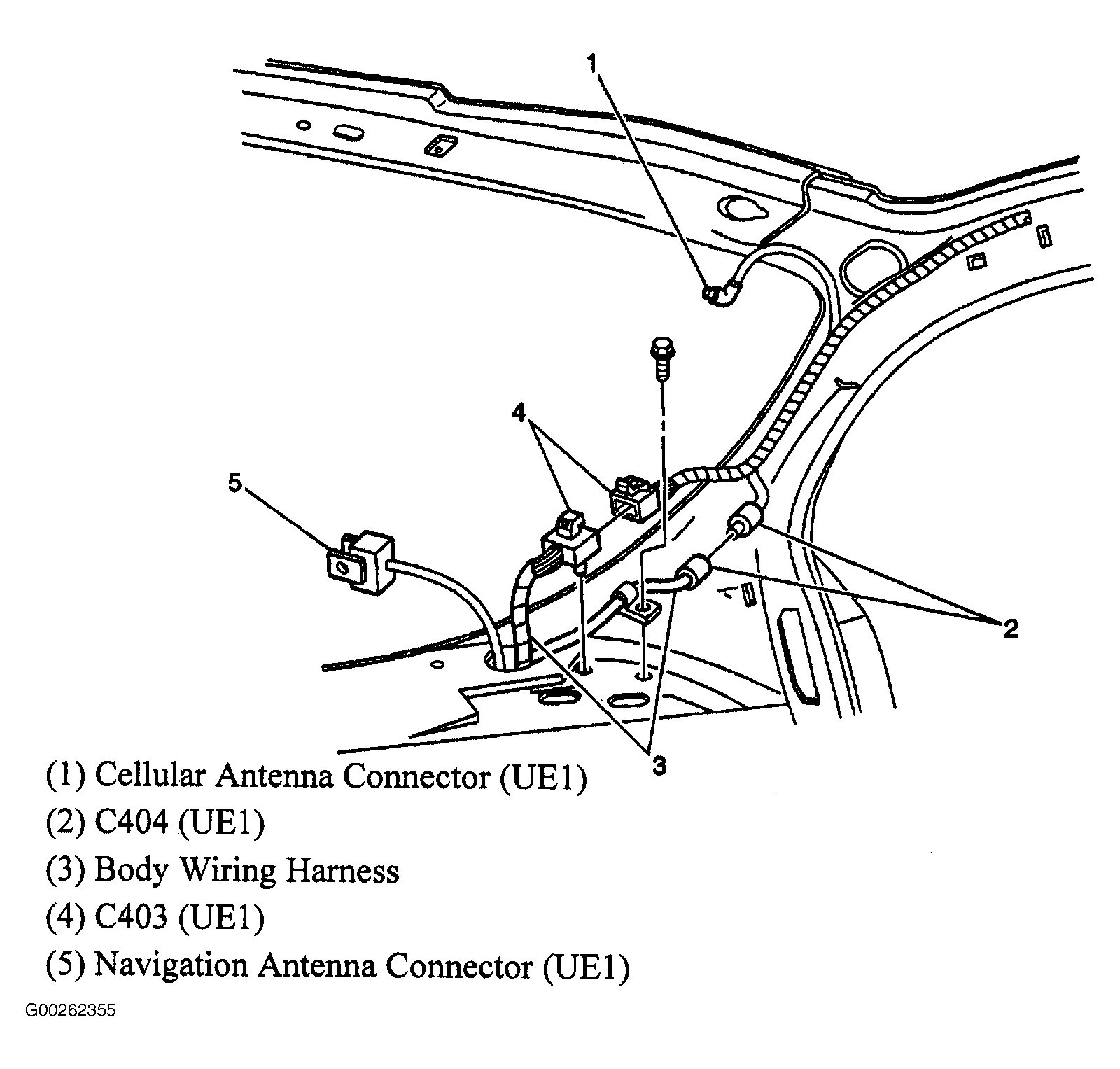

Fig 52: Left Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 53: Left "C" Pillar
Courtesy of GENERAL MOTORS CORP.

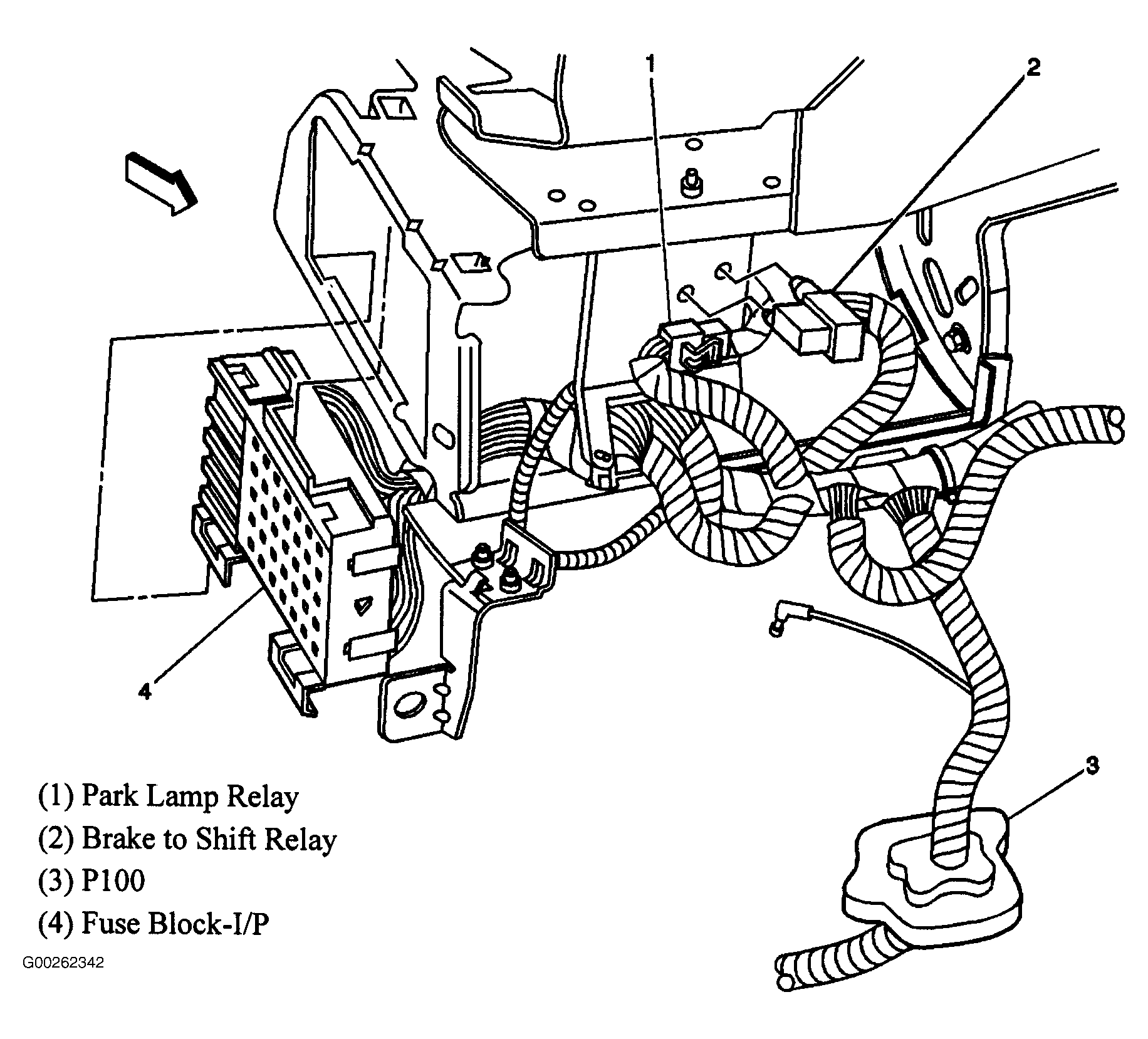

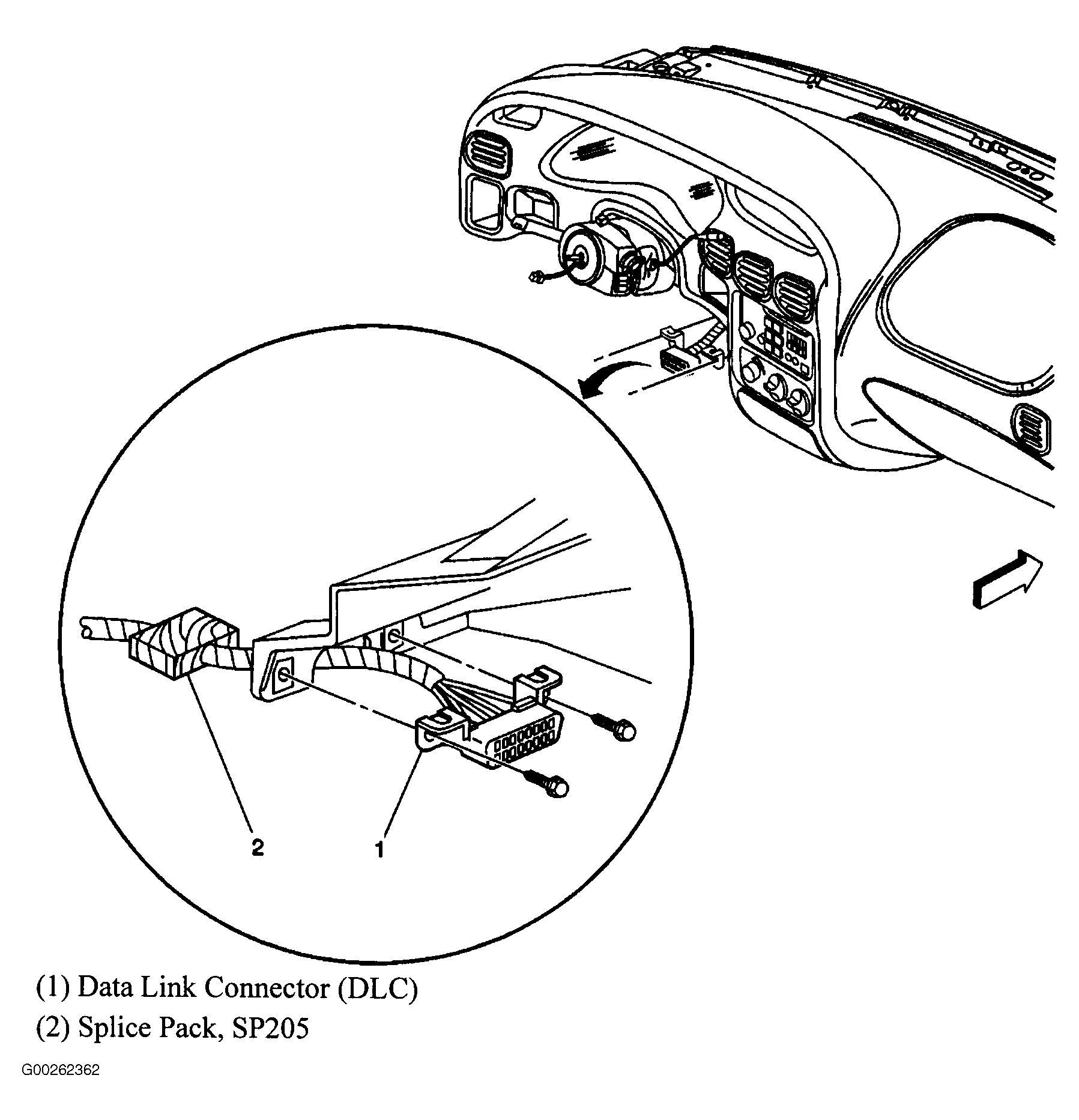

Fig 54: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 55: Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 56: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Right Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

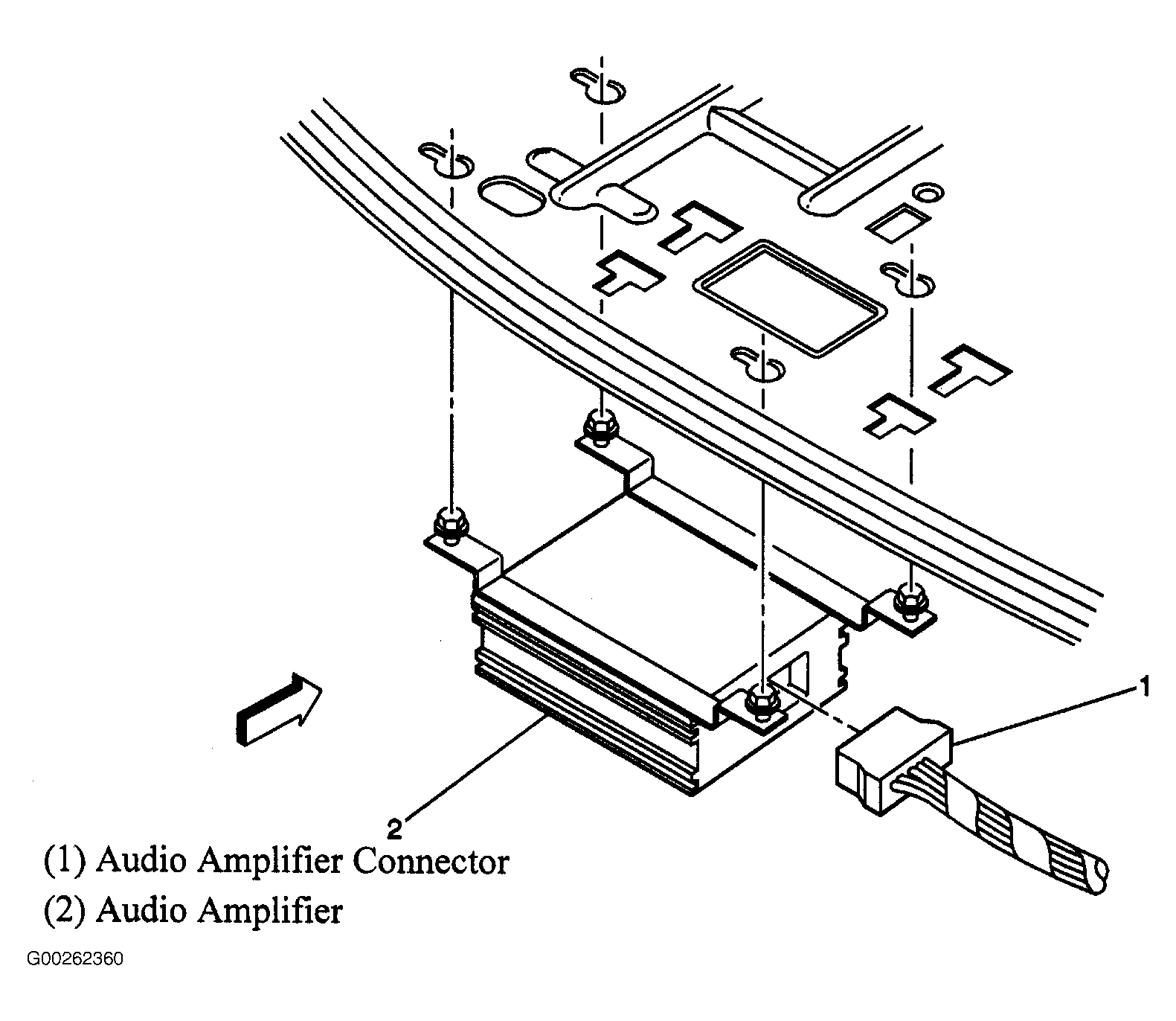

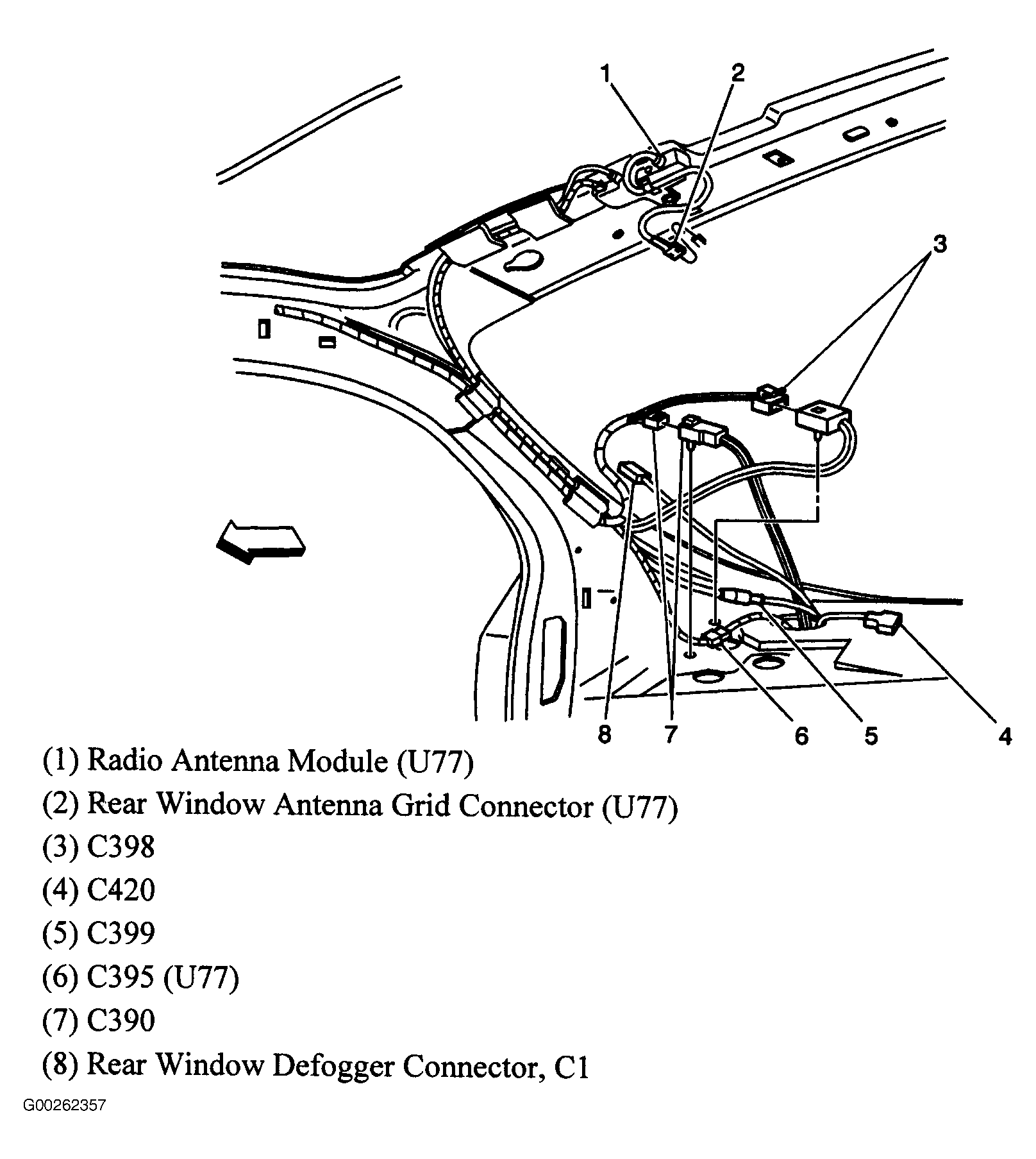

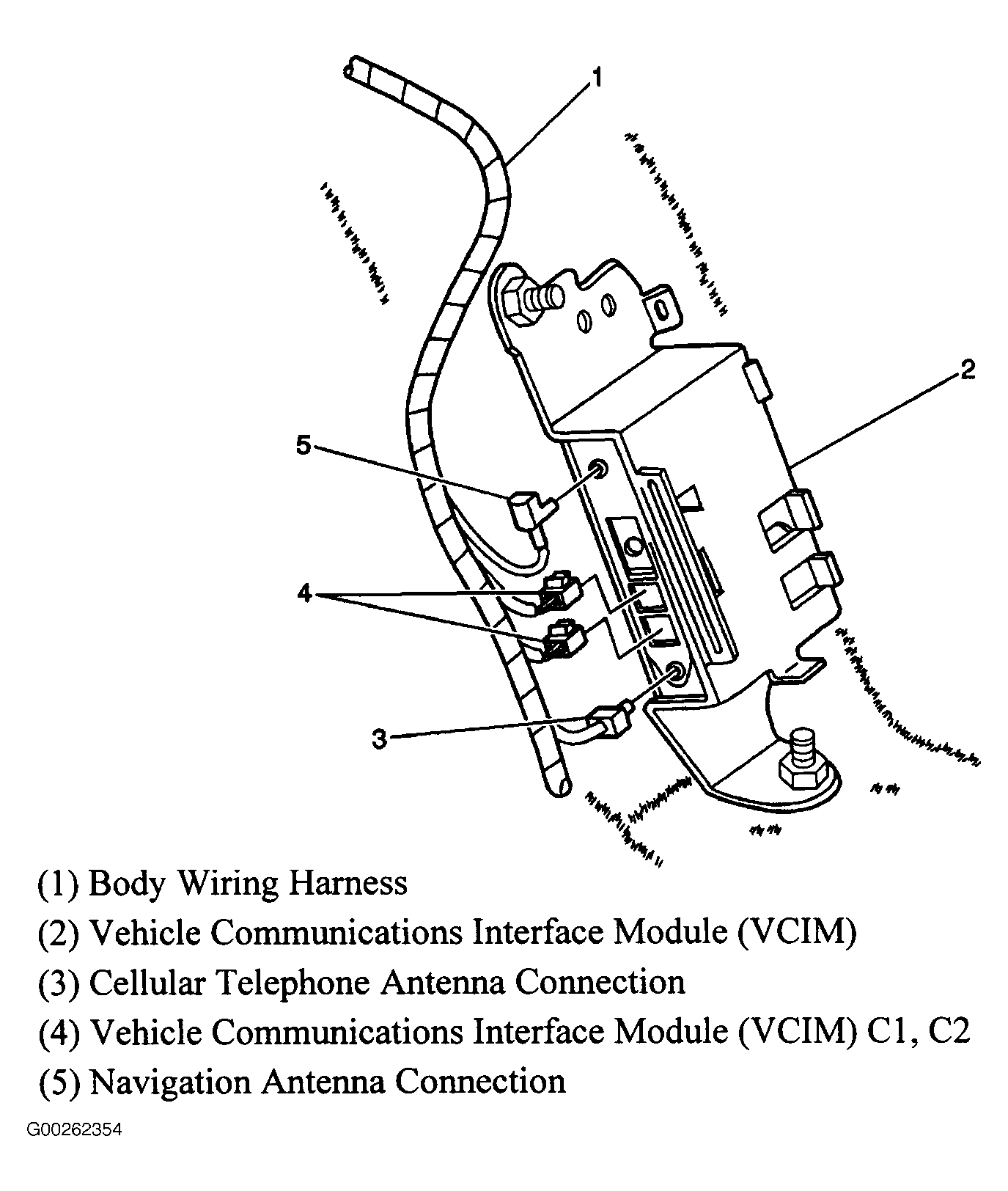

Fig 58: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.

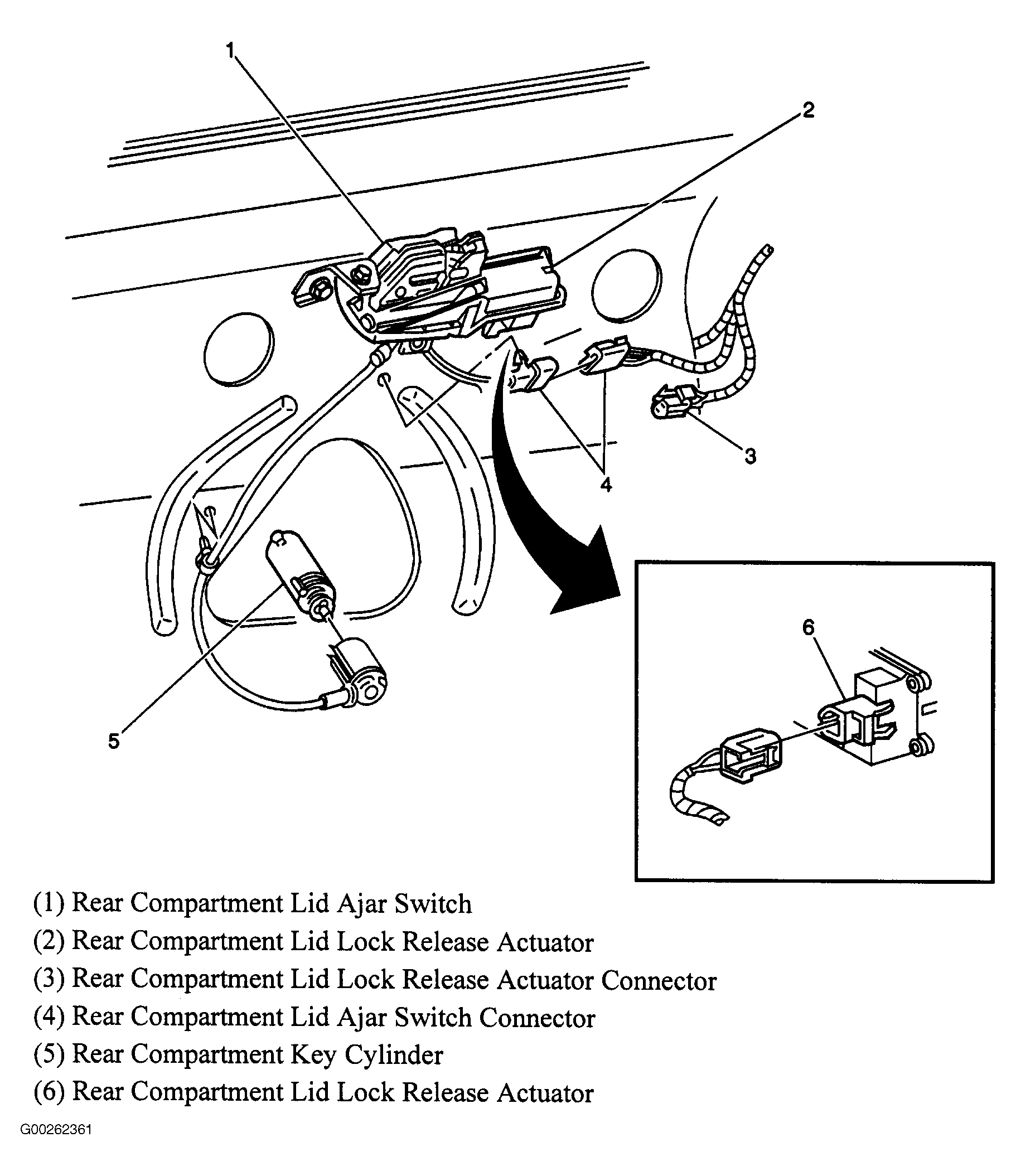

Fig 59: Rear Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Fig 60: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

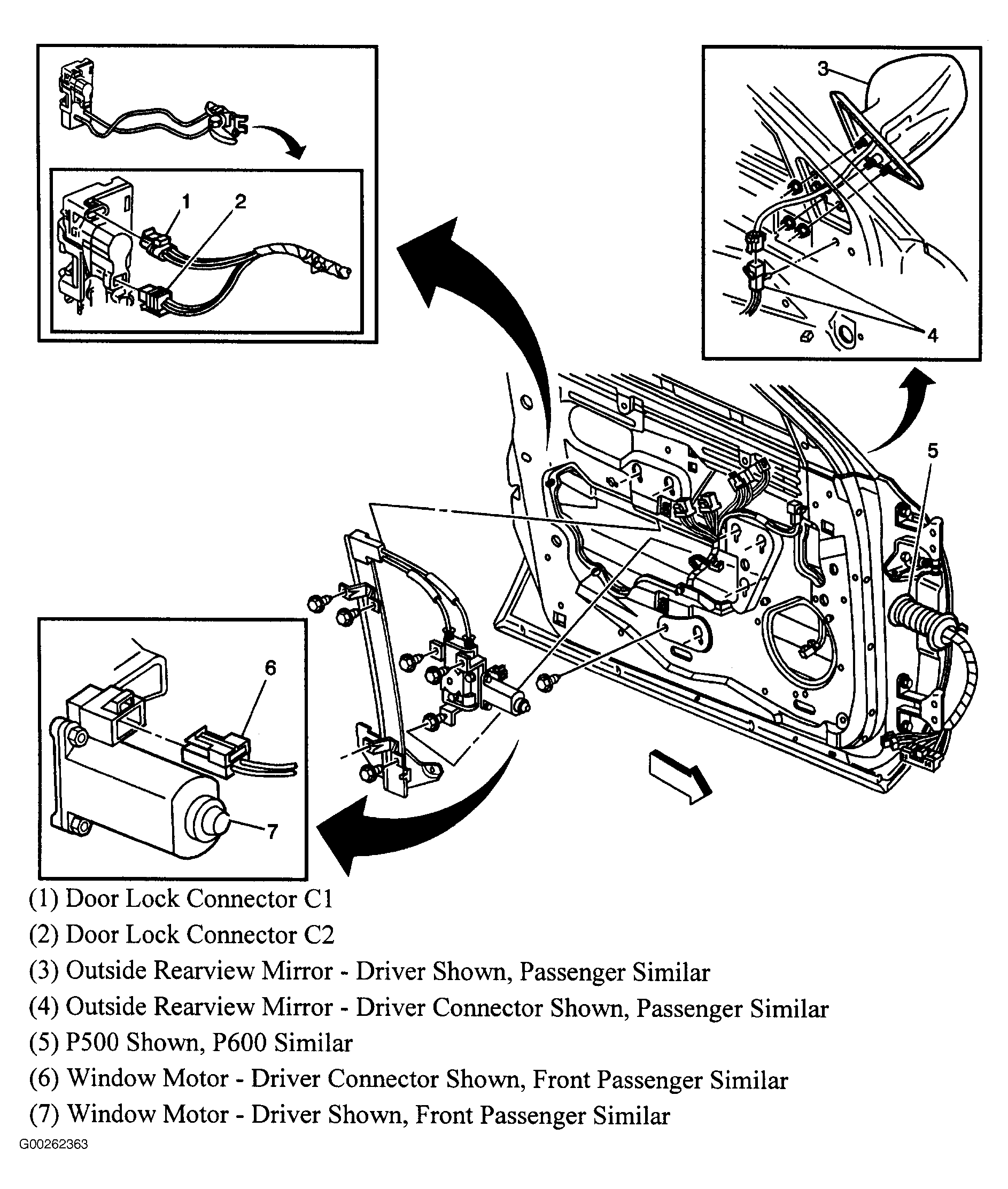

Fig 61: Left Front Door
Courtesy of GENERAL MOTORS CORP.

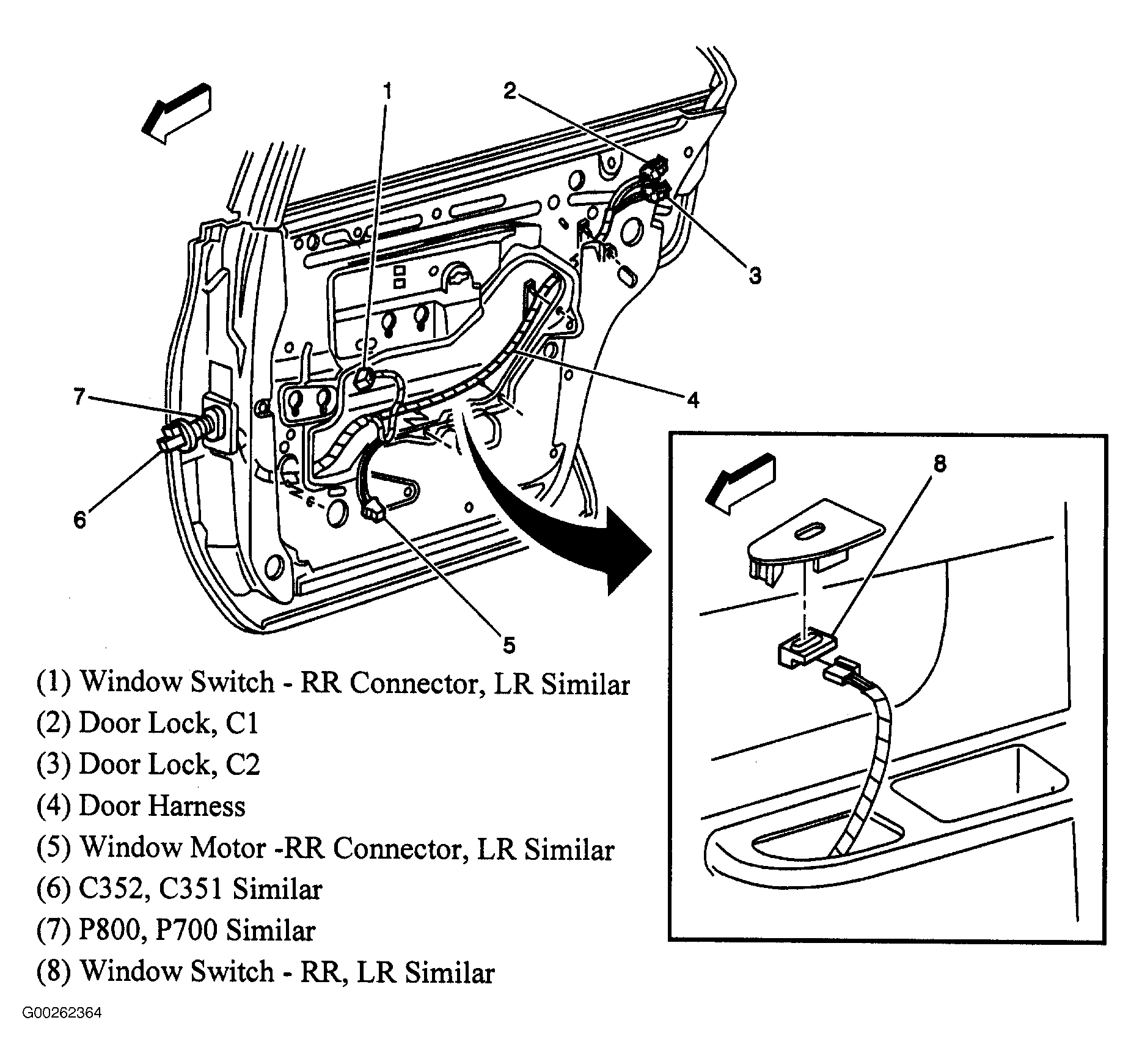

Fig 62: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 63: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

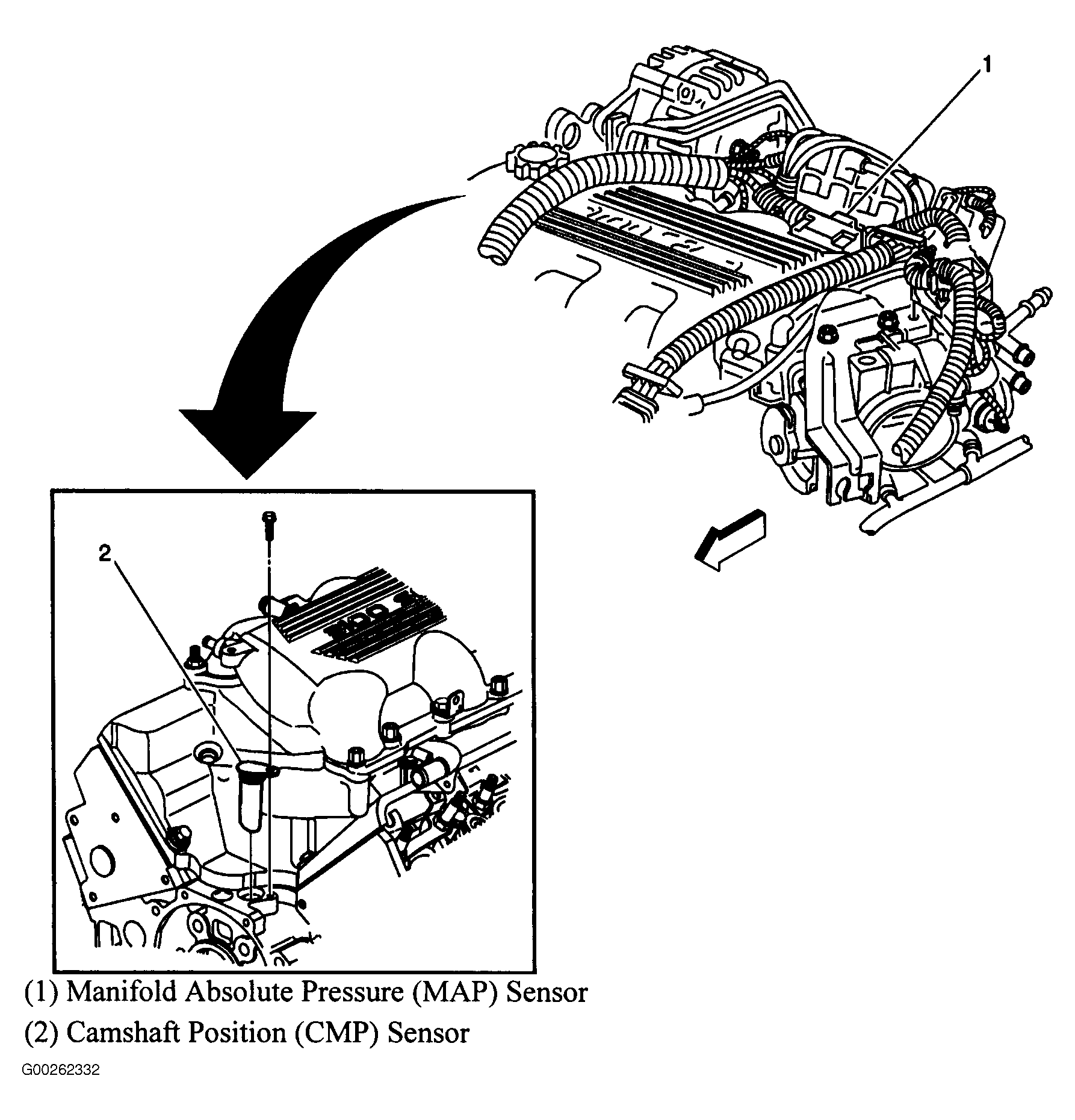

Fig 64: Front Of Engine (3.8L VIN K)
Courtesy of GENERAL MOTORS CORP.

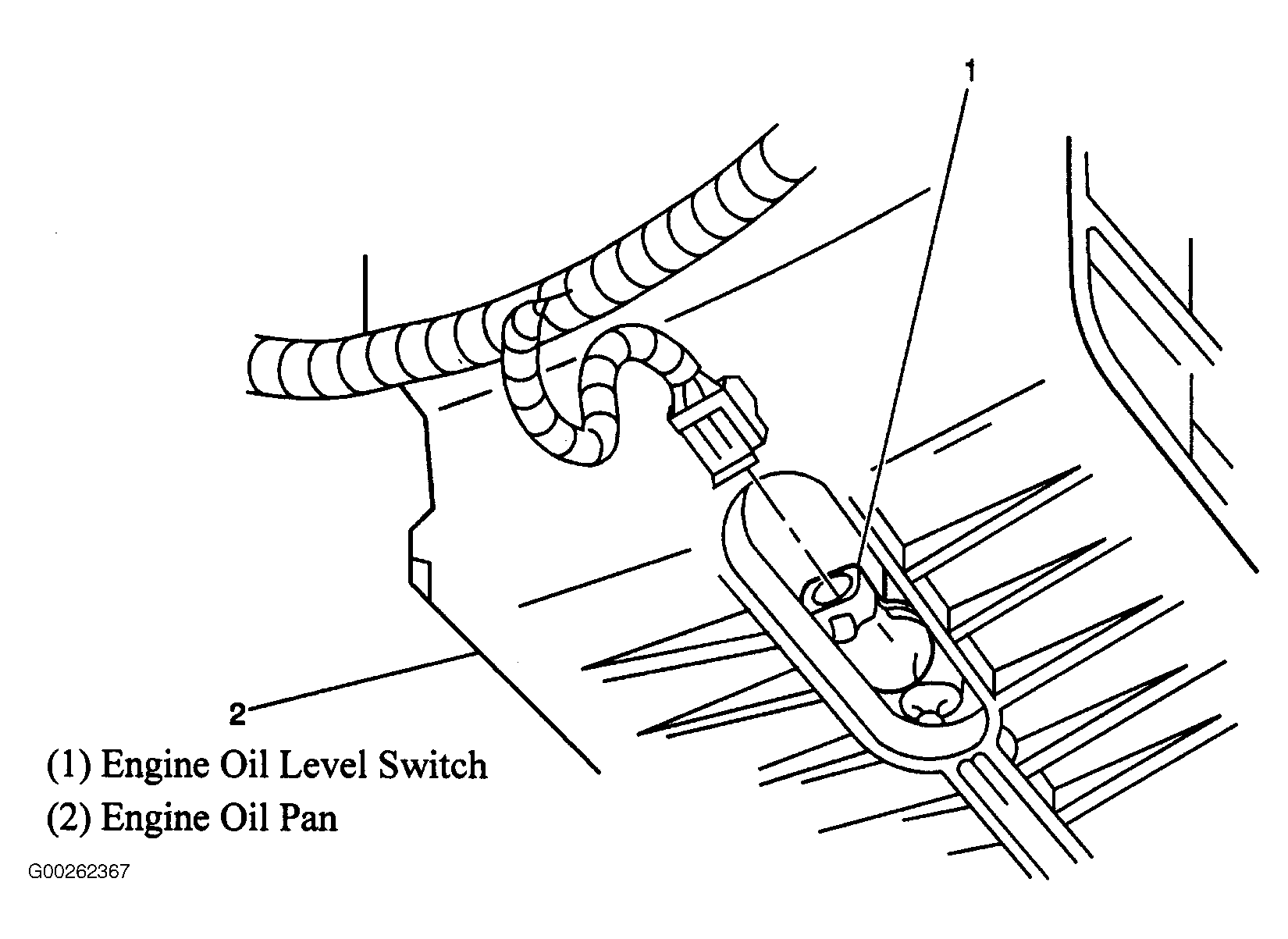

Fig 65: Center Of Oil Pan
Courtesy of GENERAL MOTORS CORP.

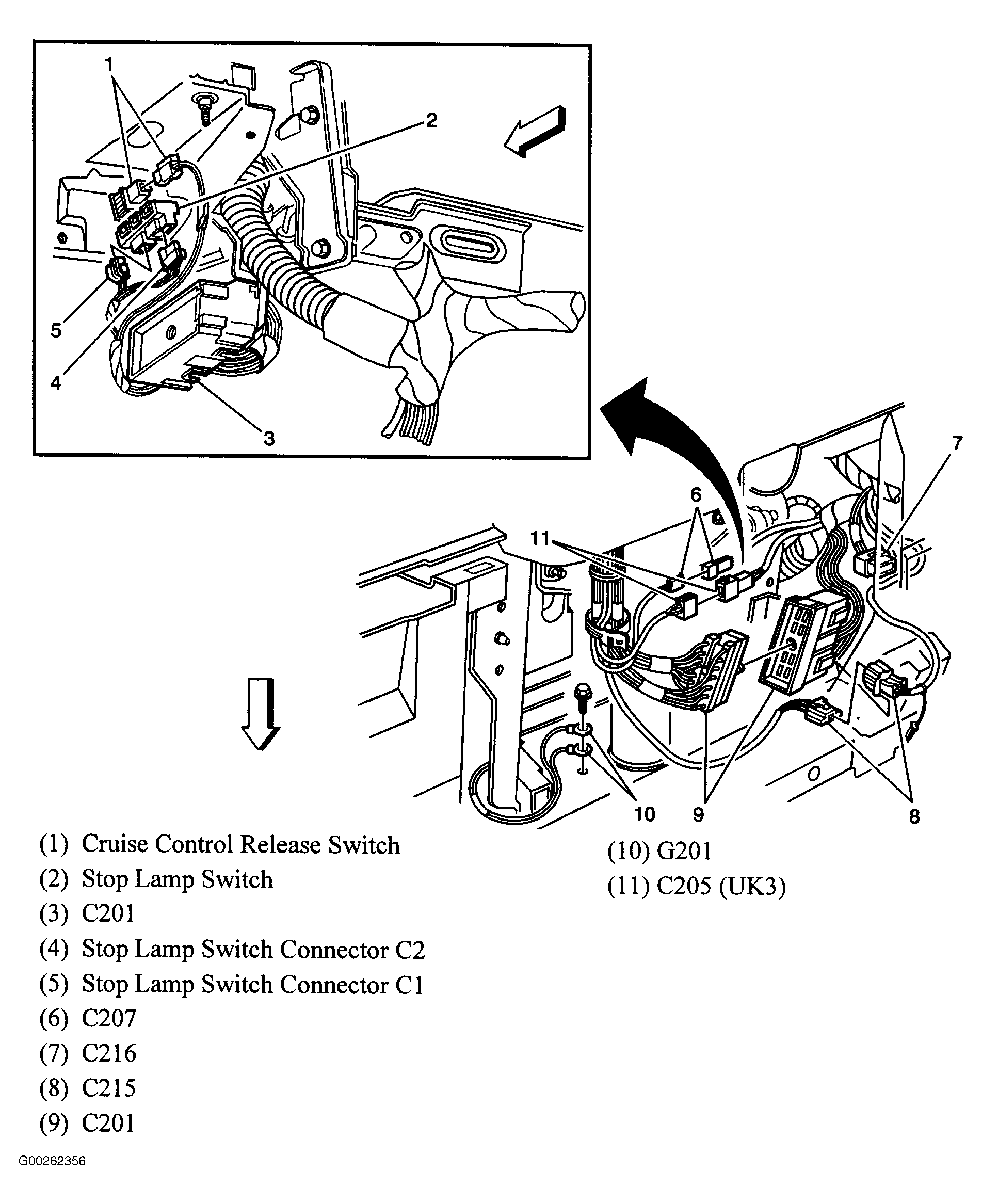

Fig 66: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 67: Glove Box
Courtesy of GENERAL MOTORS CORP.

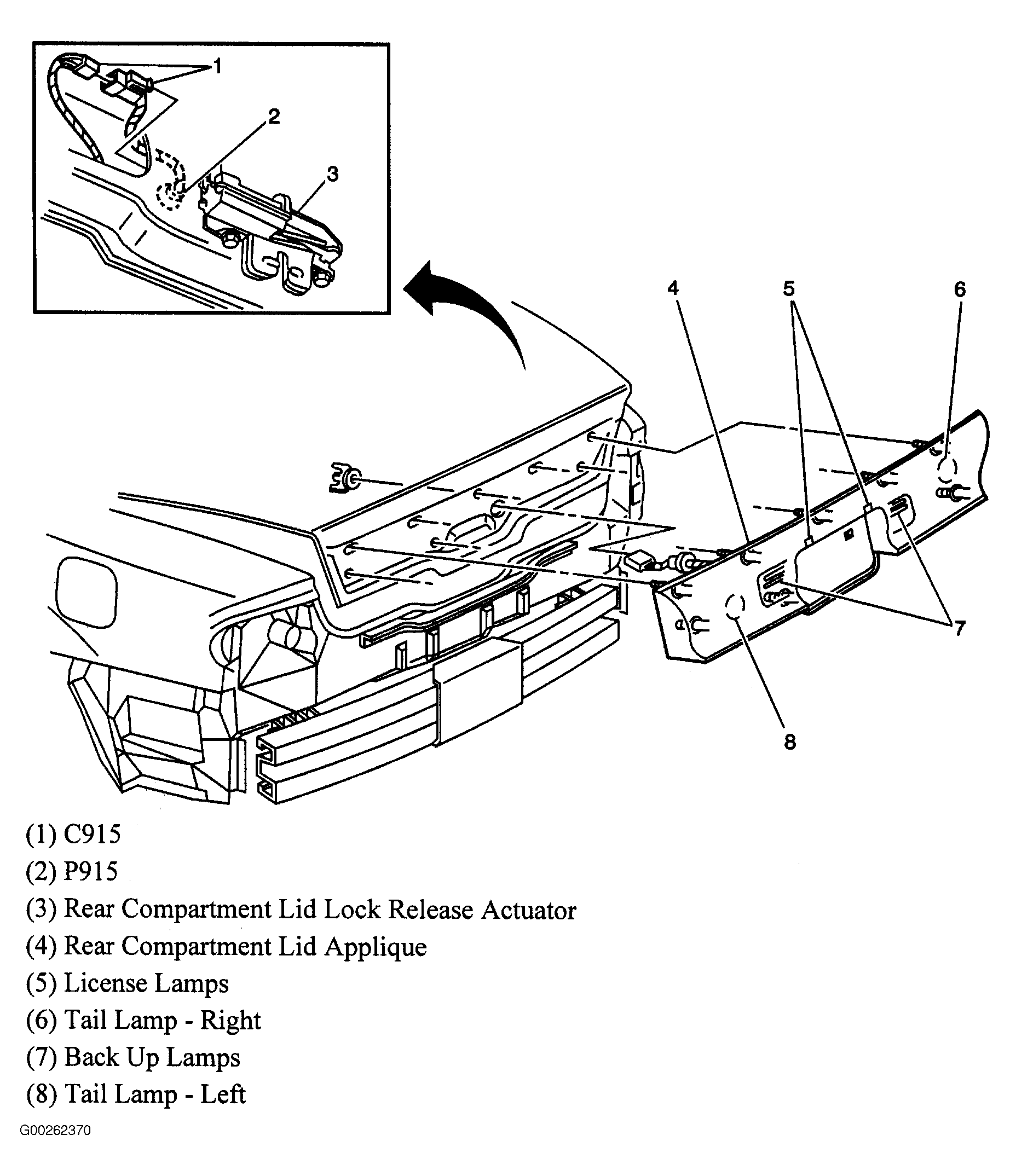

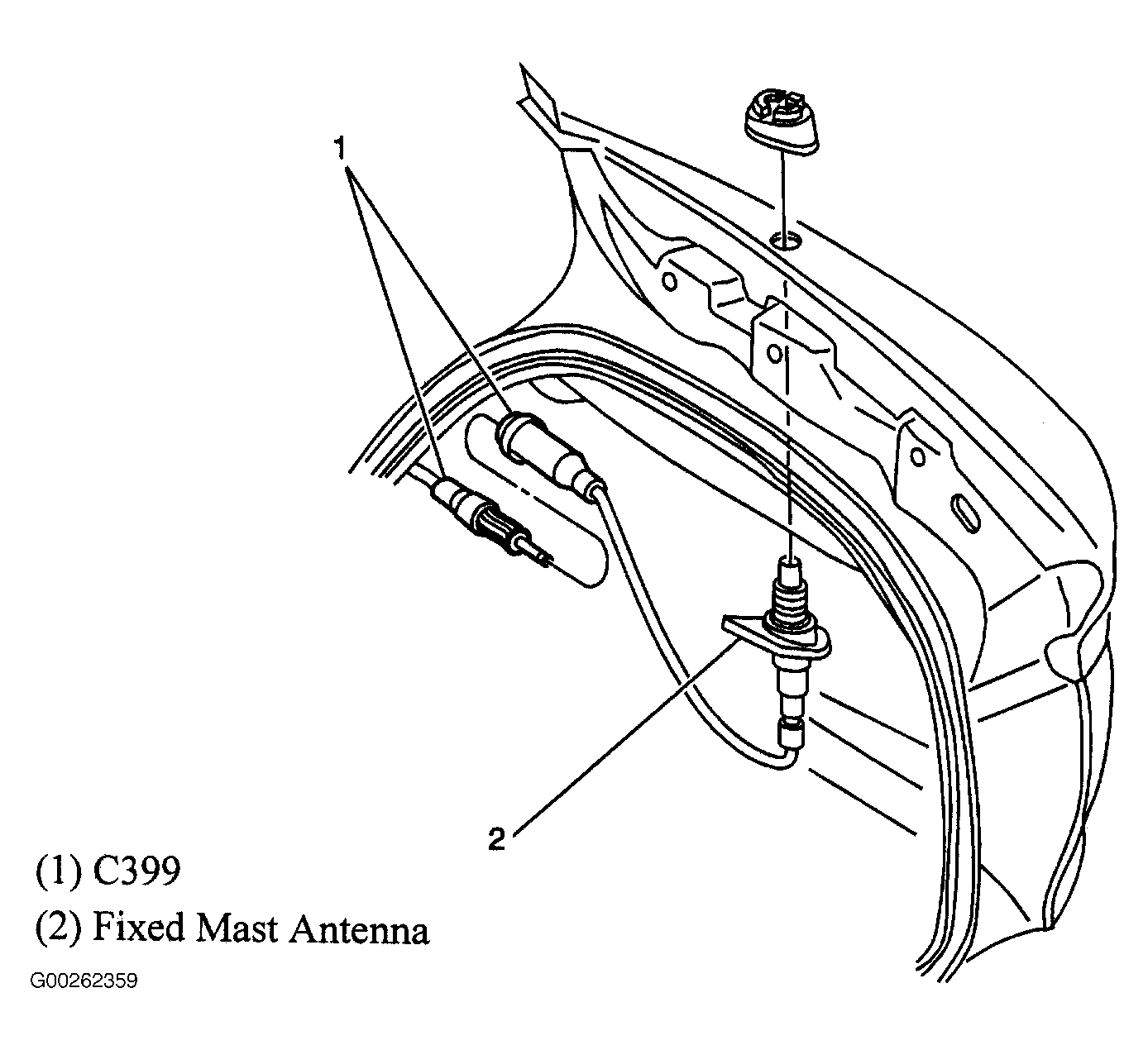

Fig 68: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

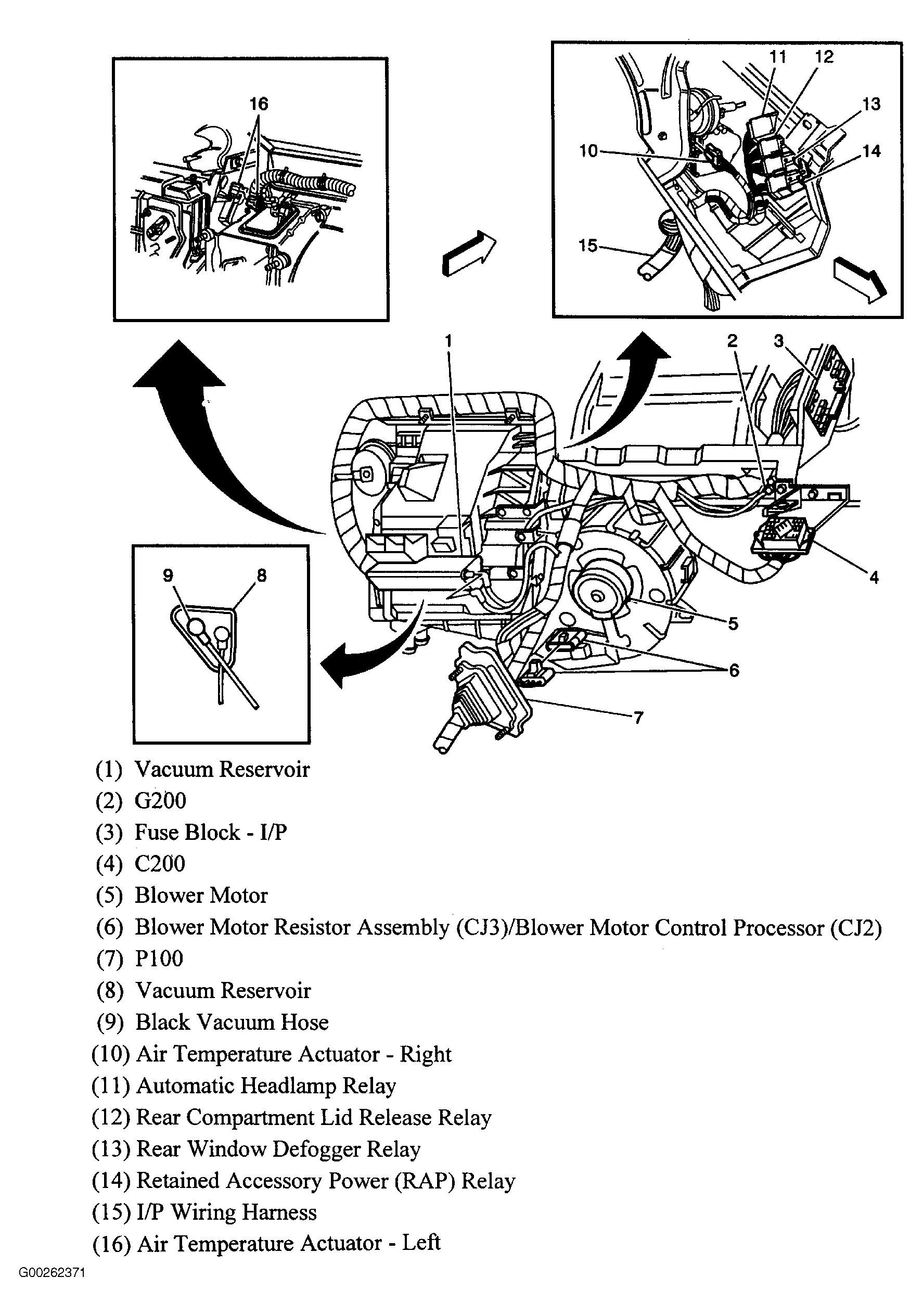

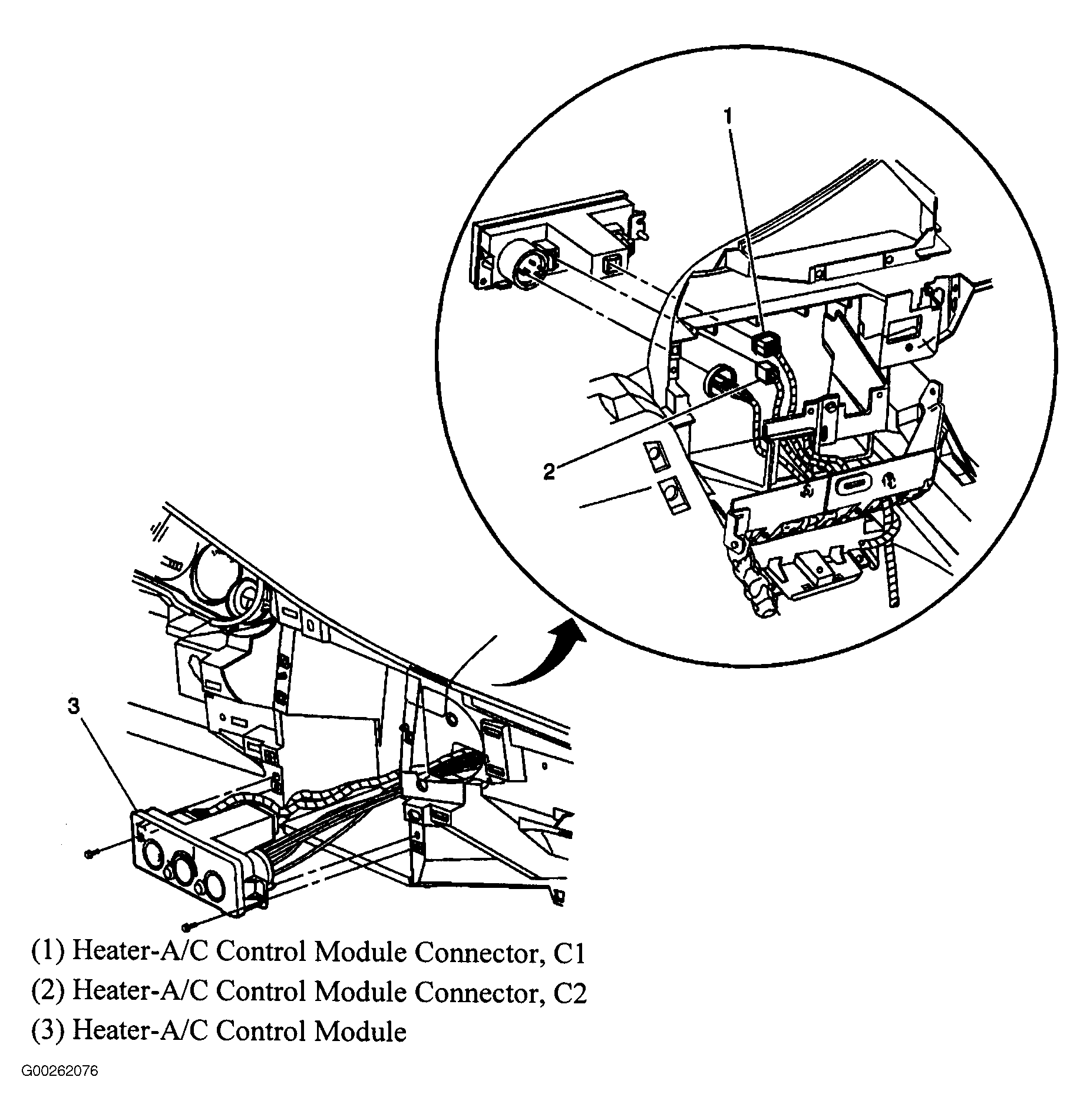

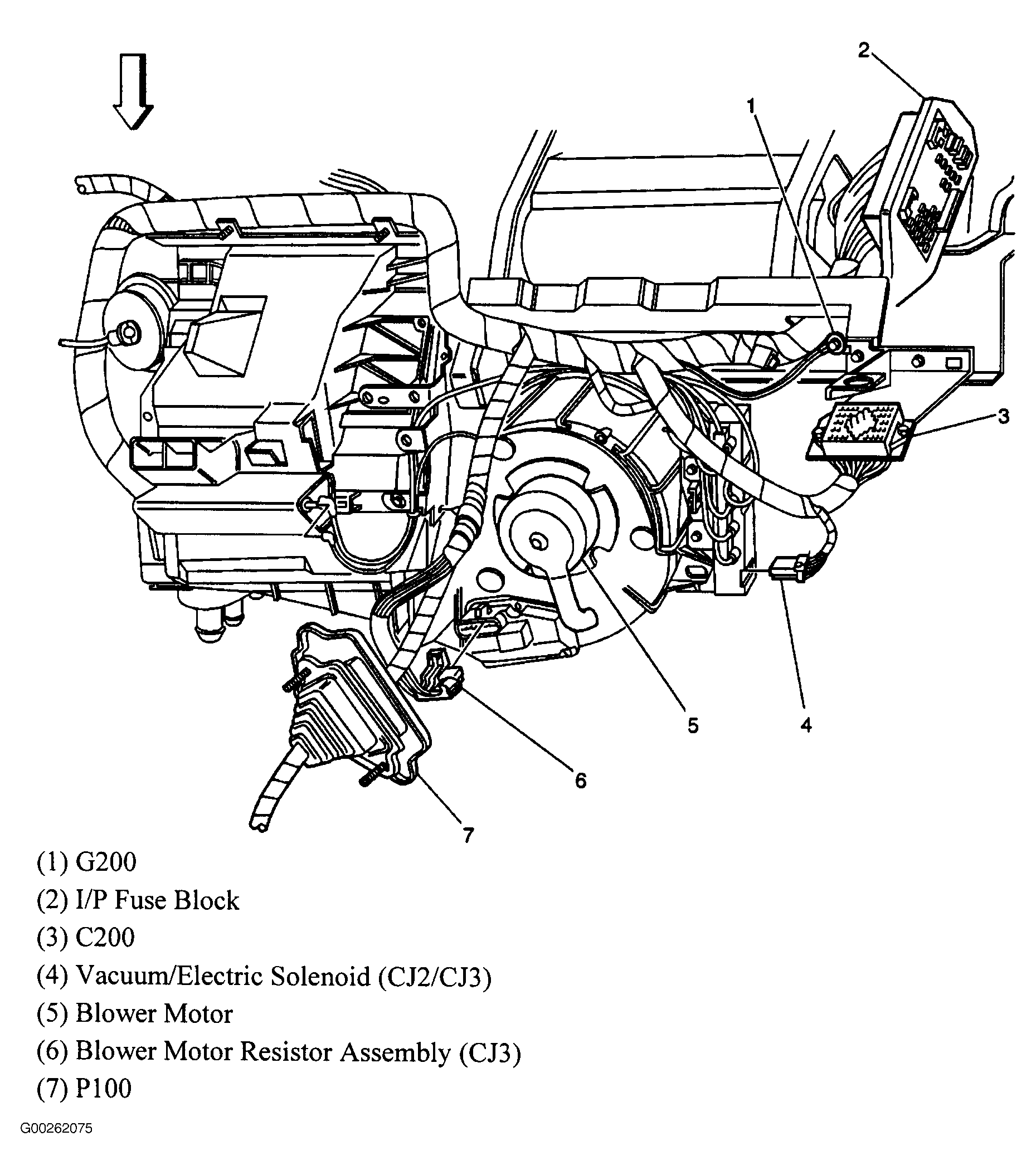

Fig 69: HVAC Assembly
Courtesy of GENERAL MOTORS CORP.

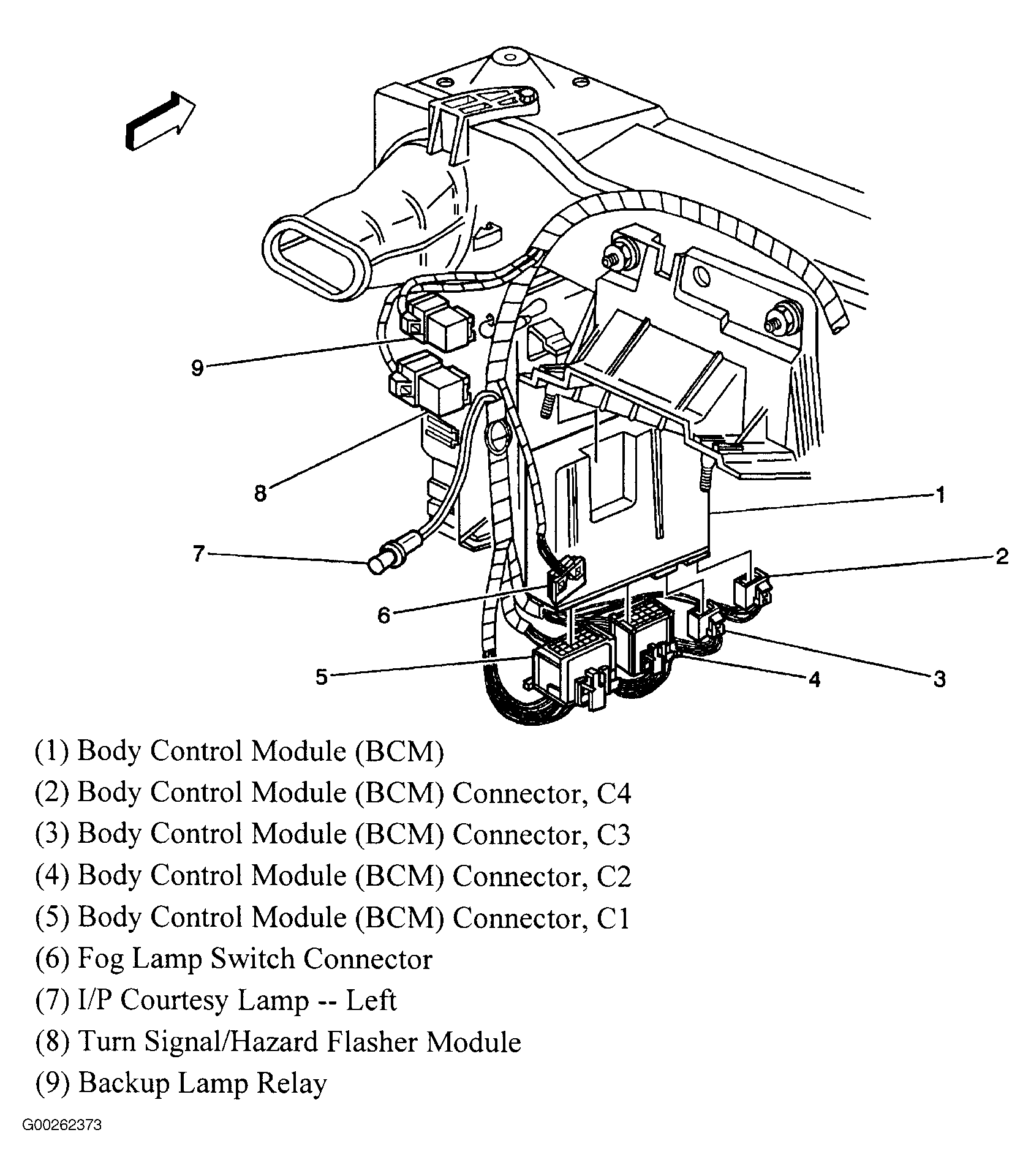

Fig 70: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 71: Body Control System Components
Courtesy of GENERAL MOTORS CORP.

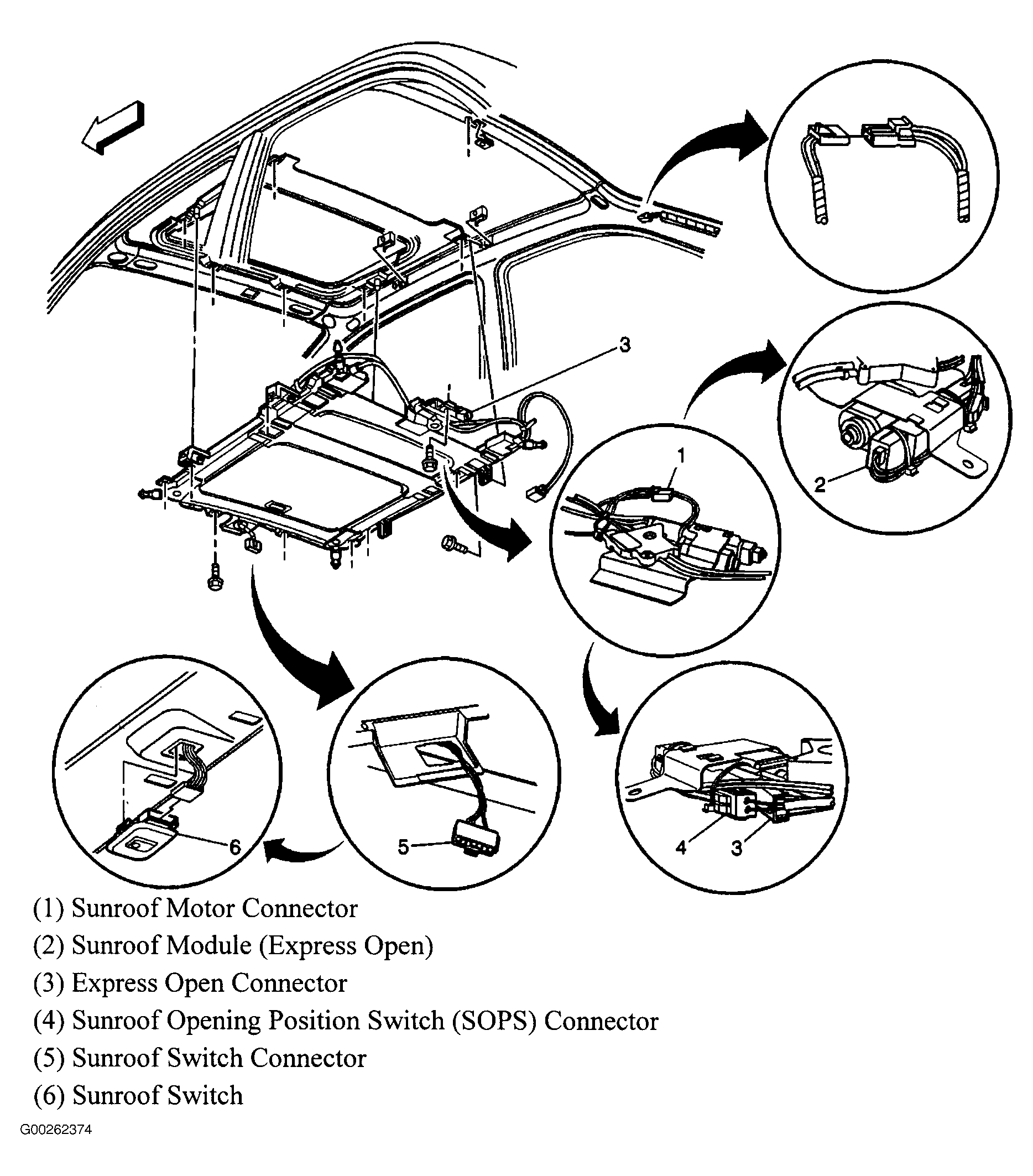

Fig 72: Power Roof System Components
Courtesy of GENERAL MOTORS CORP.
Fig 73: Power Seat Belt System
Courtesy of GENERAL MOTORS CORP.

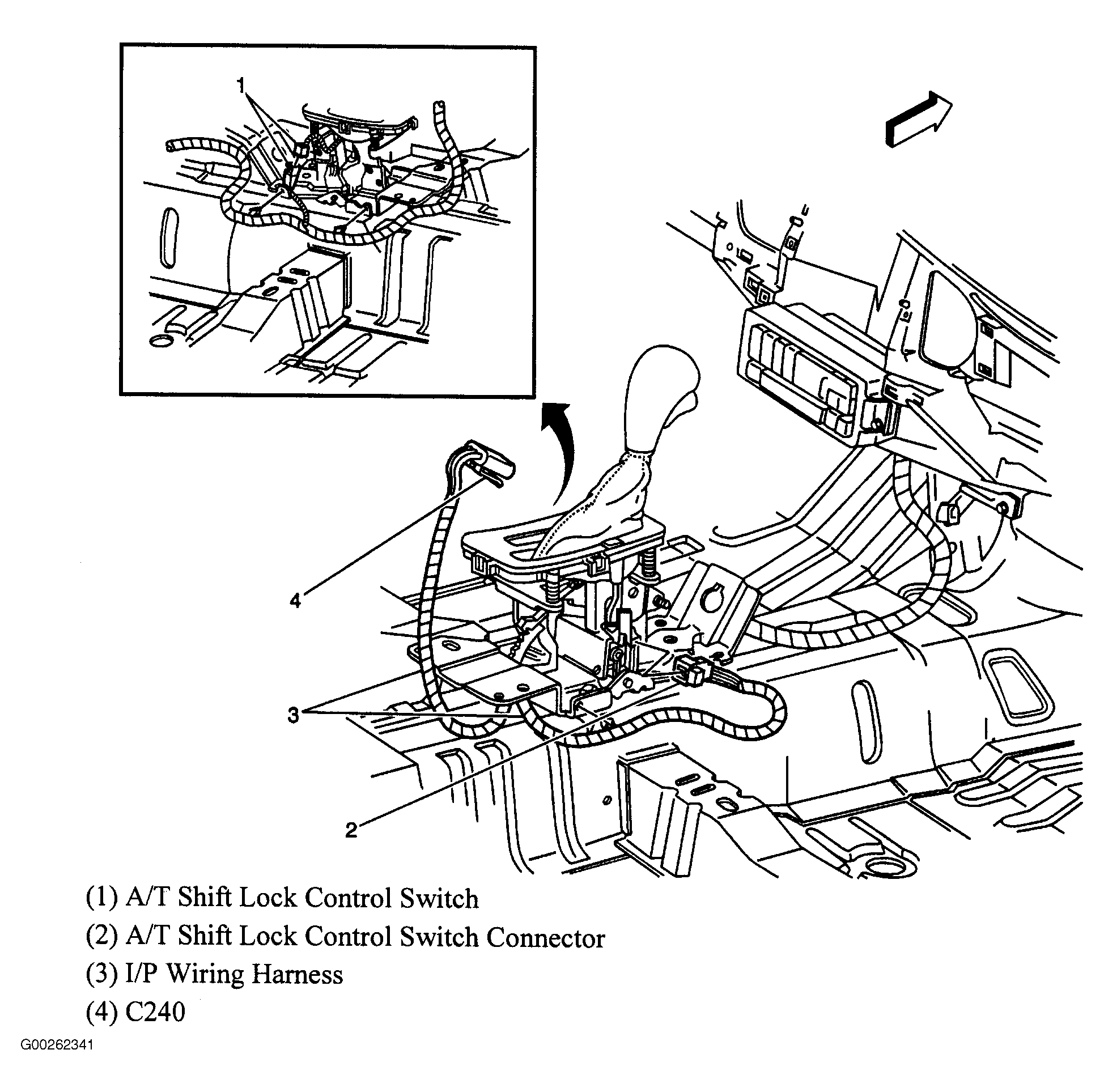

Fig 74: Center Console
Courtesy of GENERAL MOTORS CORP.

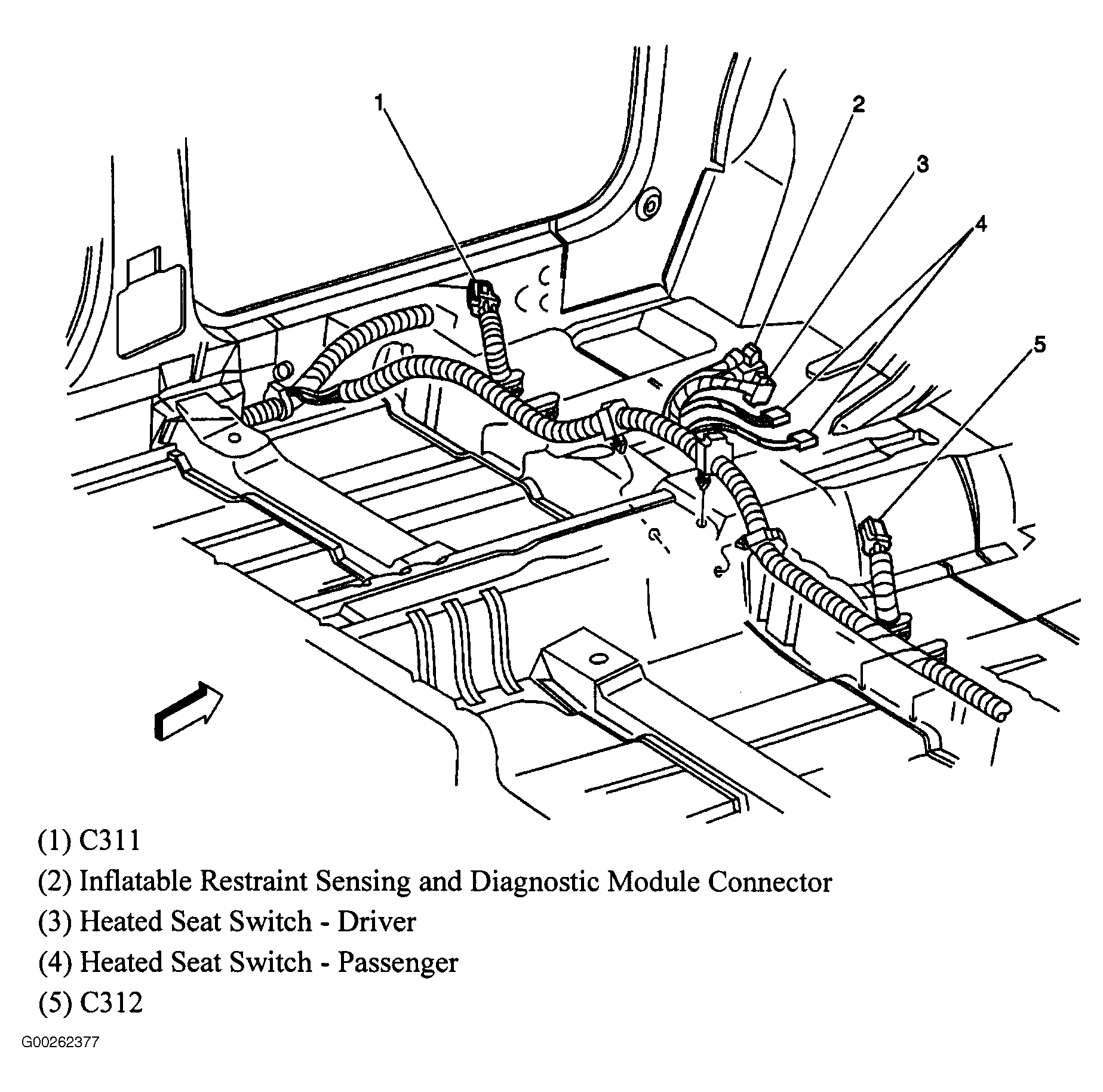

Fig 75: Floor Pan
Courtesy of GENERAL MOTORS CORP.

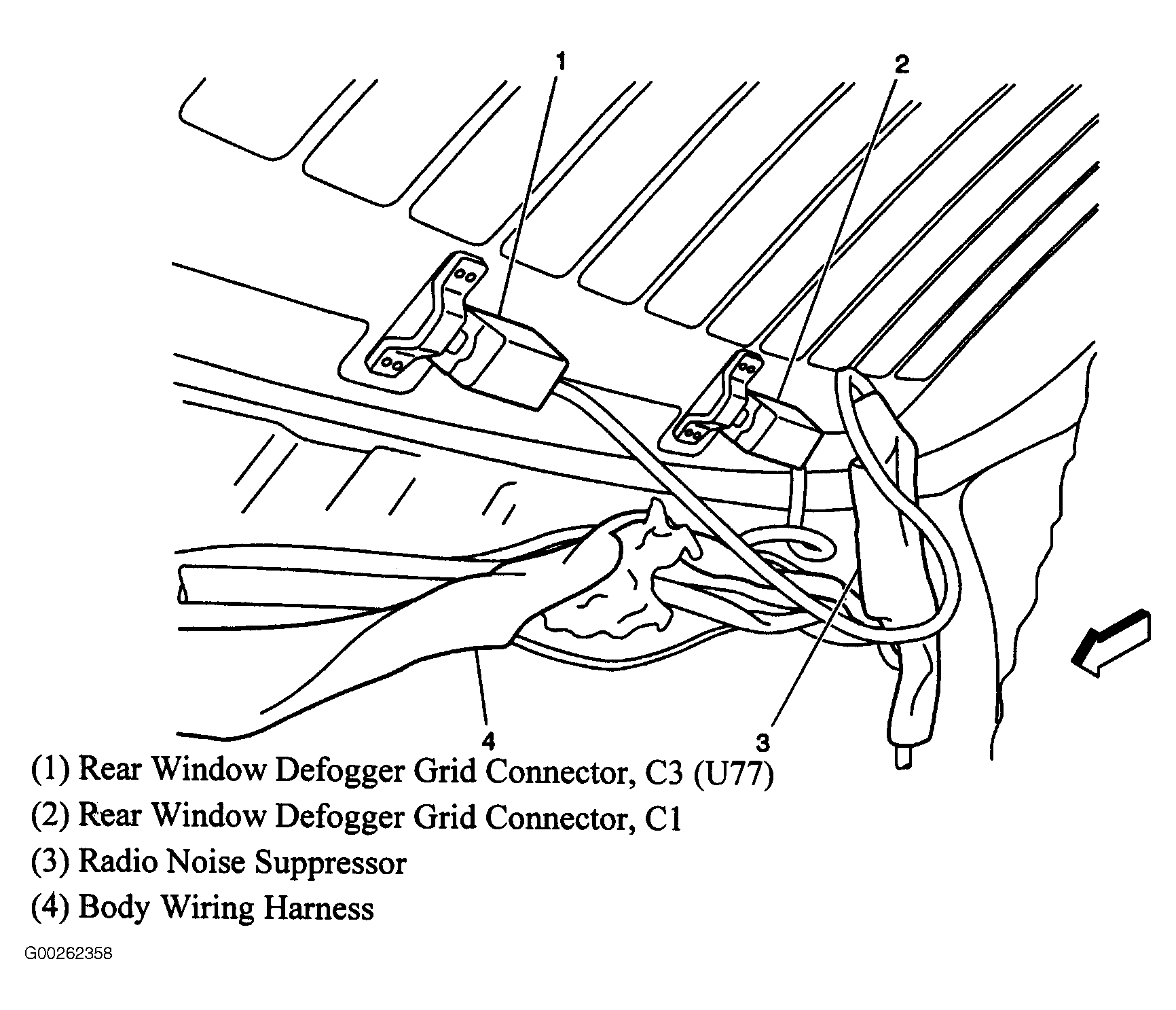

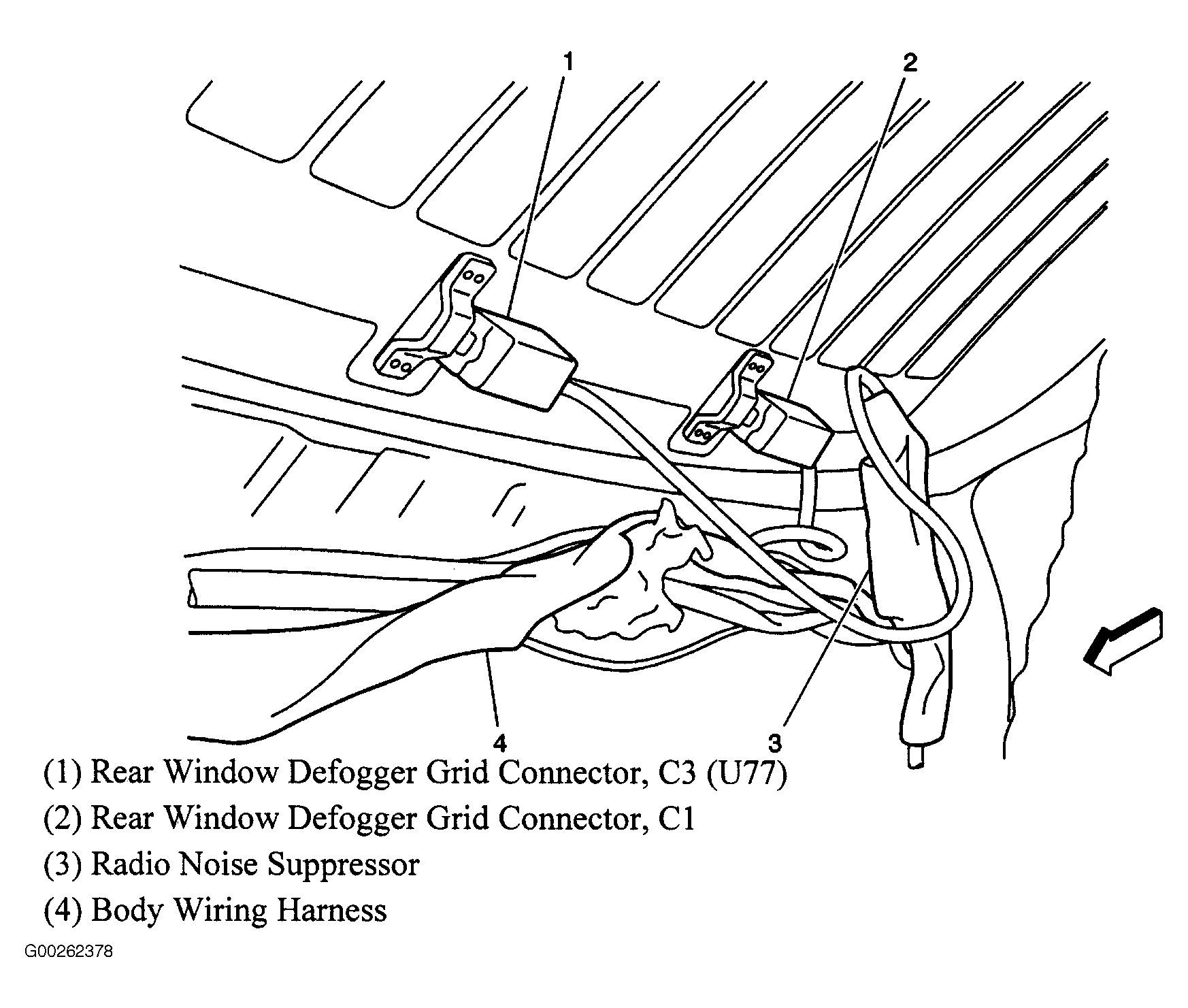

Fig 76: Rear Window
Courtesy of GENERAL MOTORS CORP.

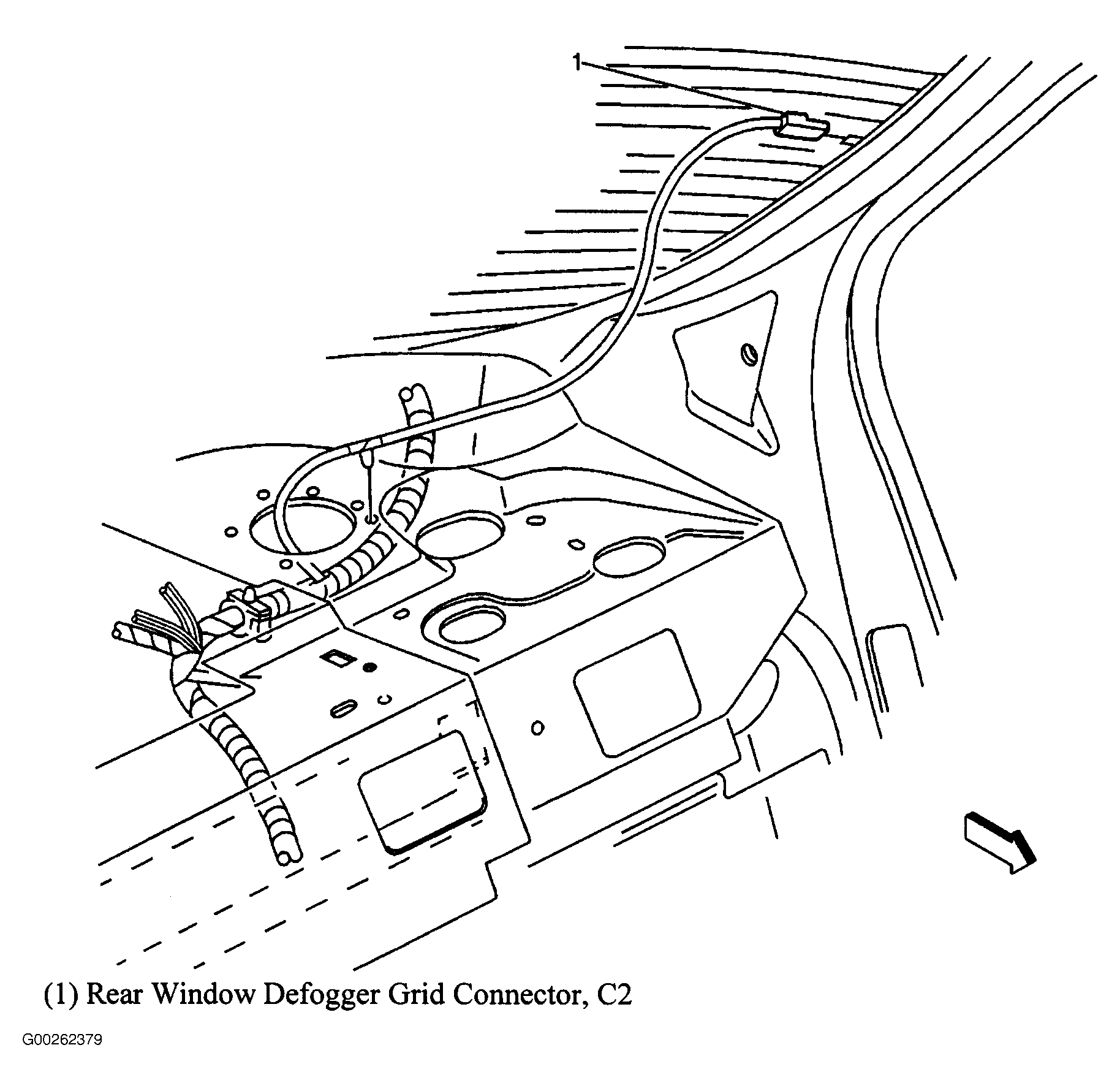

Fig 77: Left Side Of Rear Window
Courtesy of GENERAL MOTORS CORP.
Fig 78: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

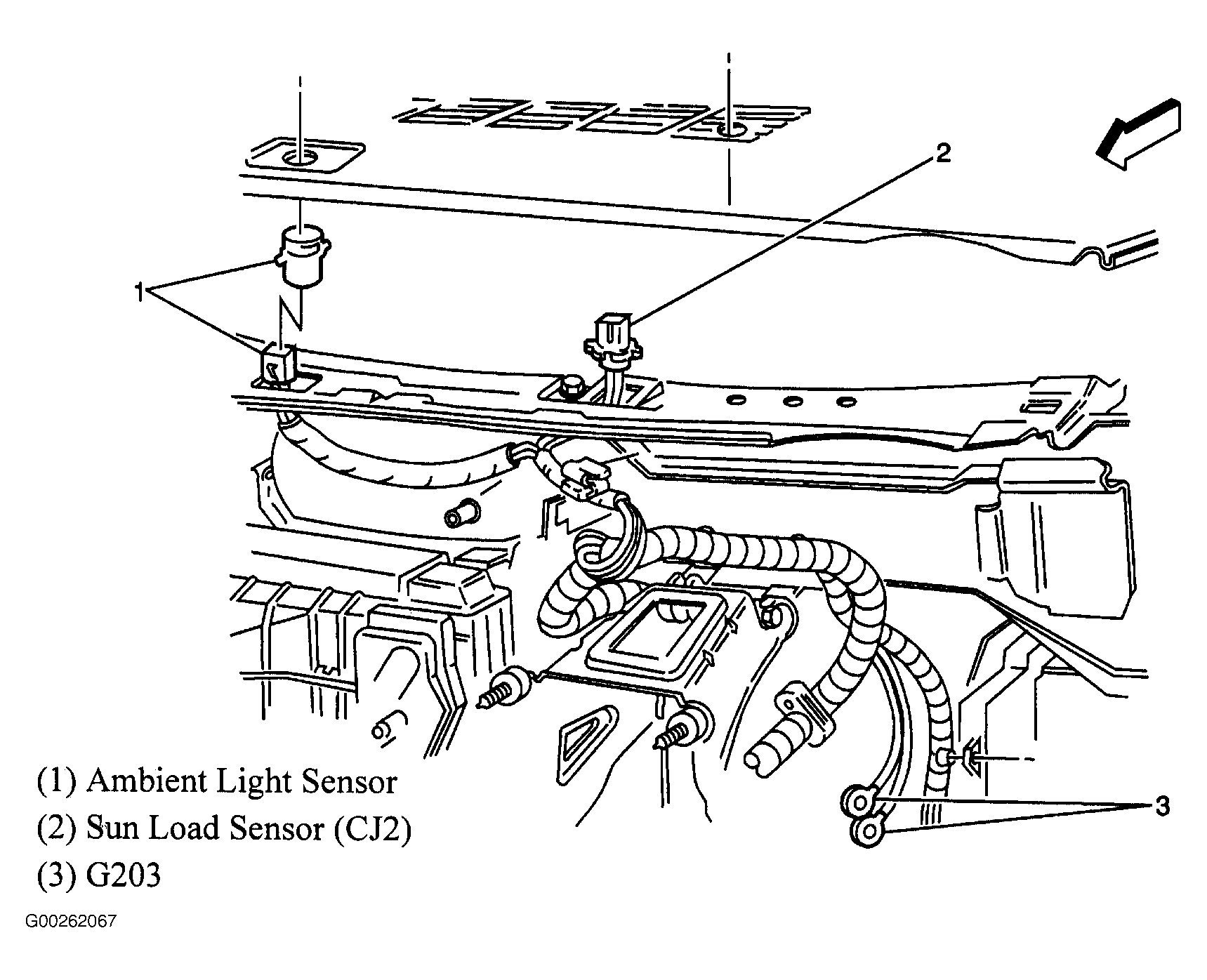

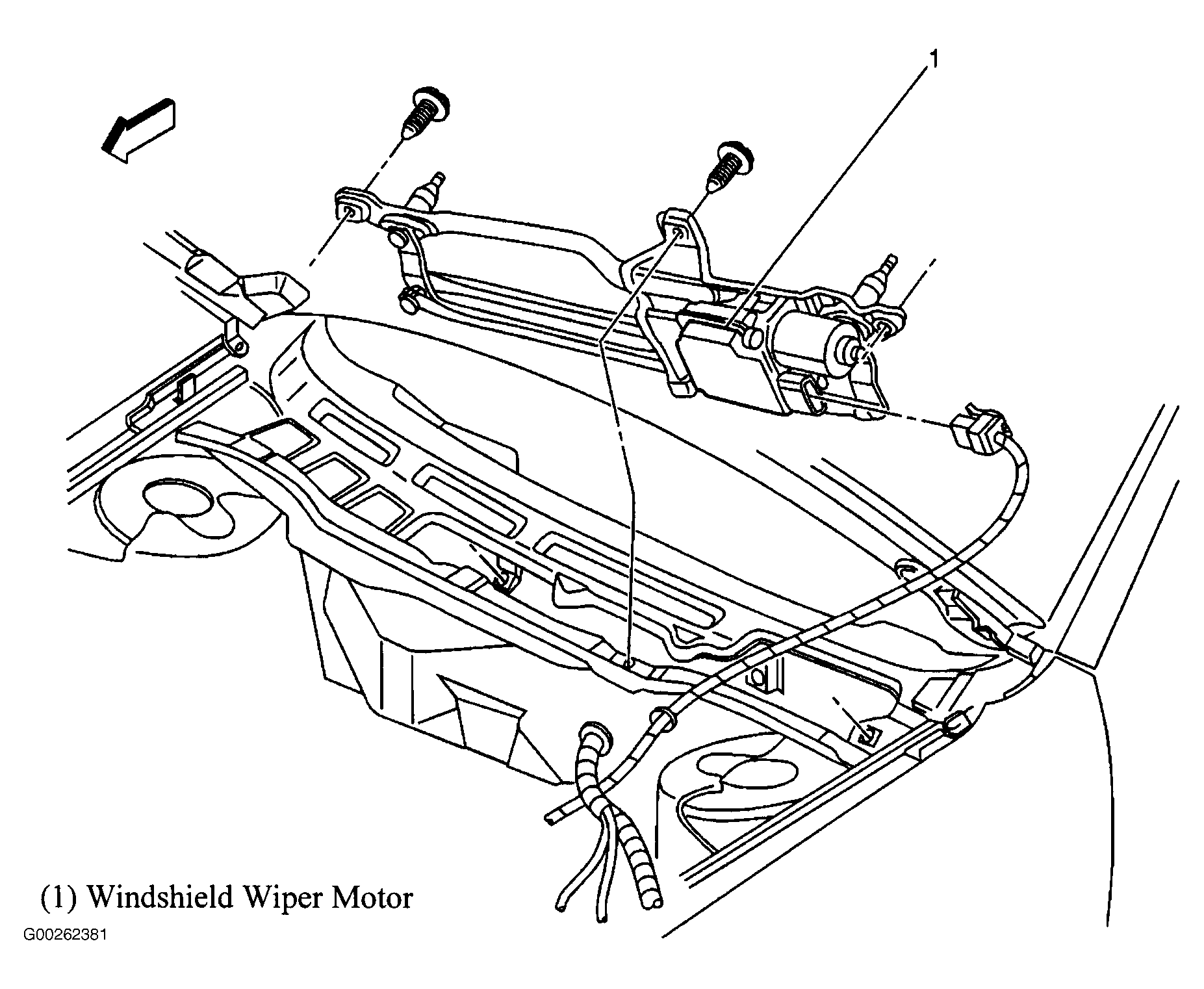

Fig 79: Base Of Windshield
Courtesy of GENERAL MOTORS CORP.

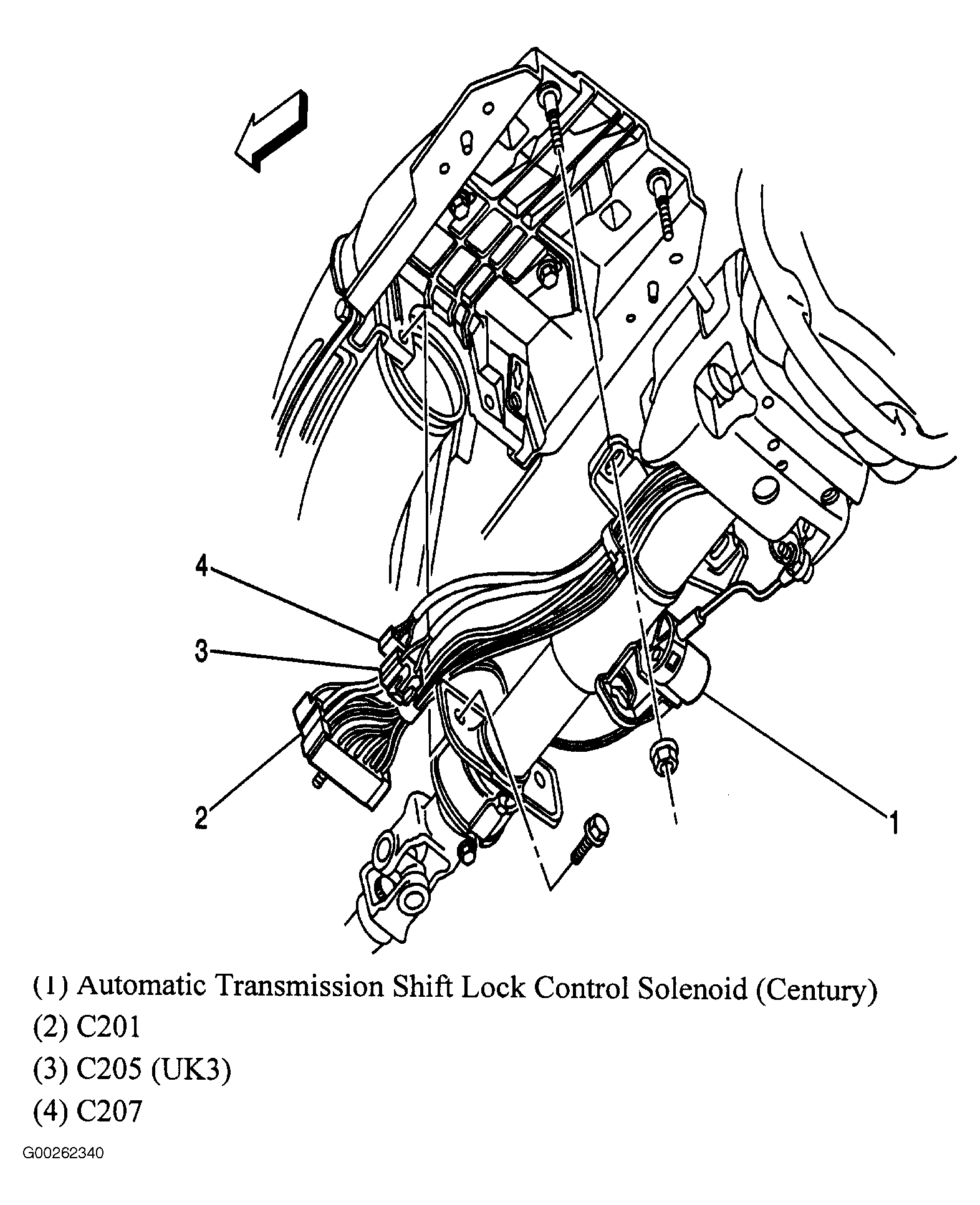

Fig 80: Steering Column
Courtesy of GENERAL MOTORS CORP.
