Installation Procedure

IMPORTANT: Verify that the release lever at the top of the bracket is in the full up position.

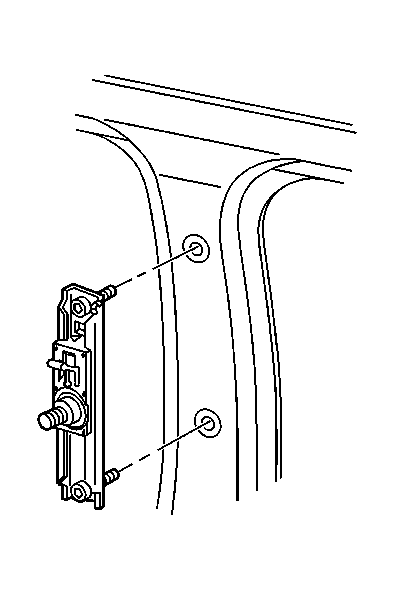

Fig 1: View Of Shoulder Belt Guide Adjuster Bracket

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the shoulder belt guide belt adjuster bracket bolts.
Tighten: Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 lb ft).
Install the upper center pillar trim panel. Refer to Trim Panel Replacement - Upper Center Pillar in Interior Trim.
Install the guide loop to the guide adjuster bracket.
Install the guide loop nut.
Tighten: Tighten the guide loop nut to 42 N.m (31 lb ft).
Close the guide loop cover.
