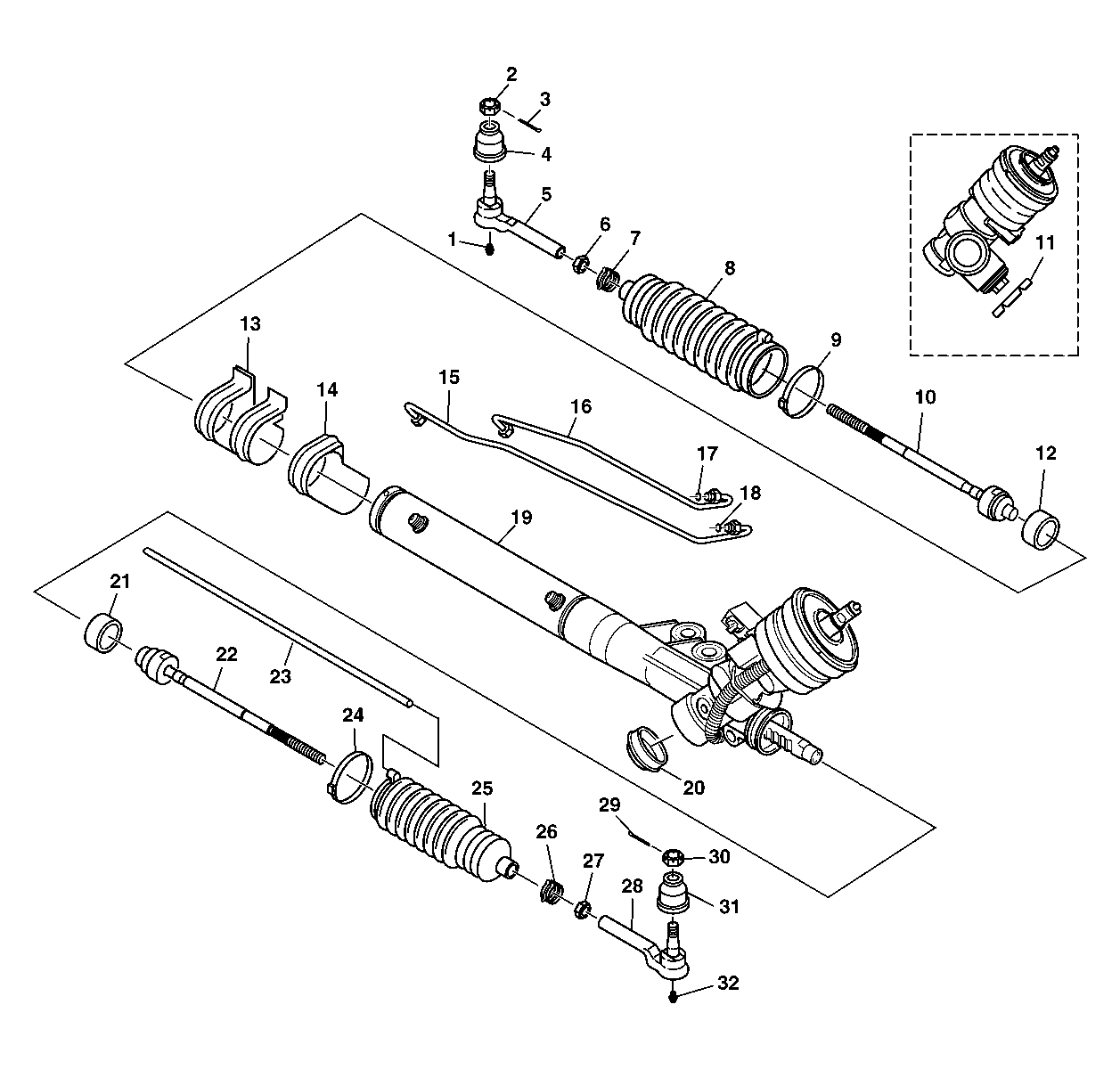

| 1 |
Lubrication Fitting |
| 2 |
Hexagon Slotted Nut |
| 3 |
Cotter Pin |
| 4 |
Tie Rod Seal |
| 5 |
Outer Tie Rod |
| 6 |
Hexagon Jam Nut |
| 7 |
Tie Rod End Clamp |
| 8 |
Rack and Pinion Boot |
| 9 |
Large Boot Retaining Clamp |
| 10 |
Inner Tie Rod |
| 11 |
Adjuster Plug Lock Nut |
| 12 |
Shock Dampener Ring |
| 13 |
Mounting Bracket Assembly |
| 14 |
Mounting Grommet |
| 15 |
Cylinder Line (LH) |
| 16 |
Cylinder Line (RH) |
| 17 |
O-ring Seal |
| 18 |
O-ring Seal |
| 19 |
Rack and Pinion Gear Assembly (Partial) |
| 20 |
Dust Cover |
| 21 |
Shock Dampener Ring |
| 22 |
Inner Tie Rod |
| 23 |
Breather Tube |
| 24 |
Large Boot Retaining Clamp |
| 25 |
Rack and Pinion Boot |
| 26 |
Tie Rod End Clamp |
| 27 |
Hexagon Jam Nut |
| 28 |
Outer Tie Rod |
| 29 |
Cotter Pin |
| 30 |
Hexagon Slotted Nut |
| 31 |
Tie Rod Seal |
| 32 |
Lubrication Fitting |
