Engine Controls Schematics

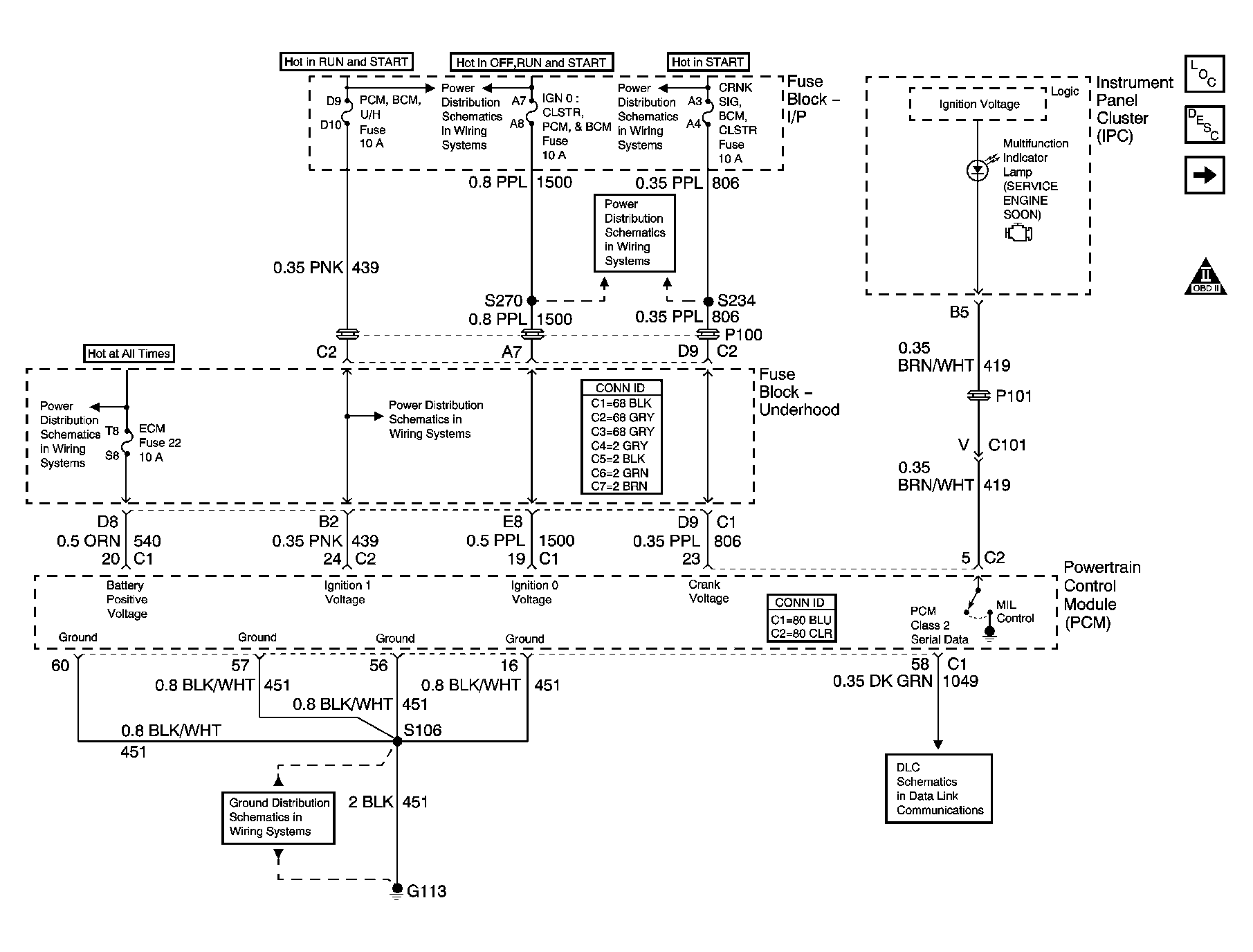

Fig 1: Power, Ground, MIL and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

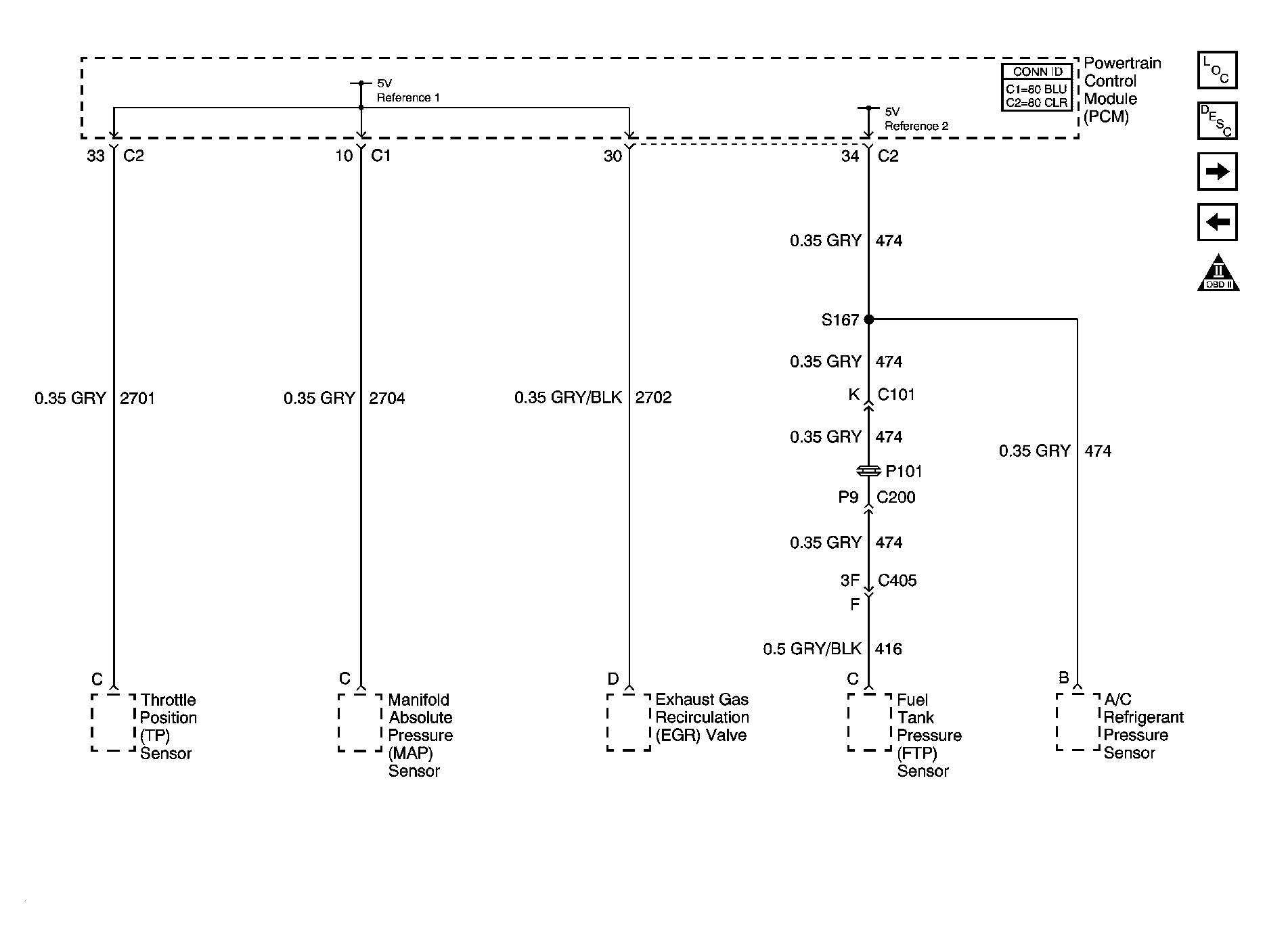

Fig 2: Engine Data Sensors Schematic - 5 Volt Reference

Courtesy of GENERAL MOTORS CORP.

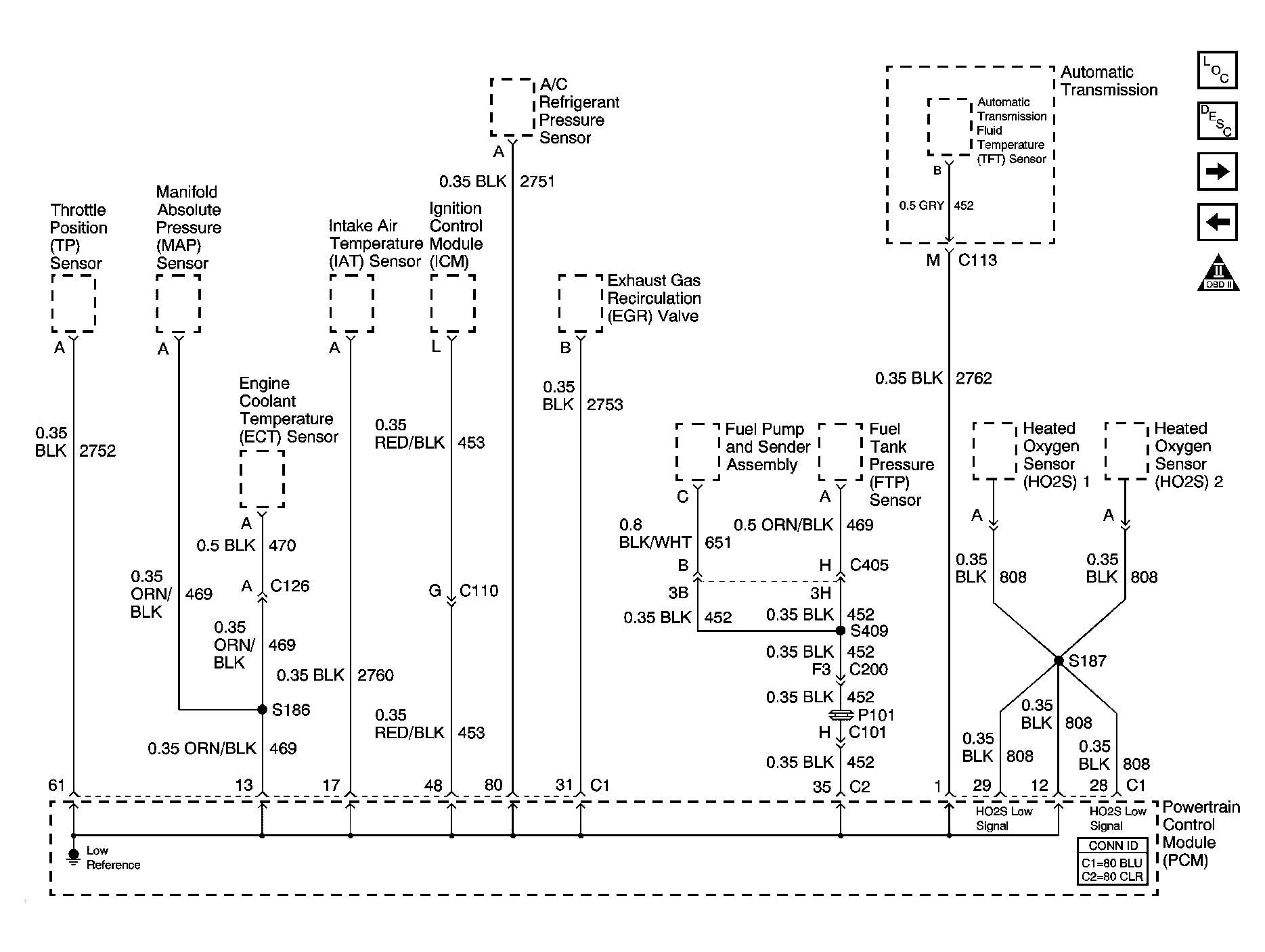

Fig 3: Engine Data Sensors Schematic - Low Reference

Courtesy of GENERAL MOTORS CORP.

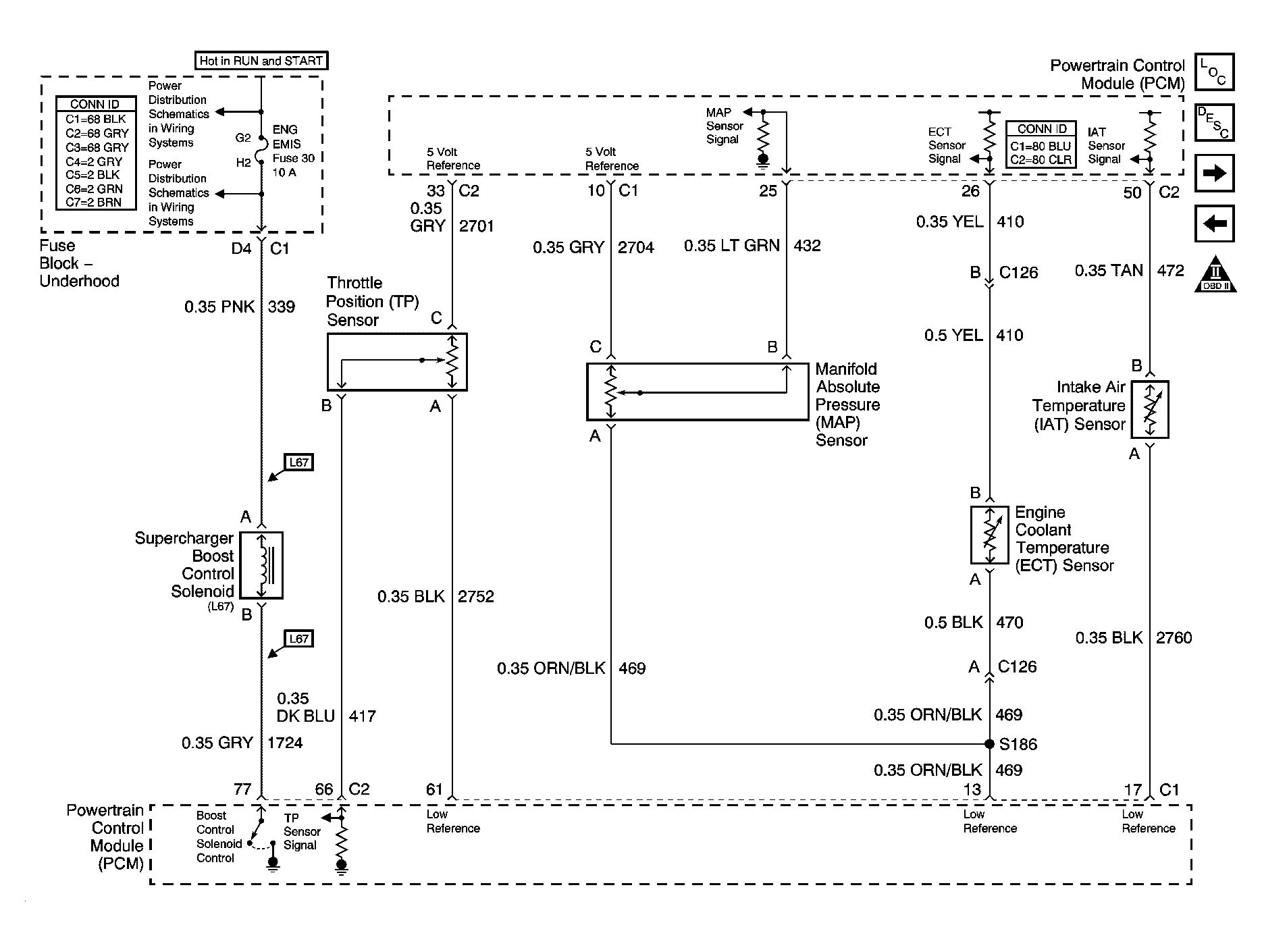

Fig 4: Engine Data Sensors Schematic - Pressure and Temperature

Courtesy of GENERAL MOTORS CORP.

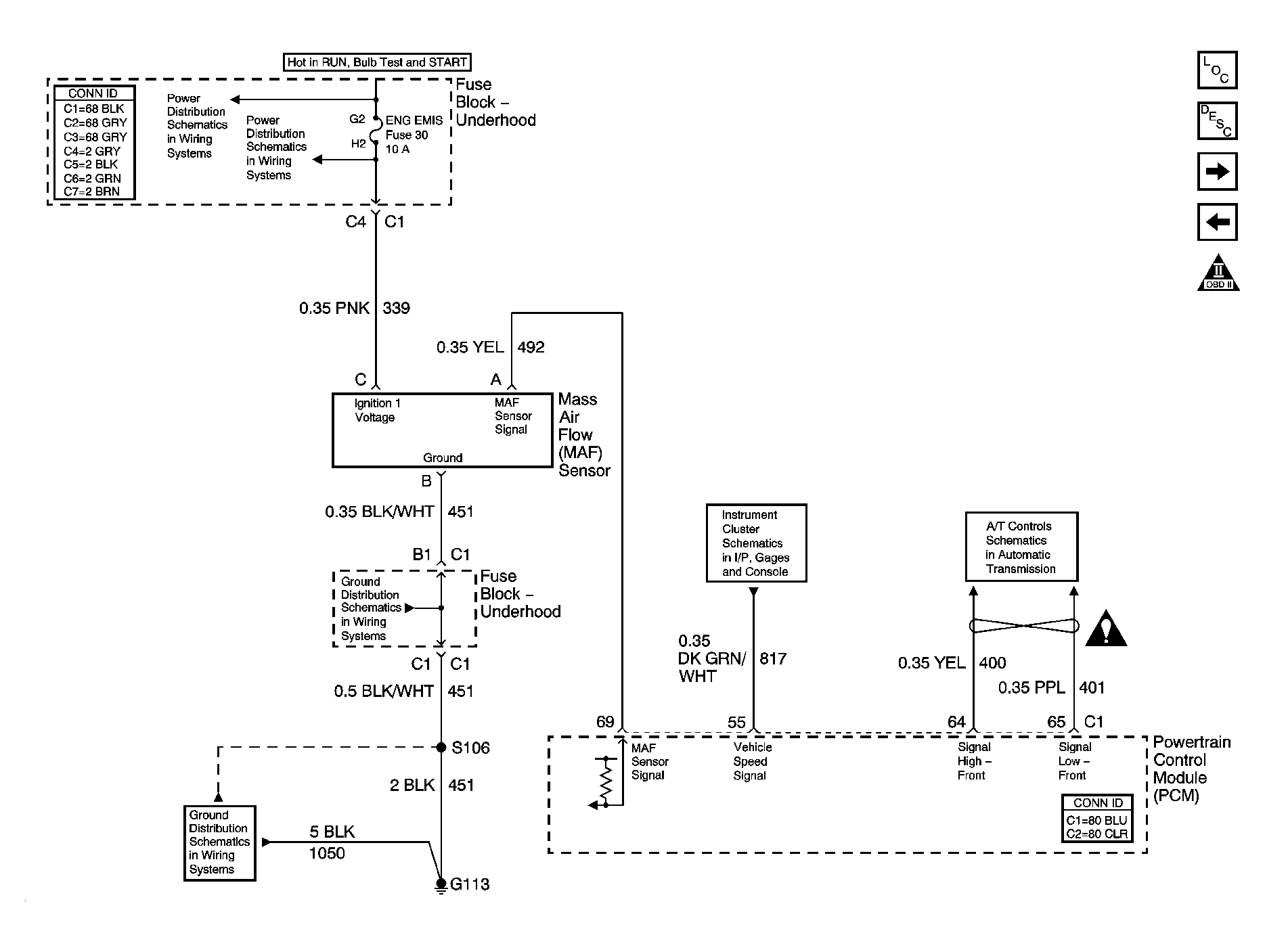

Fig 5: Engine Data Sensors Schematic - MAF, VSS

Courtesy of GENERAL MOTORS CORP.

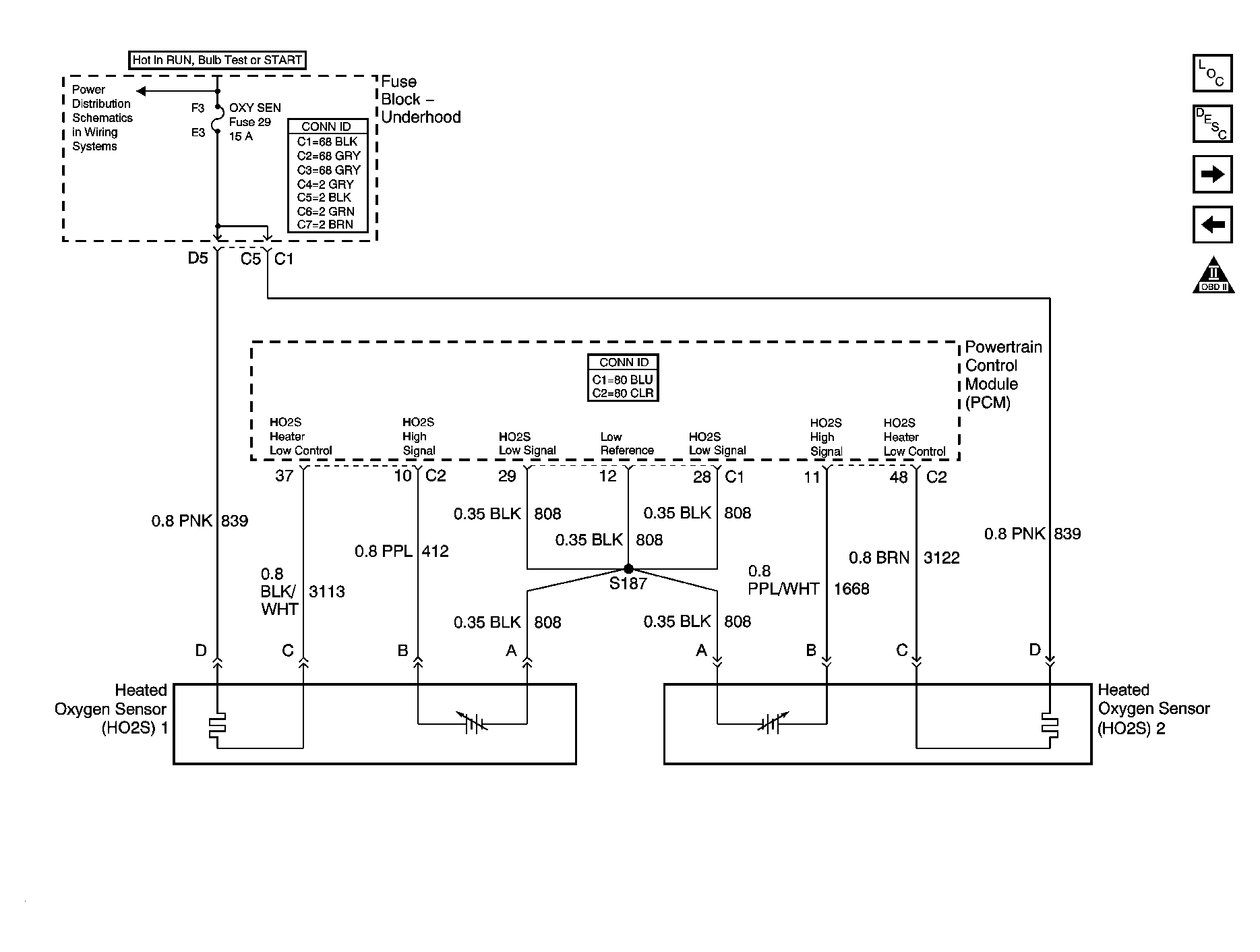

Fig 6: Engine Data Sensors Schematic - HO2S

Courtesy of GENERAL MOTORS CORP.

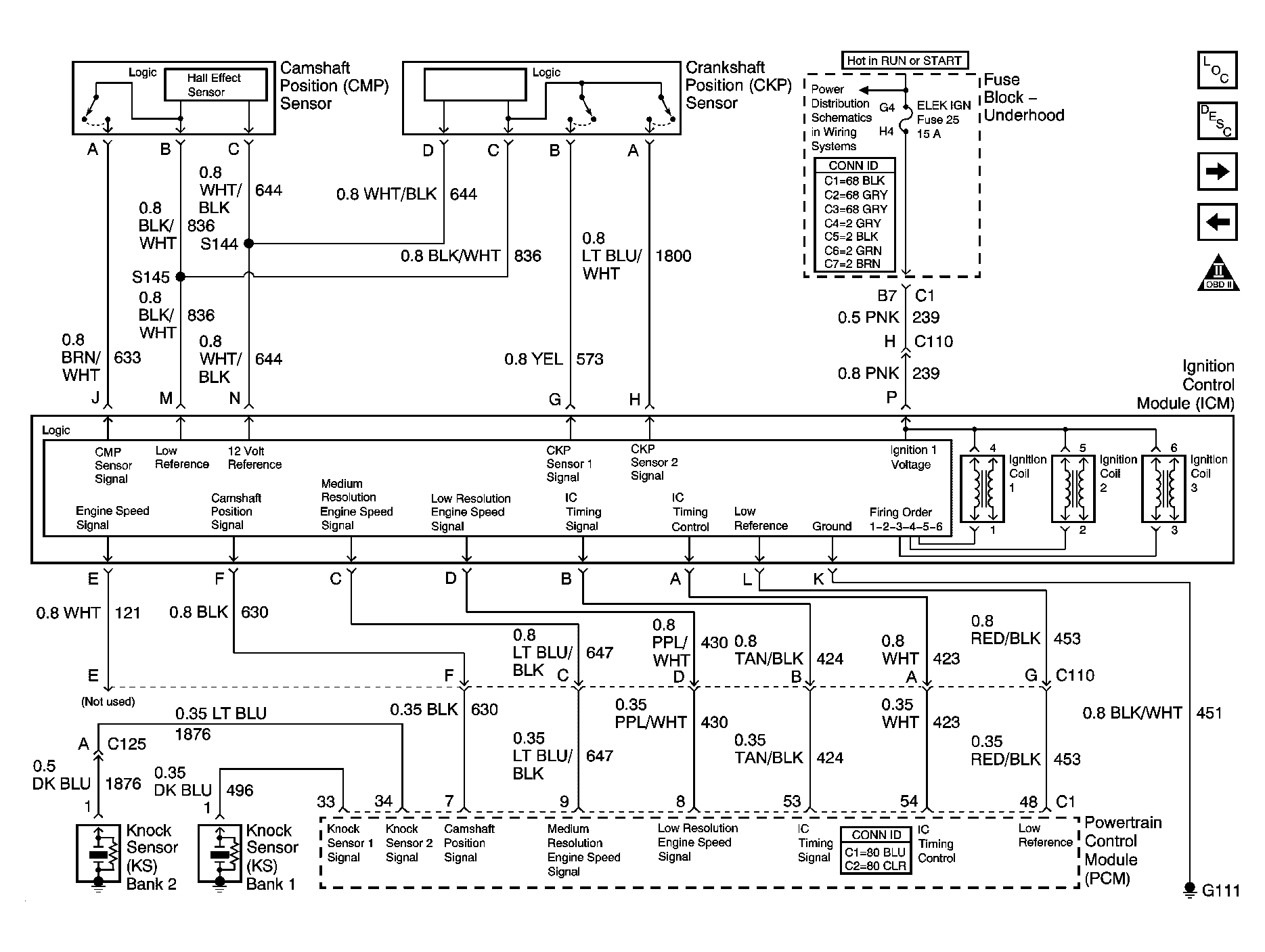

Fig 7: Ignition Controls Schematic

Courtesy of GENERAL MOTORS CORP.

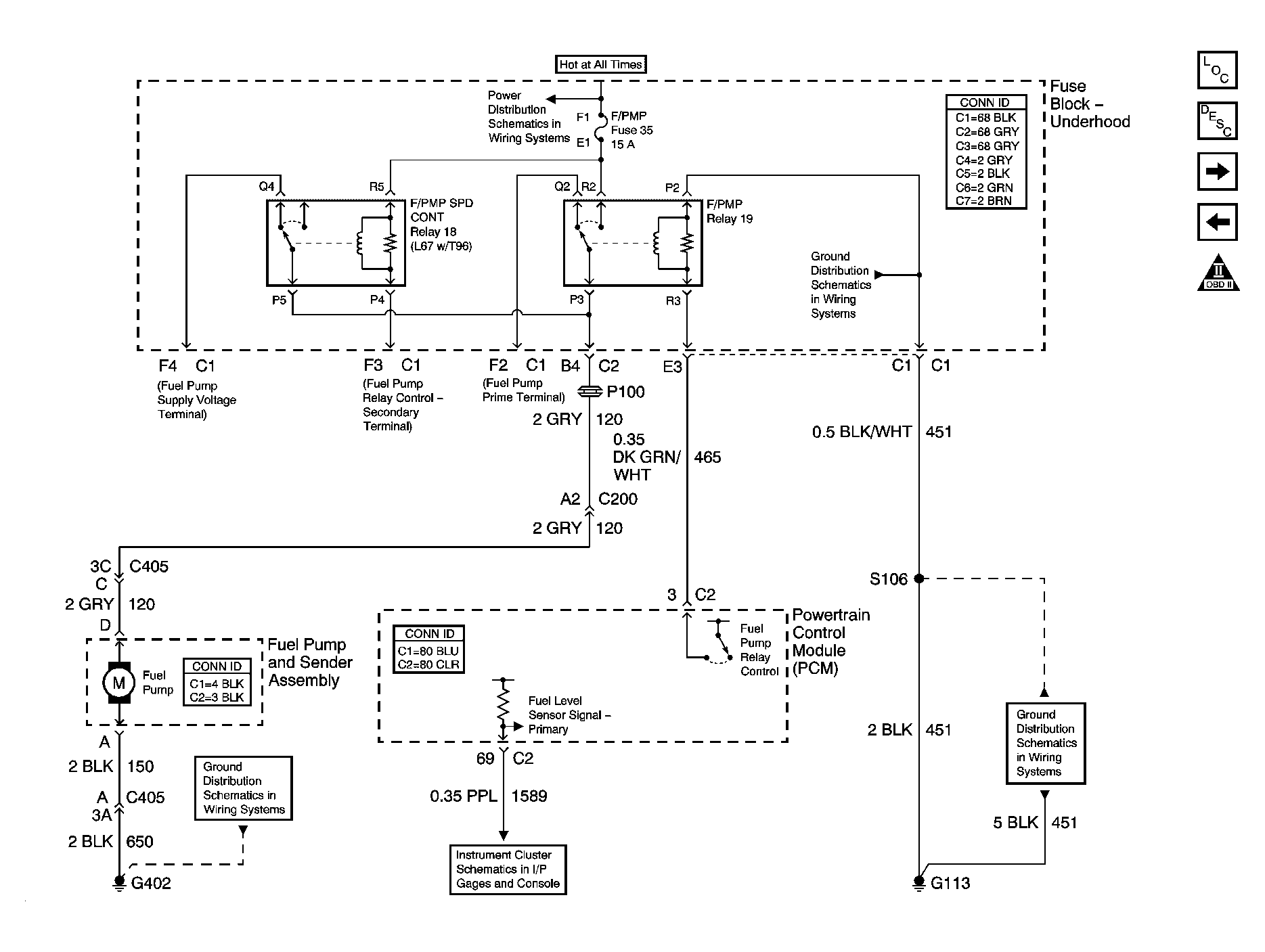

Fig 8: Fuel Pump Controls Schematic

Courtesy of GENERAL MOTORS CORP.

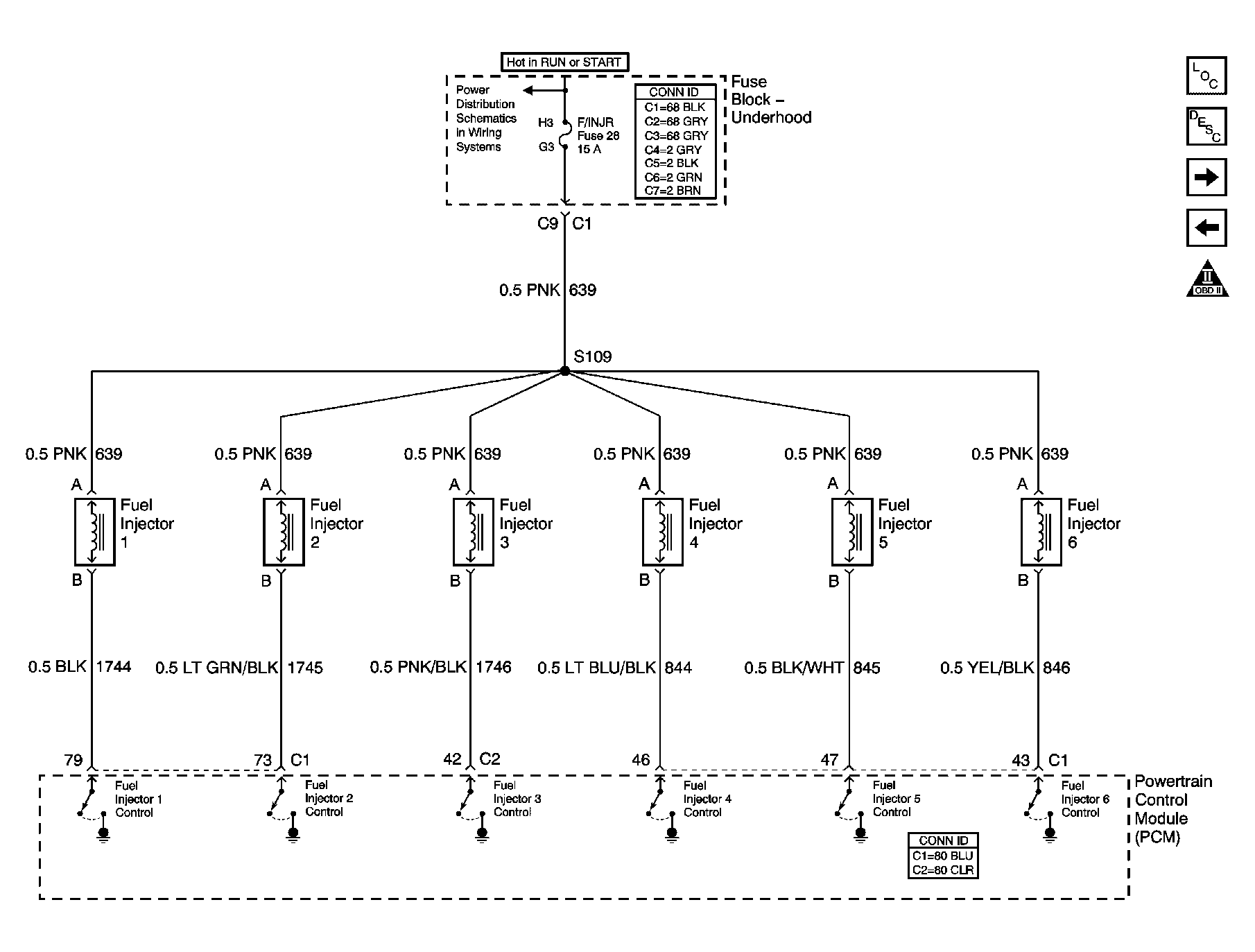

Fig 9: Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: Fuel Controls Schematic - EVAP and FTP

Courtesy of GENERAL MOTORS CORP.

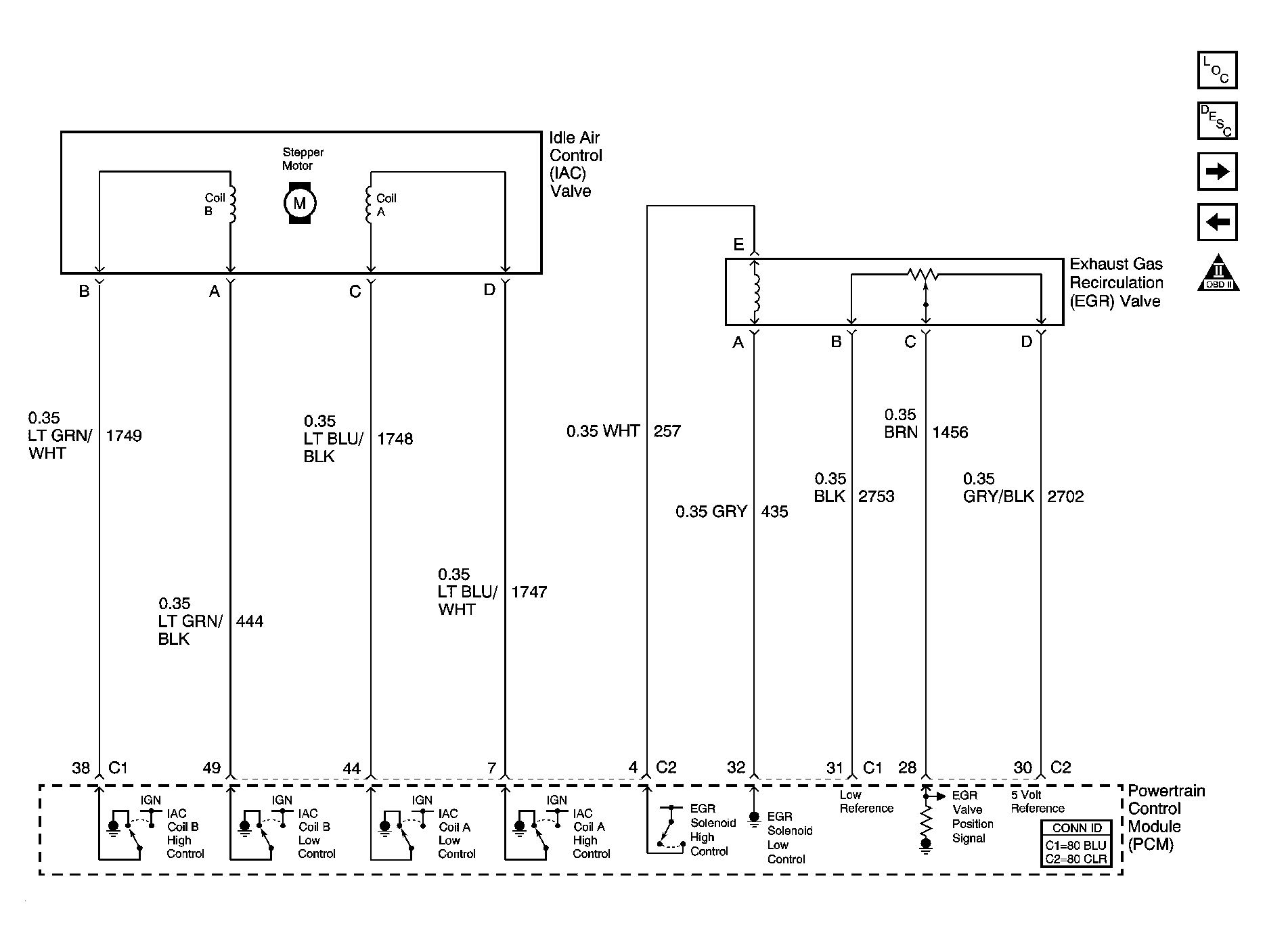

Fig 11: IAC, EGR Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

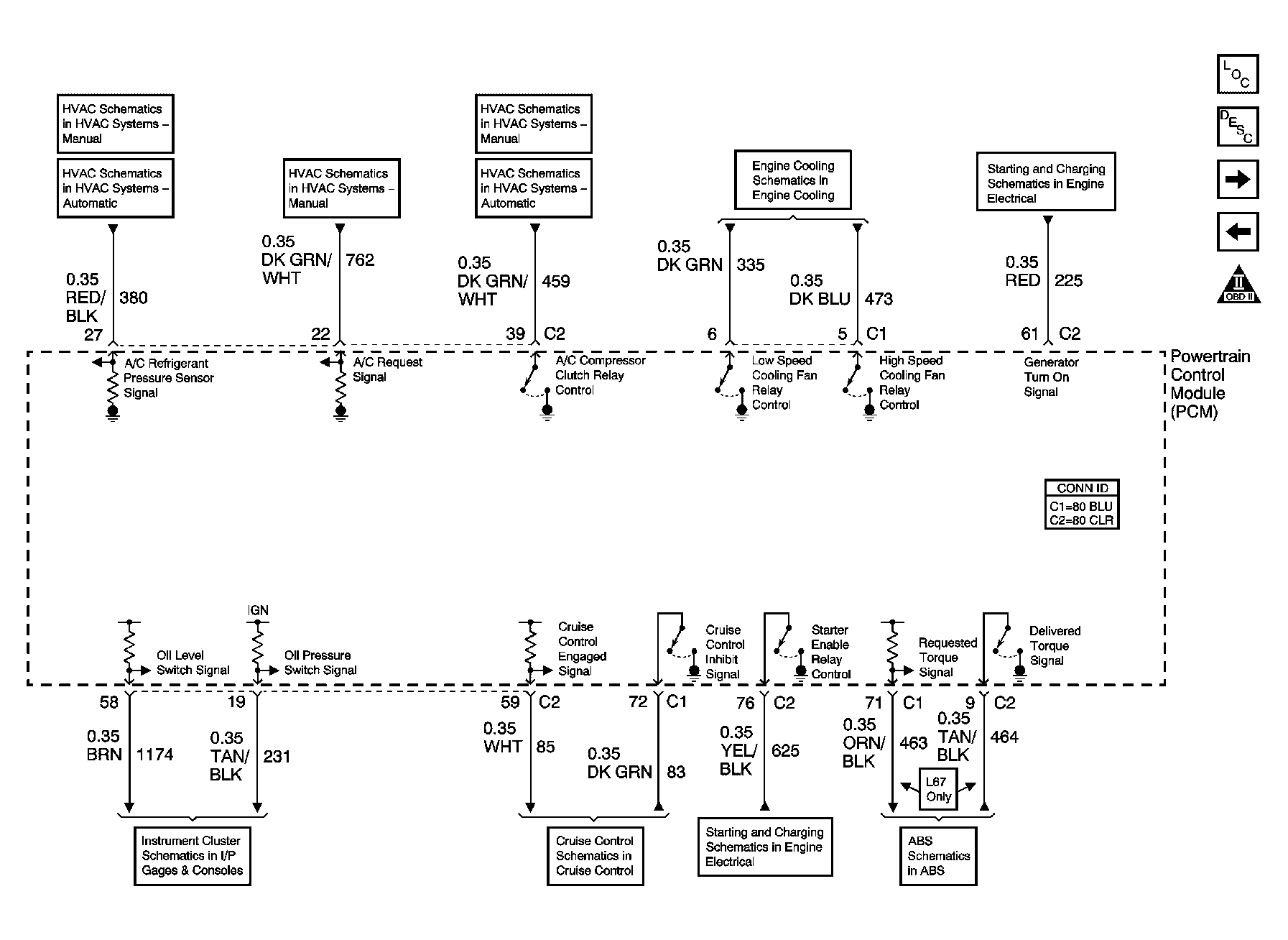

Fig 12: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

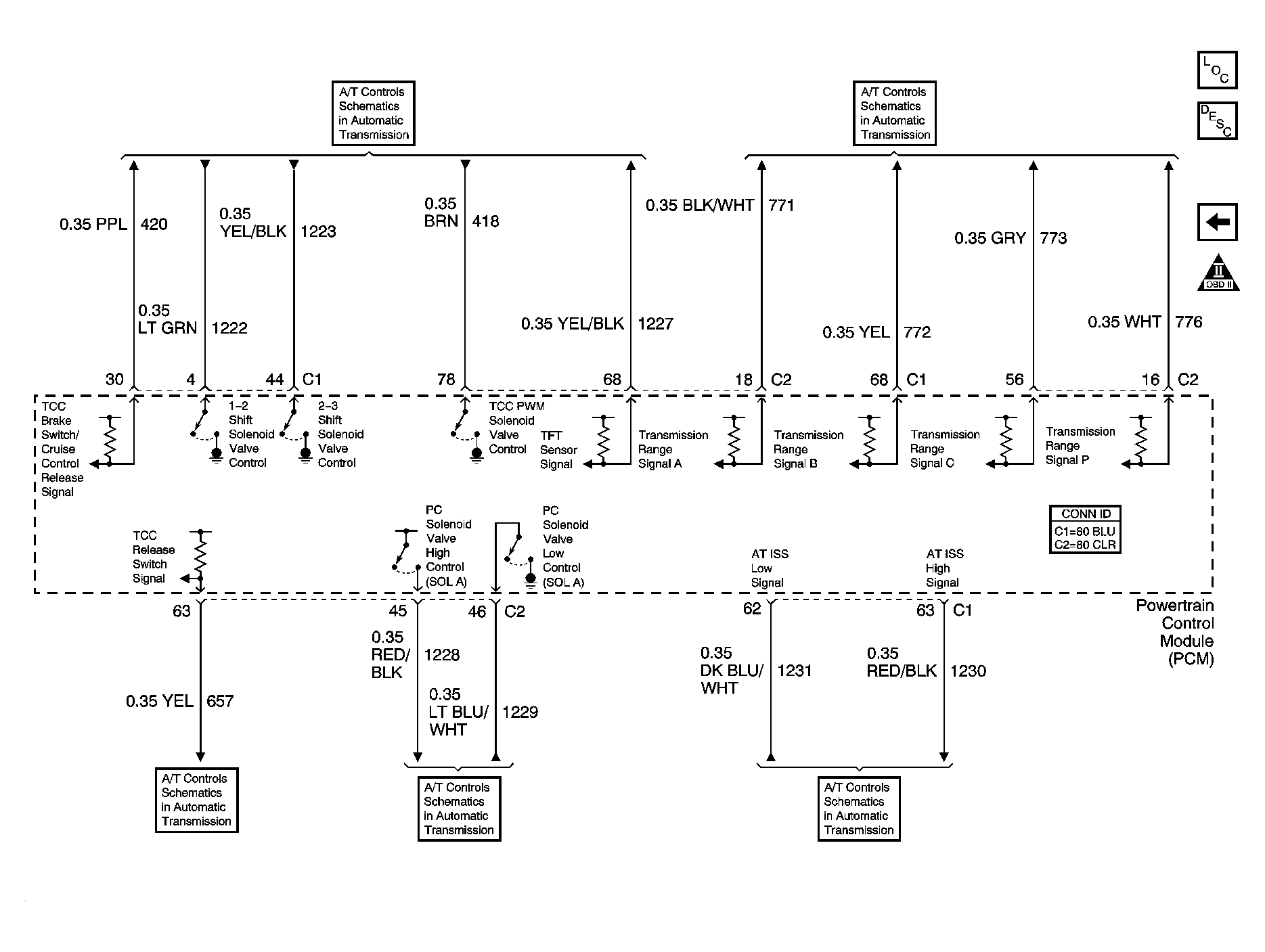

Fig 13: Automatic Transmission Controls Schematic

Courtesy of GENERAL MOTORS CORP.
