Automatic Transmission Shift Lock Control Schematics

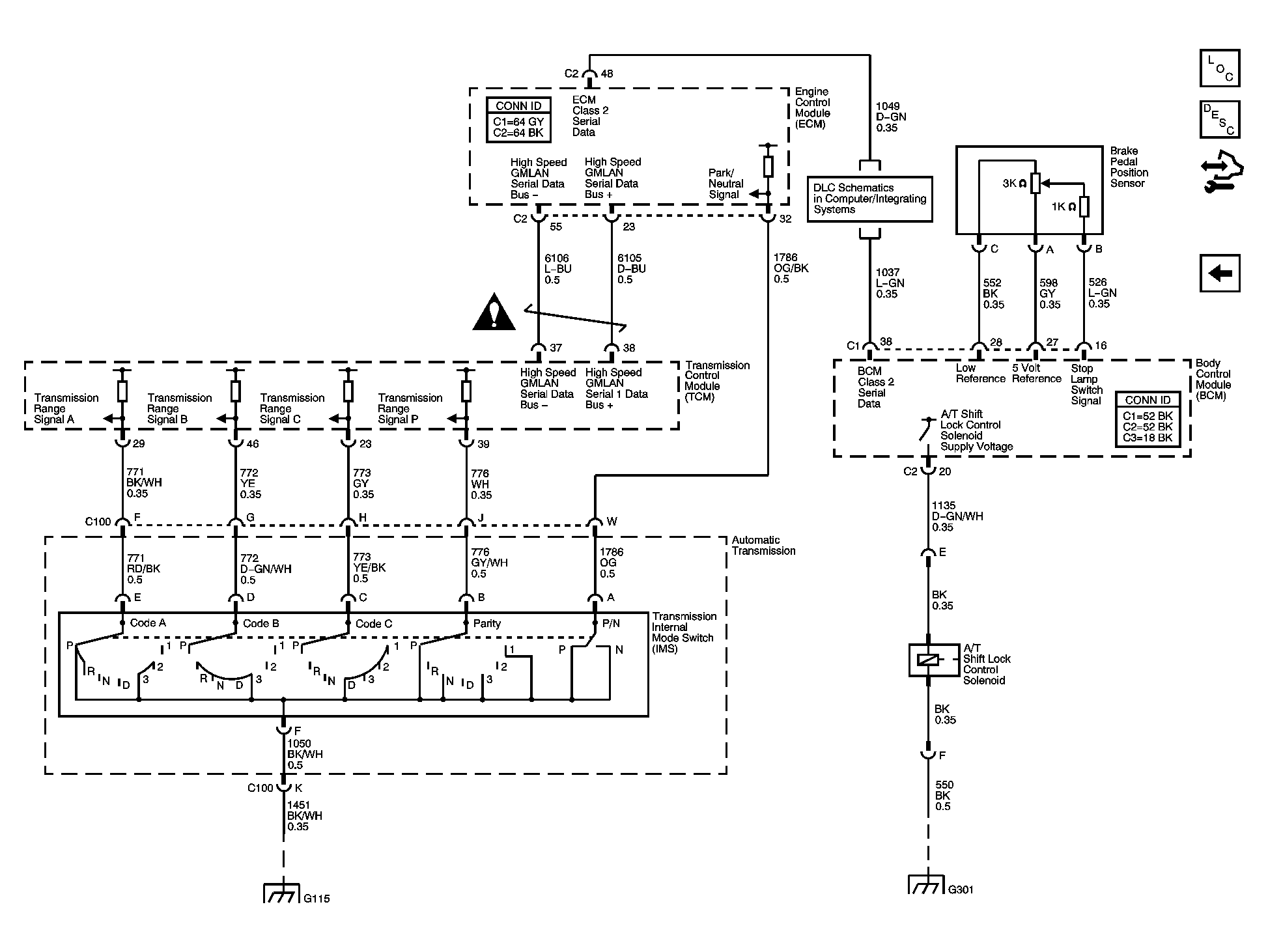

Fig 1: Automatic Transmission Shift Lock Control (L26) - Schematic

Courtesy of GENERAL MOTORS CORP.

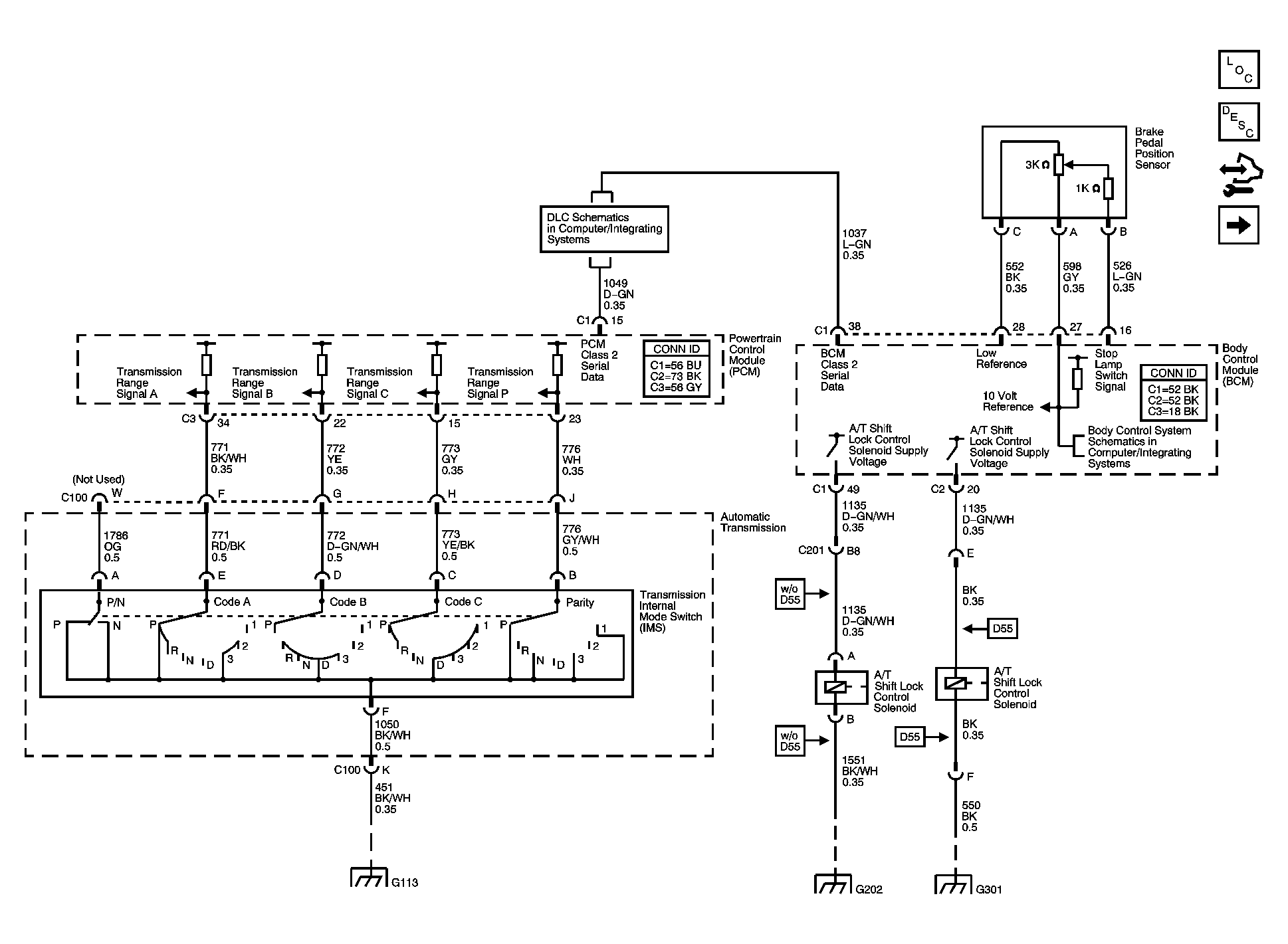

Fig 2: Automatic Transmission Shift Lock Control (LY7) - Schematic

Courtesy of GENERAL MOTORS CORP.
