Installation Procedure

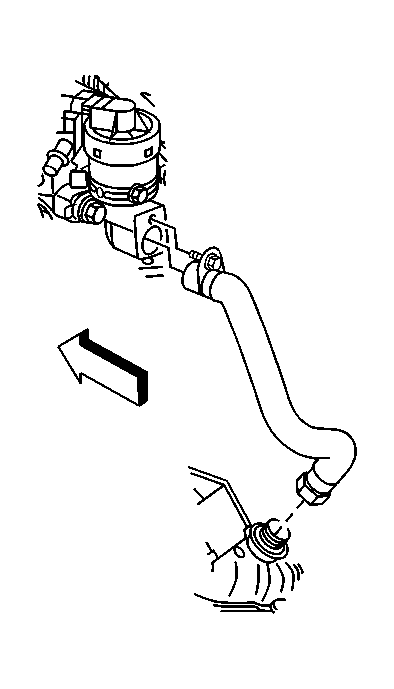

Fig 1: Locating EGR Pipe

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the EGR pipe to the exhaust manifold and the EGR valve.
Tighten: Tighten the EGR pipe nut to 25 N.m (18 lb ft).
Install the EGR pipe bolt.
Tighten: Tighten the bolt to 25 N.m (18 lb ft).
