Installation Procedure

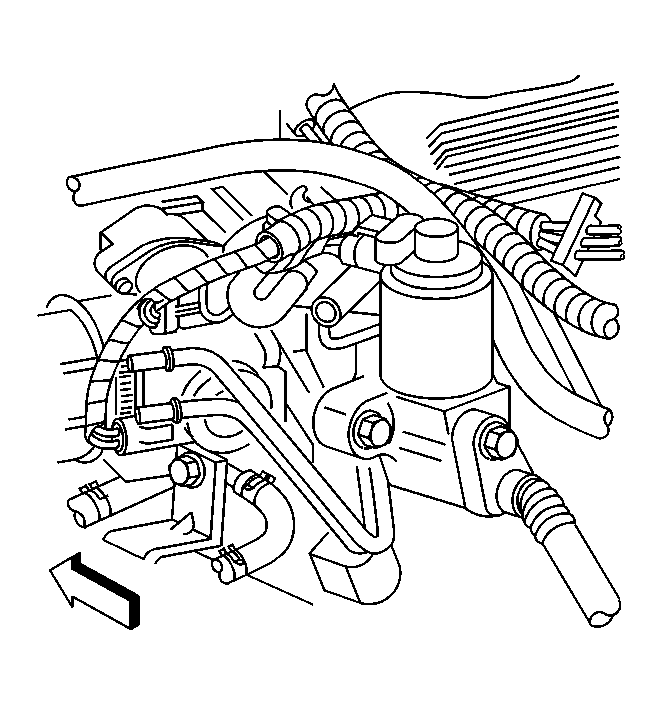

    Fig 1: View Of EGR Valve
    GM507392Courtesy of GENERAL MOTORS CORP.
  1. Install the new EGR valve gasket.
  2. Install the EGR valve.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the EGR valve bolts.

    Tighten:  Tighten the valve bolts to 30 N.m (22 lb ft).

  4. Install the EGR pipe to the EGR valve.
  5. Install the bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

  6. Connect the EGR valve electrical connector.
