Removal Procedure

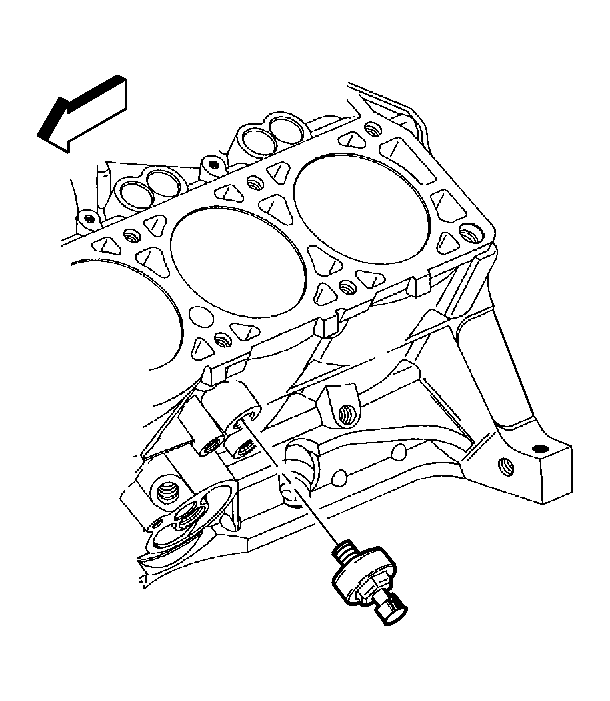

    Fig 1: View Of Knock Sensor
    GM12755Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Disconnect the knock sensor electrical connector.
  3. Remove the knock sensor from the engine block.
