Removal Procedure

  1. Disconnect the fuel lines. Refer to Quick Connect Fitting(s) Service (Metal Collar) .
  2. Disconnect the throttle position (TP) sensor electrical connector.

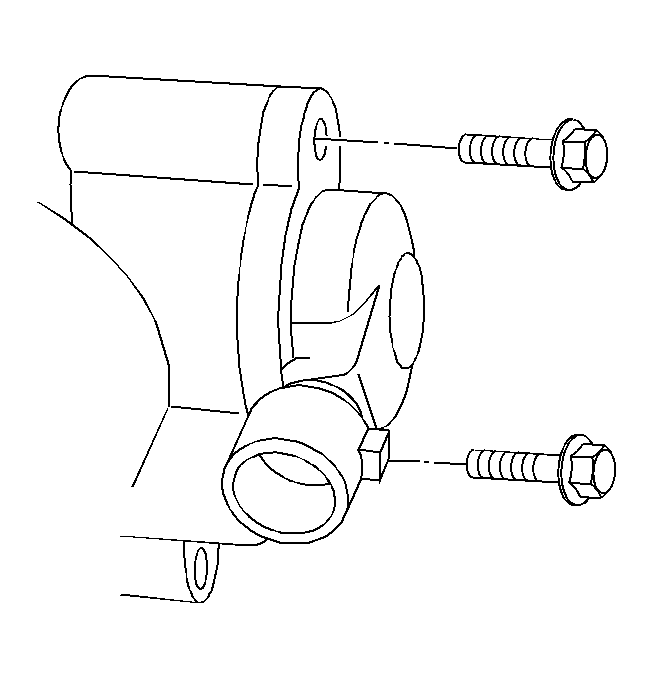

    3. Fig 1: TP Sensor Screws
    GM201482Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 TP sensor screws.

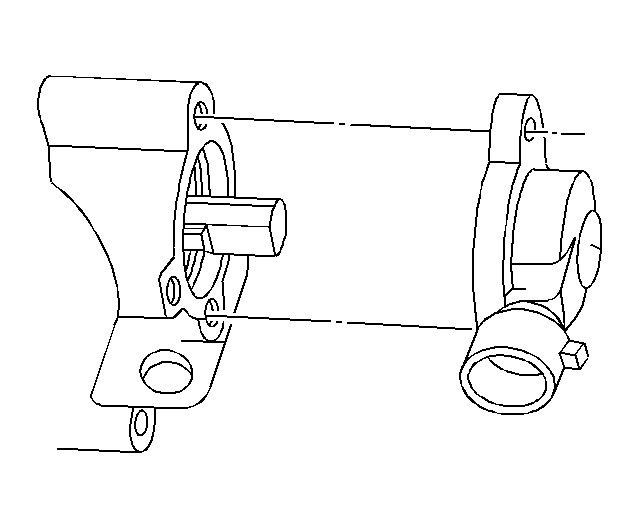

    4. Fig 2: View Of TP Sensor
    GM201473Courtesy of GENERAL MOTORS CORP.
  4. Remove the TP sensor and the O-ring.
