Installation Procedure

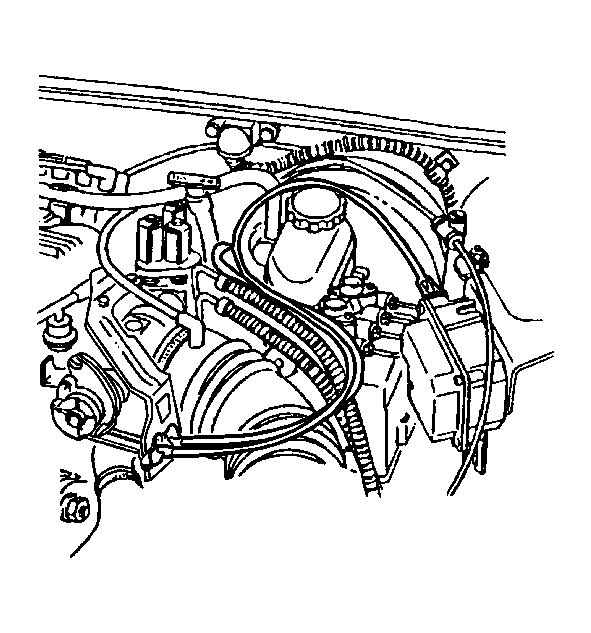

Fig 1: Identifying Accelerator Cables

Courtesy of GENERAL MOTORS CORP.

NOTE: Do not route flexible components (hoses, wires, conduits, etc.) within 50 mm (2 in) of moving parts unless flexible components can be securely fastened. This is necessary in order to prevent possible interference and damage to the component.

Install accelerator cable using the routing noted during removal.

Fig 2: Accelerator Cable & Components

Courtesy of GENERAL MOTORS CORP.

Install the accelerator cable through the cowl. (4).
Install the accelerator cable (5) to the accelerator pedal lever (1).
Seat the snap retainer in the accelerator pedal lever.

Fig 3: Identifying Throttle Cable Bracket With Cables

Courtesy of GENERAL MOTORS CORP.

Install the accelerator cable to the throttle body lever.
Install the accelerator cable to the accelerator cable bracket.

Fig 4: Identifying Cruise Control Cable

Courtesy of GENERAL MOTORS CORP.

Install the cruise control cable to the throttle body lever.
Install the cruise control cable to the bracket.

Fig 5: Accelerator Cable To Retaining Clips

Courtesy of GENERAL MOTORS CORP.

Install the accelerator cable to the retaining clip.
Inspect for complete throttle opening and closing positions by operating the accelerator pedal. Also inspect for poor carpet fit under the accelerator pedal.
Install the left instrument panel sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.
