Removal Procedure

IMPORTANT: Always maintain cleanliness when servicing fuel system components.

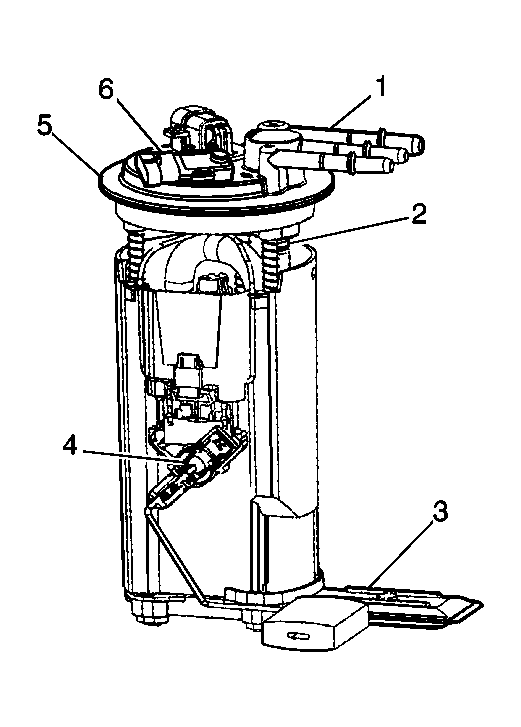

Fig 1: Identifying Fuel Sender Assembly

GM50611

Courtesy of GENERAL MOTORS CORP.

Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
Note strainer (3) position for future reference.

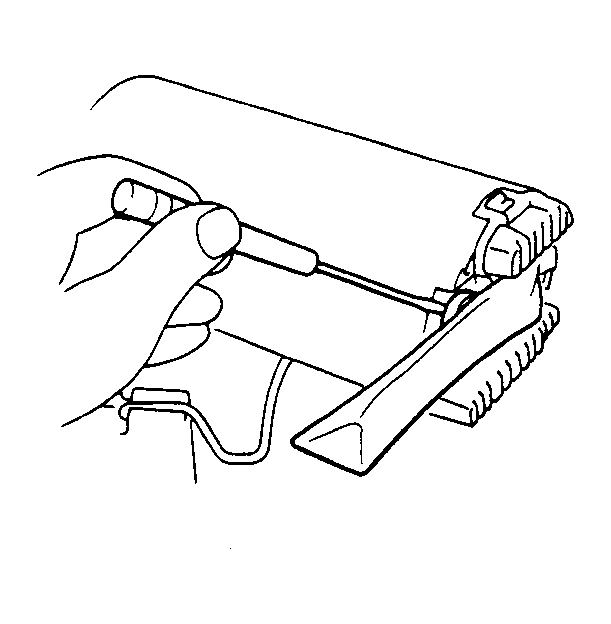

Fig 2: Prying Strainer Ferrule Off Reservoir

GM54511

Courtesy of GENERAL MOTORS CORP.

Use a screwdriver to pry the strainer ferrule off the reservoir.
Discard the strainer.
