Remote Function Schematics

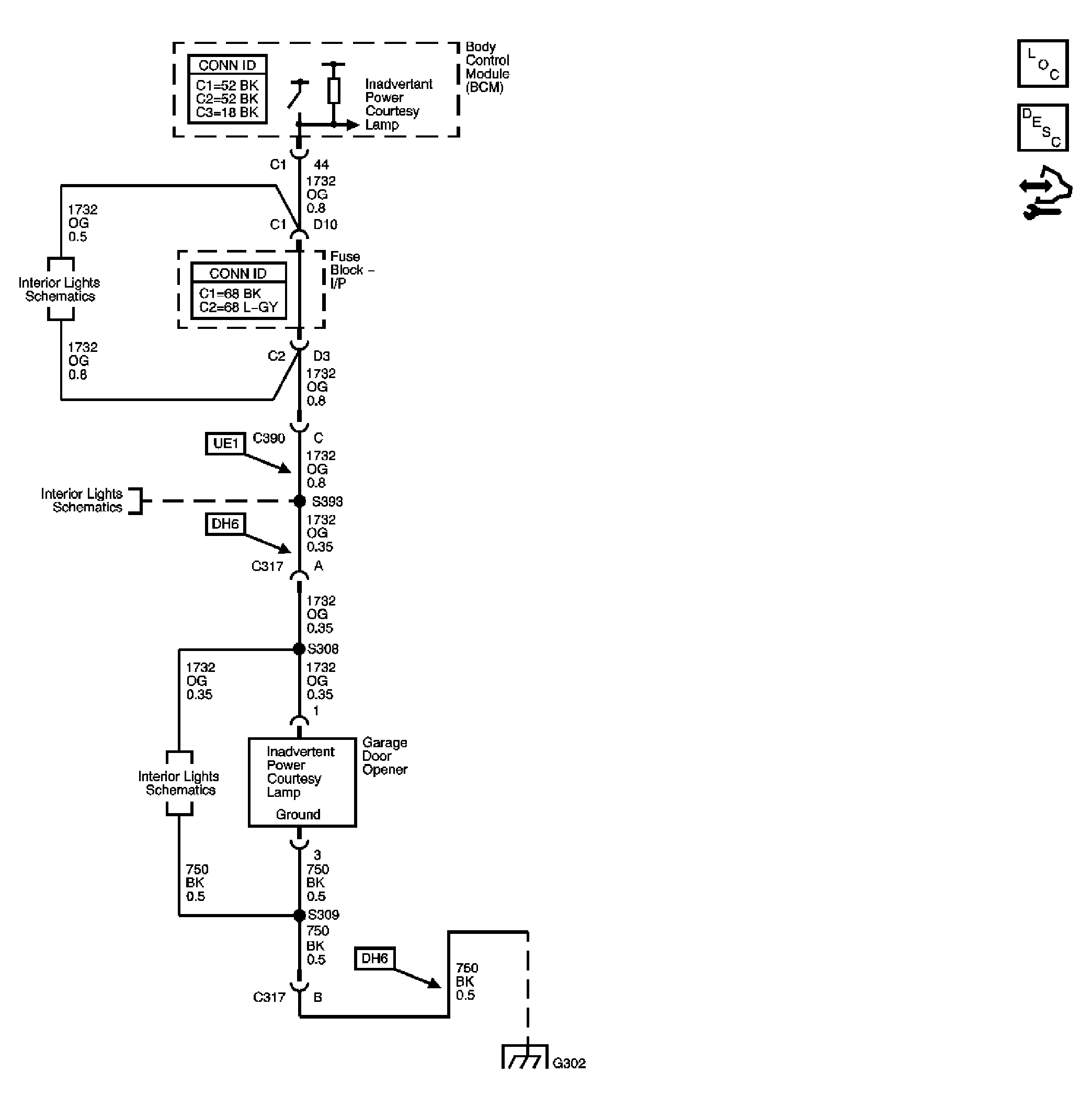

Fig 1: Garage Door Opener Schematic
GM1803235Courtesy of GENERAL MOTORS CORP.

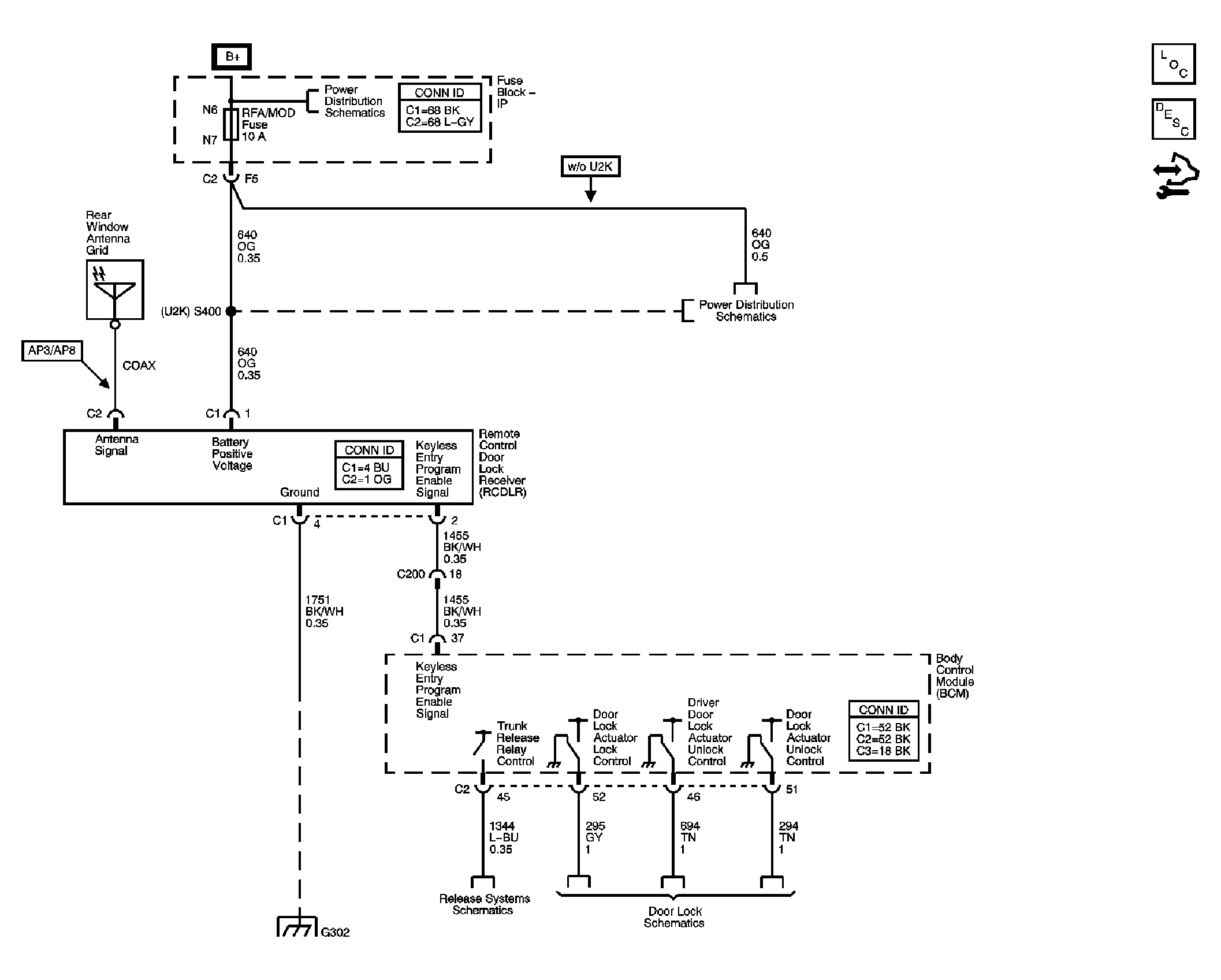

Fig 2: Keyless Door Entry Schematic
GM1803240Courtesy of GENERAL MOTORS CORP.
