Shift Lock Control Schematics

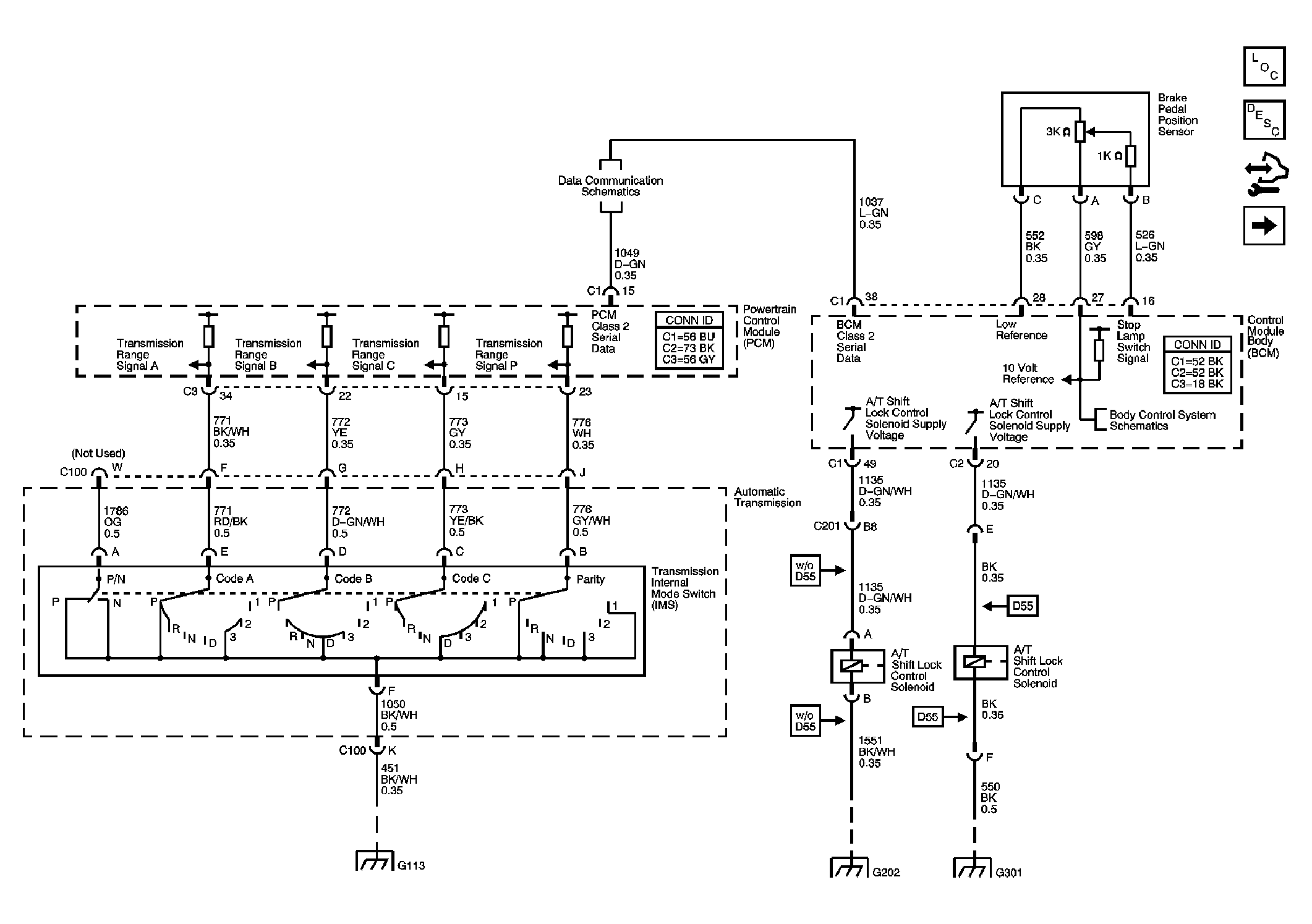

Fig 1: Shift Lock Control Schematic (3.8L)
GM1801954Courtesy of GENERAL MOTORS CORP.

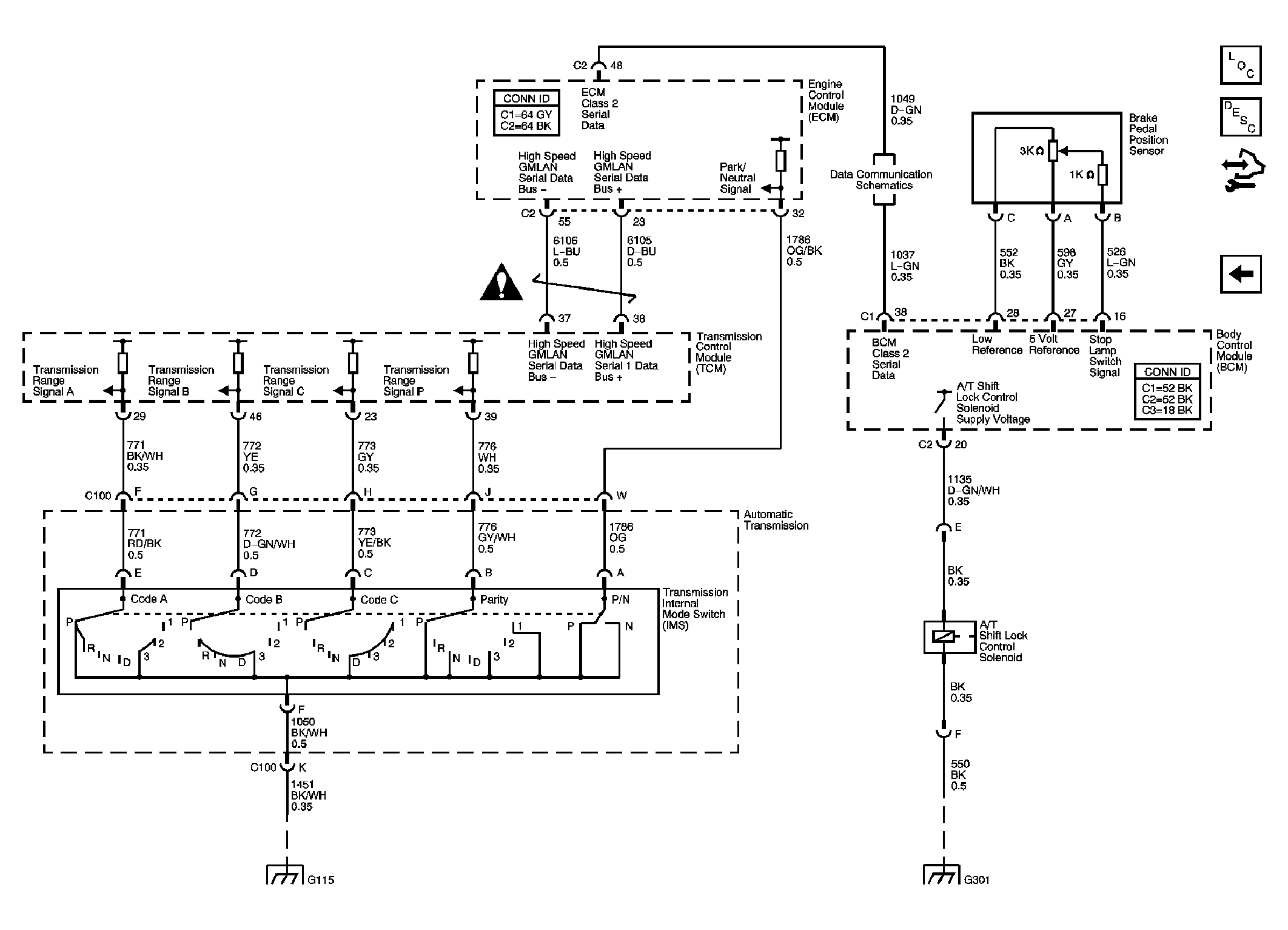

Fig 2: Shift Lock Control Schematic (3.6L)
GM1801956Courtesy of GENERAL MOTORS CORP.
