Cruise Control: Locations

Cruise Control Component Views

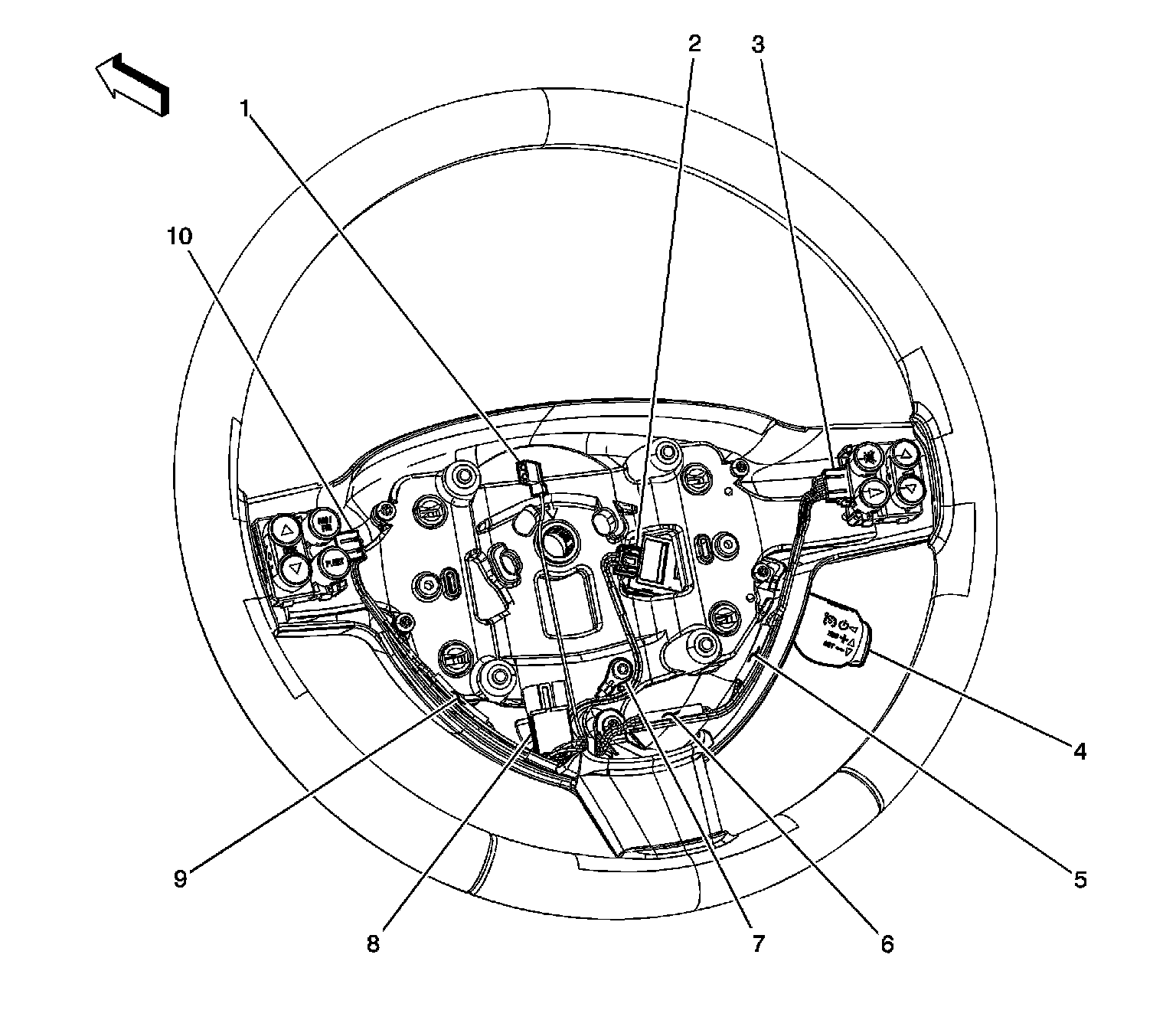

Steering Wheel Components




1 - Horn Switch Connector
2 - Cruise Control Lever Connector (K34)
3 - Steering Wheel Control Switch Assembly - Right (UK3)
4 - Cruise Control Lever (K34)
5 - S293 (UK3)
6 - S297 (UK3)
7 - Steering Wheel Ground
8 - C279 Inflatable Restraint Steering Wheel Module Coil to Steering Wheel Harness
9 - S295 (UK3)
10 - Steering Wheel Control Switch Assembly - Left (UK3)
