Signal Processing Module



Entertainment/Communication Connector End Views

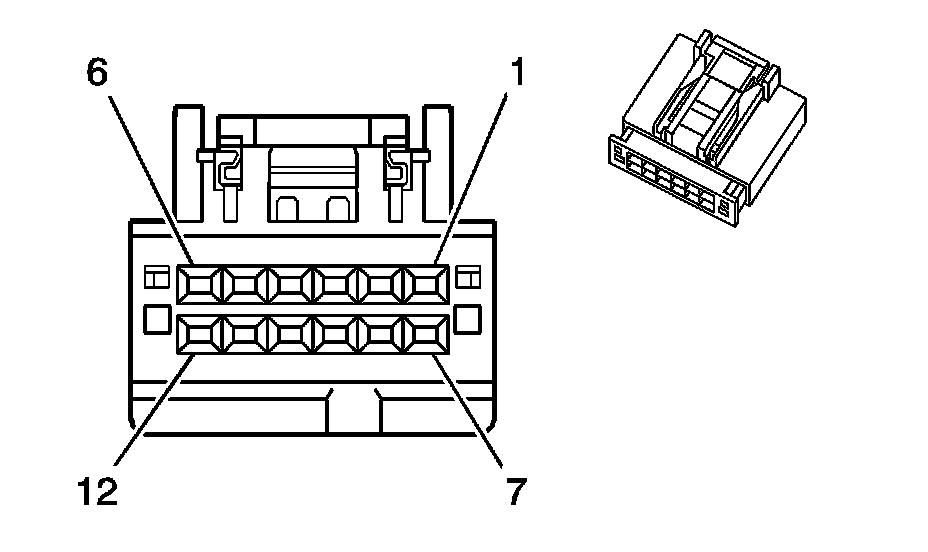

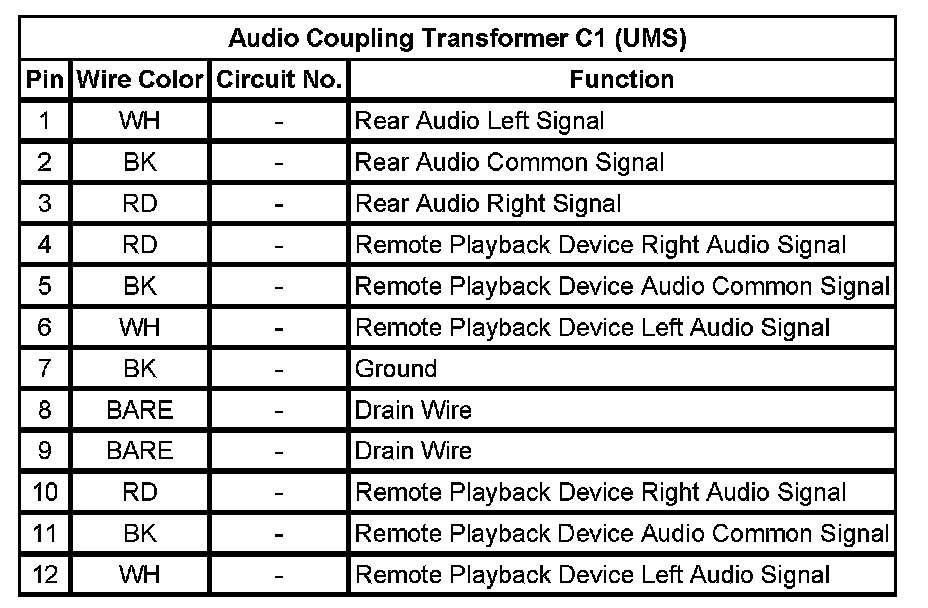

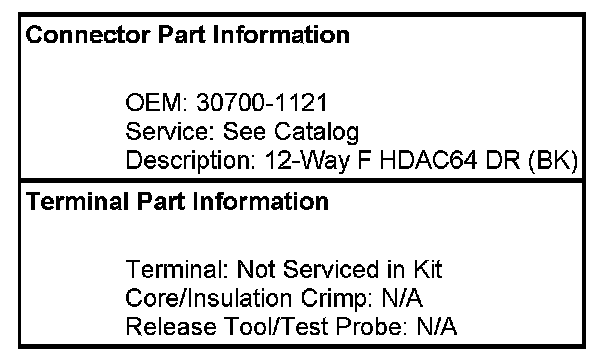

Audio Coupling Transformer C1 (UMS)

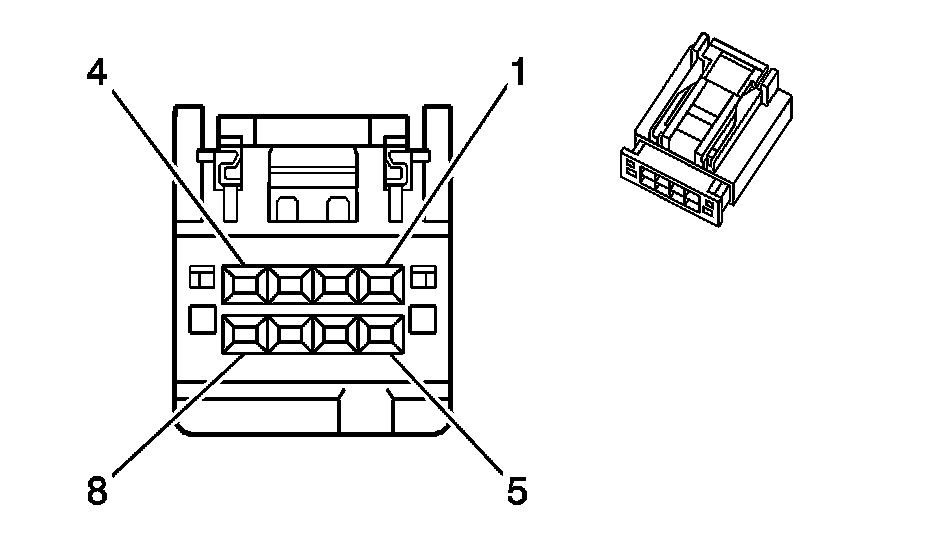

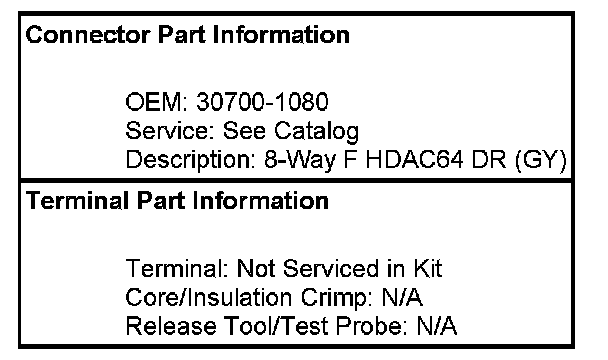

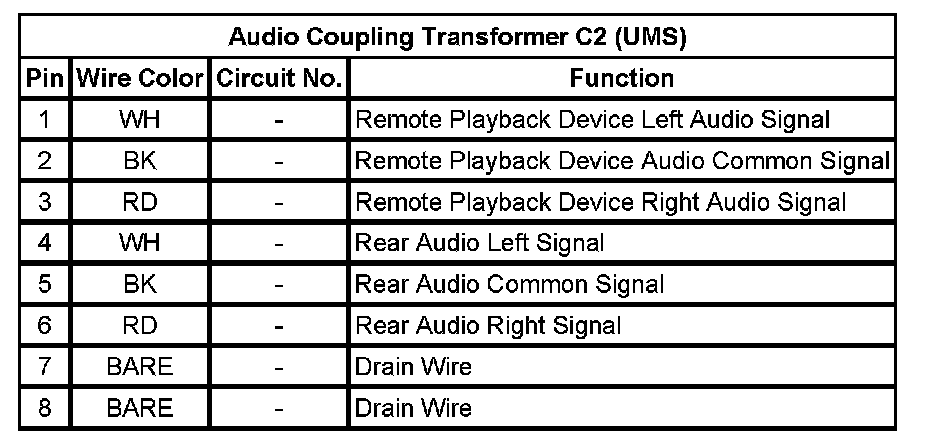

Audio Coupling Transformer C2 (UMS)
