Power Door Lock Switch



Vehicle Access Connector End Views

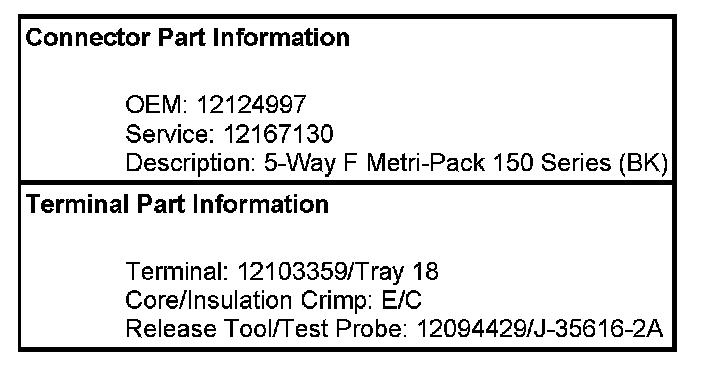

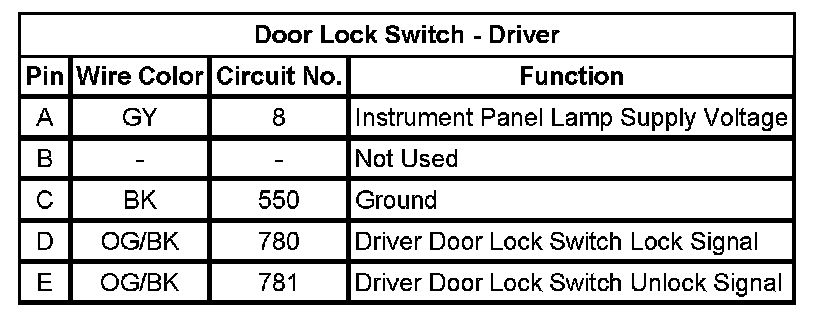

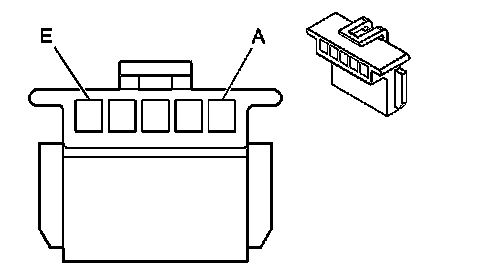

Door Lock Switch - Driver

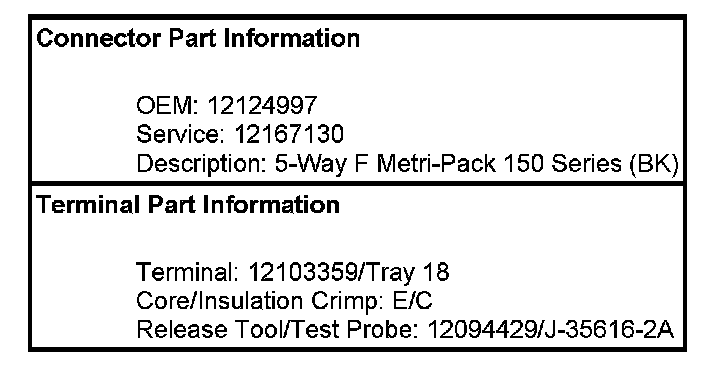

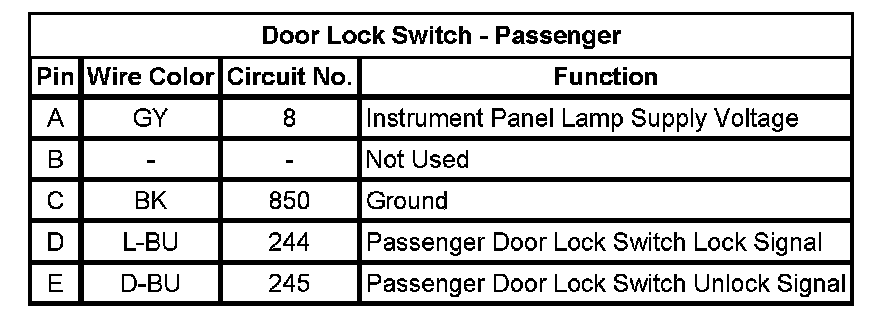

Door Lock Switch - Passenger

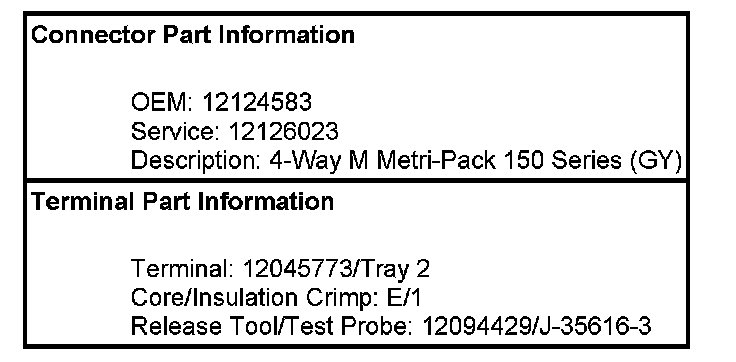

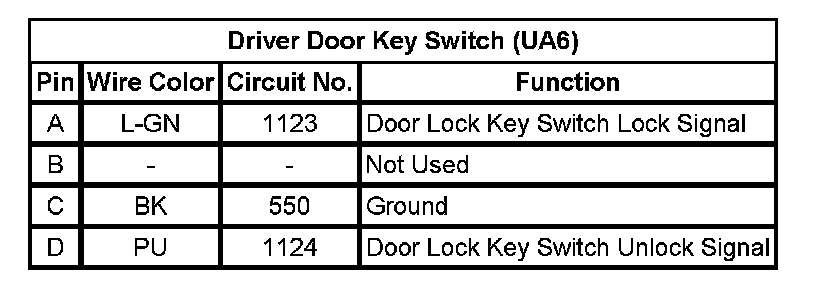

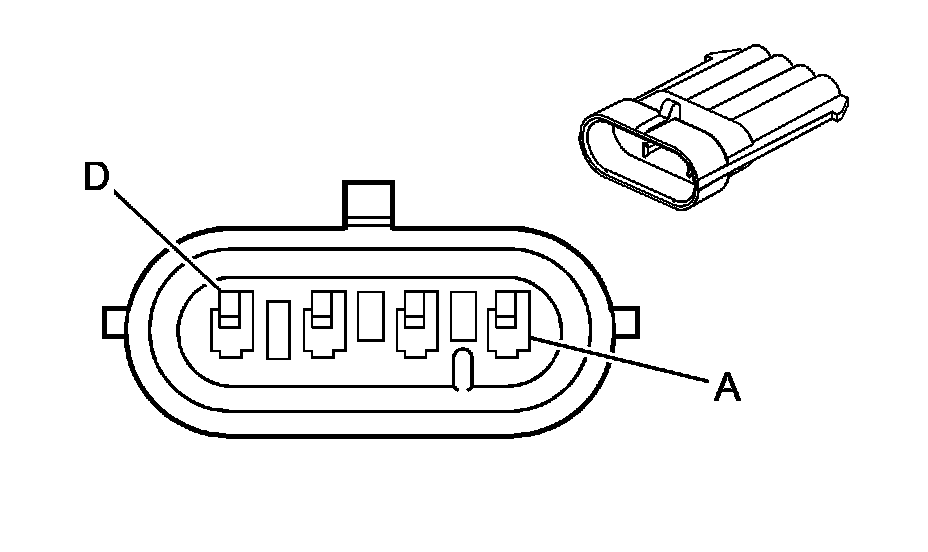

Driver Door Key Switch (UA6)
