Power Window Switch

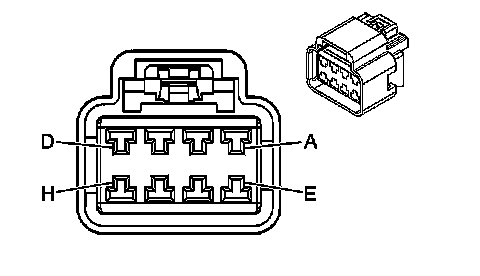

Window Systems Connector End Views

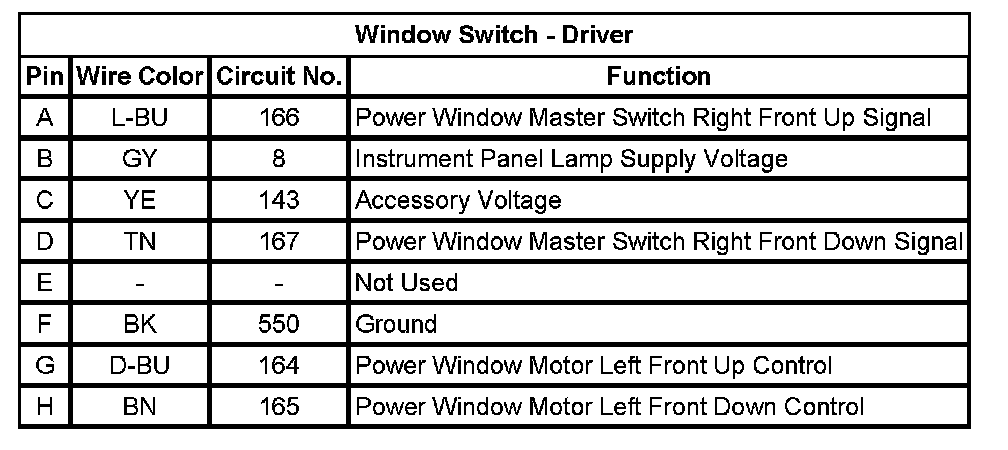

Window Switch - Driver

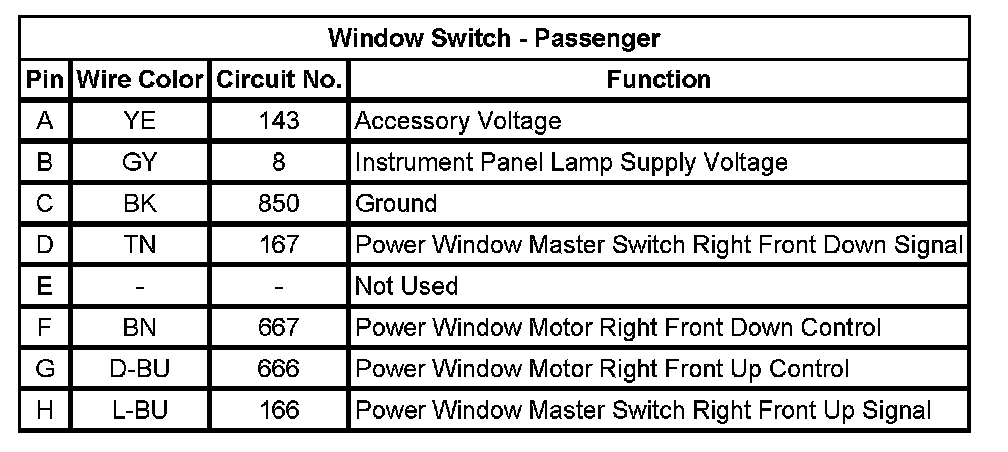

Window Switch - Passenger
