Lamp Views

Power and Grounding Component Views

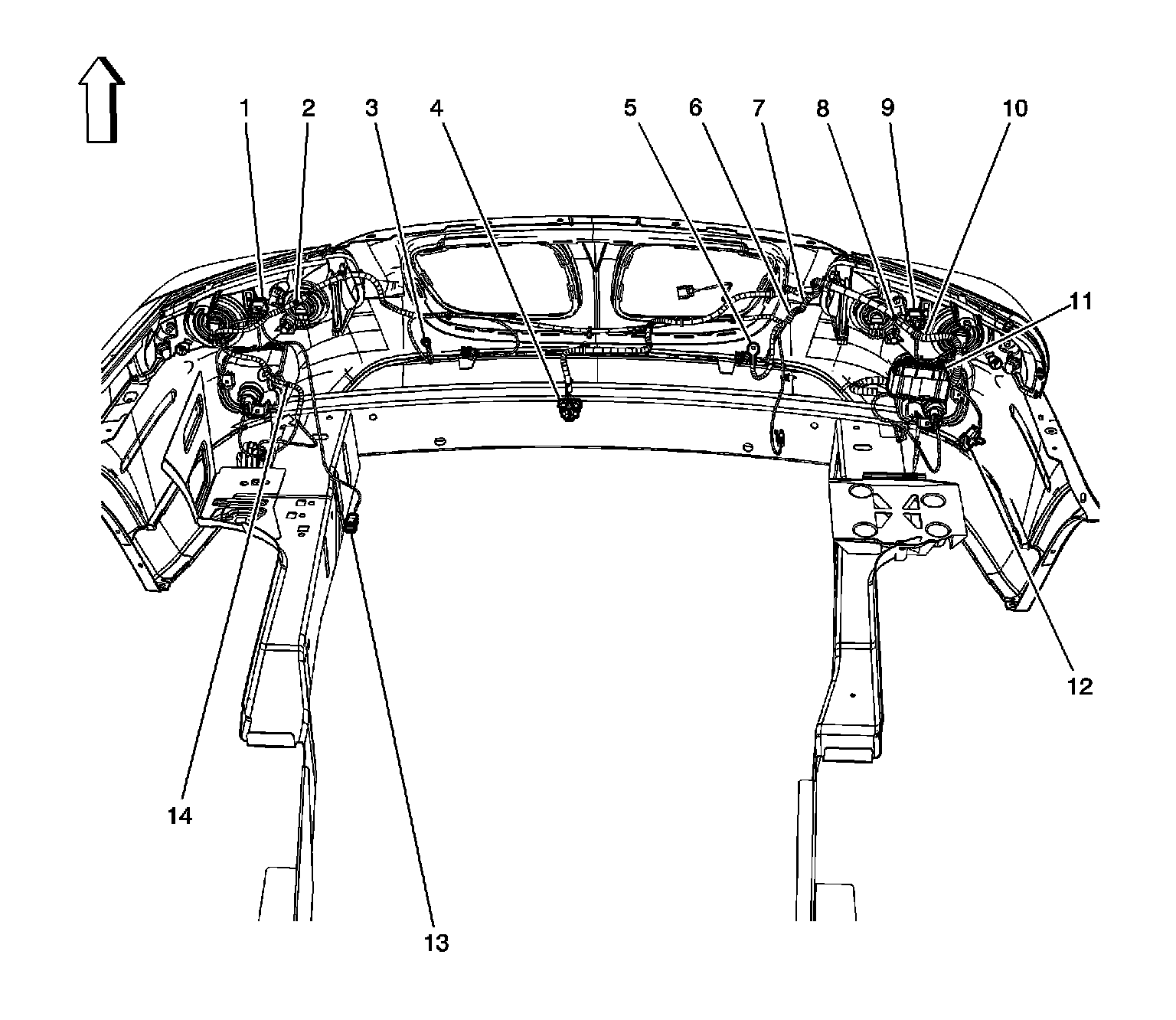

Forward Lamp Harness Components




1 - C103 Forward Lamp Harness to LH Headlamp
2 - S101
3 - G101
4 - C110 Forward Lamp Harness to Cooling Fan Jumper Harness
5 - G100
6 - S102
7 - S104
8 - S100
9 - C104 Forward Lamp Harness to RH Headlamp
10 - S106
11 - Fuse Block - Underhood C3
12 - C120 I/P Harness to Forward Lamp Harness
13 - C126 I/P Harness to Forward Lamp Harness
14 - S103
