Door Window Guide Replacement

Door Window Guide Replacement

Removal Procedure

1. Remove the front door water deflector.
2. Position the window for access.
3. Release the clips and slide the sash off the window.

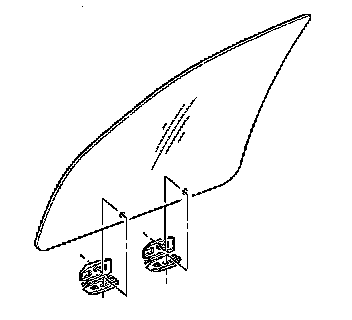

4. Use a small flat-bladed tool in order to remove the front door window guide/insulators.

Installation Procedure




1. Align and install the guide/insulators to the holes in the front door window.
2. Install the sash to the window, locking the clips onto the sash.
3. Return the window to original position.
4. Install the front door water deflector.
