Shift Lock Control Schematics

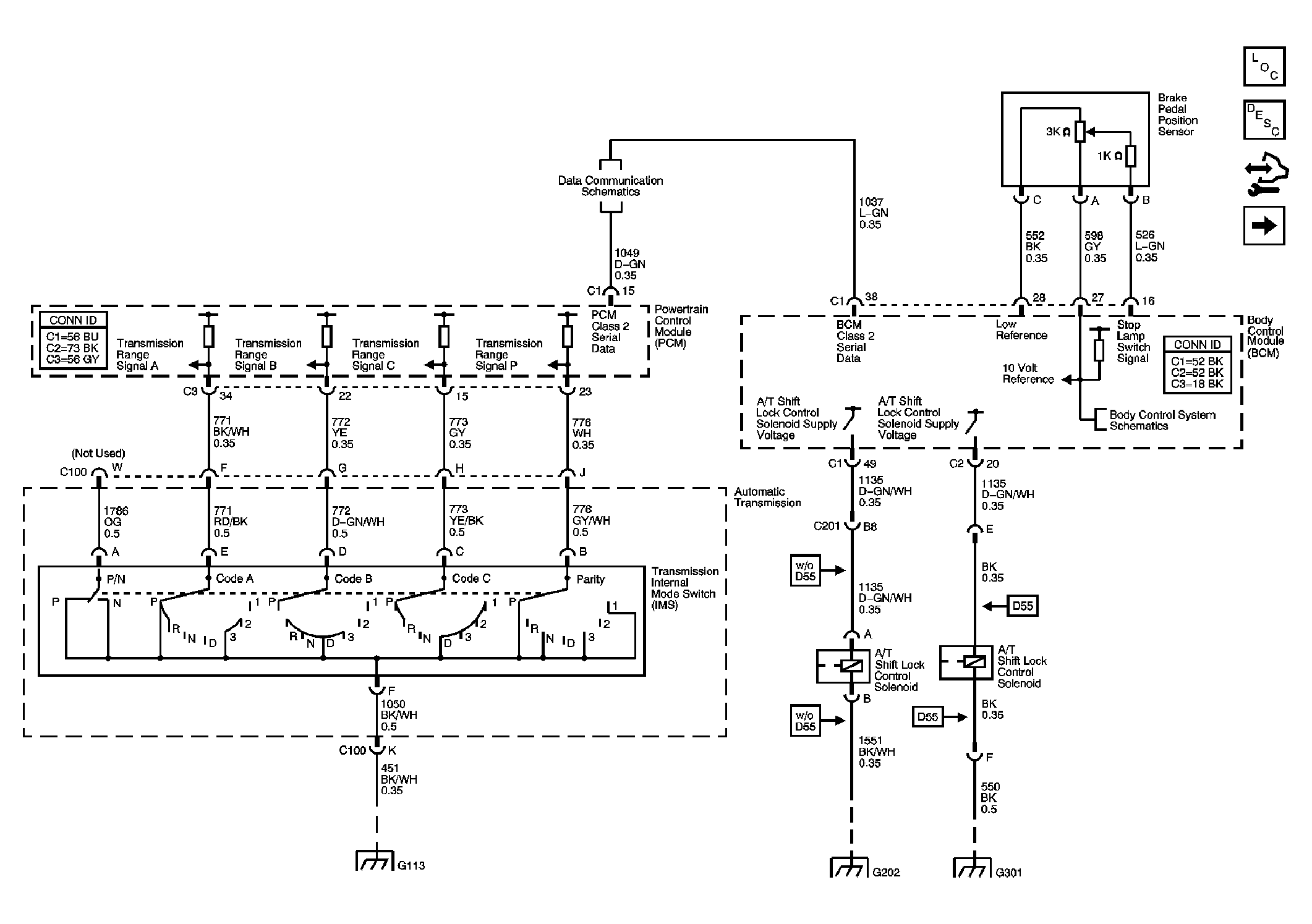

Fig 1: Shift Lock Control Schematic - L26
GM1888974Courtesy of GENERAL MOTORS CORP.

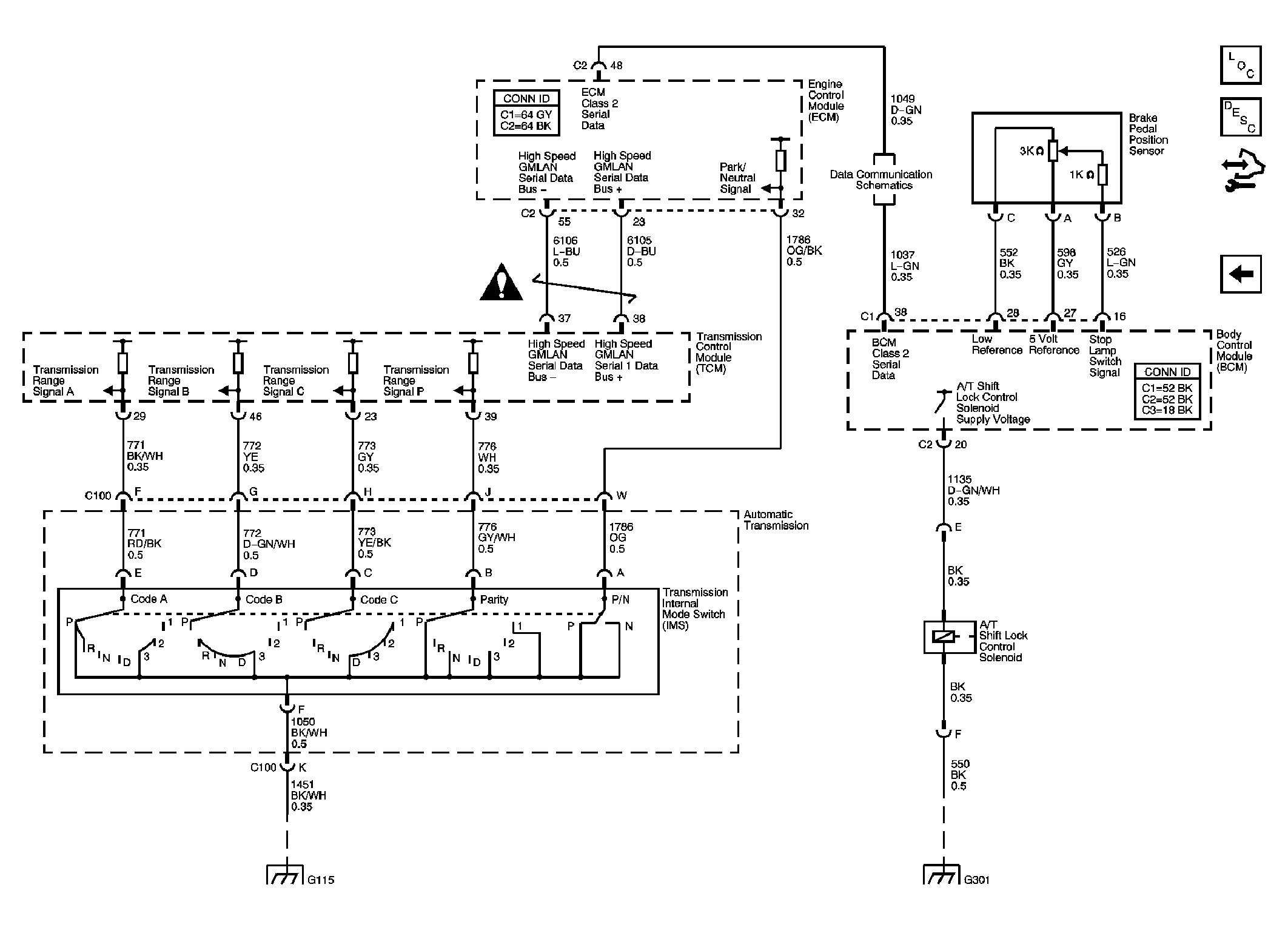

Fig 2: Shift Lock Control Schematic - LY7
GM1888976Courtesy of GENERAL MOTORS CORP.
