Body Control System Schematics

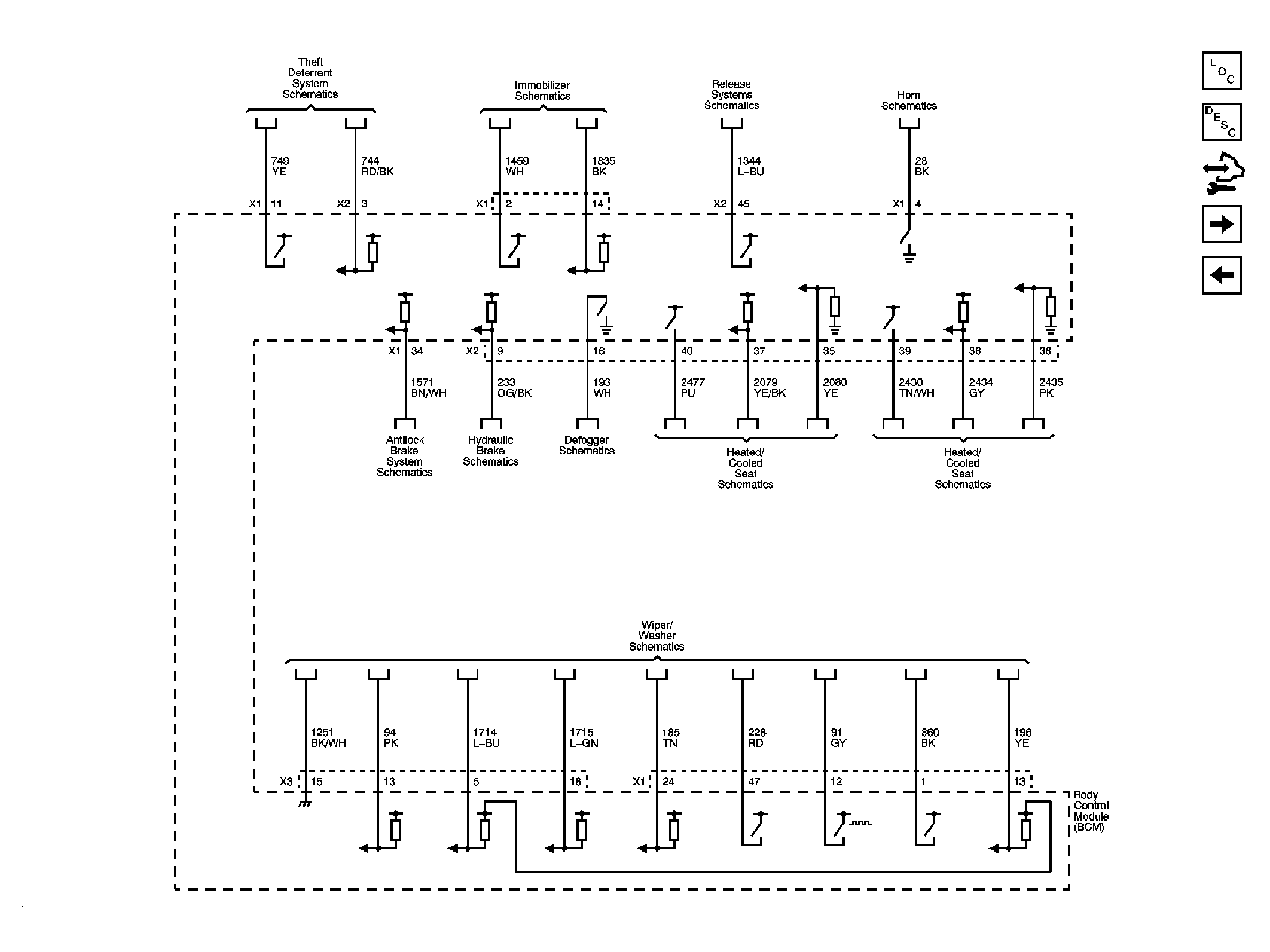

Fig 1: Power, Ground, Serial Data, and Subsystem References (1 of 4)

Courtesy of GENERAL MOTORS CORP.

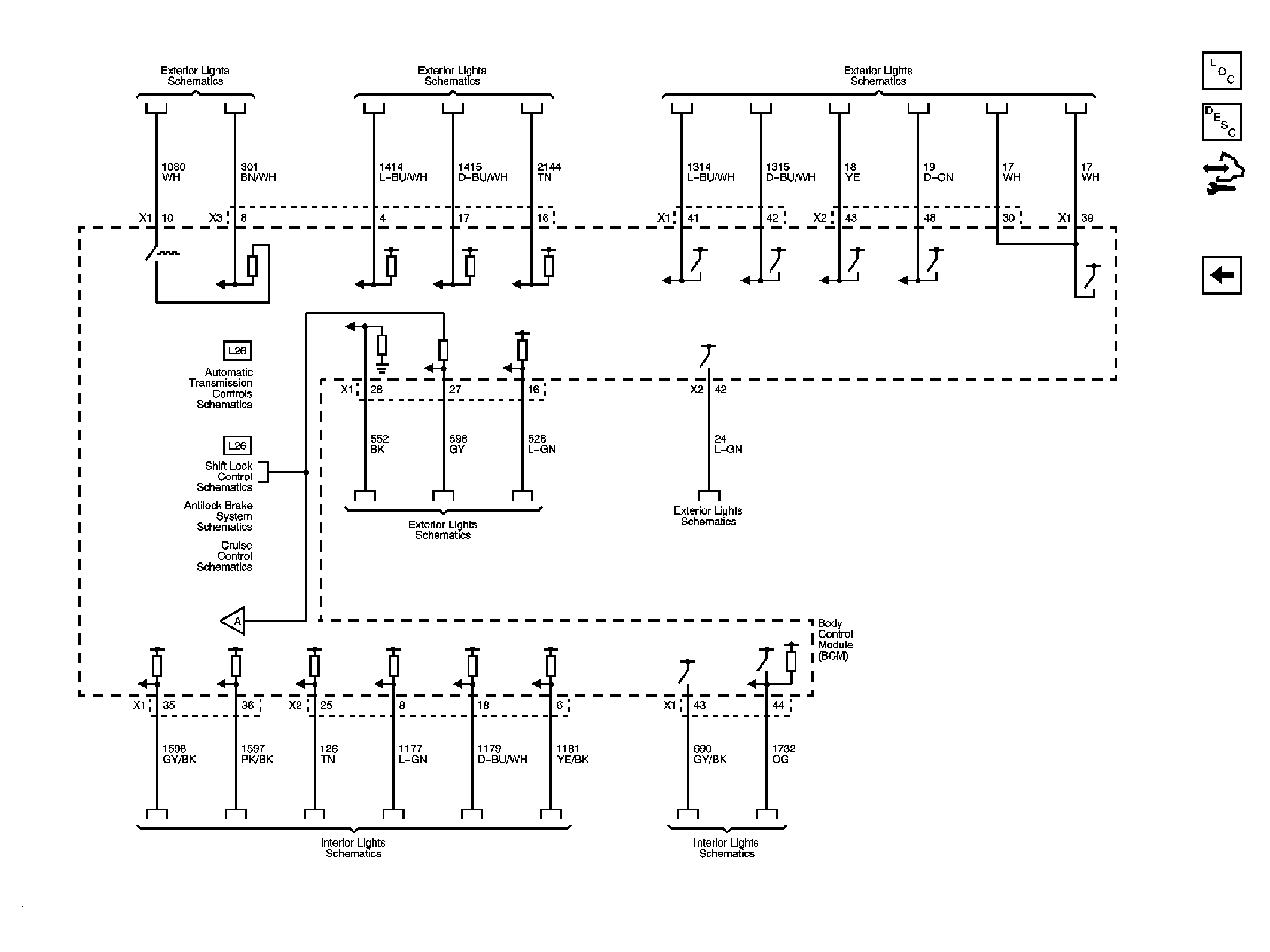

Fig 2: Subsystem References (2 of 4)

Courtesy of GENERAL MOTORS CORP.

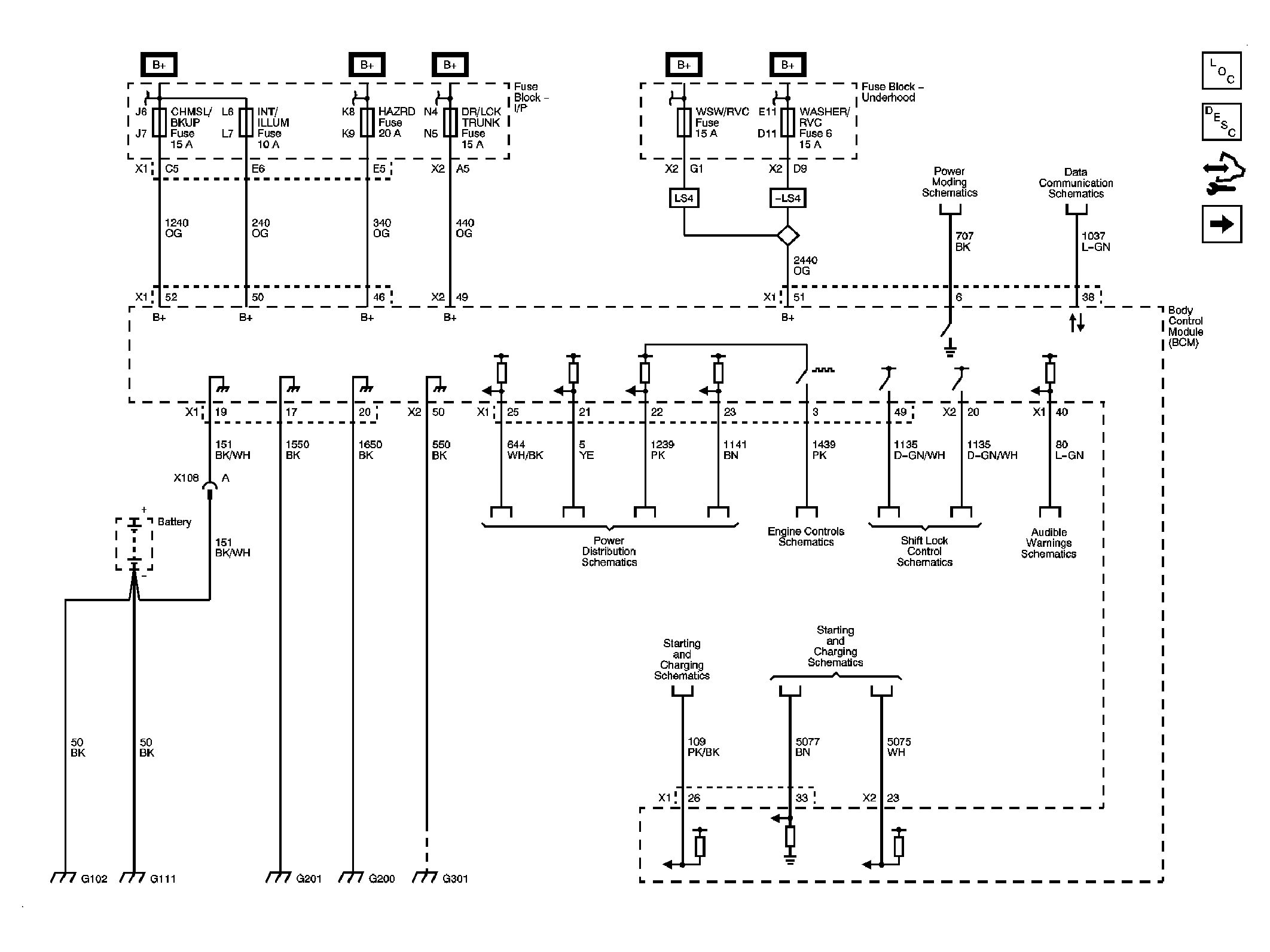

Fig 3: Subsystem References (3 of 4)

Courtesy of GENERAL MOTORS CORP.

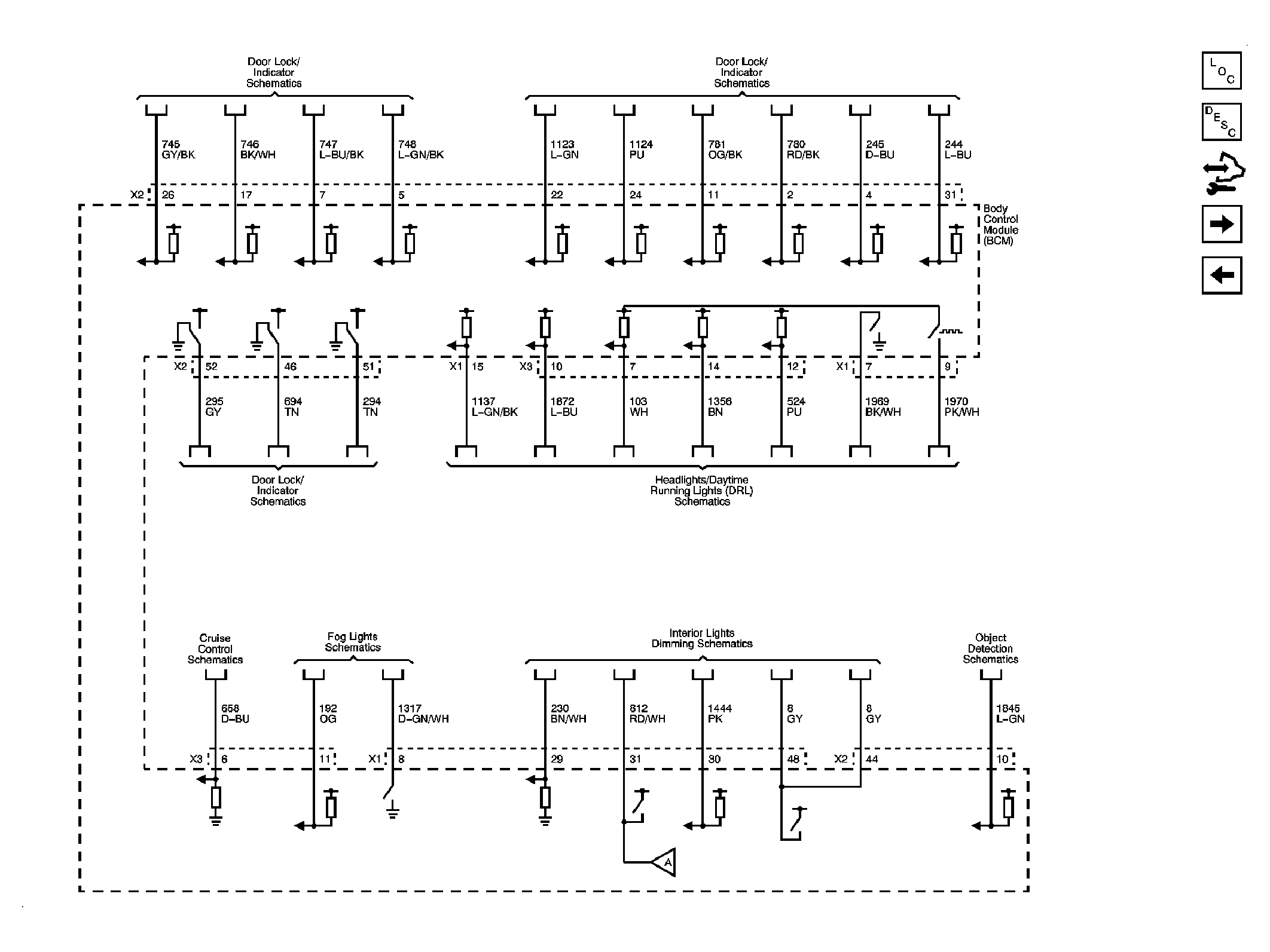

Fig 4: Subsystem References (4 of 4)

Courtesy of GENERAL MOTORS CORP.
