Installation Procedure

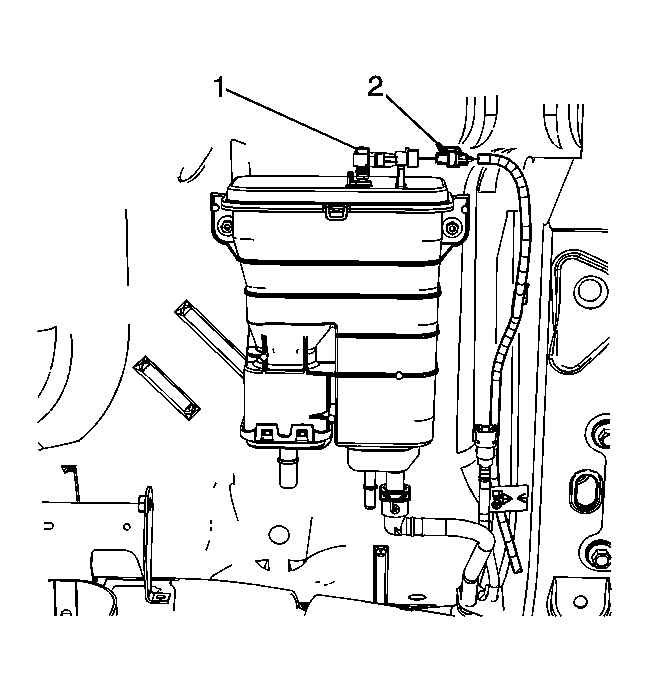

    Fig 1: Identifying fuel tank wiring harness electrical connector
    GM1755107Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank pressure sensor (1).
  2. Connect the fuel tank wiring harness electrical connector (2) to the fuel tank pressure sensor.
  3. Lower the vehicle.
