Installation Procedure

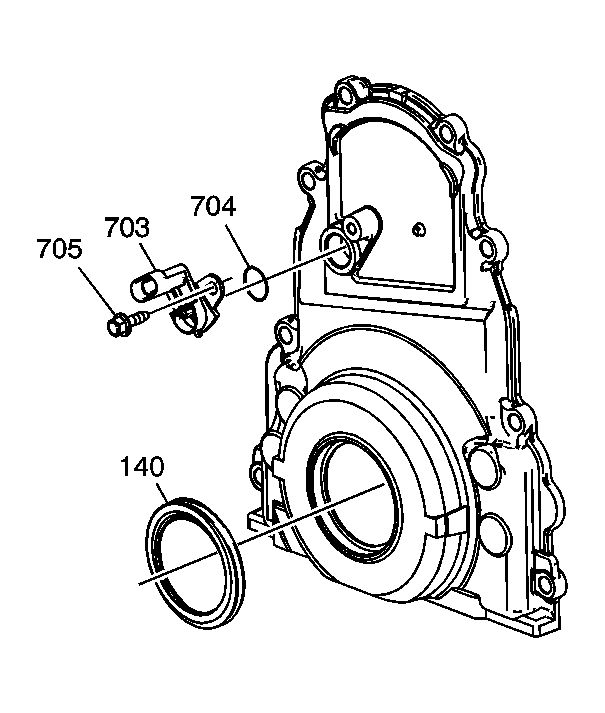

    Fig 1: View Of Crankshaft Oil Seal & Camshaft Position (CMP) Sensor
    GM1411952Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the O-ring seal with clean engine oil.
  2. Install the O-ring seal (704) onto the CMP sensor, if necessary.
  3. Install the CMP sensor (703).
    4. CAUTION: Refer to Fastener Caution .
  4. Remove the CMP sensor bolt (705).

    Tighten:  Tighten the bolt to 12 N.m (106 lb in).

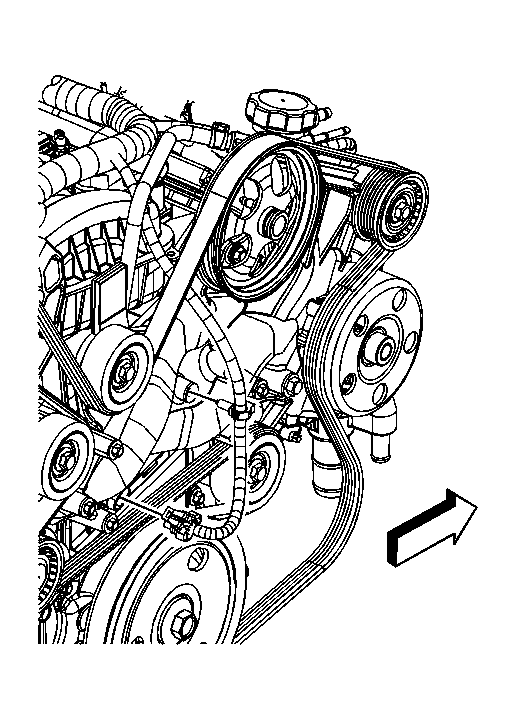

    5. Fig 2: Camshaft Position (CMP) Sensor Electrical Connector
    GM1554556Courtesy of GENERAL MOTORS CORP.
  5. Connect the CMP sensor electrical connector.
