Installation Procedure

CAUTION: Replacement components must be the correct part number for the application. Components requiring the use of the thread locking compound, lubricants, corrosion inhibitors, or sealants are identified in the service procedure. Some replacement components may come with these coatings already applied. Do not use these coatings on components unless specified. These coatings can affect the final torque, which may affect the operation of the component. Use the correct torque specification when installing components in order to avoid damage.

CAUTION: Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.

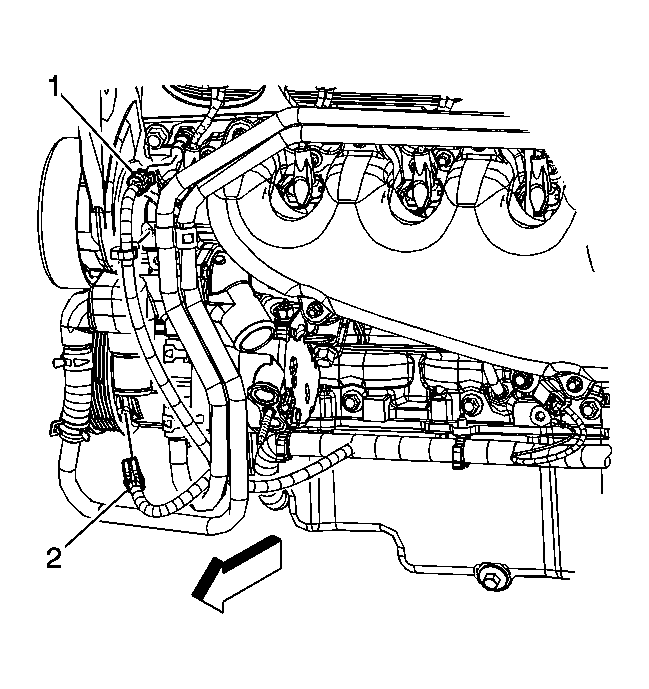

Fig 1: Locating ECT Sensor

Courtesy of GENERAL MOTORS CORP.

Coat the thread of the ECT sensor with sealer GM P/N 12346004 (Canadian P/N 10953480), or equivalent.

CAUTION: Refer to Fastener Caution .

Install the ECT sensor.
Tighten: Tighten the sensor to 20 N.m (15 lb ft).

Fig 2: ECT Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the ECT sensor electrical connector (1).
Refill the engine coolant. Refer to Cooling System Draining and Filling (LS4 Static Fill) or Cooling System Draining and Filling (LS4 GE 47716 Fill) .
