Removal Procedure

CAUTION: Refer to Heated Oxygen and Oxygen Sensor Caution .

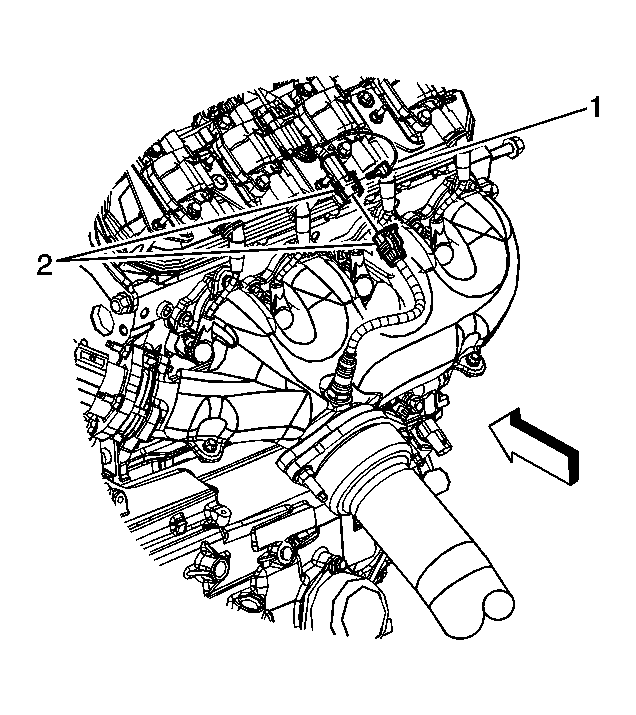

    Fig 1: Bank 1 Sensor 1 Electrical Connector
    GM1554557Courtesy of GENERAL MOTORS CORP.
  1. Remove the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
  2. Remove the connector position assurance (CPA) retainer (1).
  3. Disconnect the bank 1 sensor 1 electrical connector (2).
    4. Fig 2: View Of Bank 1 Sensor 1
    GM1554545Courtesy of GENERAL MOTORS CORP.
  4. Remove the bank 1 sensor 1 from the exhaust manifold.
