Engine Controls Schematics

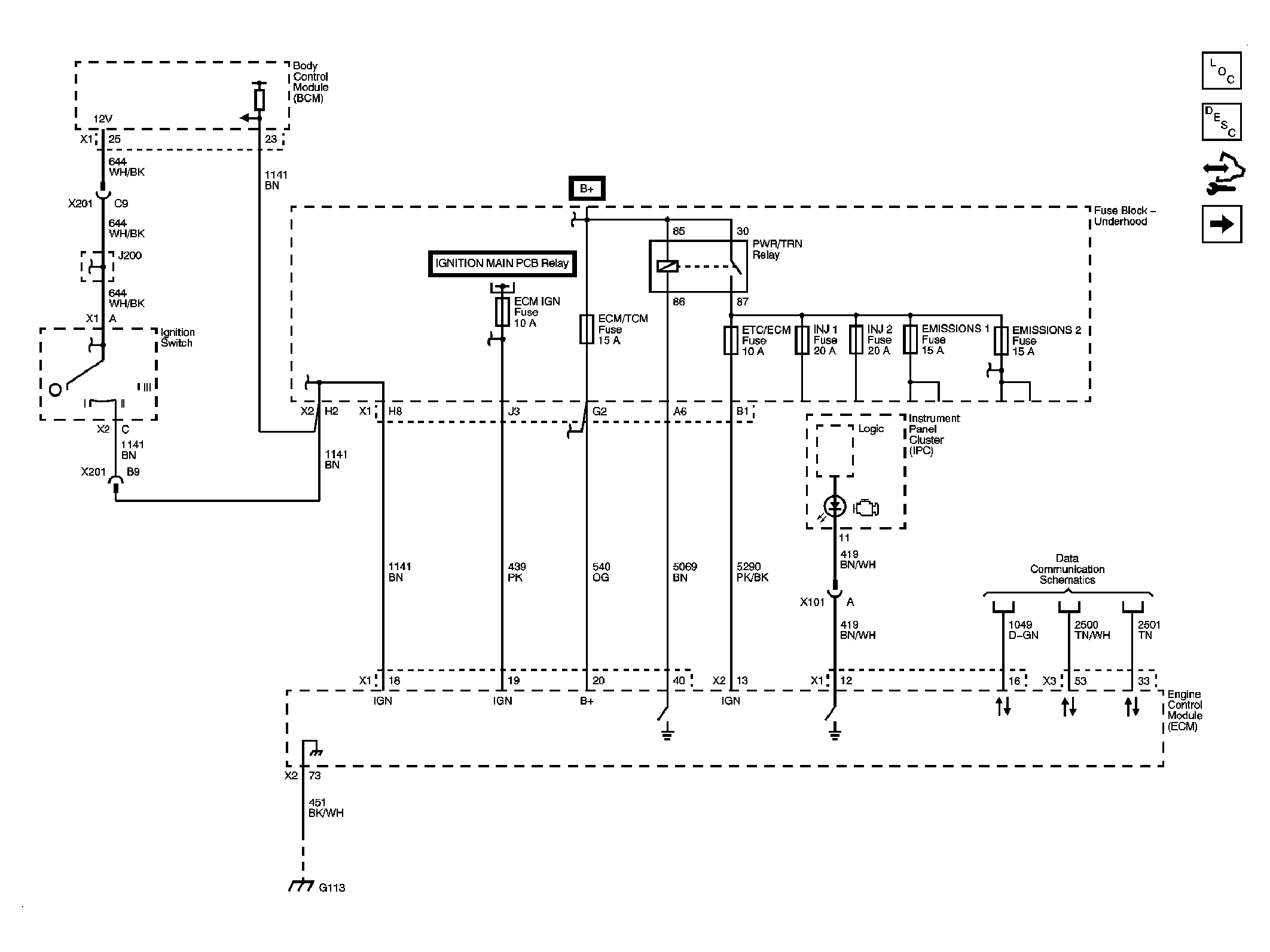

Fig 1: Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

Fig 2: 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

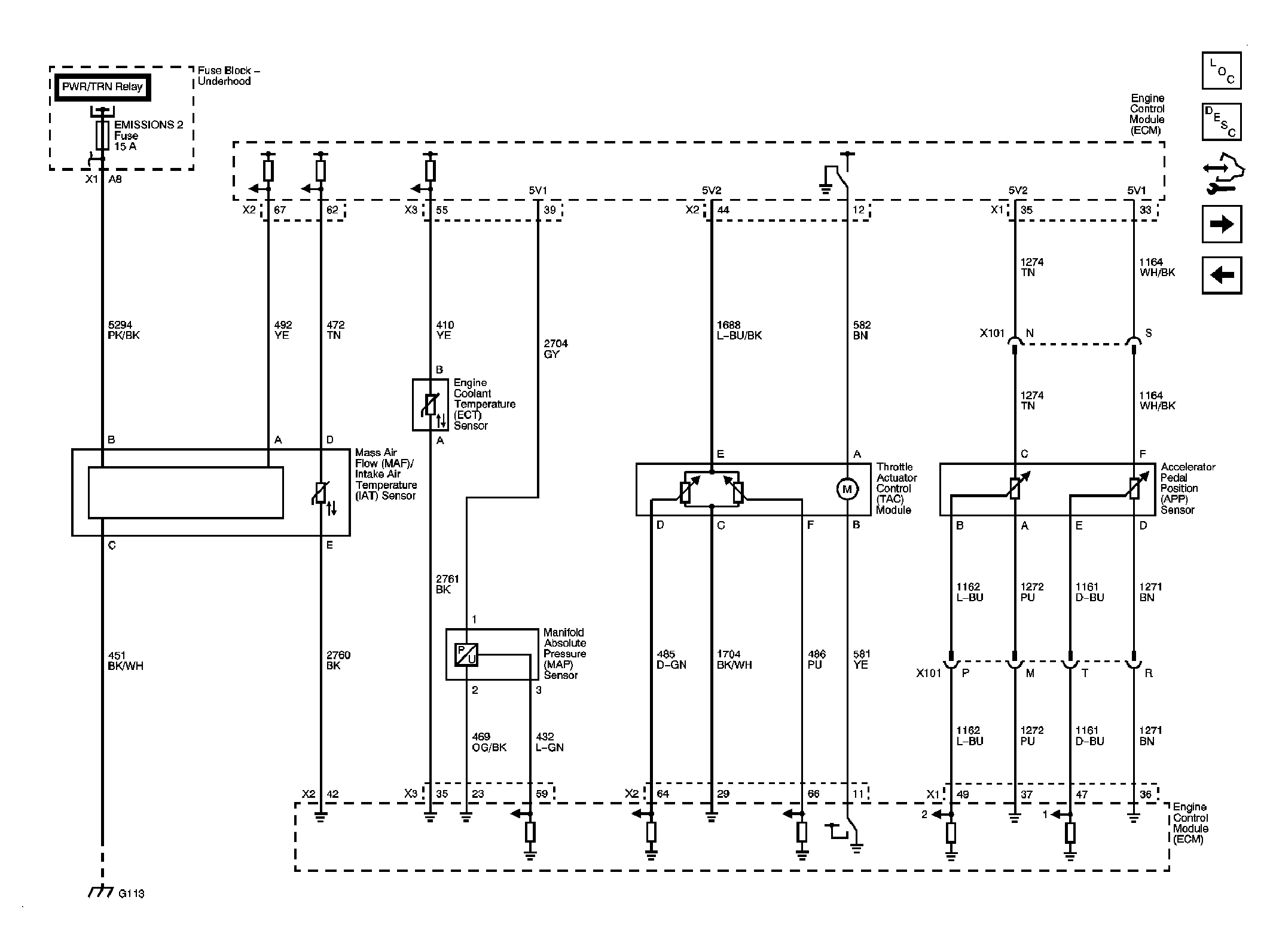

Fig 3: Engine Data Sensors - Pressure, Temperature, and Throttle Control

Courtesy of GENERAL MOTORS CORP.

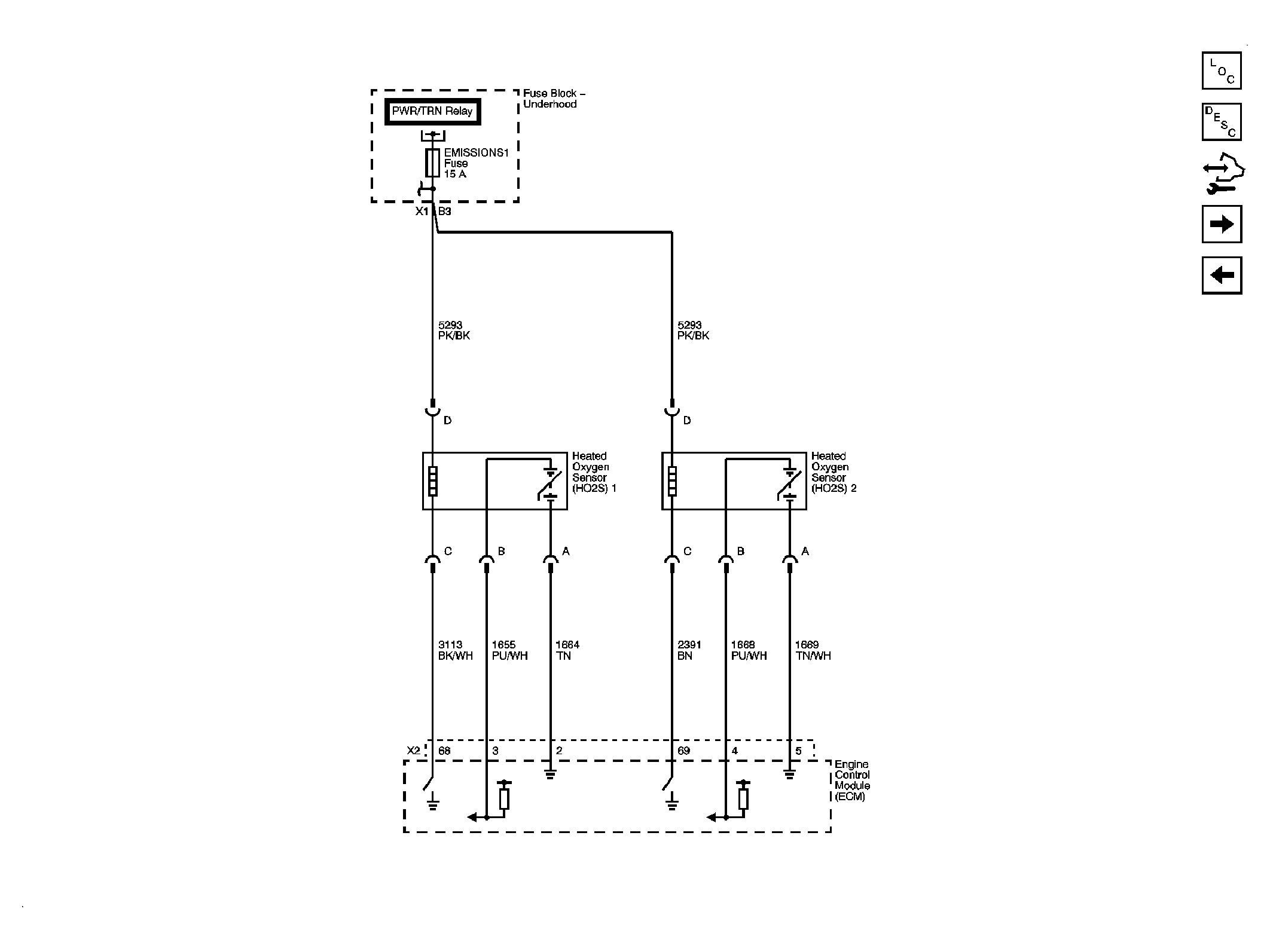

Fig 4: Engine Data Sensors - HO2S, Stop Lamp Switch Signal, and Vehicle Speed Signal

Courtesy of GENERAL MOTORS CORP.

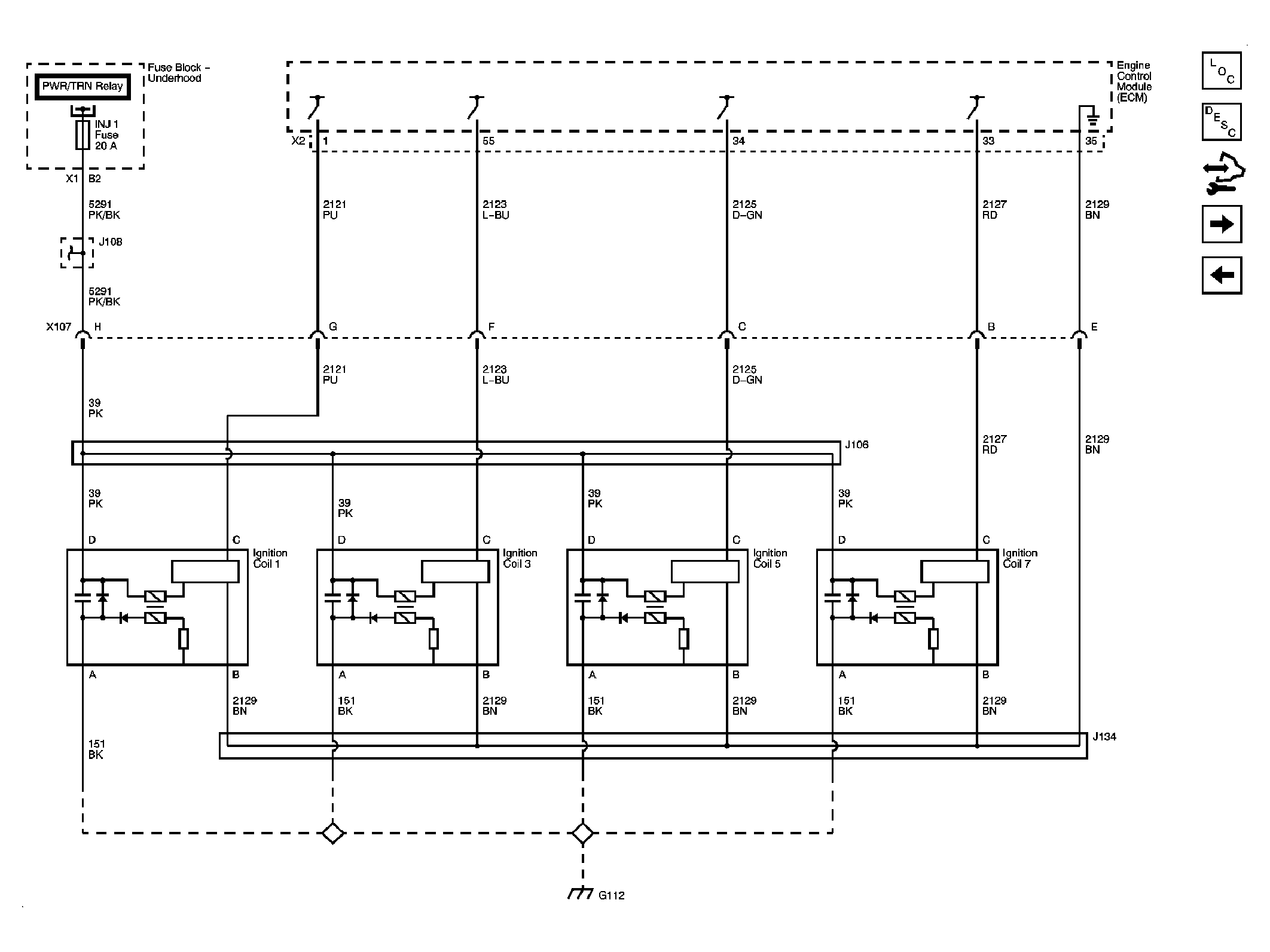

Fig 5: Ignition Controls - Ignition System Coils 1, 3, 5, and 7

Courtesy of GENERAL MOTORS CORP.

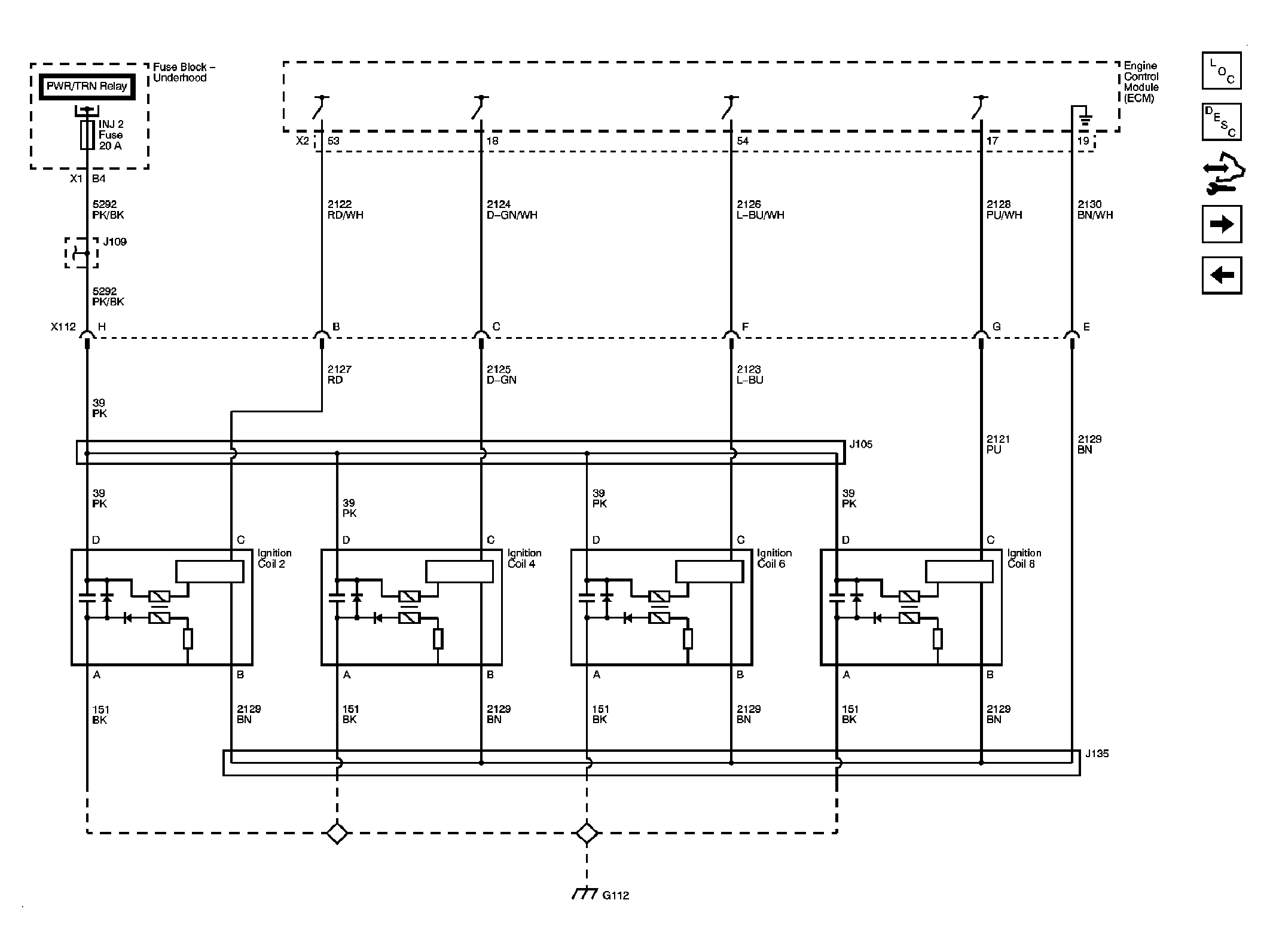

Fig 6: Ignition Controls - Ignition System Coils 2, 4, 6, and 8

Courtesy of GENERAL MOTORS CORP.

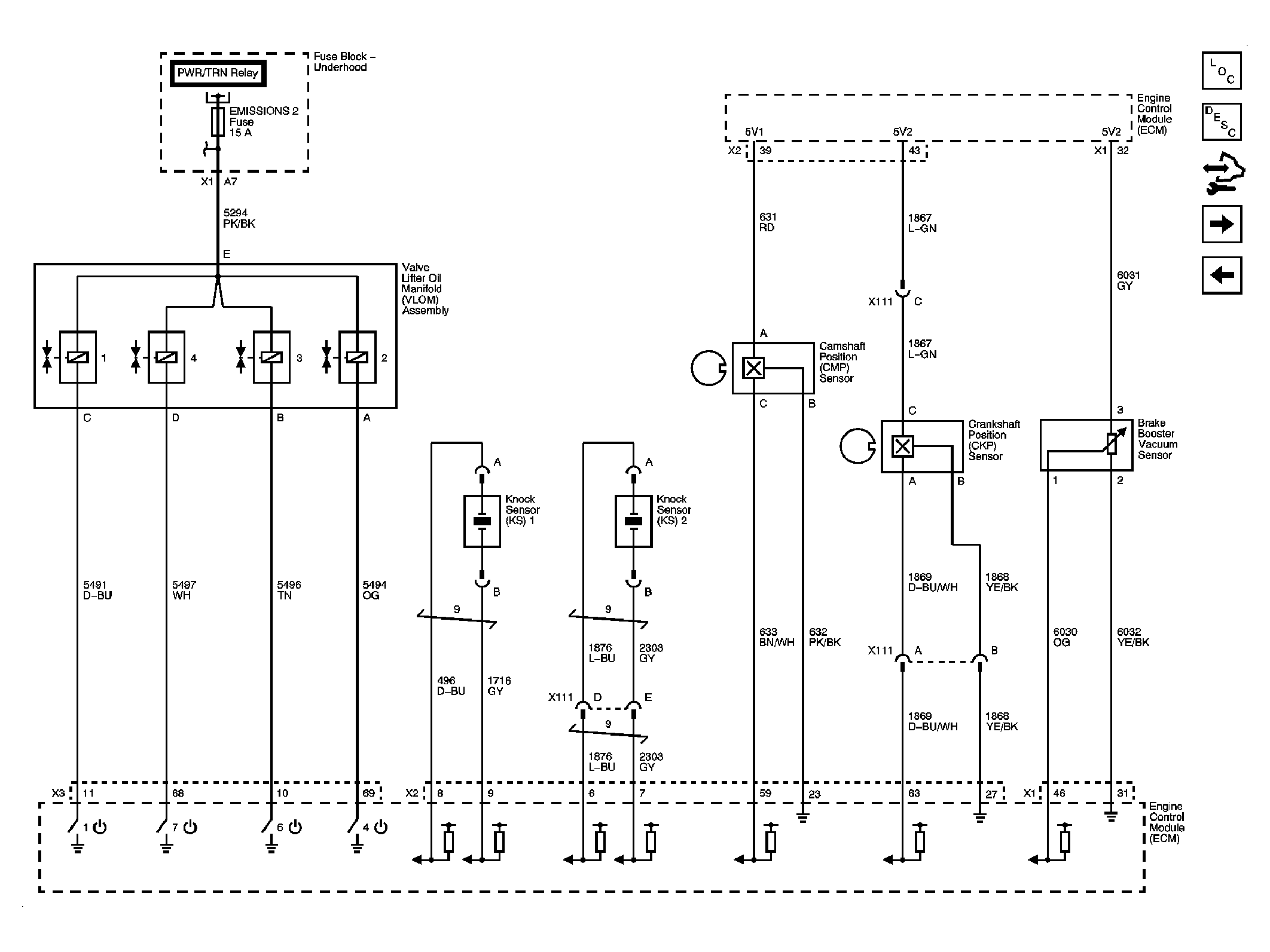

Fig 7: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

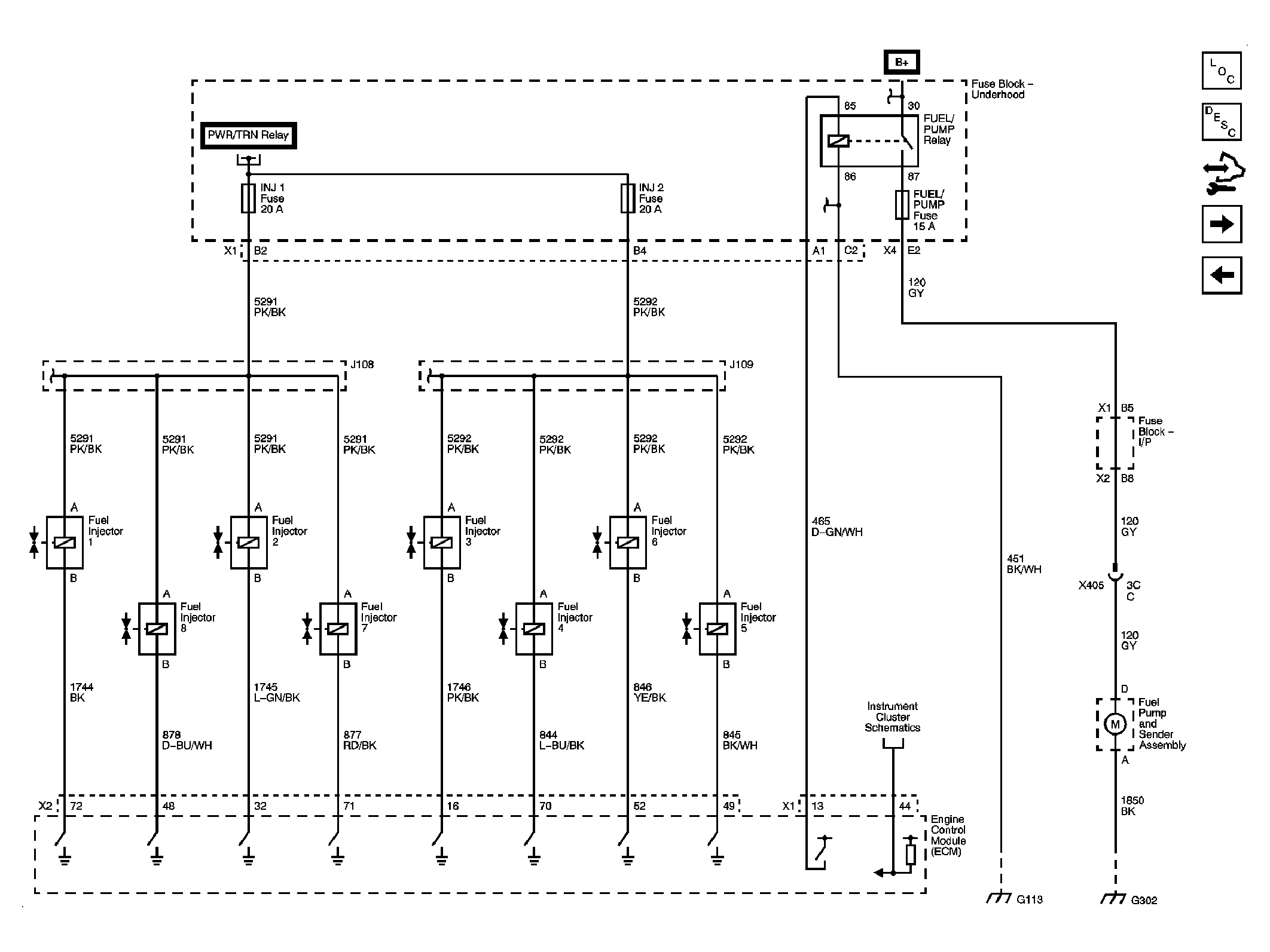

Fig 8: Fuel Controls - Fuel Injectors and Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

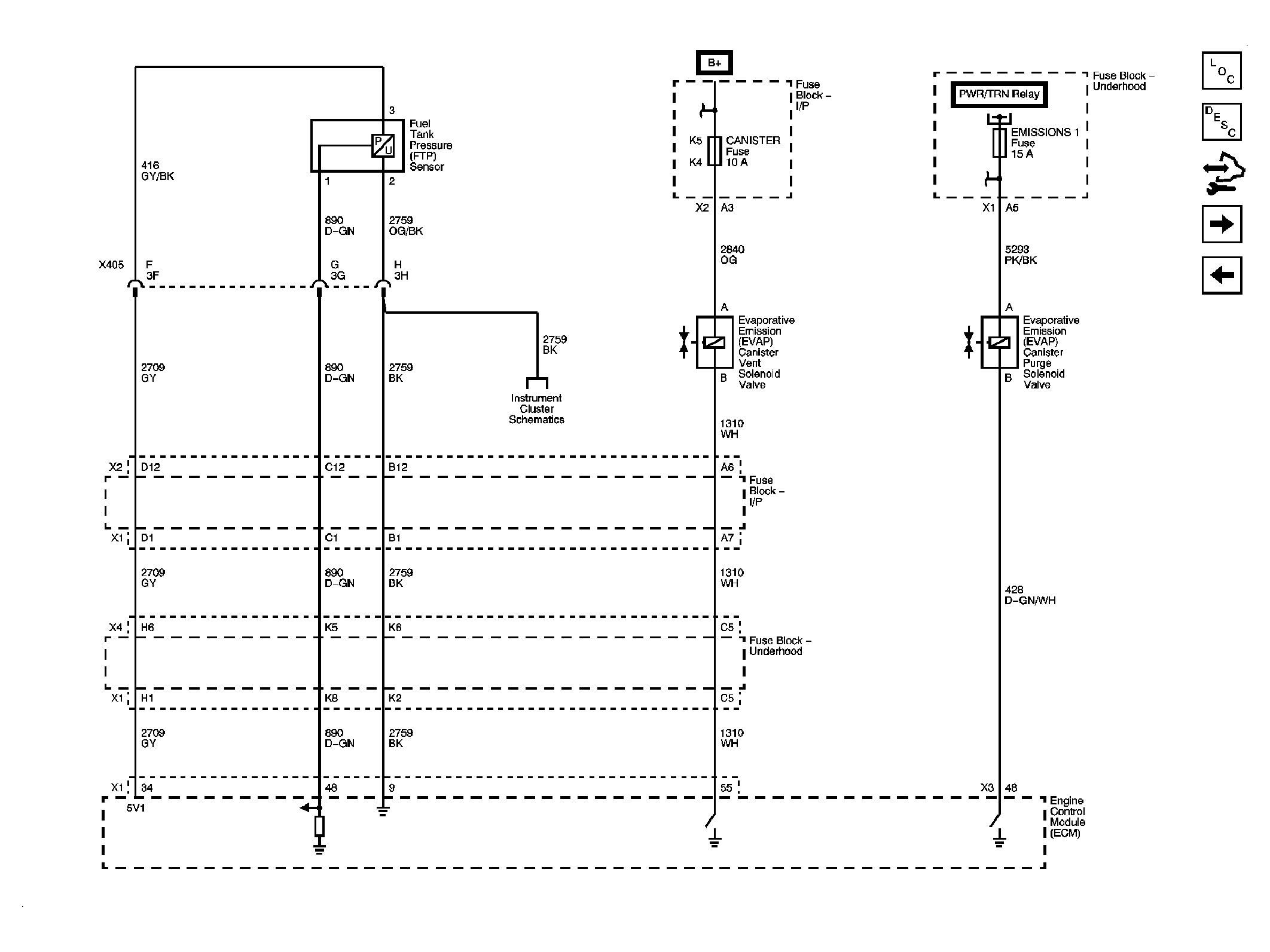

Fig 9: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

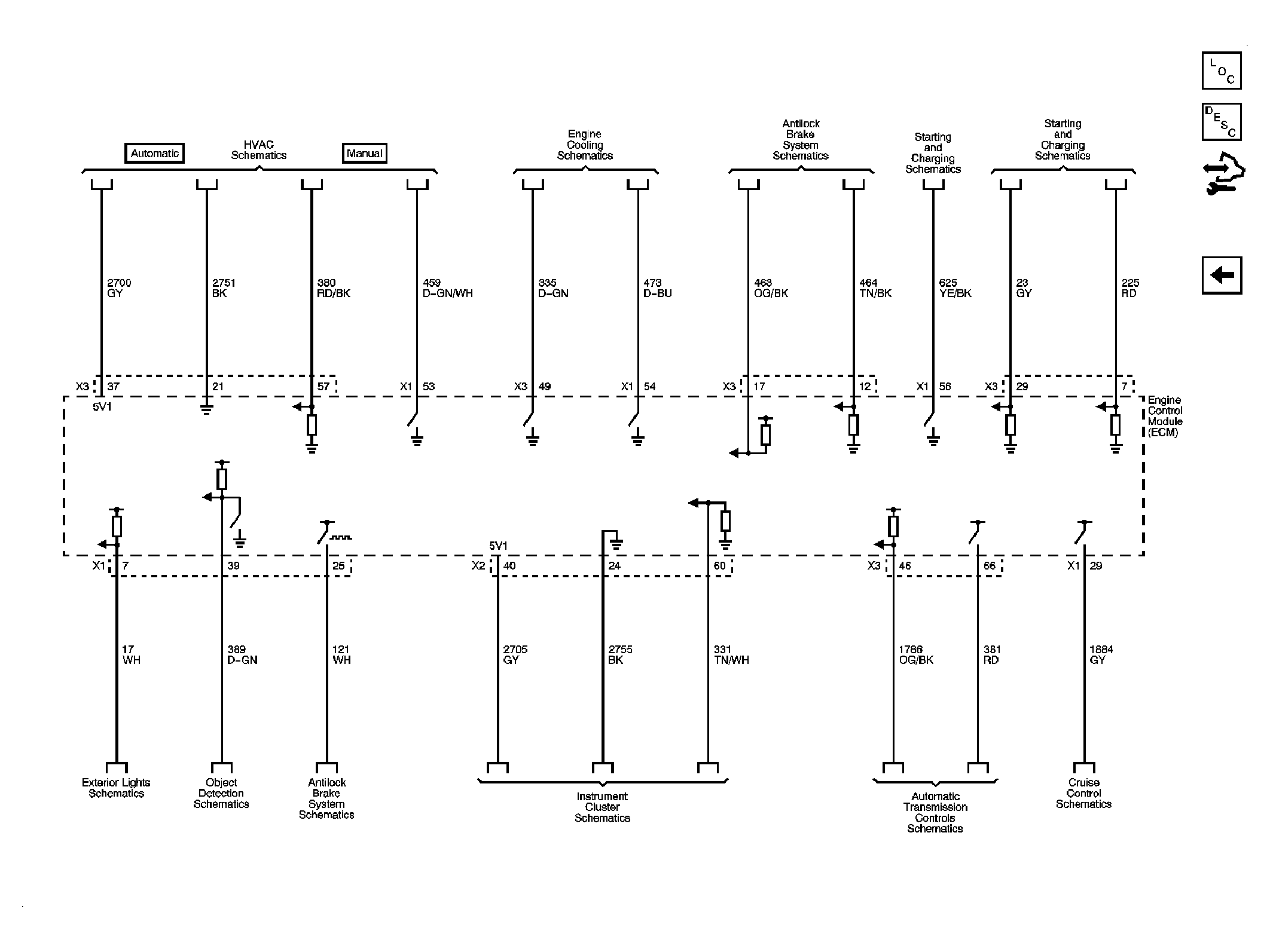

Fig 10: Monitored/Controlled Subsystem References

Courtesy of GENERAL MOTORS CORP.
