Fuel Tank Pressure Sensor Replacement (NU6)

Fuel Tank Pressure Sensor Replacement (NU6)

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

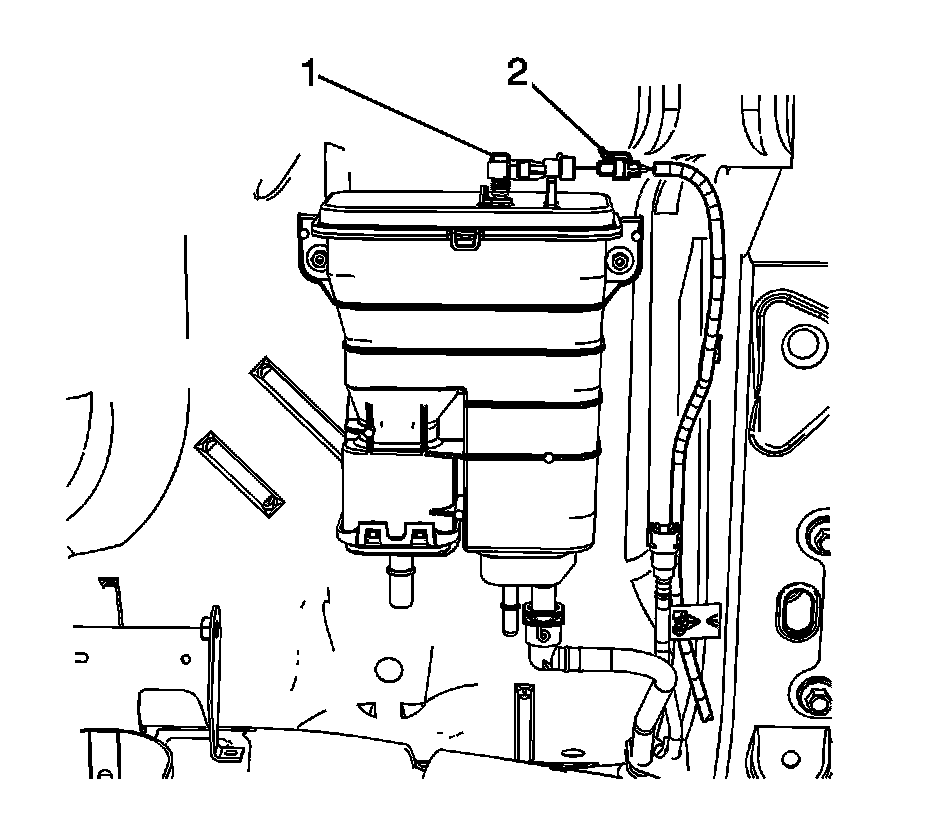

2. Disconnect the fuel tank wiring harness electrical connector (2) from the fuel tank pressure sensor.
3. Remove the fuel tank pressure sensor and seal assembly (1).

Installation Procedure




1. Install the fuel tank pressure sensor and seal assembly (1).
2. Connect the fuel tank wiring harness electrical connector (2) to the fuel tank pressure sensor.
3. Lower the vehicle.
