Air Cleaner Outlet Duct Replacement

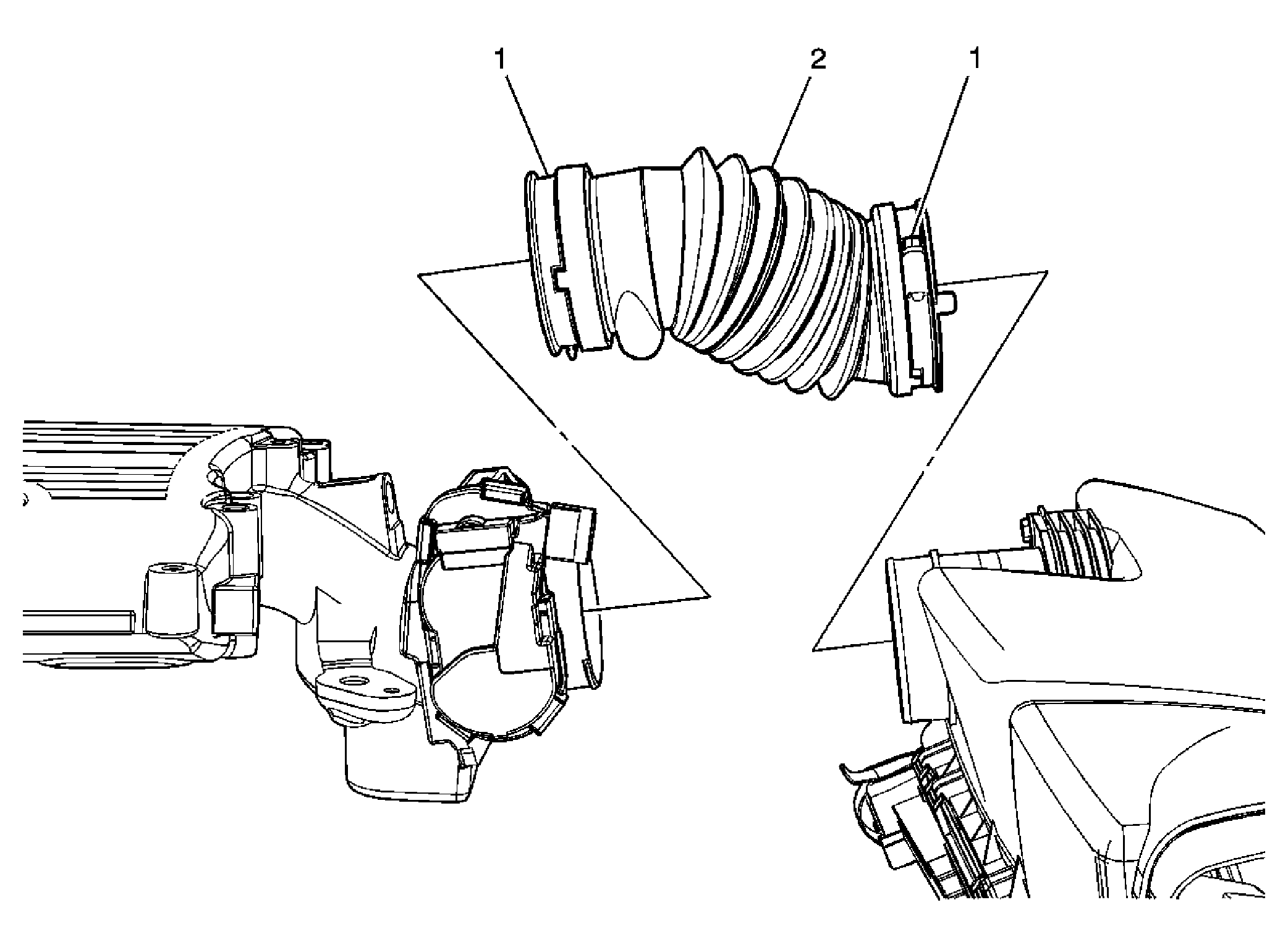

Fig 1: Identifying Air Cleaner Outlet Duct Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the PCV tube from the outlet duct. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement
1	Air Cleaner Outlet Duct Clamp (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m(35 lb in).
2	Air Cleaner Outlet Duct
