Installation Procedure

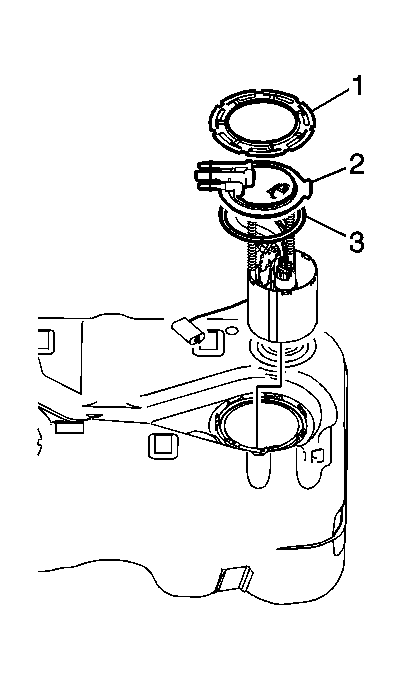

    Fig 1: Identifying Lock Ring, Fuel Sender Assembly & Fuel Pump Module O-Ring Seal
    GM2029605Courtesy of GENERAL MOTORS COMPANY
  1. Place a NEW fuel pump module O-ring seal (3) onto the fuel tank.
    2. NOTE:

    The bucket must be tipped slightly during installation to avoid bending the fuel level sensor float arm.

  2. Tilt the fuel sender so that the float arm can fit into the tank.
  3. Lower the fuel sender assembly (2) into the tank.
  4. Install the module lock ring (1), and move it into position on the top of the fuel sender.

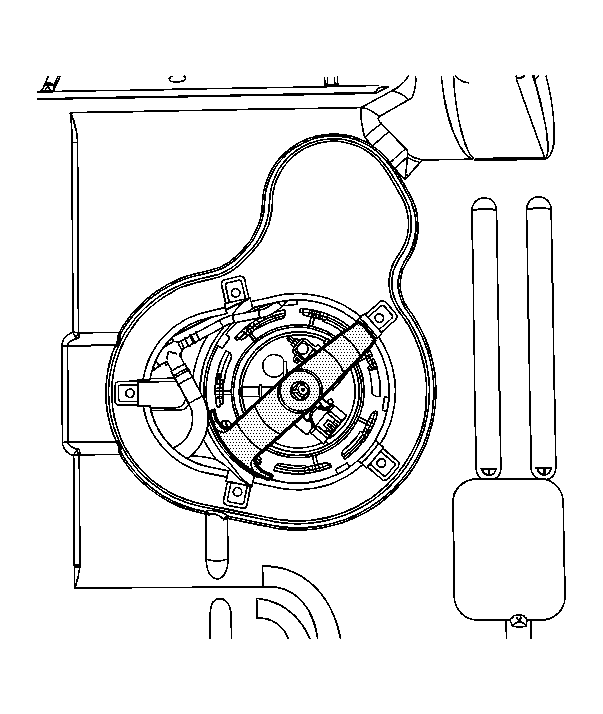

    5. Fig 2: Identifying J 45722
    GM1671980Courtesy of GENERAL MOTORS COMPANY
  5. Install the J 45722 to the lock ring.
    6. Fig 3: Identifying Lock Ring
    GM1642096Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Always replace the fuel sender seal when installing the fuel sender assembly. Replace the lock ring if necessary. Do not apply any type of lubrication in the seal groove.

    Ensure the lock ring is installed with the correct side facing upward. A correctly installed lock ring will only turn in a clockwise direction.

  6. Using the J 45722 and a breaker bar, rotate the fuel sender lock ring clockwise until the ring is locked into place on the fuel tank.
  7. Remove the J 45722 .

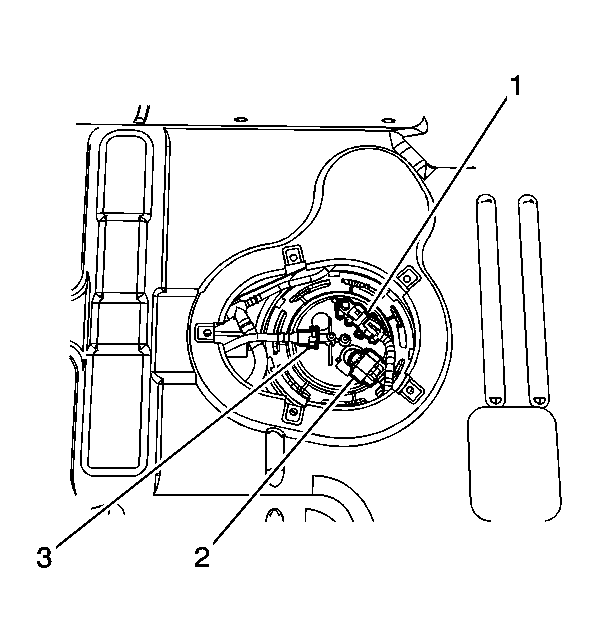

    8. Fig 4: Identifying Fuel Feed Pipe & Harness Connectors
    GM1671975Courtesy of GENERAL MOTORS COMPANY
  8. Position the fuel feed pipe and harness connectors.
  9. Connect the fuel level sensor wiring harness electrical connectors (1, 2) to the pressure sensor and sender.
  10. Connect the fuel feed rear pipe quick connect fitting (3) to the sender. Refer to Plastic Collar Quick Connect Fitting Service .
  11. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  12. Perform the following procedure in order to inspect for leaks:
    1. Turn ON the ignition, with the engine OFF for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition, with the engine OFF.
    4. Inspect for fuel leaks.
    13. Fig 5: Identifying Fuel Sender Access Hole Cover
    GM1671970Courtesy of GENERAL MOTORS COMPANY
  13. Install the fuel sender access hole cover.
    14. CAUTION:

    Refer to Fastener Caution .

  14. Install the fuel sender access hole cover bolts and tighten to 2 N.m(18 lb in).
  15. Install the rear compartment liner. Refer to Rear Compartment Trim Panel Replacement .
  16. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
