Subsystem References (1 of 4) Wiring Schematics

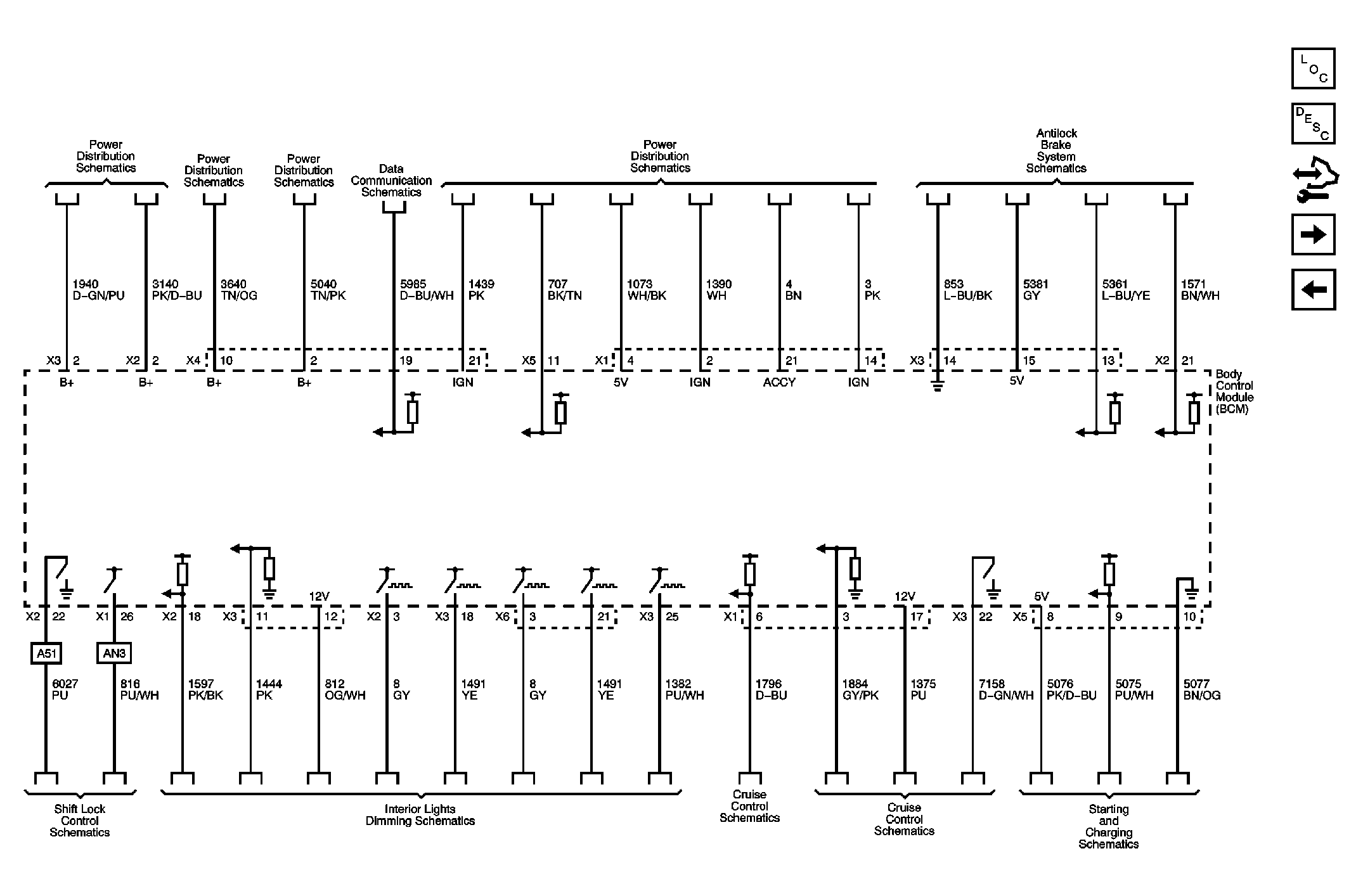

Fig 1: Subsystem References (1 of 4) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
