Serial Data Wake Up Wiring Schematics

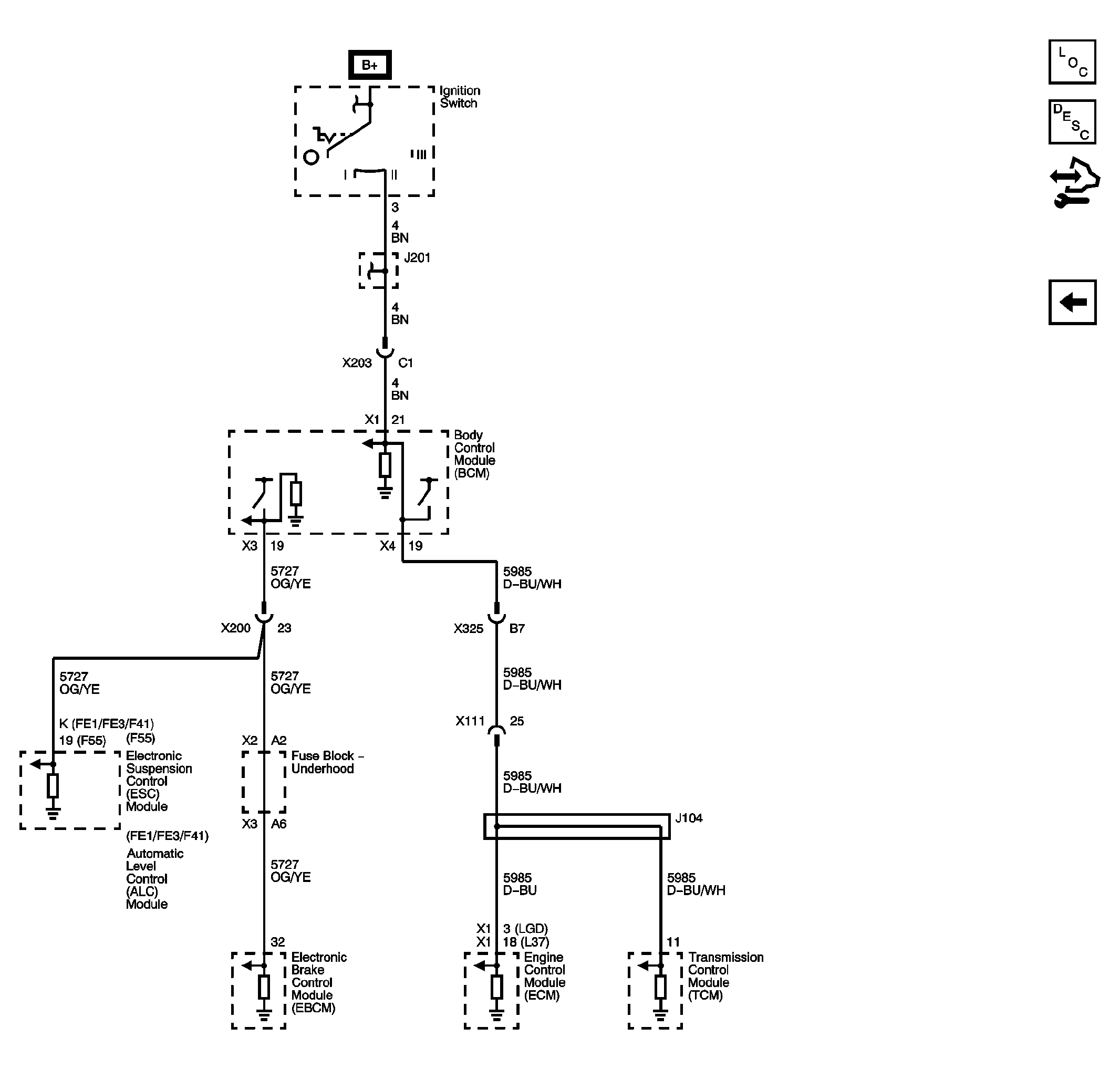

Fig 1: Serial Data Wake Up Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
