High Speed Serial Data Wiring Schematics

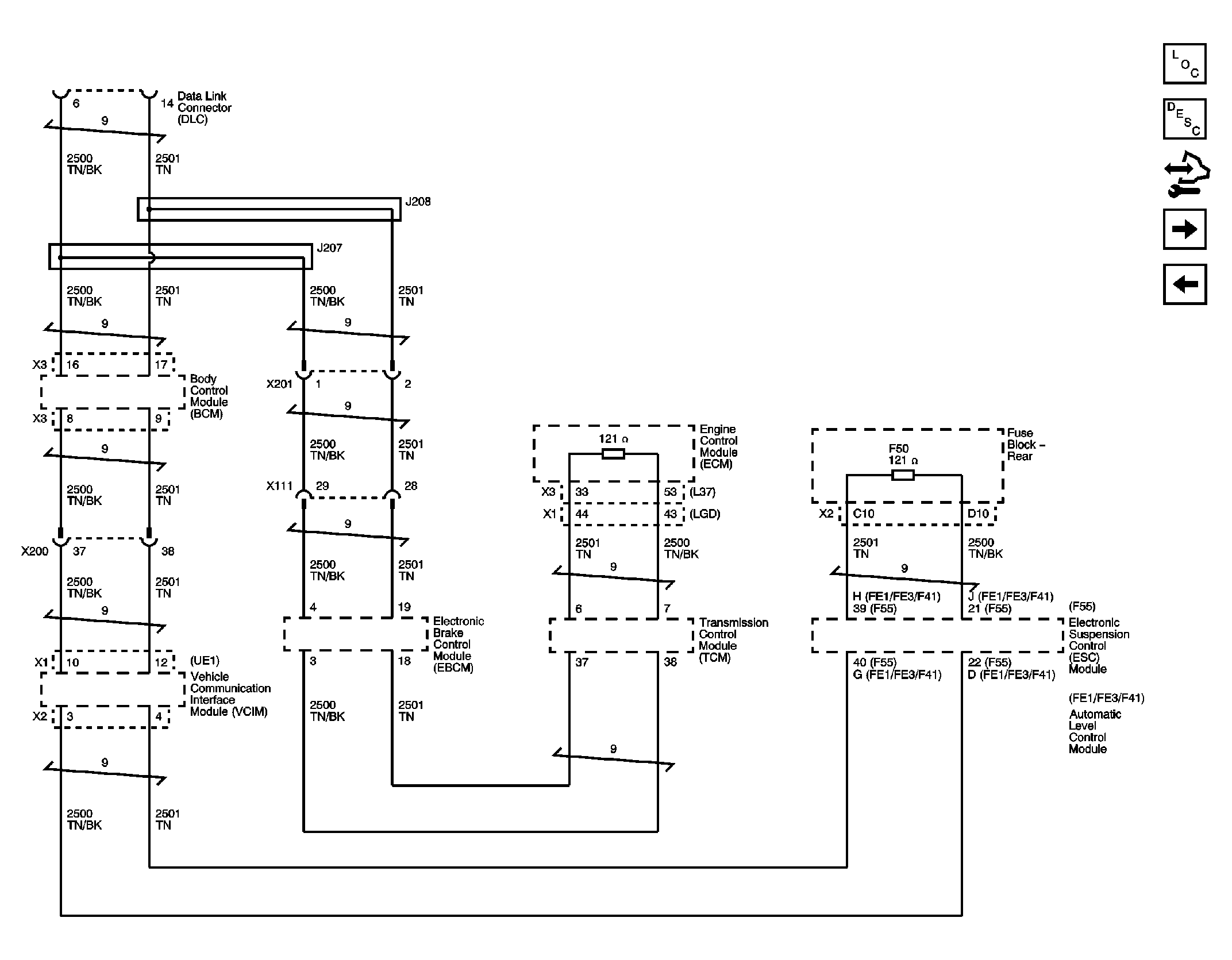

Fig 1: High Speed Serial Data Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
