Removal Procedure

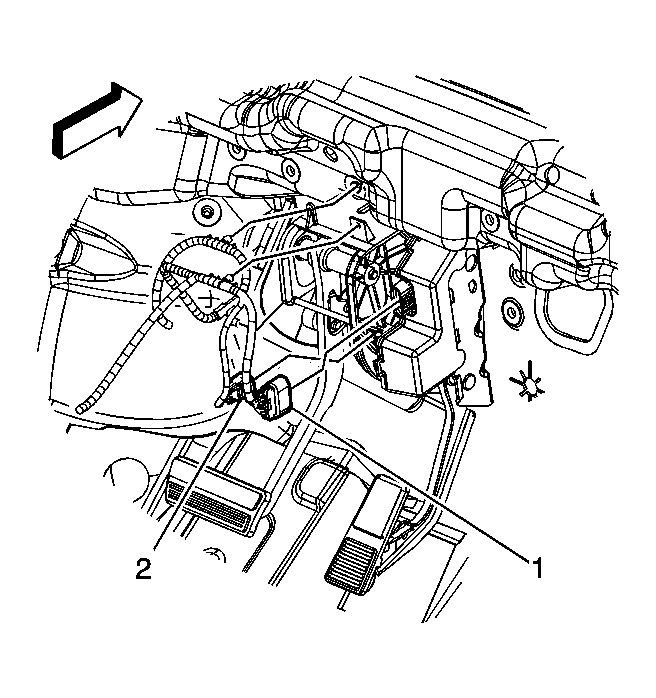

    Fig 1: Identifying Accelerator Pedal Position (APP) Sensor
    GM1671027Courtesy of GENERAL MOTORS COMPANY
  1. Remove the left instrument panel (I/P) sound insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
  2. Disconnect the body harness electrical connector (1) from the accelerator pedal position (APP) sensor.

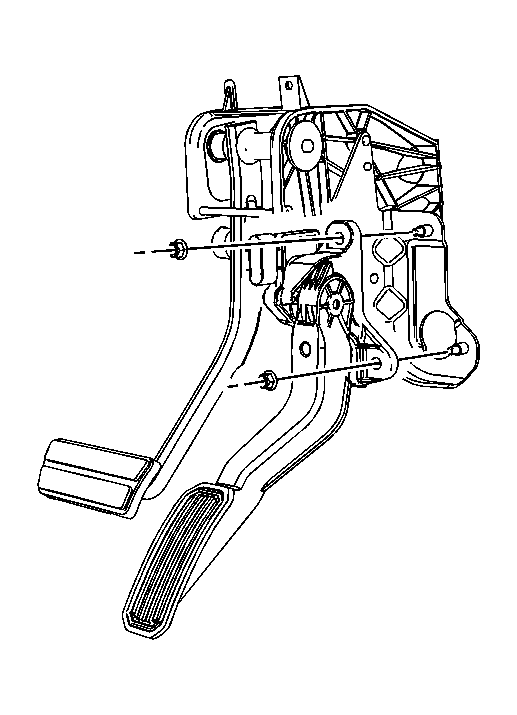

    3. Fig 2: Identifying Accelerated Pedal Nuts
    GM1671028Courtesy of GENERAL MOTORS COMPANY
  3. Remove the accelerated pedal nuts.
  4. Remove the accelerator pedal.
