Installation Procedure

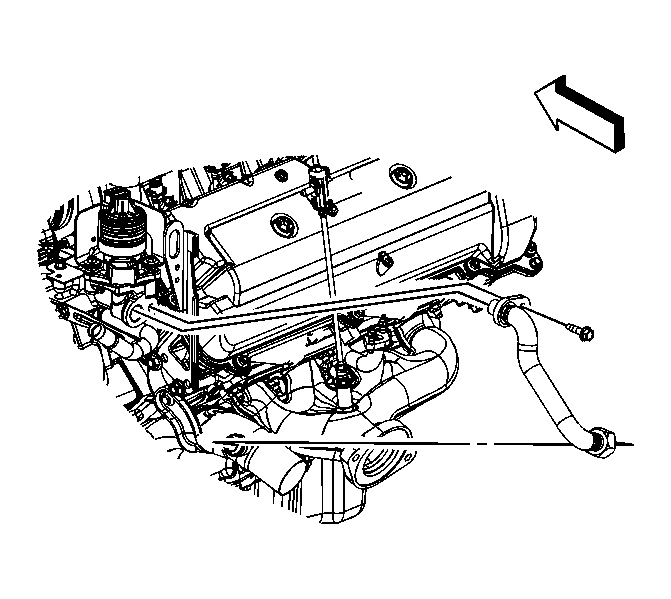

- Position the EGR valve pipe to the exhaust manifold.
- Tighten the EGR pipe nut at the exhaust manifold.
Tighten
Tighten the nut to 60 N.m (44 lb ft).
- Lower the vehicle.
- Install the EGR valve pipe bolt at the water pump housing.
Tighten
Tighten the bolt to 28 N.m (21 lb ft).
CAUTION:
Refer to Fastener Caution .
