Installation Procedure

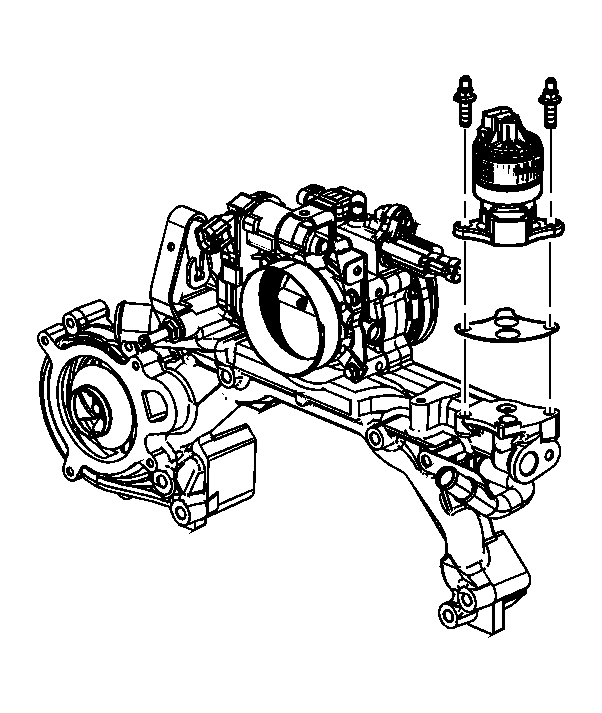

    Fig 1: View Of EGR Valve Bolts
    GM1564195Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW EGR gasket.
  2. Install the EGR valve.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the EGR valve bolts.

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

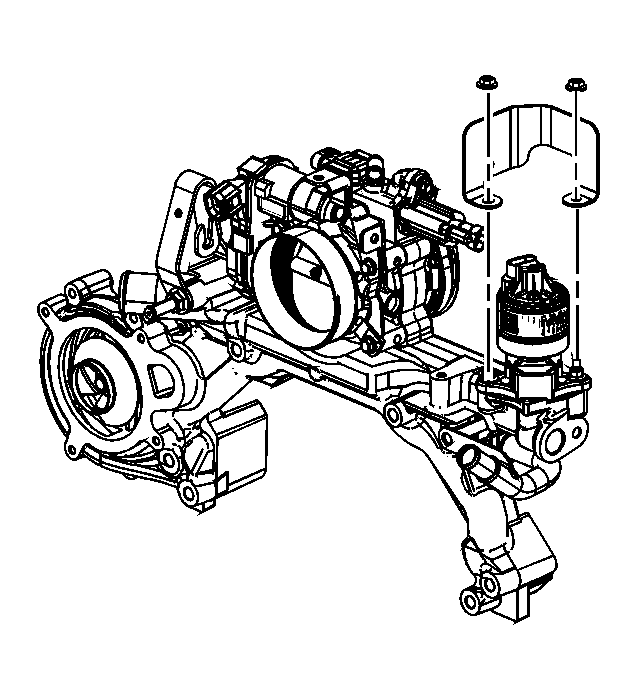

    4. Fig 2: Identifying EGR Bracket Shield Nuts
    GM1564178Courtesy of GENERAL MOTORS COMPANY
  4. Install the EGR bracket shield.
  5. Install the EGR bracket shield nuts.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

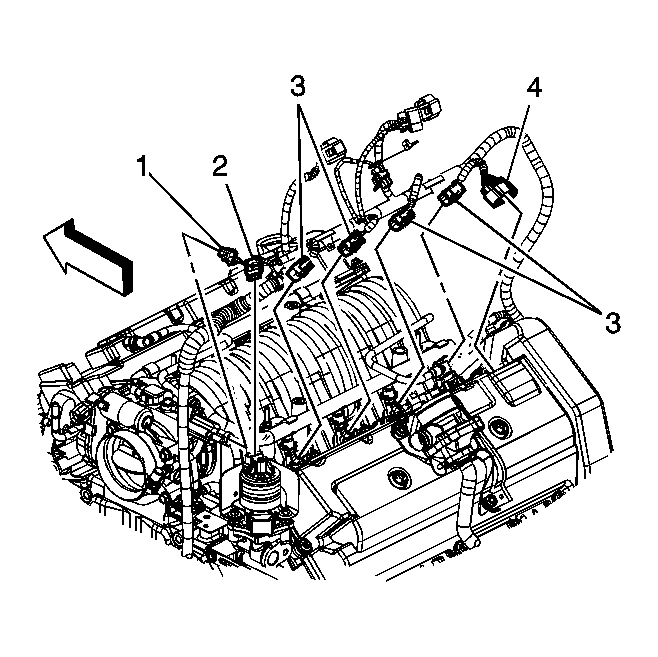

    6. Fig 3: Locating Engine Harness Electrical Connectors
    GM1662118Courtesy of GENERAL MOTORS COMPANY
  6. Connect the engine harness electrical connector (2) to the EGR valve.
  7. Install the fuel injector sight shield, if necessary. Refer to Fuel Injector Sight Shield Replacement .
