Manifold Absolute Pressure Sensor Replacement

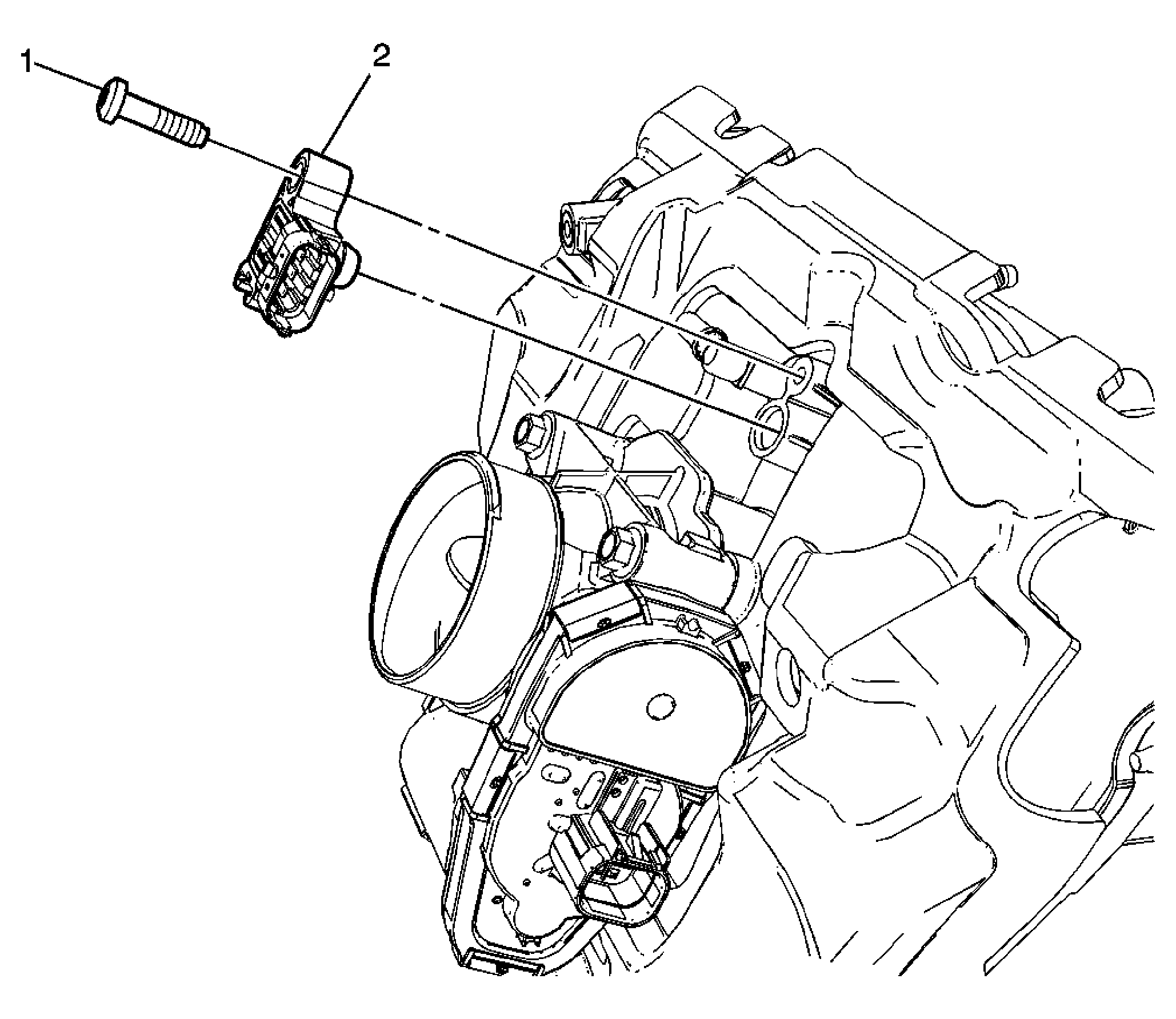

Fig 1: Manifold Absolute Pressure Sensor
GM2207666Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manifold Absolute Pressure Sensor Fastener
CAUTION: Refer to Fastener Caution .

Tighten:  4 N.m (35 lb in)
2 Manifold Absolute Pressure Sensor
