Shift Lock Control Wiring Schematics

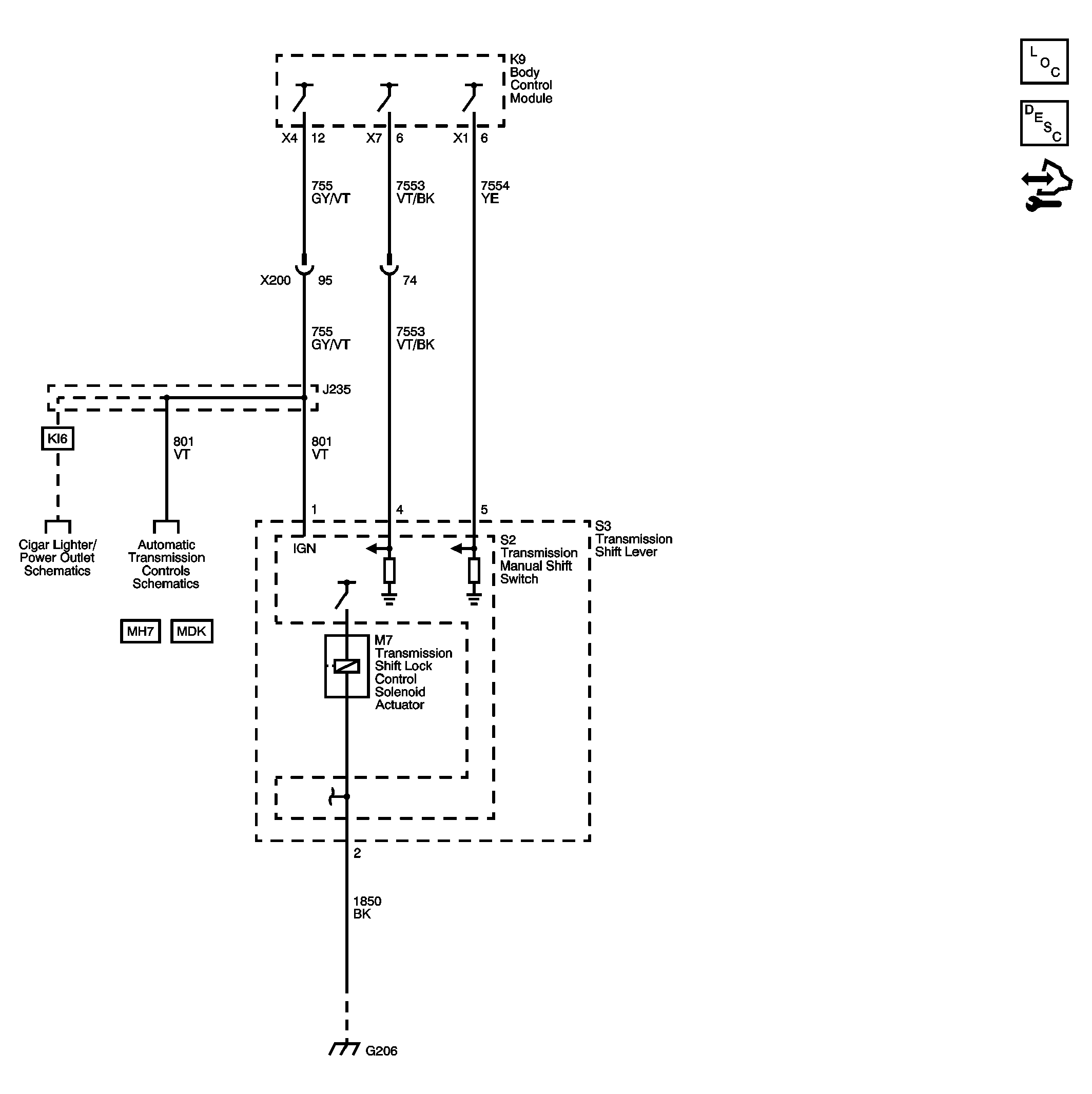

Fig 1: Shift Lock Control Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
