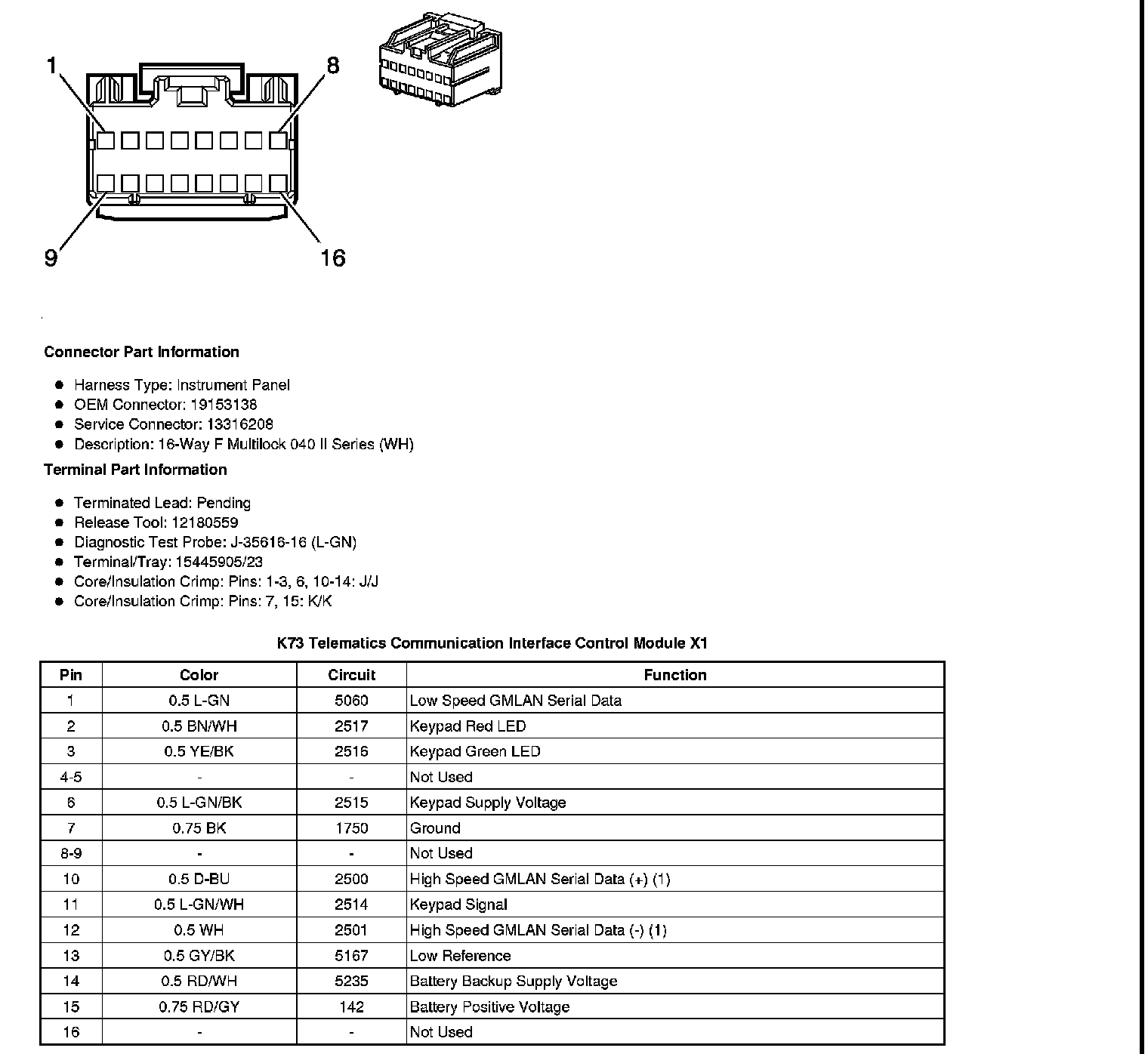

K73 Telematics Communication Interface Control Module X1
Component Connector End Views
K73 Telematics Communication Interface Control Module X1
