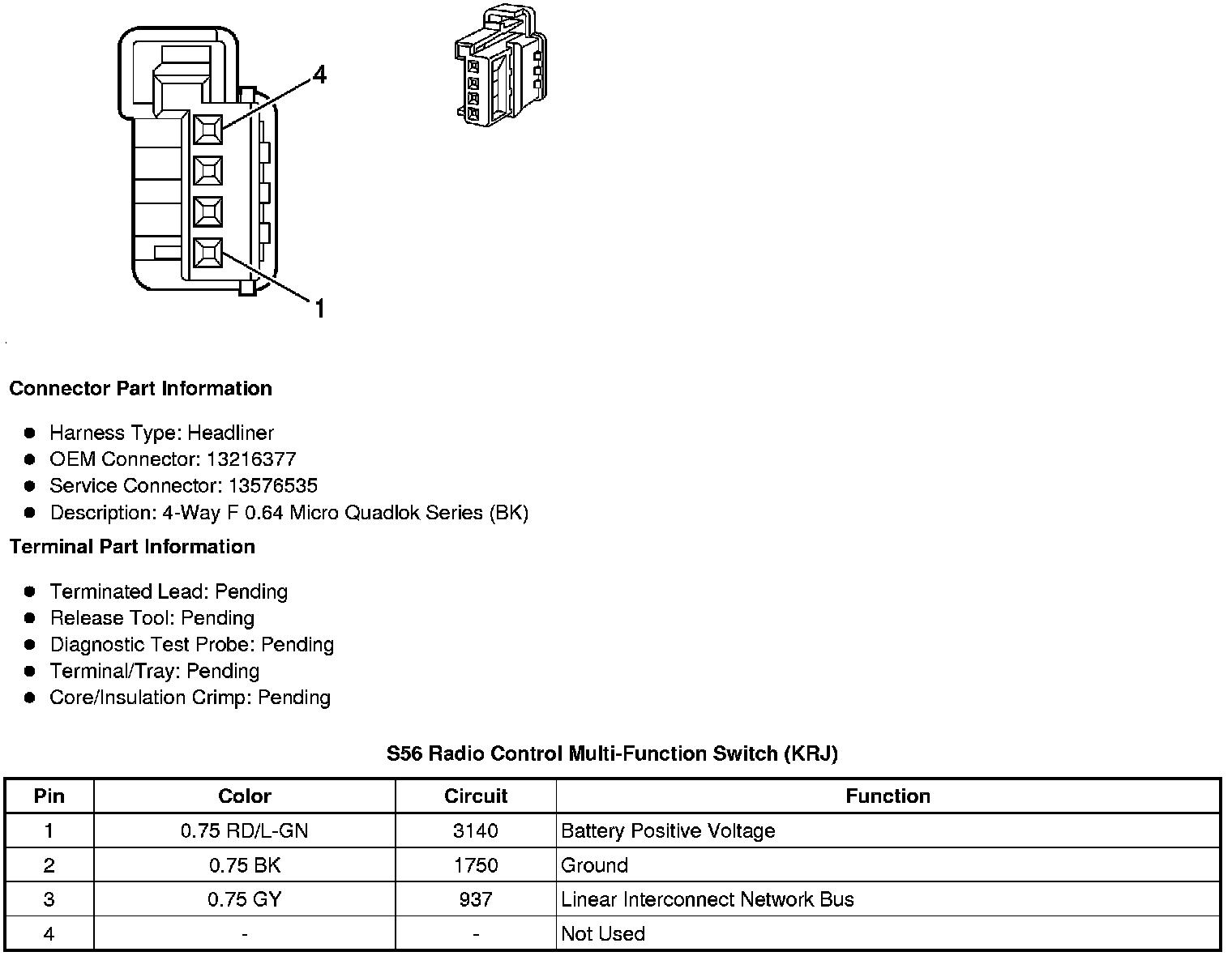

Radio Control Multi-Function Switch (KRJ) S56
Component Connector End Views
S56 Radio Control Multi-Function Switch (KRJ)
