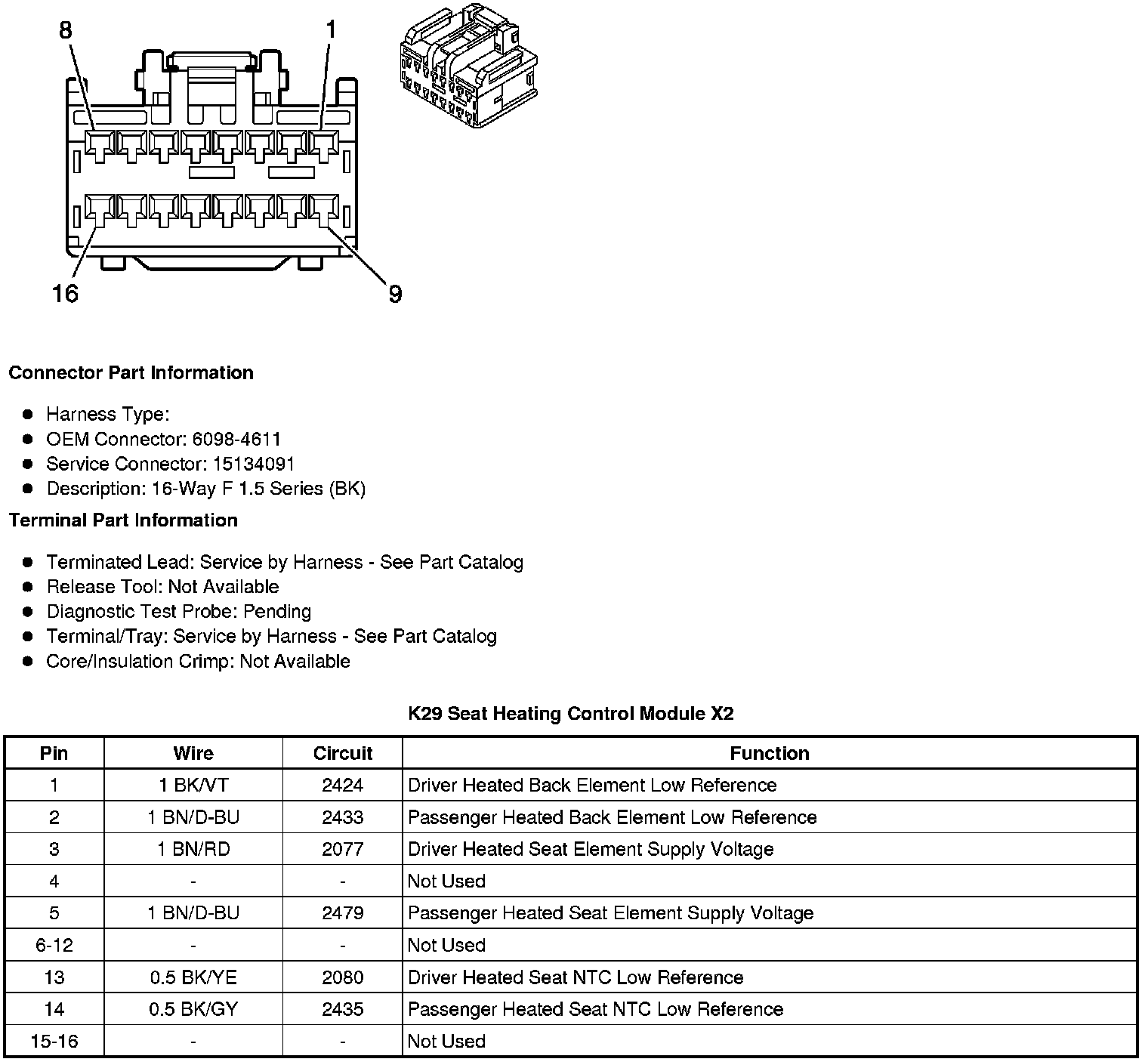

K29 Seat Heating Control Module X2




Component Connector End Views

K29 Seat Heating Control Module X2
