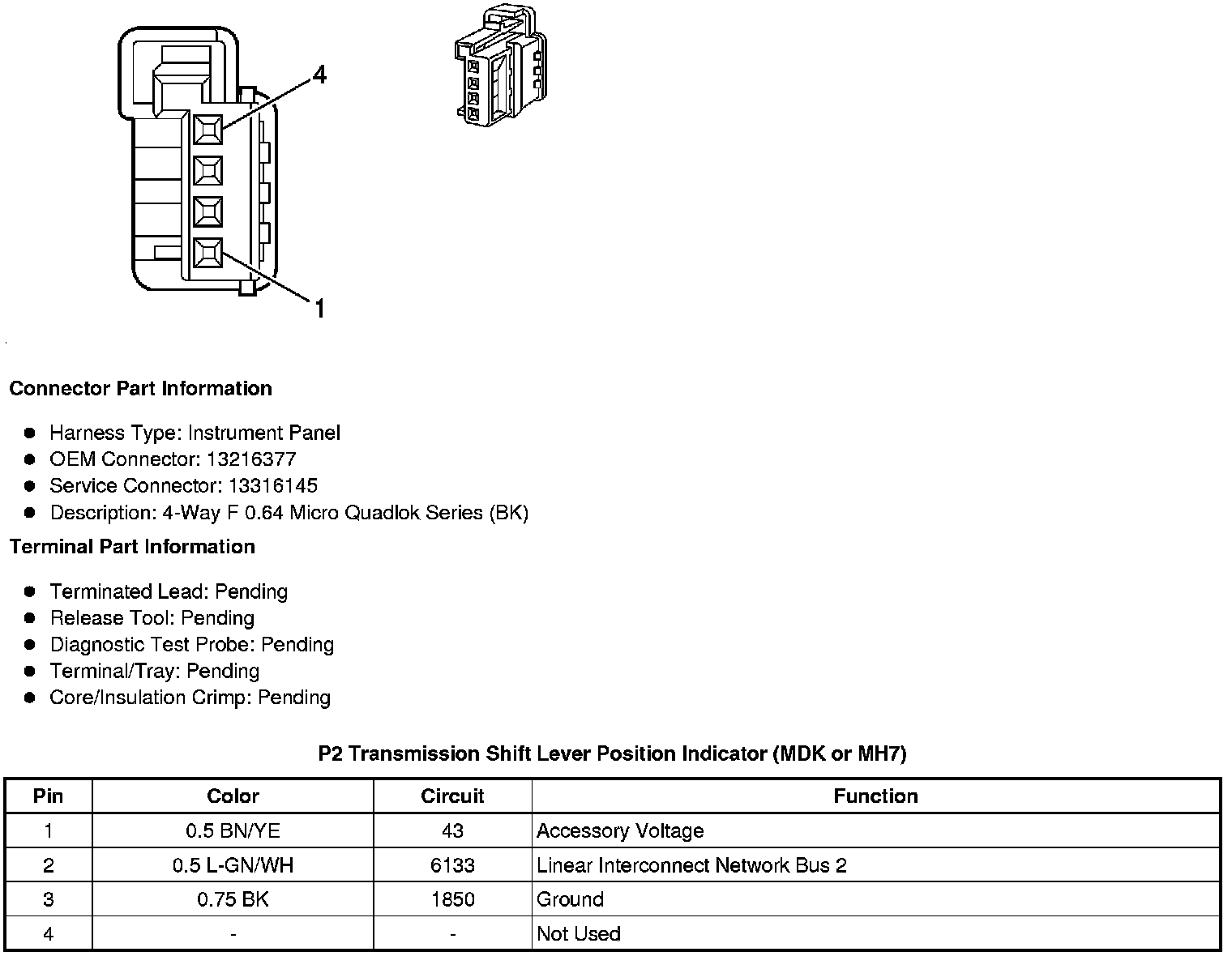

Shift Indicator - A/T
Component Connector End Views
P2 Transmission Shift Lever Position Indicator (MDK or MH7)
