Transmission Mode Switch, A/T




Component Connector End Views

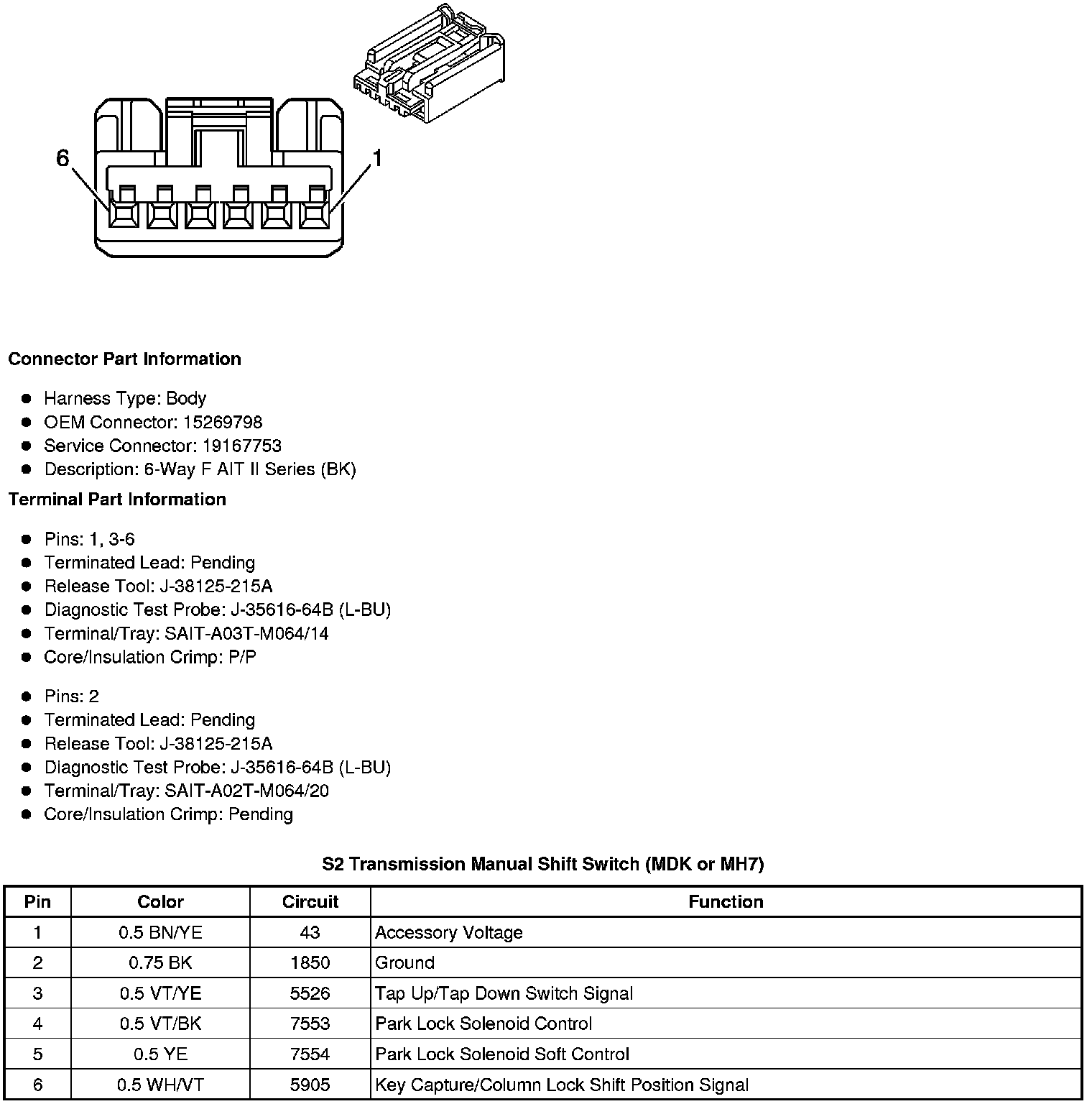

S2 Transmission Manual Shift Switch (MDK or MH7)
