Body Control Systems




Body Control System Schematics

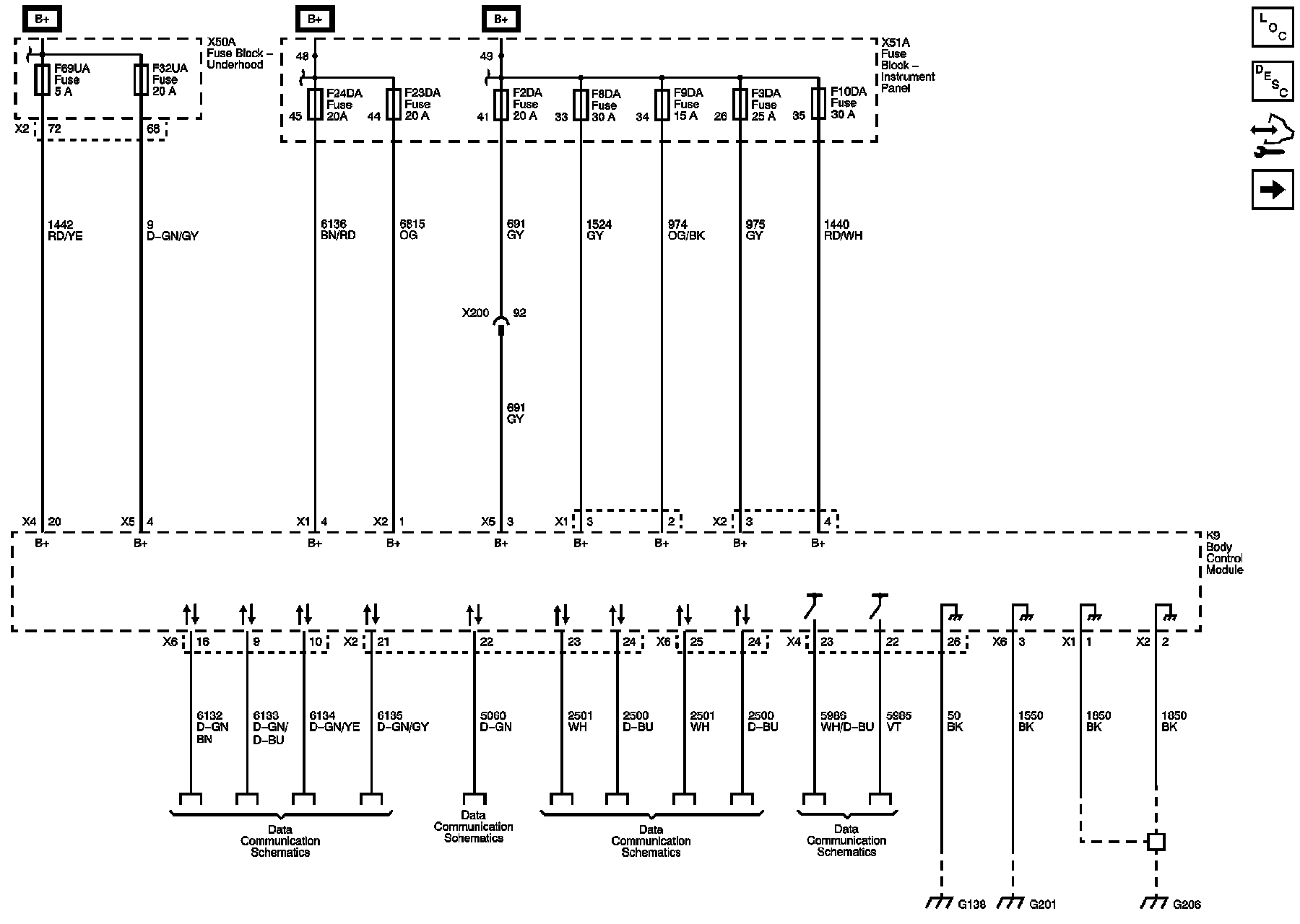

Power, Ground and Serial Data

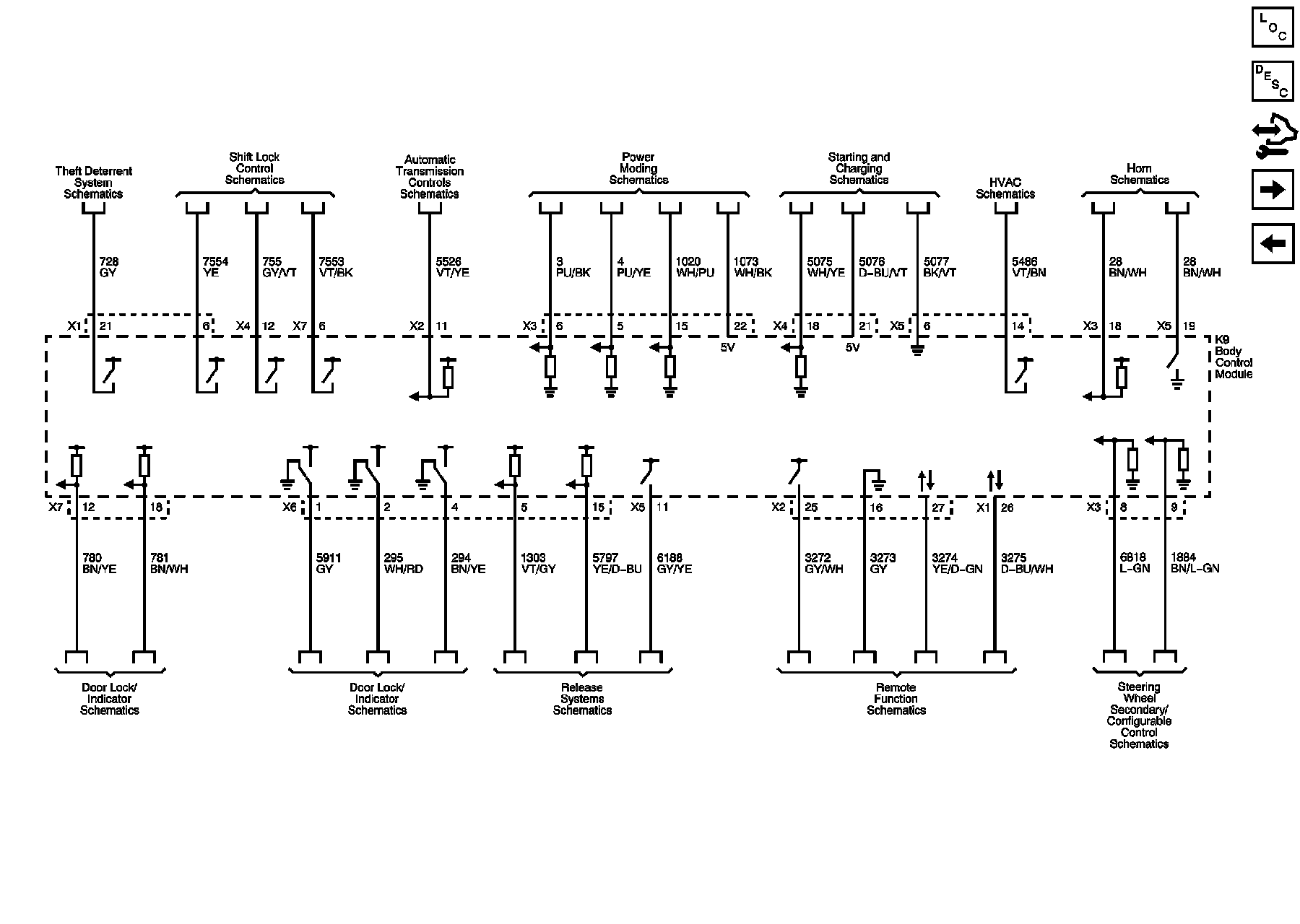

Monitored/Controlled Subsytem References (1 of 3)

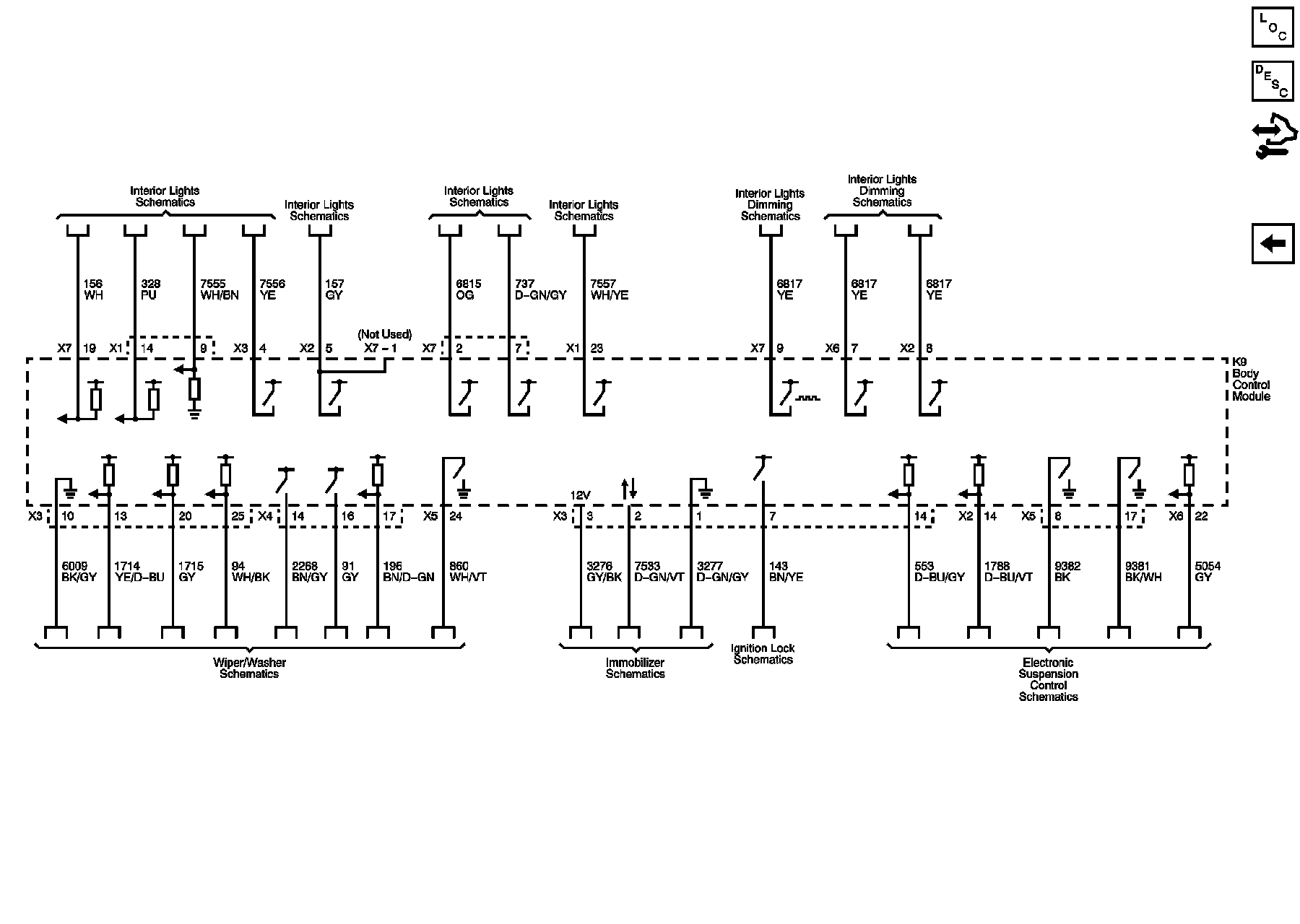

Monitored/Controlled Subsytem References (2 of 3)

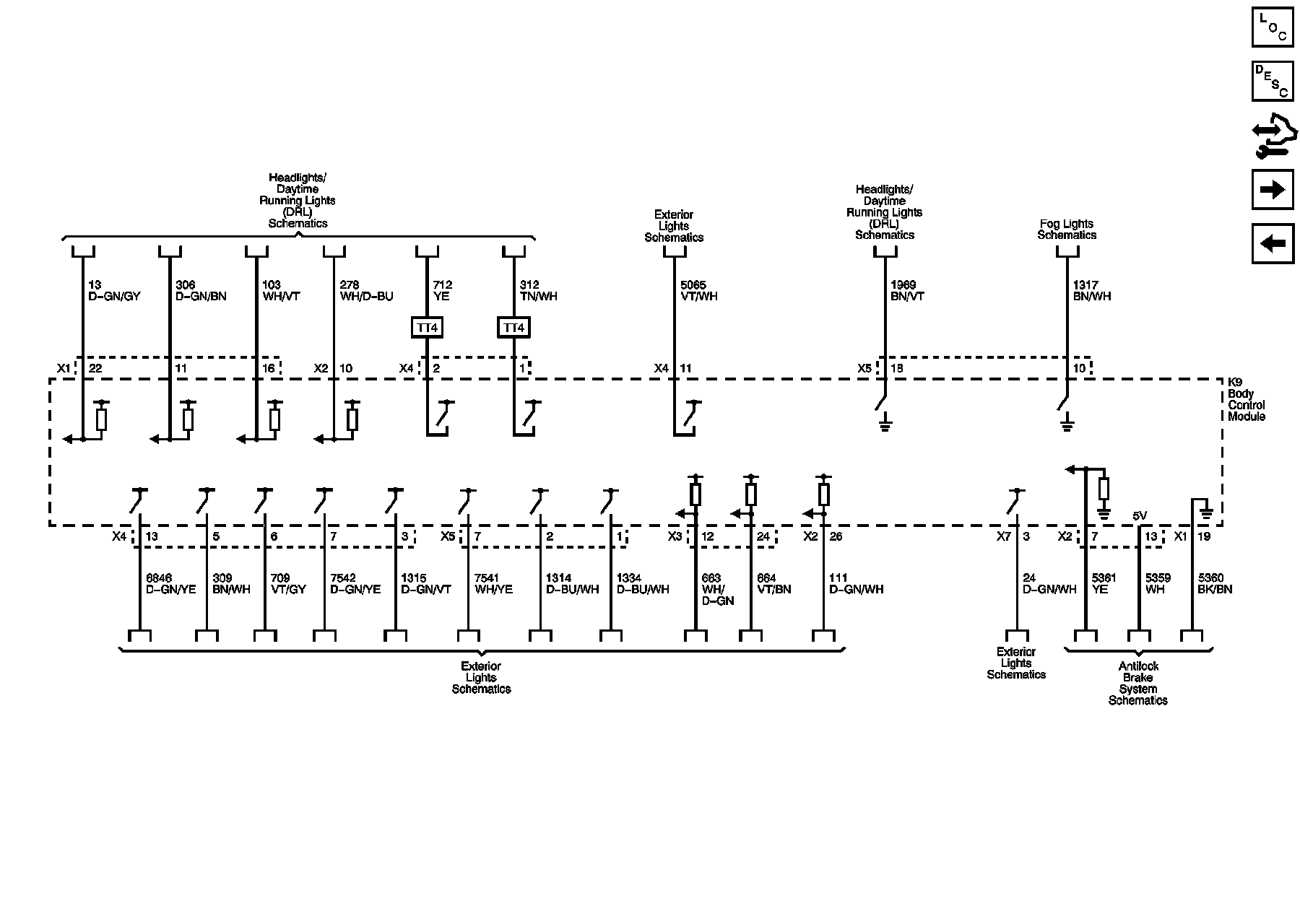

Monitored/Controlled Subsytem References (3 of 3)
